High-performance Zipwake 600E PRO straight trim system for vessels up to 30 m. Dual-servo interceptors provide fast, automatic pitch and roll stabilization, enhancing comfort, safety, and fuel efficiency for professional and commercial marine applications Read more.
The Zipwake Series 600E PRO Straight Kit Box Trim System is a professional-grade dynamic trim control solution designed for high-performance and commercial vessels up to 30 m (≈ 100 ft) in length and speeds of up to 60 knots. As part of the E PRO Series, this system represents Zipwake’s most advanced generation of interceptors — providing stronger lift, faster response, and enhanced endurance for long operational hours and demanding conditions.
Equipped with two 600 mm straight interceptors, the Series 600E PRO delivers precise pitch and roll stabilization for planing and semi-planing hulls. With its dual brushless servos, longer 60 mm stroke, and rapid 40 mm/s actuation rate, it ensures exceptional control, fuel efficiency, and onboard comfort. The PRO system is engineered for full automatic operation, integrating seamlessly with NMEA 2000 networks, GPS, and 3D sensors for real-time performance optimization.
Straight interceptor configuration (600 mm): Perfect for flat transoms, providing consistent and balanced lift across the hull.
PRO dual-servo technology: Brushless, high-speed actuators for powerful and precise motion control.
Automatic stabilization: Integrated GPS, gyro, and 3D accelerometer sensors continuously correct pitch and roll.
Improved fuel efficiency: Reduces drag and wave resistance while optimizing trim angle for smoother cruising.
Rugged and watertight design: IP68-rated interceptors and IP67-rated electronics for long-lasting performance.

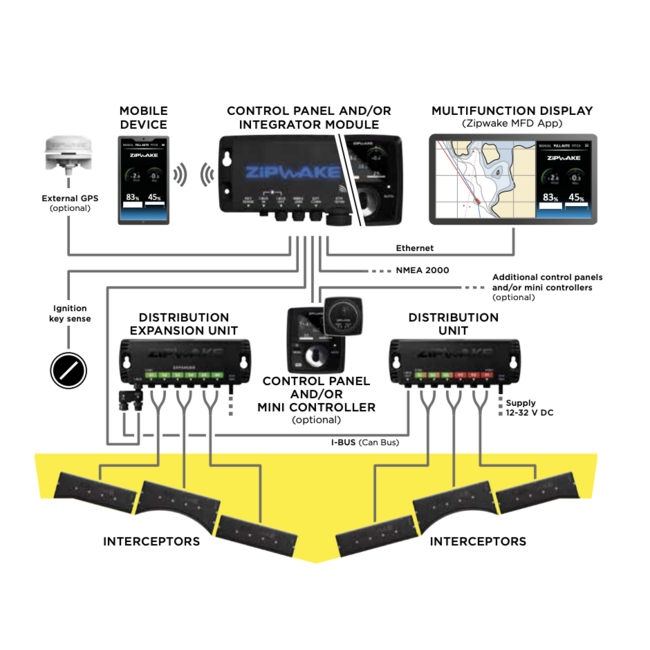

System scalability: The DU-E PRO can power up to three dual-servo interceptors and expand to six with the DU-EX PRO.
Professional endurance: Built for continuous operation in harsh marine environments.

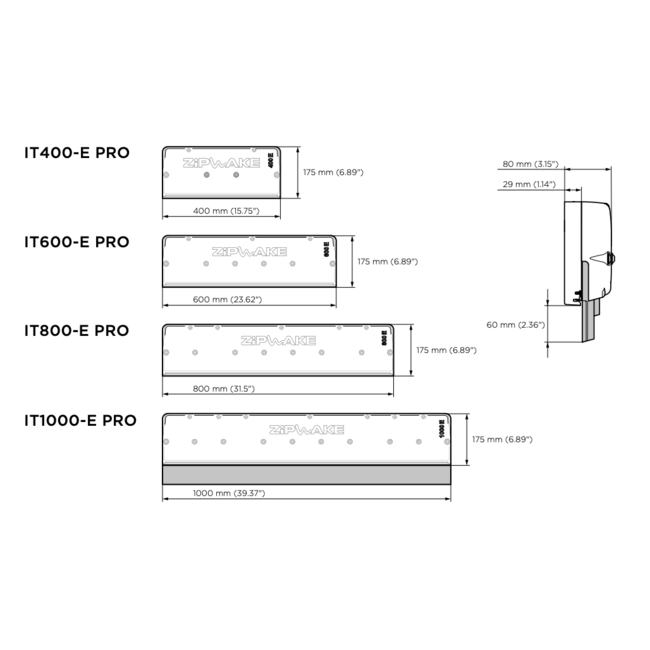

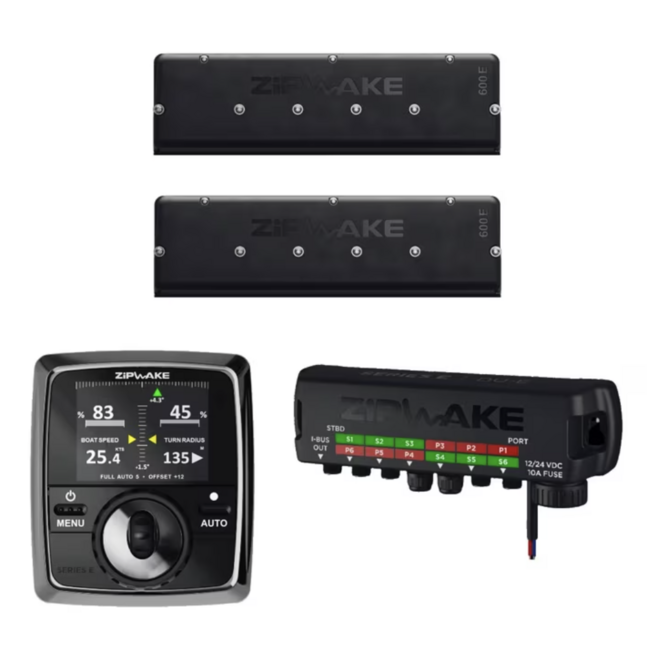

Straight Interceptors (IT600-E PRO Straight)
Two 600 mm straight interceptors equipped with dual brushless servos for rapid blade response and powerful lift. Designed for planing and semi-planing vessels requiring precision stabilization at high speeds.

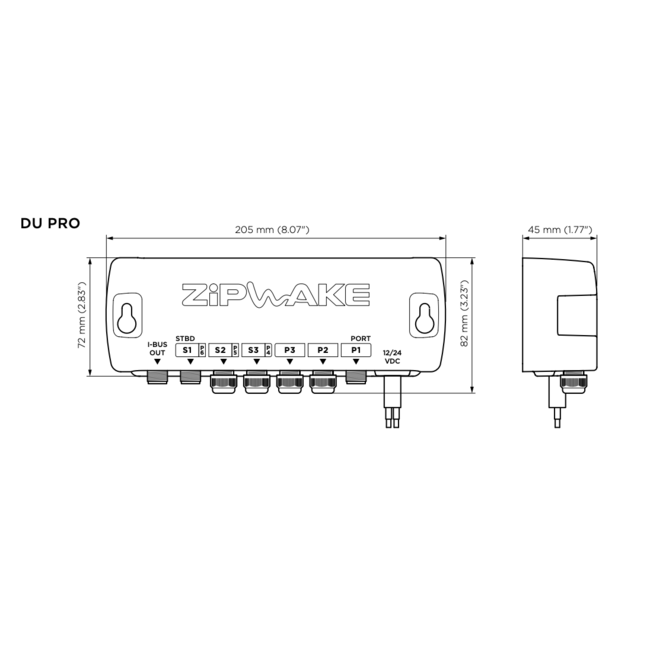

Distribution Unit (DU-E PRO)
The central power and communication hub of the system. It provides energy and connectivity to the interceptors with built-in protection against overload and short circuits. Fully waterproof (IP67), oil-resistant, and ignition-protected for safe installation below deck.

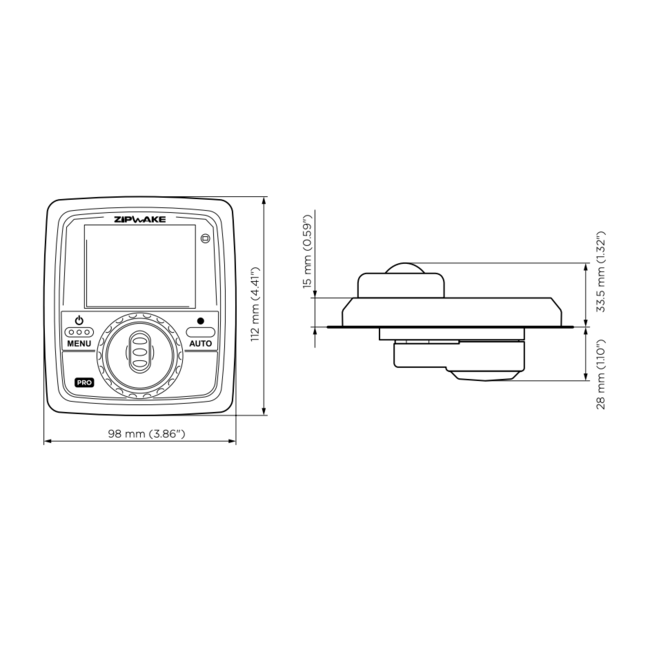

Control Panel (CP-E PRO)
A bright, sunlight-readable 3D control panel featuring a large color display and dual dials for intuitive manual control. Enables full automatic operation, continuously displaying vessel speed, pitch, roll, and interceptor positions.
Interceptor type: Straight (flat transom)
Interceptor length: 600 mm (23.6 in)
Blade stroke: 60 mm (2.4 in)
Actuation speed: 40 mm/s
Maximum vessel speed: Up to 60 knots (≈ 110 km/h)
Suitable vessel length: Up to 30 m (≈ 100 ft)
Voltage range: 12–32 V DC
Power consumption: ≈ 50 W max
Ingress protection: IP68 (interceptors), IP67 (DU & CP)
Servo type: Dual brushless, submersible actuators
Connector type: M12 5-pin circular
Cable length: 3 m standard (extendable to 6 m)
Operating temperature: 0 °C – +40 °C (32 °F – 104 °F)
Storage temperature: –40 °C – +90 °C (–40 °F – 194 °F)
Kit box weight: ≈ 18 kg (depending on configuration)

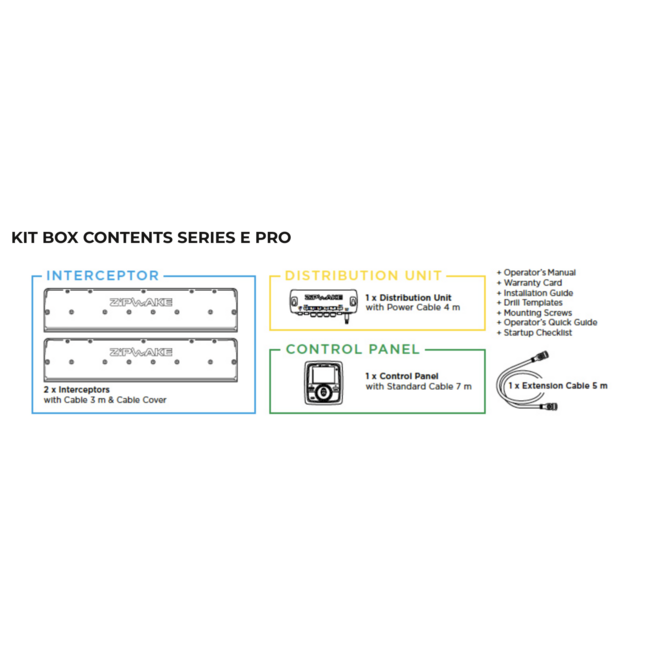

2 × Straight Interceptors (600 mm) with 3 m cables and mounting plates
1 × Distribution Unit (DU-E PRO) with 4 m power cable
1 × Control Panel (CP-E PRO)
1 × Extension Cable
Operator’s Manual
Installation Guide
Drill Templates
Mounting Screws
Quick Start Guide
Warranty Card

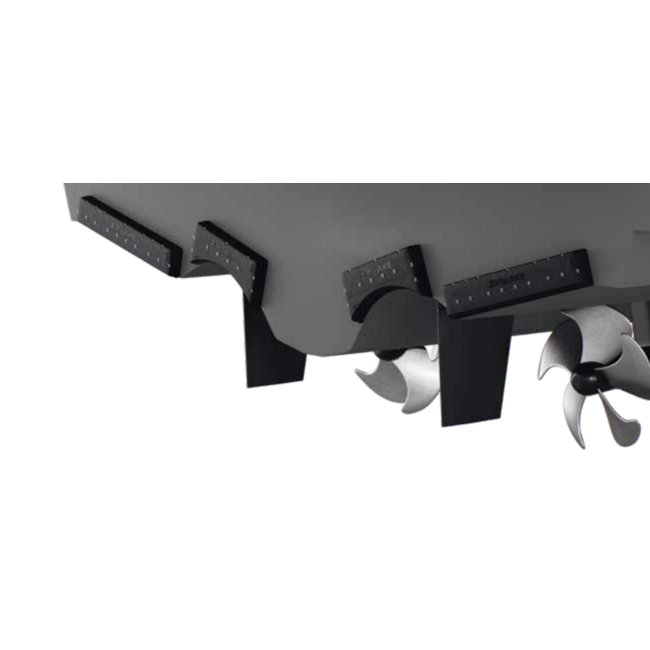

The straight interceptors must be installed flush to the transom using the provided templates for optimal lift distribution and precise alignment. The Distribution Unit should be placed in a dry and accessible area below deck, while the Control Panel is mounted at the helm for full visibility and manual override capability.
Cable penetrations below the waterline must be sealed with watertight grommets to preserve IP rating. The DU-E PRO allows expansion up to six interceptors without extra connectors or power units, ensuring flexibility for larger or more complex hull layouts.
