Professional Zipwake 600E PRO chine trim system for vessels up to 30 m. Dual-servo interceptors deliver fast, automatic pitch and roll control for V-shaped hulls, improving stability, fuel efficiency and comfort under demanding marine conditions. Read more.
The Zipwake Series 600E PRO Chine Kit Box Trim System is a professional, high-performance dynamic trim control solution developed for vessels up to 30 m (≈ 100 ft) and speeds up to 60 knots.
As part of the Series E PRO range, it represents Zipwake’s most advanced generation of interceptors — featuring larger, faster dual-servo units with brushless motors, extended blade stroke, and enhanced durability for demanding commercial and long-hour operations.
The chine configuration is specifically designed for angled or V-shaped hull surfaces, optimizing lift and roll control on deep-V, patrol, and multi-hull vessels. With full automatic stabilization, integrated GPS and 3D sensors, and state-of-the-art actuation performance, the 600E PRO delivers precise control, improved fuel efficiency, and smoother operation in all sea conditions.
Chine-optimized interceptor (600 mm): Tailored for angled hulls to generate maximum lift and effective roll correction.
PRO dual-servo technology: Faster actuation (40 mm/s) and longer blade stroke (60 mm) ensure smooth, high-torque performance.
Automatic stabilization: Intelligent algorithms continuously adjust pitch and roll for improved comfort and safety.
Fuel and efficiency benefits: Reduces drag and wave impact, resulting in lower fuel consumption and greater range.
Durable professional design: IP68-rated interceptors and IP67 electronics, oil-resistant and ignition-protected.
Intuitive control panel: Bright 3D color display with dual dials for real-time monitoring and adjustments.
System scalability: DU-E PRO supports up to three dual-servo interceptors; expandable to six with DU-EX PRO.
Chine Interceptors (IT600-E PRO Chine)
Two 600 mm chine interceptors with brushless dual-servo actuators, providing rapid, precise blade motion and powerful lift for optimal roll and pitch control on V-shaped hulls.

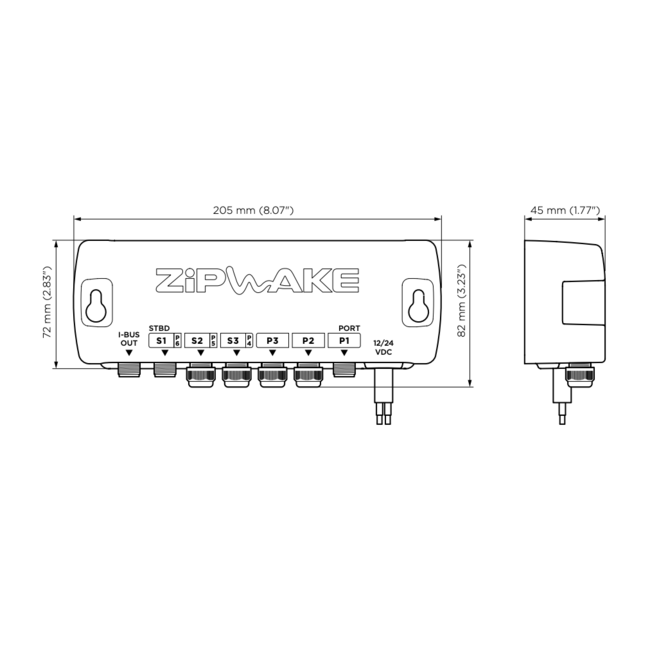

Distribution Unit (DU-E PRO)
Central power and communication hub connecting and supplying the interceptors. Built-in protection against short circuit and overload. Rugged, waterproof (IP67), oil-resistant, and ignition-protected for safe installation below deck.

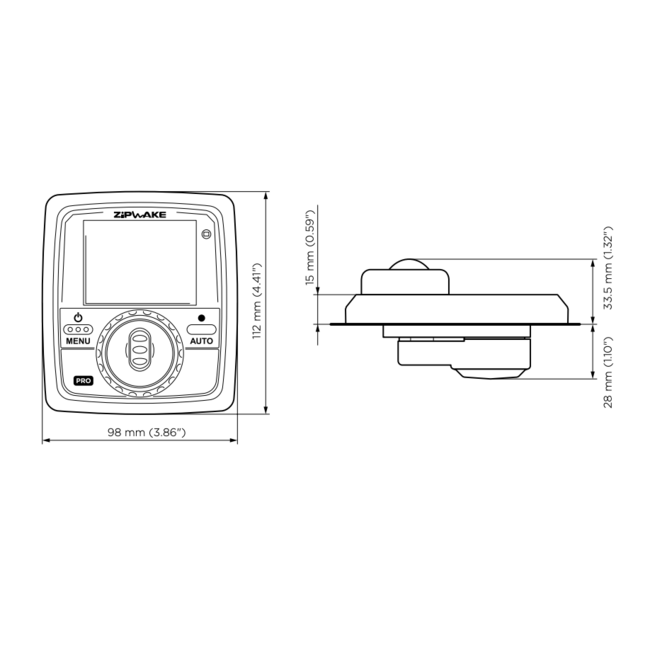

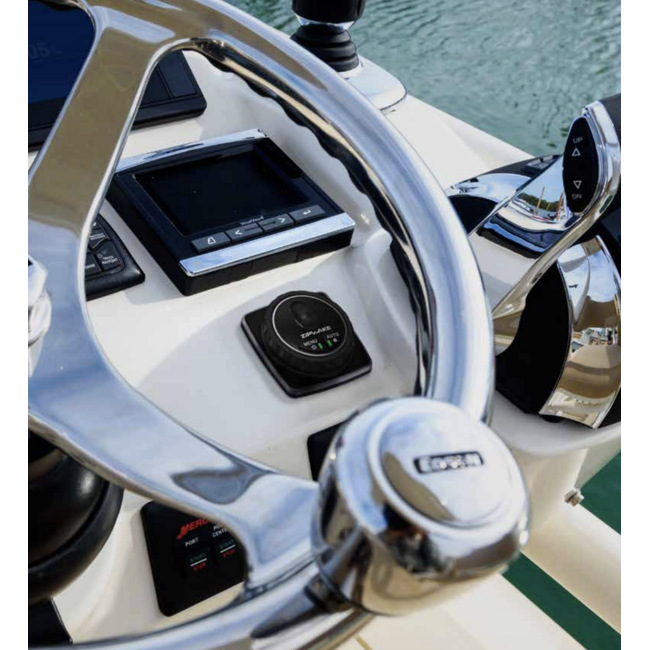

Control Panel (CP-E PRO)
A large, sunlight-readable color display with dual control dials for intuitive manual adjustment and full automatic mode. Integrated GPS, gyro, and accelerometer sensors continuously monitor the vessel’s motion, displaying speed, pitch, roll, and interceptor position in real time.
Interceptor type: Chine (angled hull)
Interceptor length: 600 mm (23.6 in)
Blade stroke: 60 mm (2.4 in)
Actuation speed: 40 mm/s
Maximum vessel speed: Up to 60 knots (≈ 110 km/h)
Vessel length: Up to 30 m (≈ 100 ft)
Voltage range: 12 – 32 V DC
Power consumption: Approx. 50 W max
Ingress protection: IP68 (interceptors), IP67 (DU & CP)
Servo type: Dual brushless, submersible actuators
Connector type: M12 5-pin circular
Cable length: 3 m standard (extendable to 6 m)
Operating temperature: 0 °C – +40 °C (32 °F – 104 °F)
Storage temperature: –40 °C – +90 °C (–40 °F – 194 °F)
Kit box weight: ≈ 18 kg (depending on configuration)

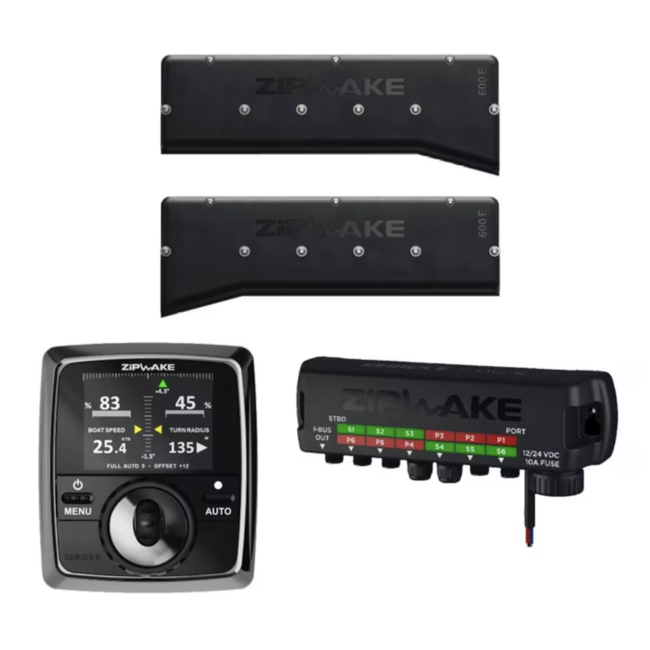

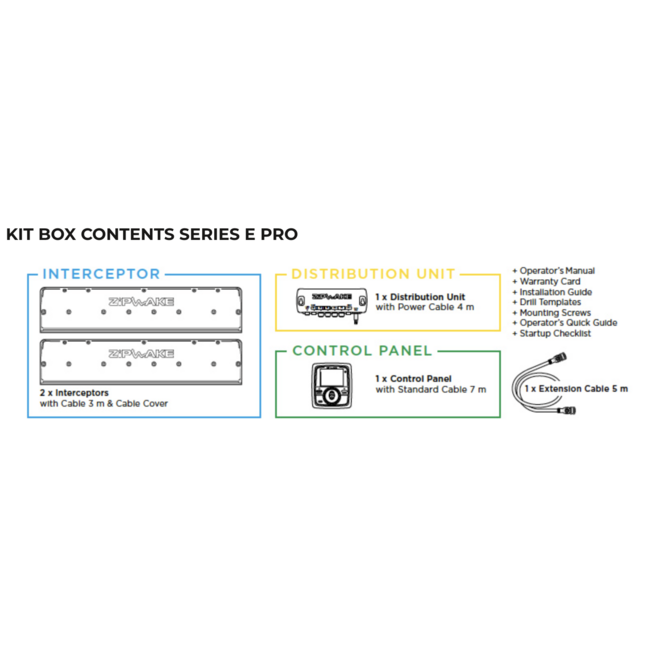

2 × Chine Interceptors (600 mm) with 3 m cables and mounting plates
1 × Distribution Unit (DU-E PRO) with 4 m power cable
1 × Control Panel (CP-E PRO)
1 × Extension Cable
Operator’s Manual
Installation Guide
Drill Templates
Mounting Screws
Quick Start Guide
Warranty Card

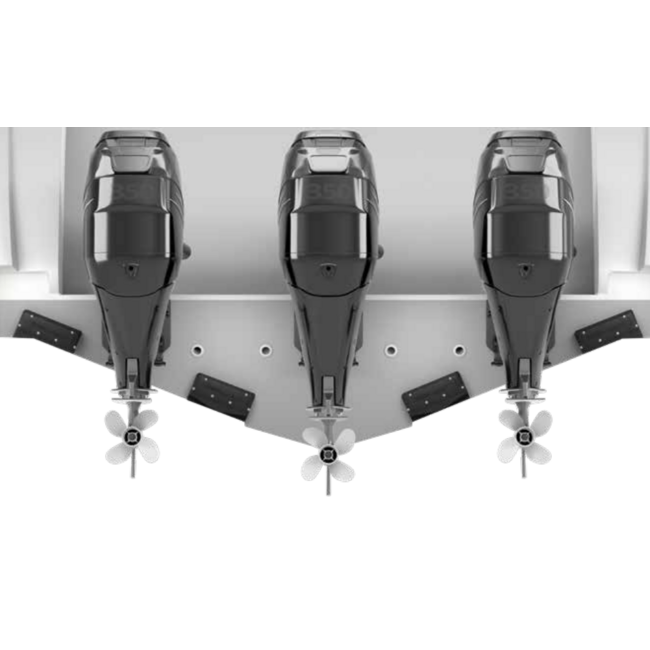

Chine interceptors must be installed flush with the hull’s angled surfaces, aligning symmetrically on both sides for consistent lift distribution and effective roll correction.
All cable penetrations below the waterline must be sealed with watertight grommets to preserve IP protection. The Distribution Unit should be placed in a dry, accessible area such as the engine room, while the Control Panel is best installed at the helm for visibility and direct access.

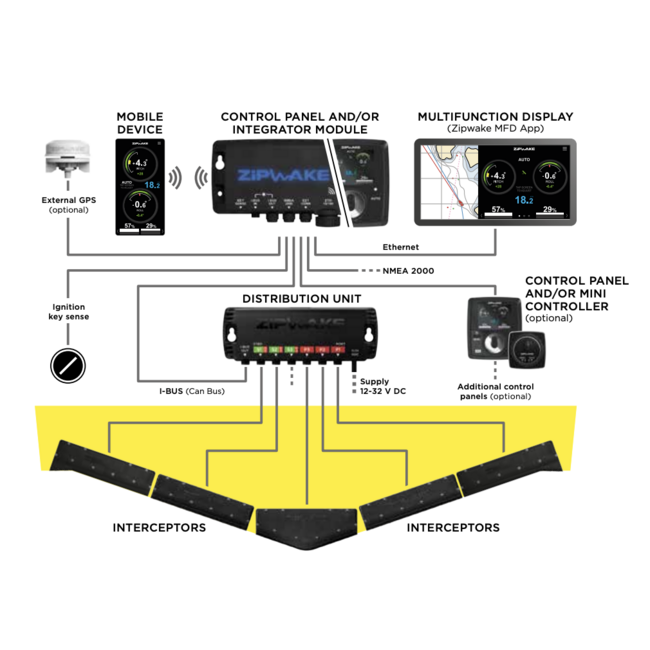

Thanks to its modular design, the Series E PRO system can be expanded with additional interceptors or integrated with NMEA 2000 networks without extra connectors or power supplies, ensuring flexibility and reliability for professional operations.
