Zipwake Series 600S PRO Straight Kit Box Trim System

The Zipwake Series 600S PRO Straight Kit Box Trim System is a professional-grade dynamic trim control solution developed for high-speed and heavy-duty applications. Belonging to the S PRO Series, it represents an evolution of the original Series S, delivering faster response, increased torque, and greater durability through its dual brushless servo actuators and advanced electronics.

Designed for planing and semi-planing vessels up to 18 meters (≈ 60 ft), this system actively eliminates pitch and roll, optimizing fuel efficiency, comfort, and overall performance. With its 600 mm straight interceptors, the Series 600S PRO provides precise, real-time motion correction, making it ideal for patrol boats, RIBs, and professional craft that require consistent performance in demanding marine environments.

FEATURES

• Straight configuration (600 mm): Designed for flat transoms, ensuring efficient lift and balanced trim control.

• High-speed PRO servos: Dual brushless actuators provide instant, precise stabilization even at 60 knots.

• Automatic stabilization: Continuously monitors vessel motion to correct pitch and roll dynamically.

• Improved fuel efficiency: Reduces drag and wave resistance for smoother navigation and lower fuel use.

• Rugged and watertight: IP68-rated interceptors and IP67-rated electronics ensure long-term reliability.

• User-friendly control panel: Sunlight-readable color display with dual control dials for intuitive operation.

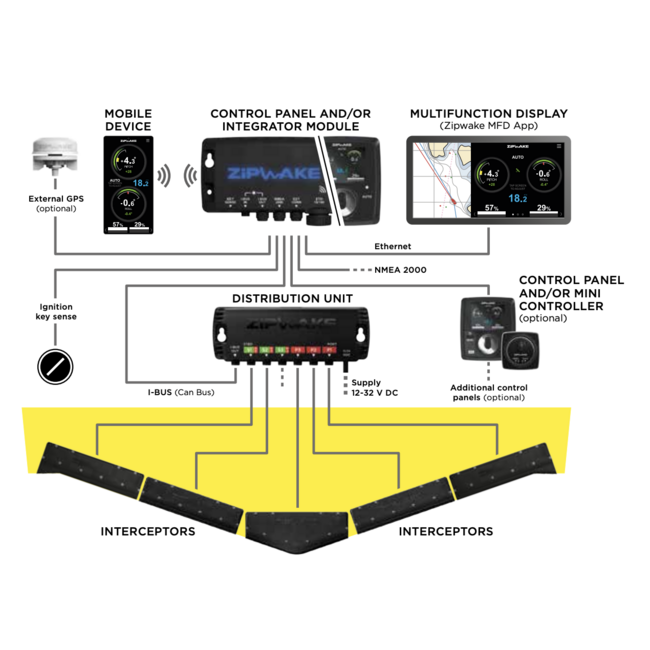

• Expandable design: Supports up to six interceptors per distribution unit without additional power sources.

MAIN COMPONENTS

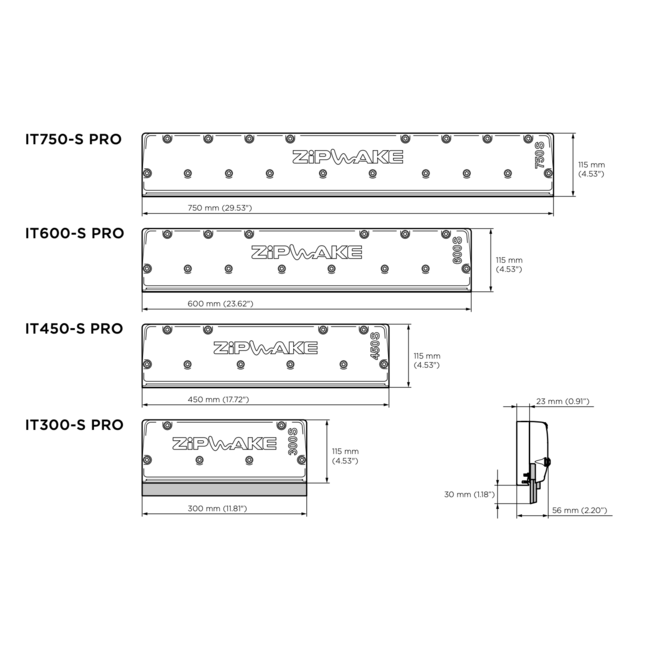

Straight Interceptors (IT600-S PRO Straight)
Two 600 mm straight interceptors equipped with dual brushless servos for rapid and reliable motion control. Engineered for high-speed stability and optimized lift performance, even in rough conditions.

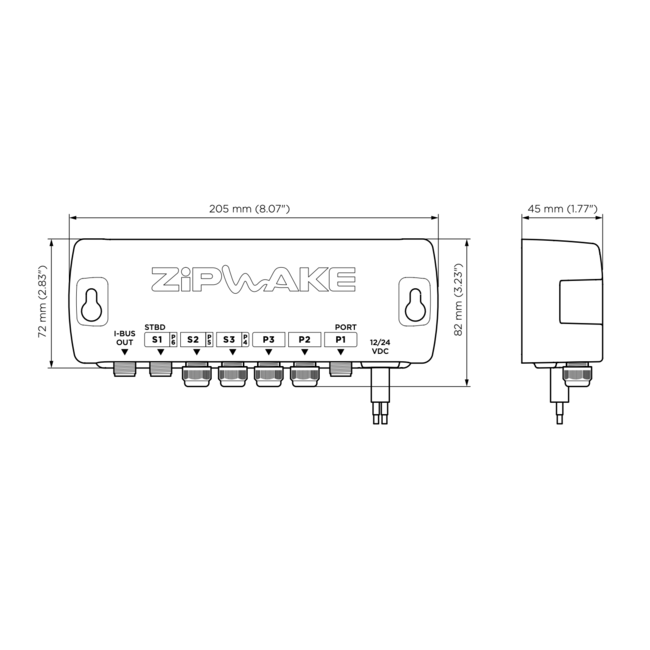

Distribution Unit (DU-S PRO)
A rugged, waterproof unit supplying power and managing communication between interceptors and the control panel. Built-in electrical protection ensures safety and reliability, even in demanding engine room environments.

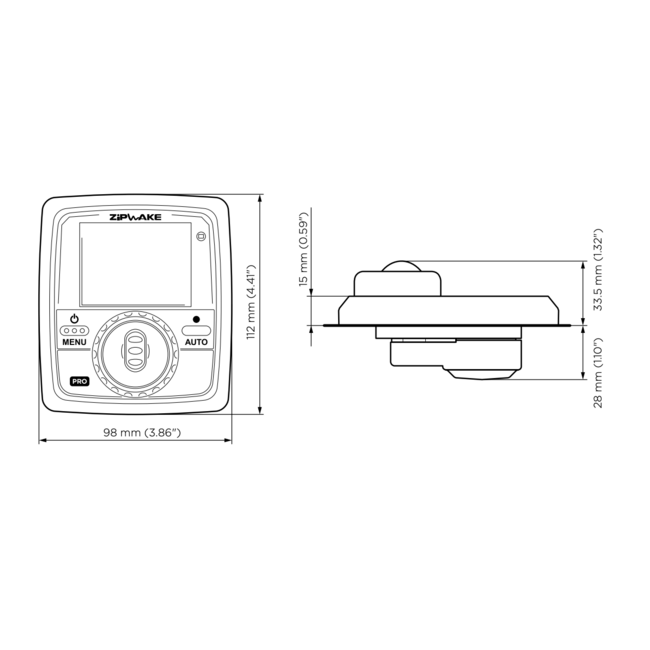

Control Panel (CP-S PRO)
A compact color display panel featuring dual dials for easy manual adjustment and automatic mode activation. Integrated sensors continuously measure vessel speed, pitch, and roll for real-time trim correction.

SPECIFICATIONS

• Interceptor type: Straight (flat transom)

• Interceptor length: 600 mm (23.6 in)

• Blade stroke: 30 mm (1.2 in)

• Actuation speed: 20 mm/s

• Maximum vessel speed: Up to 60 knots (≈ 110 km/h)

• Vessel length: Up to 18 m (≈ 60 ft)

• Voltage range: 12–32 V DC

• Power consumption: Approx. 25 W max

• Ingress protection: IP68 (interceptors), IP67 (DU & CP)

• Servo type: Dual brushless, submersible actuators

• Connector type: M12, 5-pin circular

• Cable length: 3 m standard (extendable to 6 m)

• Operating temperature: 0 °C to +40 °C (32 °F – 104 °F)

• Storage temperature: –40 °C to +90 °C (–40 °F – 194 °F)

• Kit box weight: Approx. 18 kg (depending on configuration)

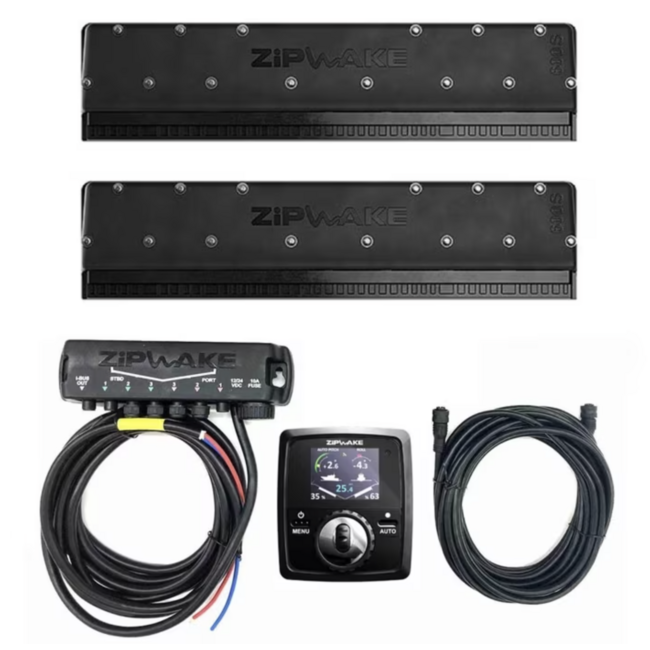

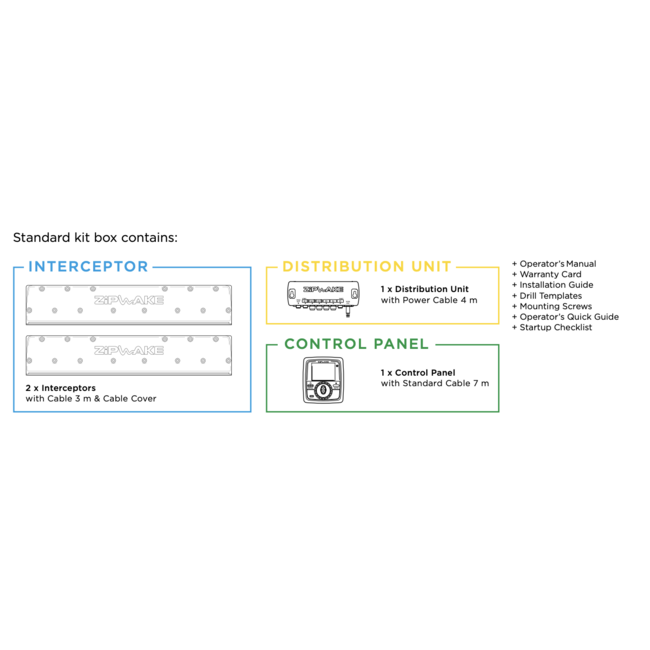

WHAT THE KIT INCLUDES

• 2 × Straight Interceptors (600 mm) with 3 m cables and mounting plates

• 1 × Distribution Unit (DU-S PRO) with 4 m power cable

• 1 × Control Panel (CP-S PRO)

• 1 × Standard Extension Cable

• Operator’s Manual

• Installation Guide

• Drill Templates

• Mounting Screws

• Quick Start Guide

• Warranty Card

INSTALLATION CONSIDERATIONS

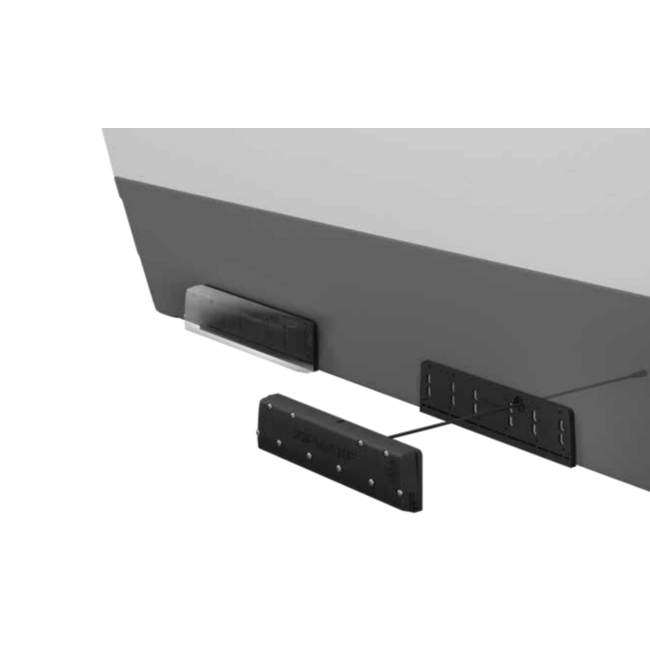

The straight interceptors must be mounted flush with the transom surface to ensure smooth water flow and maximum lift efficiency. The Distribution Unit should be installed in a dry, accessible location such as the engine room, with power and communication cables routed through watertight grommets when passing below the waterline.
The Control Panel should be positioned near the helm for optimal visibility and operation. The modular system allows easy expansion up to six interceptors per unit without requiring additional connectors or power supplies.
