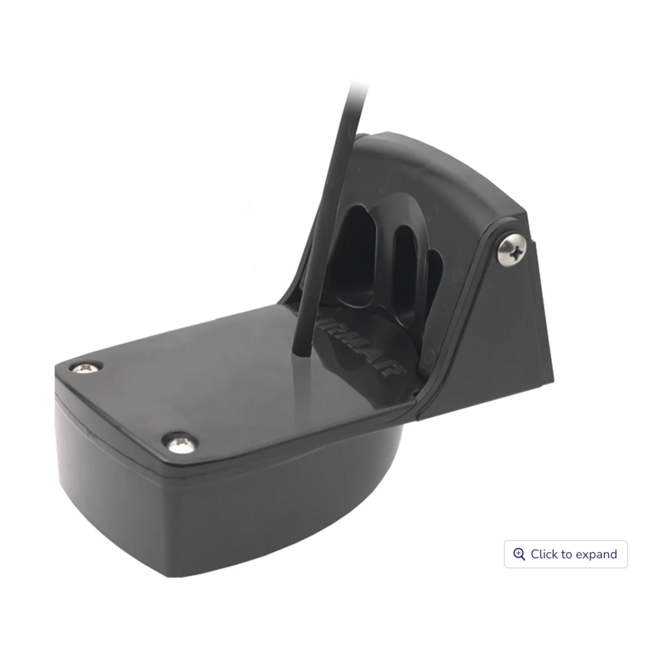

Airmar TM150M single-channel CHIRP transducer operating at 95–155 kHz with 300W output. Plastic transom-mount design with built-in temperature sensor, 12 m cable and 10-pin plug, ideal for inshore and coastal depth sounding with improved target separation Read more.
The AIRMAR TM150M is a compact single-channel CHIRP depth and temperature transducer, designed for trailer boats and small to mid-size fishing vessels that require clean mid-band CHIRP performance. Operating in the 95–155 kHz CHIRP range, it provides improved target separation, clearer fish arches and better bottom definition compared to traditional fixed-frequency 200 kHz transducers. Its lightweight plastic transom-mount housing ensures easy installation and stable acoustic performance at various speeds.
With a 300 W power rating, the TM150M delivers reliable mid-frequency coverage suited for coastal fishing, inshore structure hunting and general depth sounding. The integrated water-temperature sensor, 10-pin connector and 12-meter cable allow direct connection to compatible Furuno echo sounders and CHIRP modules without additional adaptation.
Single-channel CHIRP: Operates from 95–155 kHz for improved clarity and fish detection.
300 W output: Stable performance for inshore and coastal depth sounding.
Enhanced target separation: Clearer fish arches and better bottom definition.
Transom-mount housing: Lightweight plastic body for straightforward installation.
Integrated temperature sensor: Provides accurate water-temperature readings.
10-pin connector: Direct plug-and-play connection to compatible systems.
12 m cable: Marine-grade cable for flexible routing on small and mid-size boats.
TM150M CHIRP Transducer
Single-channel mid-frequency CHIRP element (95–155 kHz) in a durable transom-mount plastic housing with integrated temperature sensor.
Transom-Mount Bracket & Hardware
Adjustable mounting bracket designed to maintain correct alignment and stable acoustic performance at different speeds.
10-Pin Connection Cable (12 m)
Factory-installed cable with Furuno 10-pin connector for direct system integration.
Power: 300 W
Frequency: 95–155 kHz (Single-channel CHIRP)
Functions: Depth, temperature
Material: Plastic
Mounting: Transom mount
Connector: 10-pin
Cable length: 12 m
Primary use: Inshore/coastal fishing, depth sounding, target separation
Supported systems: Compatible with Furuno sounders and CHIRP modules using a 10-pin transducer input.
Connector type: 10-pin plug for direct installation.
Function support: Depth and water-temperature display.
Limitations: Not a dual-channel CHIRP model; does not support side-scan or wide-beam functions.
TM150M CHIRP transom-mount transducer
Transom mounting bracket and hardware
12 m cable with 10-pin connector
Installation documentation
Mount the transducer on the transom where water flow remains clean and free of turbulence. Avoid strakes, steps and runoff from hull fittings. Proper bracket alignment is essential to maintain stable bottom tracking at different speeds. Route the cable through a watertight pass-through and connect directly to the compatible 10-pin input. Avoid electrical interference sources to ensure clear CHIRP performance.
