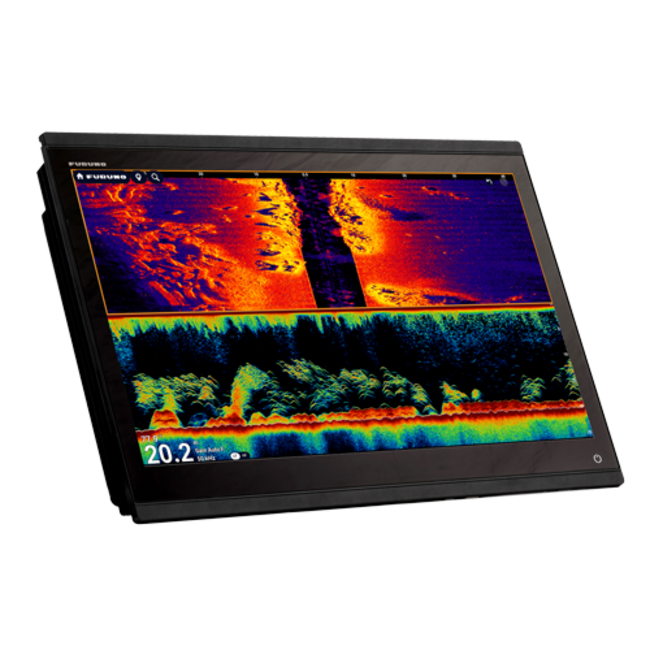

WHAT IS A FURUNO DFF1-UHD+, NAVnet Network Black Box TruEcho CHIRP / Side Scan Fishfinder  system?

The FURUNO DFF1-UHD+ represents a revolutionary change in fishing technology due to advanced features designed for optimal underwater performance. With the integration of UHD+ (Ultra High Definition) signal processing, the clarity of underwater images is elevated to an unprecedented level. This allows anglers, sport fishermen, and researchers to distinguish the details of underwater structures and fish much better than before. Additionally, the system utilizes CHIRP (Compressed High-Intensity Radar Pulse) technology, which provides a wide frequency spectrum. This not only results in accurate imaging but also improves depth detection, which is extremely important for identifying different fish species and bottom types. Furthermore, the side scan functionality offers good visibility on both sides of the vessel. This is particularly useful for anglers looking for fish and bottom structures located further away from the direct depth beneath the vessel, enabling them to significantly expand their search area. Another advantage of the DFF1-UHD+ is its multi-functional integration, meaning the system can be linked to other navigation and fishing technology systems. This makes it possible to create a comprehensive fishing experience that can be tailored to the specific needs of the user. Furthermore, the user-friendly interface was designed by both experienced anglers and newcomers, allowing them to utilize both simple and advanced functions. All of this makes the FURUNO DFF1-UHD+ a powerful tool for both recreational and professional anglers looking to maximize their chances of a successful catch. Thanks to the combination of innovative technologies and ease of use, this system redefines the way underwater research and fishing are conducted, with a clear focus on increasing efficiency and precision in the fishing process.

Best for: Precise bottom fishing in deep and shallow water, and pelagic fishing.

FEATURES:

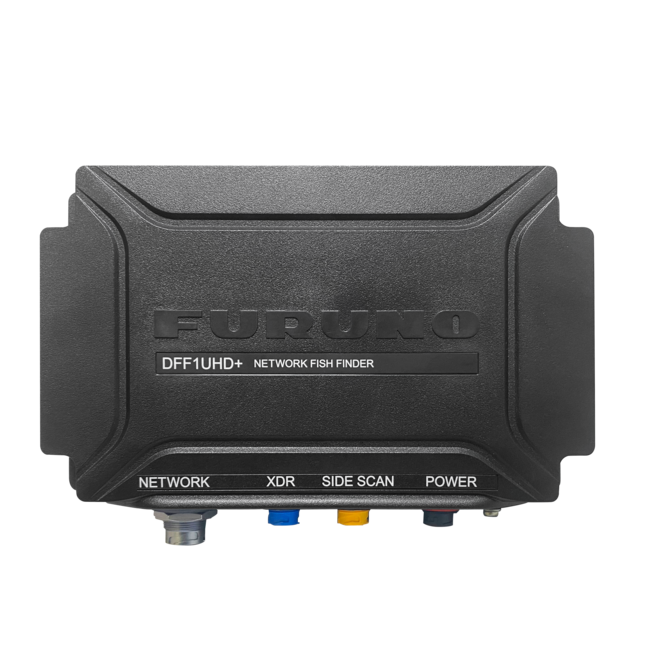

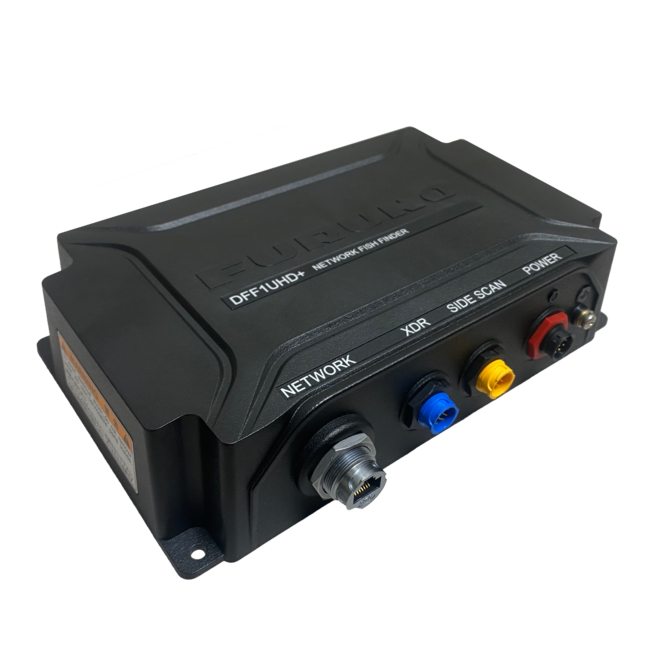

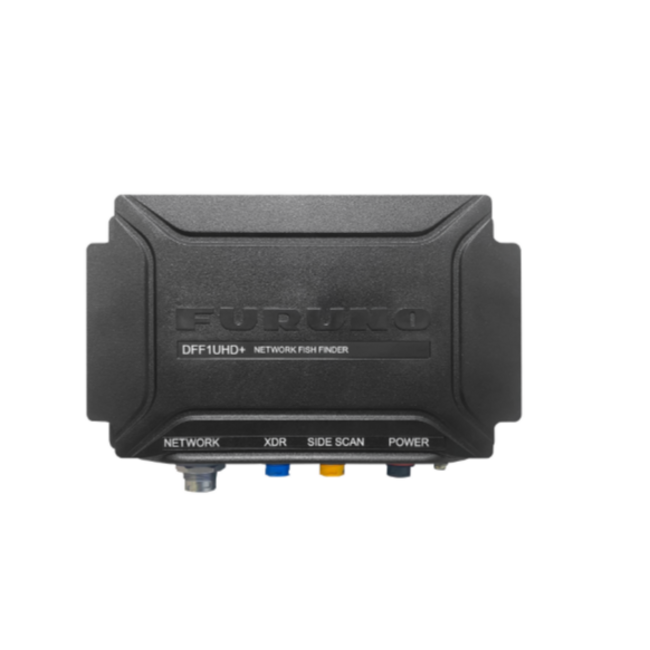

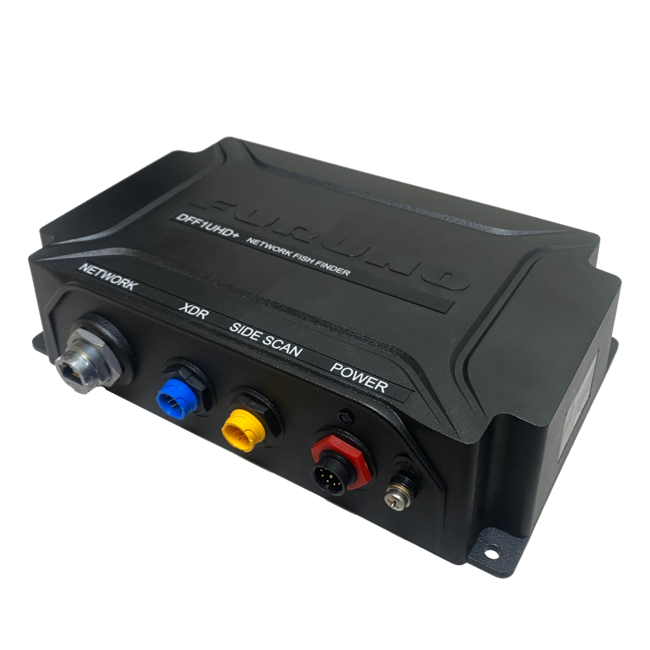

Furuno DFF1-UHD+ :

Network Fishfinder

• TruEcho CHIRP Technology: "Sweeps" across many frequencies, providing unprecedented detail and resolution up to 5x better than traditional fishfinders. By using a precise sweep pattern across 90 frequencies, a clearer separation between fish and structure is achieved.
• Target Analyzer: Identifying individual fish, even when swimming close to the bottom or in dense schools.
• ACCU-FISH displays the actual fish size for individual fish echoes, as well as the depth at which the fish is swimming at depths up to 200 m.
• Bottom Hardness: Indicates whether the bottom is rock, gravel, sand, or mud at depths up to 200 m. (Compatible CW transducer required)

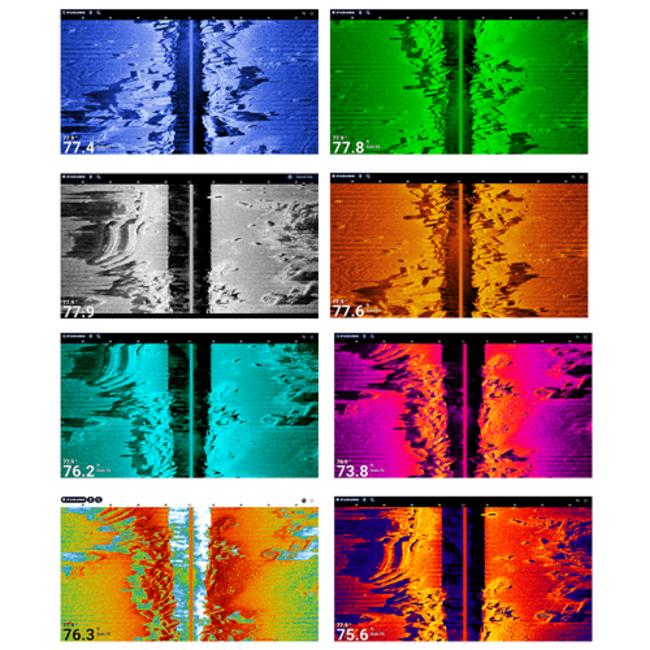

• Side-Scan: The new UHD+ version also supports CHIRP Side-Scan to view structures up to 230 meters on either side of the vessel. . 8 Depth Ranges: from 3 M to 1200 m (4000ft)
• Frequency: CW 50-200 kHz and CHIRP 40-225 kHz and CHIRP Side-Scan 230 or 455 kHz
  Output Power: 150 W or 300 W or 600 W or 1 kW
• Audio and Visual Alarms: Fishfinder alarms, Fish school, and bottom lock
• Swell Compensation: Works with Furuno satellite antennas to stabilize measurements in rough seas.
• Simultaneous Dual TX CHIRP: Transmits on 2 frequencies
• Interface: Ethernet connection (10Base-T100Base-TX)
• Supply Voltage: 12-24 volts DC
• Waterproof: IPX6, Color-coded waterproof connectors and a compact design allow for easy installation. Power input: 30 Watts
• Compact dimensions: 243.3mm x 147.3mm x 58.4mm, making it easy to mount.
• Compatible with: TZTXL, TZT3, TZTBB, and more with the right software
  Weight: 0.9 kg.
• Demo Mode: Perfect for training

With Side-Scan

• One single CHIRP + CHIRP Side-Scan is possible
• One CW+CHIRP Side Scan is possible
• Dual CHIRP with Side-Scan is not possible
• Two single-CHIRP + side Scan is not possible
• Two single-CHIRP + CW + side Scan is not possible

Without Side-Scan

• Dual CHIRP  is possible
• One single CHIRP is possible
• One CW is possible
• One  single Mid-CHIRP + one CW is possible
• Dual CHIRP + CW is not possible

Various transducer combinations to meet the needs of every ship

Scope of delivery

• DFF1-UHD Black Box CHIRP Fishfinder
• Transceiver 1 kW
• Power cable
• NAVnet connection cable
• Standard installation material

Transducer can be ordered separately, multiple options are possible. More information can be found under: t

Features:

•


  Brochure.pdf DFF1-UHD NAVnet echolood & CHIRP Fishfinde
