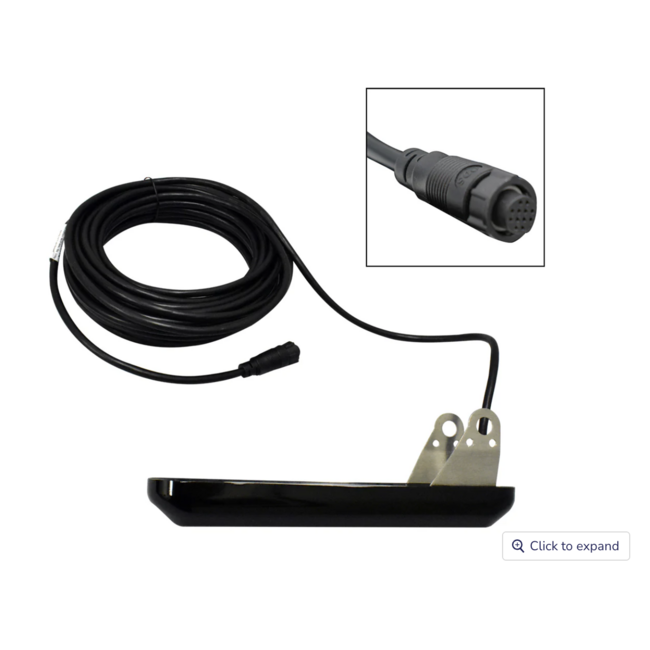

Airmar 225T-TM904 CHIRP Side-Scan transom-mount transducer, 150 W per side at 220–240 kHz. For small and mid-size vessels, it provides clear port/starboard imaging with a temperature sensor, 12-pin Furuno plug and 12 m cable. Read more.
The AIRMAR 225T-TM904 is a high-frequency CHIRP Side-Scan transom-mount transducer designed for vessels using the built-in CHIRP Side-Scan function of Furuno NavNet TZtouch3 (TZT12F, TZT16F, TZT19F) and NavNet TZtouchXL (TZT10X, TZT13X, TZT16X) multifunction displays. Operating at 150 W per side within a 220–240 kHz CHIRP band, it delivers sharp, symmetrical port/starboard imaging ideal for structure identification, seabed analysis, and survey applications. The rugged plastic housing and included mounting bracket support a wide range of transom installations.
This model is suitable for small to medium vessels, trailer boats, workboats and recreational users who require clean side-scan coverage without thru-hull installation. The transom-mount design offers easy access for installation and servicing, while maintaining reliable acoustic performance. An integrated temperature sensor, a 12-pin Furuno connector, and a 12 m cable ensure straightforward plug-and-play compatibility with supported systems.
High-frequency CHIRP Side-Scan: Provides detailed lateral imaging at 220–240 kHz.
Optimized for TZtouch3 & TZtouchXL: Works with built-in side-scan on TZT12F, TZT16F, TZT19F, TZT10X, TZT13X and TZT16X.
150 W per side: Delivers strong, stable acoustic output.
Durable plastic housing: Lightweight and impact-resistant for transom use.
Integrated temperature sensor: Measures water temperature accurately.
Transom-mount bracket included: Adjustable and secure for various hull shapes.
12-pin Furuno interface: Direct, plug-and-play connection.
12 m cable: Factory-installed marine cable for clean routing.
Transom-Mount Sidescan Transducer
Plastic-body CHIRP Side-Scan transducer with high-frequency elements and an integrated temperature sensor, designed for accurate lateral imaging on vessels where thru-hull installation is not preferred.
Mounting Bracket & Hardware
Complete adjustable bracket system with stainless-steel fasteners for secure and precise transom installation.
Connection Cable (12 m)
Marine-grade cable with a factory-installed 12-pin Furuno connector ready for direct integration with TZtouch3 and TZtouchXL MFDs.
Power: 150 W per side
Frequency: 220–240 kHz (High-Frequency CHIRP)
Material: Plastic
Installation: Transom mount
Connector: 12-pin Furuno
Cable length: 12 m
Sensors: Water temperature
Primary function: High-frequency CHIRP side-scan imaging
Compatible MFDs:
– TZtouch3: TZT12F / TZT16F / TZT19F
– TZtouchXL: TZT10X / TZT13X / TZT16X
Supported systems: Fully compatible with Furuno NavNet TZtouch3 and TZtouchXL displays using built-in CHIRP Side-Scan.
Connector: 12-pin Furuno plug; no adapters required.
Function support: Enables CHIRP side-scan and water-temperature display.
Limitations: Not compatible with older NavNet or GP series.
225T-TM904 CHIRP Side-Scan transducer
Transom-mount bracket and stainless-steel hardware
12 m cable with 12-pin connector
Installation documentation
Mount the transducer on the transom in an area with clean, undisturbed water flow at all operating speeds. Avoid strakes, steps, exhaust outlets and other turbulence sources. Align the bracket carefully to maintain correct beam orientation for accurate port/starboard imaging. Route the cable through a watertight fitting and keep it away from electrical interference. Full performance requires a NavNet TZtouch3 or TZtouchXL display with built-in CHIRP side-scan capability.
