Airmar 225T-SS904 stainless-steel thru-hull CHIRP Side-Scan transducer, 150 W per side at 220–240 kHz. Compatible with Furuno TZtouch3 and TZtouchXL, it delivers sharp port/starboard imaging with a temperature sensor, 12-pin plug and 12 m cable. Read more.

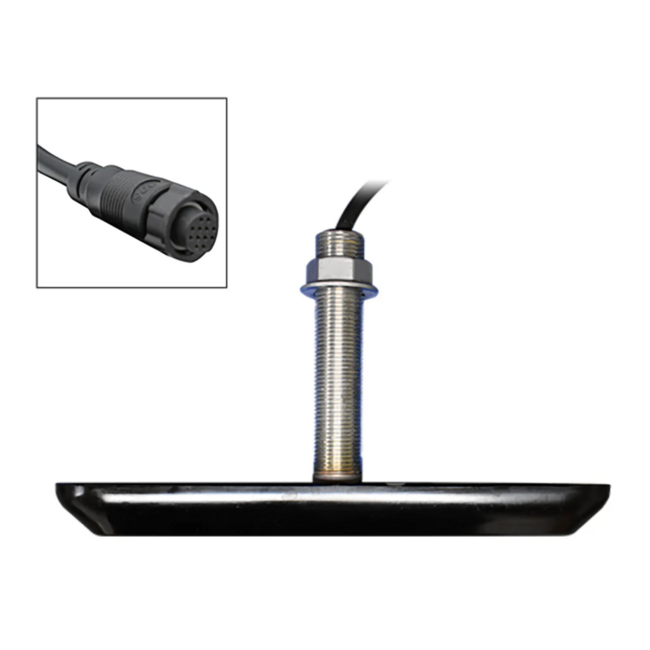

The AIRMAR 225T-SS904 is a stainless-steel, thru-hull high-frequency CHIRP Side-Scan transducer designed for vessels using the built-in CHIRP Side-Scan function of Furuno NavNet TZtouch3 (TZT12F, TZT16F, TZT19F) and NavNet TZtouchXL (TZT10X, TZT13X, TZT16X) multifunction displays. Operating at 150 W per side within a 220–240 kHz CHIRP band, it delivers high-resolution left/right imaging ideal for structure detection, seabed characterization and survey-grade navigation support. The stainless-steel body offers long-term durability in harsh marine environments.
This model is suited for commercial craft, survey boats, patrol vessels and performance-focused recreational users who require clean, symmetrical port/starboard imaging across a higher-frequency CHIRP band. The thru-hull design ensures stable acoustic contact at speed, while the integrated temperature sensor, 12-pin Furuno connector, and 12-meter cable provide straightforward installation and direct compatibility with supported systems.
High-frequency CHIRP Side-Scan: Provides detailed lateral imagery at 220–240 kHz.
Optimized for TZtouch3 & TZtouchXL: Works with built-in side-scan features on TZT12F, TZT16F, TZT19F and TZT10X, TZT13X, TZT16X.
150 W per side: Stable power delivery for strong, clean acoustic returns.
Stainless-steel housing: Robust, corrosion-resistant construction.
Integrated temperature sensor: Captures accurate water-temperature data.
Thru-hull installation: Ensures reliable acoustic coupling and clear imaging.
12-pin Furuno interface: Plug-and-play compatibility.
12 m cable: Factory-installed marine-grade cable for easy routing.
Sidescan Transducer Unit
Stainless-steel thru-hull CHIRP Side-Scan transducer containing high-frequency elements and a built-in temperature sensor, engineered for stable and accurate lateral imaging.
Connection Cable (12 m)
Durable marine cable with a factory-fitted 12-pin Furuno connector, ready for direct integration with TZtouch3 and TZtouchXL MFDs.
Mounting Hardware
Includes the complete thru-hull hardware set for watertight, secure installation.
Power: 150 W per side
Frequency: 220–240 kHz (High-Frequency CHIRP)
Material: Stainless steel
Installation: Thru-hull
Connector: 12-pin Furuno
Cable length: 12 m
Sensors: Water temperature
Primary function: High-frequency CHIRP side-scan imaging
Compatible MFDs:
– TZtouch3: TZT12F / TZT16F / TZT19F
– TZtouchXL: TZT10X / TZT13X / TZT16X
Supported systems: Fully compatible with Furuno NavNet TZtouch3 and TZtouchXL displays using built-in CHIRP Side-Scan.
Connector: 12-pin Furuno plug; no adapters required.
Function support: Enables CHIRP side-scan imaging and water-temperature display.
Limitations: Not compatible with older NavNet/GP devices or systems without integrated side-scan capability.
225T-SS904 CHIRP Side-Scan transducer
Thru-hull mounting hardware
12-m cable with 12-pin connector
Installation documentation
The transducer must be installed flush with the hull surface to ensure clean water flow and accurate side-scan performance. Position it away from strakes, steps, thru-hulls and turbulence sources. The interior location must allow proper tightening of the thru-hull nut. Route the cable using watertight fittings and avoid interference-prone wiring. Full performance requires a NavNet TZtouch3 or TZtouchXL MFD with built-in CHIRP side-scan capability.
