FURUNO FR-12 ColorLCD-radar with Risk Visualizer

NEW

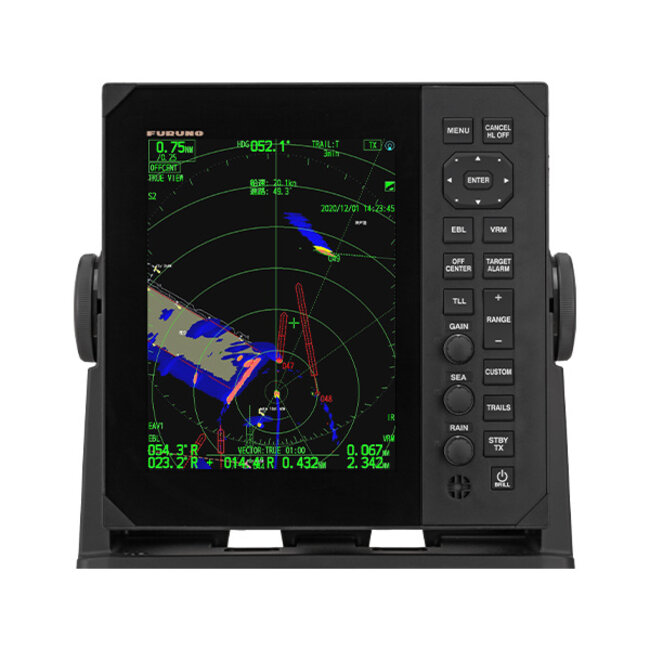

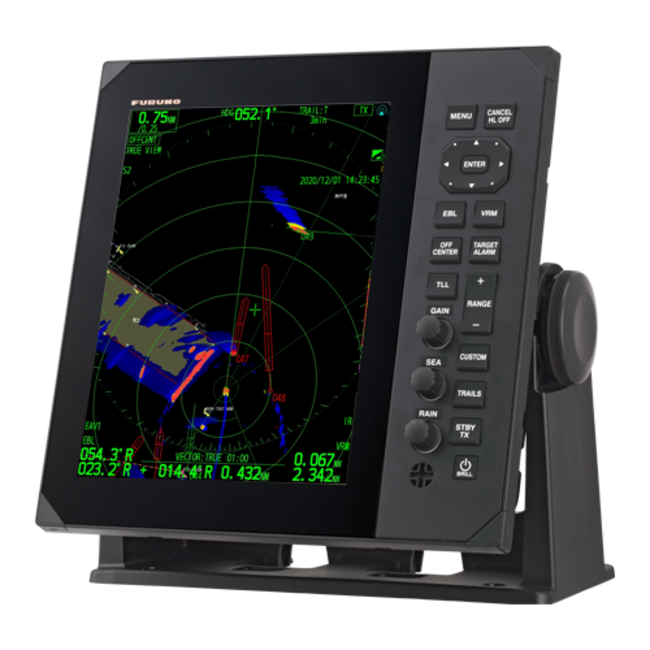

The FR-12 color LCD radar has a special vertical color LCD display with a 12.1 inch display, and can be combined with Furuno's DRS series antennas.

We know that standalone radar screens are still very popular among users. With that in mind, Furuno has manufactured a new range of standalone radar screens with options tailored to the needs of almost any type of vessel. The 10.4″ FR10 and 12.1″ FR12 Radars are designed for use with Furuno's award-winning DRS antenna series. The great thing is that you can choose from the Solid-State Doppler (NXT) or traditional X-Band Microwave (X-Class) antennas! Completely according to your own needs.

COMPATIBLE WITH FURUNO'S POWERFUL DRS SERIES ANTENNAS

The FR-10 and FR-12 are compatible with any DRS series antenna, allowing for a wide variety of configurations. By selecting the screen size, power, type and size of the antenna, you can build the radar that best suits your needs.

Radome antennes:

• Model DRS2D-NXT
• Model DRS4D-NXT
• Model DRS4DL+

Roterende balk antennes:

• Model DRS6A-NXT    0.625 -73 N.M
• Model DRS12A-NXT  0.625 -48 N.M
• Model DRS25A-NXT  0.625 -48 N.M
• Model DRS6A-XKlasse  0.625 -48 N.M
• Model DRS12A-XKlasse 0.625 -96 N.M
• Model DRS25A-XKlasse 0.625 -96 N.M

NIEUW Risk Visualizer™

Risk Visualizer™

Risk Visualizer™ is a technology that shows potential collision areas based on the current position and movement of all surrounding vessels. Thanks to the on-screen display, it is easy to get a quick and intuitive overview of the situation around your ship. Additionally, color-coded alerts according to the threat of a collision, from green (normal) to red (hazardous), will help you assess the level of danger and plan your next move. This is our first commercial mid-range Radar to incorporate this feature, which contributes to the continuous improvement of safety at sea.

Fast Target Tracking™

Fast Target Tracking™ is a technology that instantaneously displays a vector indicating the speed and heading of the target. The targets are automatically tracked from the beginning, making it possible to immediately calculate the target's trajectory and display the velocity vector.

Target Analyzer™

Target Analyzer™ is a technology that analyzes targets and identifies the dangerous ones that are likely to collide with your ship, using different colors according to the degree of danger. The display of potentially dangerous targets in different colors allows an operator to understand threats to safe navigation at a glance.

Echo Average

Echo Average is a feature that attenuates irregular echoes, such as reflections from the sea surface and precipitation, and stabilizes echoes from fishing gear and other vessels. It makes it easier to see what you want to see, even in poor weather conditions such as high waves, precipitation, or dense fog.

Specifications:

• Peak Output Power: Depending on the selected Antenna Unit (See DRS Antennas)
• Type: Compatible Antenna Unit: DRS4DL+, DRS2D/4D/6A/12A/25A-NXT, DRS6A/12A/25A X-Class
• Range Scales: 0.0625 to 36 NM (DRS4DL+), 0.0625 to 48 NM (DRS2D/4D-NXT), 0.0625 to 72 NM (DRS6A-NXT), 0.0625 to 96 NM (DRS6A/12A/25A X-Class, DRS12A/25A-NXT)
• Display Unit: 10.4-inch color LCD
• Display Mode: Head-up, Course-up, North-up, True motion, Stern-up
• Other Mode/Functions: Risk Visualizer™, Target Analyzer™, Target Tracking™, True Echo Trail, Echo Average, Sub Display Unit, AIS Display, Radar overlay on charts
• Power Supply/Consumption Current: FR-10: 12-24 VDC: 1.1-0.6 A

FR-12 will standard be delivered with:

•  12,1" LCD voor combinatie met DRS-radarsensoren
•  Risk Visualizer™, Echo Average, Target Analyzer™, Fast Target Tracking™ en
   AIS-illustratie

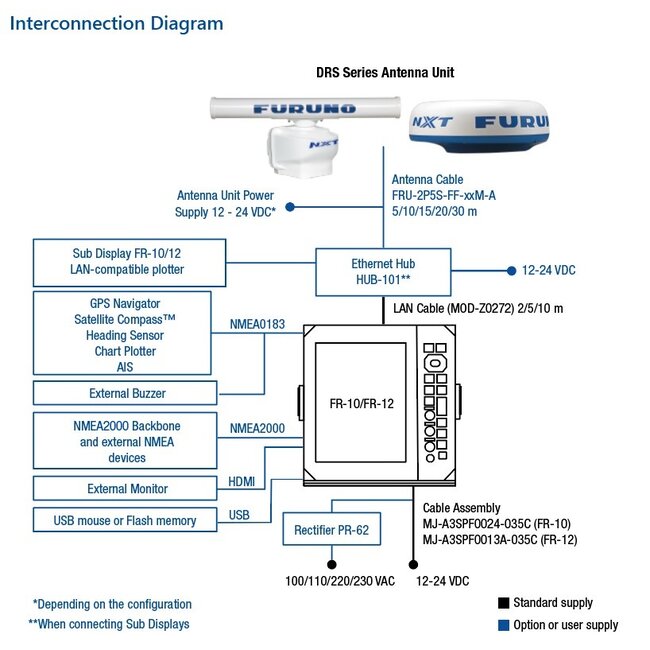

•  1 LAN, 3x NMEA0183, 1x NMEA2000, 1 USB en 1x HDMI aansluiting
•  Radarkabel niet inbegrepen
•  Kaartoverlay mogelijk
•  12-24 VDC
