FR-10 standalone marine -radar FR-10 wit Risk Visualizer™, Using own ship data and target AIS information, Risk Visualizer ensures you have the information you need to maintain safe distances when passing . Read more.
We know that standalone radar displays remain very popular with users. With this in mind, FURUNO has developed a new series of standalone radars with options tailored to the needs of users on different vessel types.

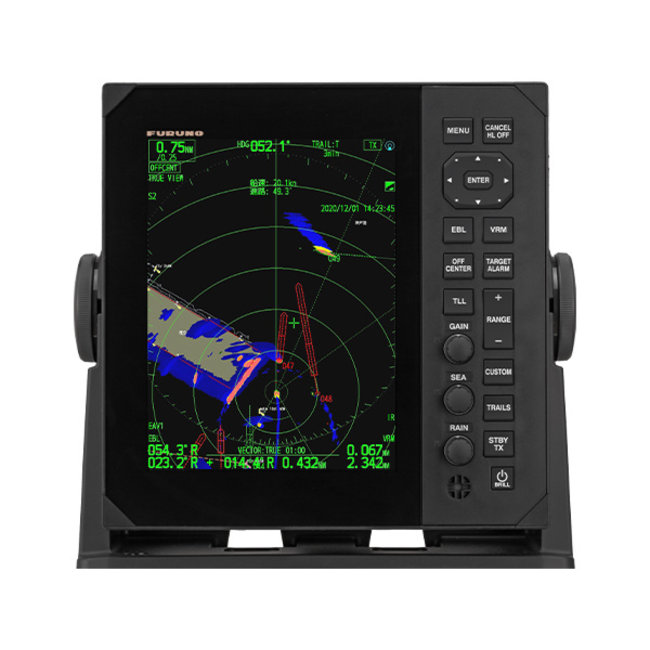

The 10.4-inch FR10 and 12.1-inch FR12 radars are designed for use with FURUNO's award-winning DRS radar antenna series. The great thing is that you can choose between solid-state Doppler (NXT) or conventional X-band microwave (X-Class) antennas! It's all based on your needs and application.

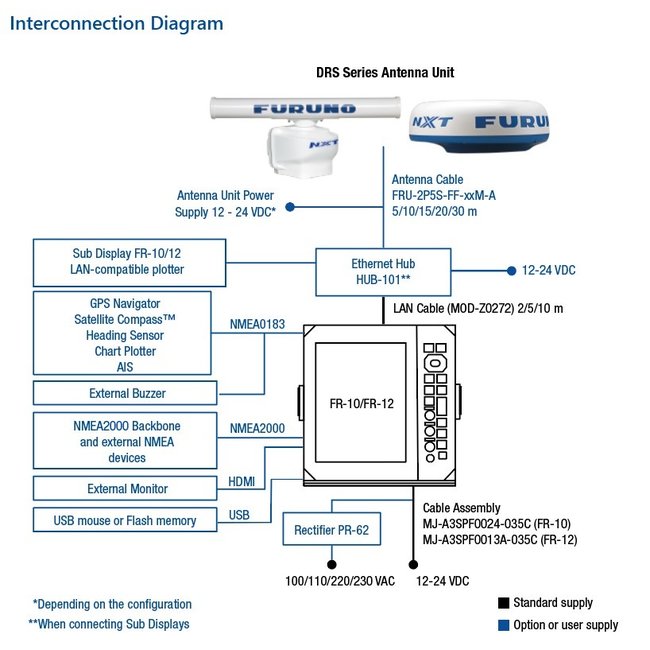

The FR10 radar is compatible with any DRS series antenna, allowing for a wide variety of configurations. By selecting the screen size, power, type, size, and, of course, the price of the antenna, you can build the radar that best meets your needs.
It also includes many DRS radar features, such as fast target tracking to instantly display a vector line indicating the target's speed and direction. When connected to an NXT radar, solid-state features such as Rain Mode, RezBoost beam sharpening, and Target Analyzer are unlocked to instantly identify dangerous targets. A custom AIS display, flexible anti-clutter controls, and a stern-up display are available.
The FR-10 standalone radar with RISK VIZUALISER™ is a new feature that provides visual information on potential collision zones and the movements of all surrounding vessels, as well as Echo Average, Target Analyzer™, Fast Target Tracking™, RezBoost™ and many other useful features to help you track any target for your safe navigation operations, such as custom AIS, user-programmable function keys and multi-language support.
Risk Visualizer™ is a technology that shows potential collision areas based on the current position and movement of all surrounding vessels. Thanks to the on-screen display, it is easy to get a quick and intuitive overview of the situation around your ship. Additionally, color-coded alerts according to the threat of a collision, from green (normal) to red (hazardous), will help you assess the level of danger and plan your next move. This is our first commercial mid-range Radar to incorporate this feature, which contributes to the continuous improvement of safety at sea.
Target Analyzer™ is a technology that analyzes targets and identifies the dangerous ones that are likely to collide with your ship, using different colors according to the degree of danger. The display of potentially dangerous targets in different colors allows an operator to understand threats to safe navigation at a glance.
Echo Average is a feature that attenuates irregular echoes, such as reflections from the sea surface and precipitation, and stabilizes echoes from fishing gear and other vessels. It makes it easier to see what you want to see, even in poor weather conditions such as high waves, precipitation, or dense fog.
The color of AIS symbols (maximum: 100 sets) can be customized with 9 different colours: 4 extra color options of Red, Yellow, Cyan and Magenta, in addition to the Standard color options of Green, Red, Blue, White, and Black. The color option is saved on the FR-10/12, so when AIS targets with the same MMSI are received again, they will be shown in the registered colors. This is useful when tracking the position of important vessels such as consorts, competitors, patrol boats
FURUNO FR-10 Radar standalone marine -radar met Risk Visualizer™
