FCV-800 TruEcho CHIRP™ Fishfinder won the award for "The best new product" at the 2023 NMEA awards Ceremonie!!!! How nice is that.
Discover the real FCV-800 Broadband Fishfinder that will take your fishing technology to the next level. Powered by innovative TruEcho CHIRP™ technology, it uses multiple frequencies and transducers to visualize both fish and bottom structure in high resolution. The result is a clarified view that allows you to accurately distinguish between fish, the seabed and reefs.
Key Features:
- TruEcho CHIRP™: Combines multiple frequencies for reliable and detailed echoes in both shallow and deep water.
- ACCU‐FISH™ Detection: Provides instant fish size indications and recognizes individual fish for optimal selection strategies.
- Bottom Discrimination: Analyzes and visualizes bottom structure (rock, sand, gravel or mud) with clear graphical representations.
- RezBoost™ Signal Processing: Improved image resolution, even over traditional CW transducers, for sharper and more reliable images.
- Color Expansion: Increases the spectrum of echo colors, making fish and bottom structure even more distinguishable.
- Wireless Connectivity: Created the ability to have a second remote display, making installation simple and providing flexible options.

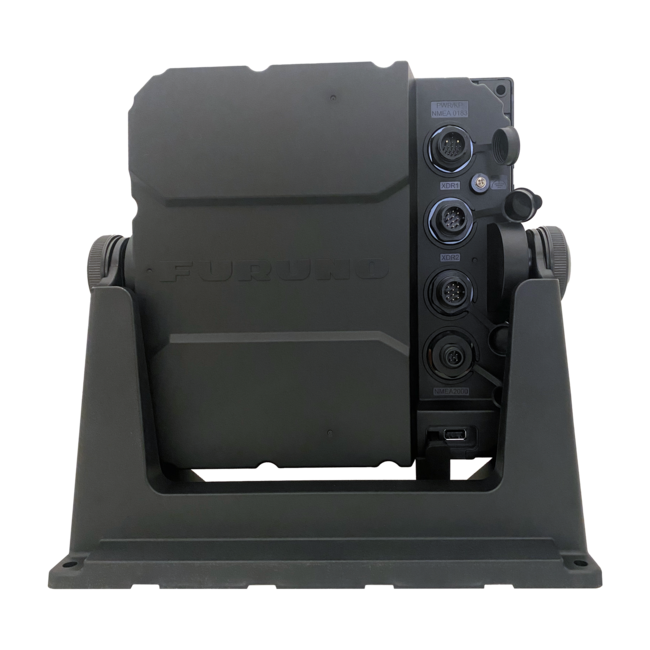

- Dual Transducer Ports: Supports both CHIRP and CW channels simultaneously, for maximum functionality and image quality.
- Precise Navigation Integration: Syncs with chartplotters to show fishing grounds and surrounding information in detail.
Analysis and Unique Insights
Although the product information initially emphasizes the technical details, the FCV-800 offers a number of unique capabilities that go beyond the standard functions of a fishfinder:
- The combination of CHIRP technology with traditional echolocation provides impressive image quality, making even small objects in the water clearly visible.
- With ACCU‐FISH™ Detection, you not only get a visual representation, but also immediate information on the size of the fish caught, which offers a strategic advantage for both recreational and commercial fishermen.
- The bottom discrimination allows you to interpret the composition of the fish environment, which can be essential in determining ideal fishing spots.Thanks to wireless connectivity and the possibility of using a second display, you can flexibly integrate the device into your existing navigation system.
BOTTOM DISCRIMINATION FUNCTION
With the aid of the Fish Finder's Bottom Discrimination feature, you may find rich fishing places and increase your daily catch by learning if the bottom is primarily made up of rocks, gravel, sand, or mud.
ACCU-FISH™
Furuno-exclusive technology called ACCU-FISH™ size assessment function instantly recognizes individual fish. Echo returns are analyzed based on strength and converted into fish size displays (10 to 199 cm, in depths of 2 to 100 m) on the screen to determine the size of each fish.
REZBOOST™
Furuno's ground-breaking REZBOOST™ signal processing technology enhances target separation and resolution when used with traditional CW narrow-band transducers. Locate individual game fish among bait balls and fish near the seafloor. With REZBOOST™, the ACCU-FISHTM feature will perform better and have greater resolution and clearer graphics.
Conventional narrowband transducers' capabilities can be significantly increased using RezBoostTM. A REZBOOST™ Fish Finder generates an image that is up to 8 times* sharper when compared to standard signal processing methods (FDF). It is quite amazing what can be accomplished with a typical narrow-band transducer, such as the one you may already have mounted on your boat.**
*Performance of REZBOOST™may change based on signal frequency, depth, and range.
** REZBOOST™capable thru-hull or transom mount transducer in Enhanced mode.
COMBINE CW AND TruECHO CHIRP FOR ADDED CAPABILITIES

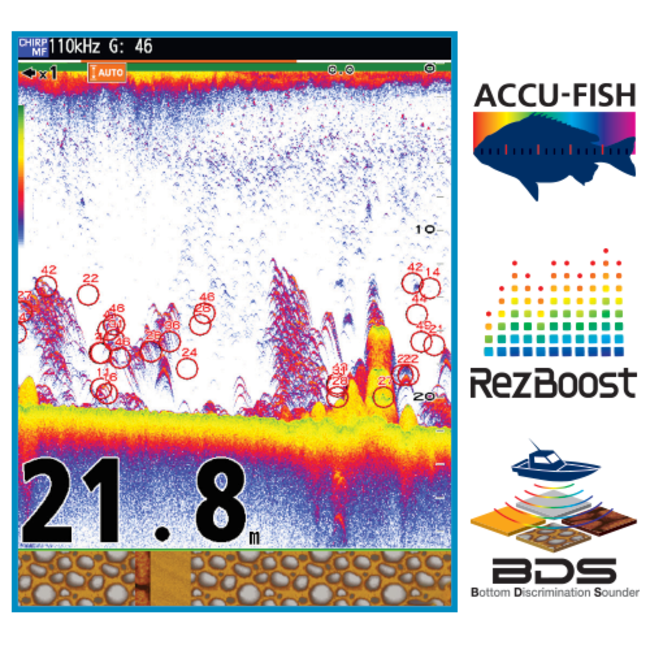

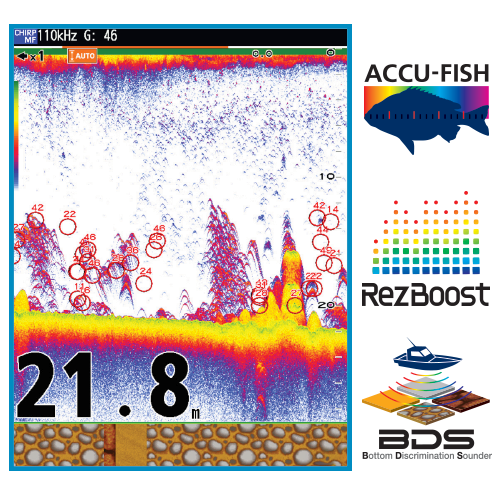

When you combine CHIRP with standard CW transducers*, you'll see sharp CHIRP echoes on the screen while your CW transducer's ACCU-FISH™ and Bottom Discrimination capabilities operate in the background, overlaying critical information on your CHIRP returns. You'll be able to see fish targets, fish size estimation, fish depth, and bottom composition**. Preset choices of up to three frequencies can be kept.
*FCV-800 Single Frequency CHIRP only
**MF or HF CHIRP
COLOR EXPANSION
Color Range Expansion broadens the range of distinguishable echoes, allowing you to easily identify bottom species from the seafloor. Reefs, structure, and fish near the seafloor are depicted in slightly different colors to make it easier.
WIRELESS CONNECTIVITY
While fishing, you may watch the underwater situation from the stern or bow using a second display that can be fitted to show the echoes and navigation data from the FCV-800 through wireless network.
INTERCONNECTION DIAGRAM
NEW COLORS
In order to get improved visibility under bright sunlight conditions, there are yellow and sunlight schemes. Including palettes optimized for those with different color sensitivities.
Sunlight
Yellow
SPECIFICATIONS :
General
- CW Frequency 50/200 kHz
- CHIRP Frequency 40 to 225 kHz
- 1 x NMEA0183, 1 x NMEA2000, 1 x USB
Display

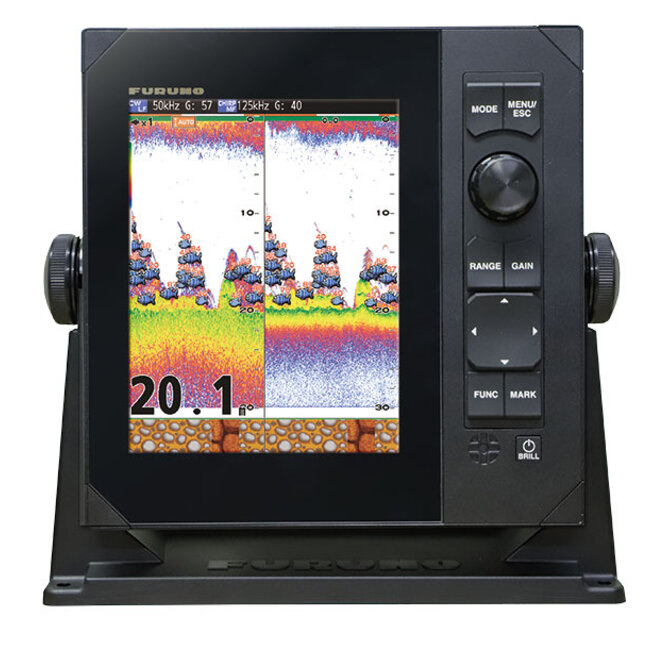

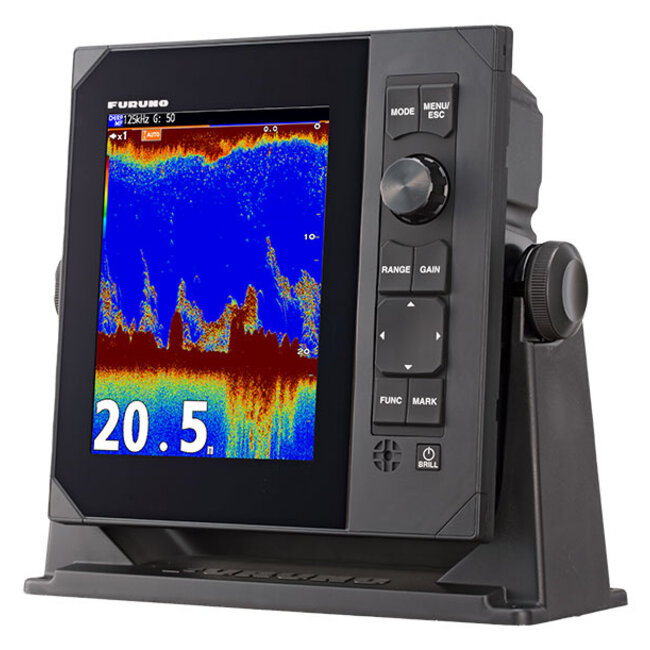

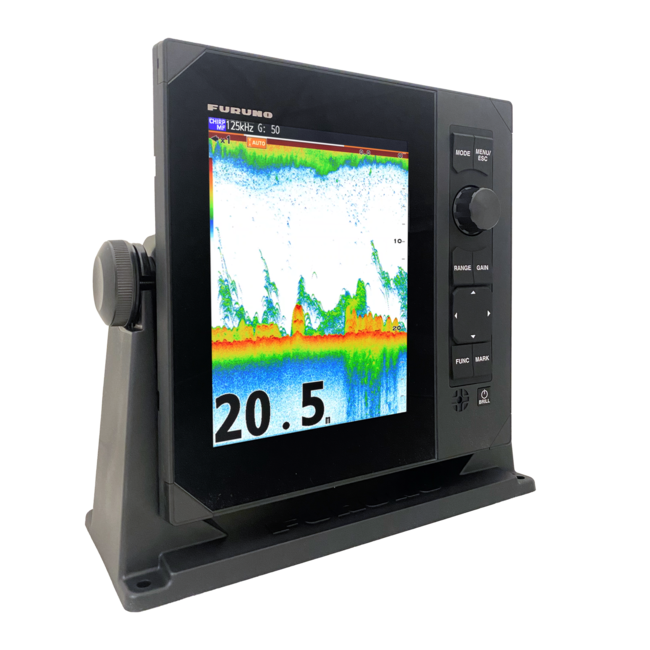

- FCV-800: 8.4“ (800x600 SVGA - 800 cd/m2)
- Display: Single Frequency, Dual-Frequency, Zoom, Nav Data, A-Scope, Marker Zoom, Bottom-Lock, Bottom Discrimination, Color Expand, ACCU-FISH™, RezBoost™
- Basic Range: 2 - 1,200 m (m, ft, fm, HR, pb can be selected in the menu)
- Alarm: Bottom, Fish (Normal), ACCU-FISH™, Fish (B/L), Bottom Discrimination, Fish Level, Temperature, Speed, Arrival, and Battery
- Range Phasing: Up to 1,200 m
- Expansion Range: Bottom-Lock Expansion; 2 - 10 m / Sectional Expansion: 2 - 1,200 m
- Picture Advance Speed: 8 steps: stop, 1/16, 1/8, 1/4, 1/2, 1, 2, 4
- Pulse Length & PRR: 0.04 to 3.0 ms, Max 3,000 pulse/min
- De FCV-800 has NMEA 0183- en NMEA 2000-interfaces, The FCV-600 has only NMEA 2000-interface.
- FCV-800 offers a full one-kilowatt RMS output.

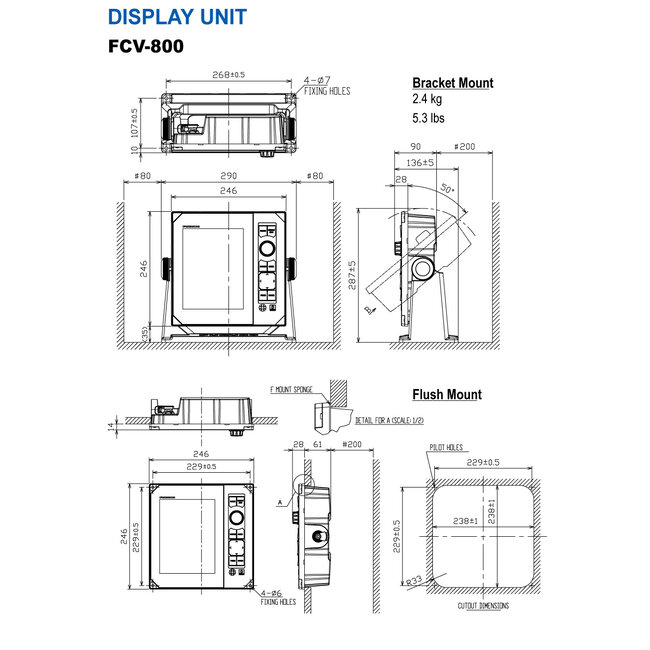

- Measurements 290 (W) x 281 (H) x 136 (D) mm
- Weight 2.4 kg (w/Bracket Mount)
- Temperature: -15°C to +55°C
- Waterproofing: IP56
Power Supply
- FCV-800: 12-24 VDC: 1.6 - 0.8 A
FCV-800 will standard be delivered with:
- LCD 8,4"color screen with bracket
- 50 and 200 kHz, 300 W/600 W/1 kW* (*Matching Box MB-1100 nodig bij CW transducer)
- CHIRP frequency 40-225 kHz
- 12-24 VDC
- Depth range: 2-1.200 m
- Installation material en standard reserve parts
- (Transducer not included in delivery)
-
- CW TRANSDUCER (600 W): 520-5PSD, 520-5MSD, 520-PLD, 525-5PWD, 525STID-PWD, 525STID-MSD, 525T-PWD, 525T-BSD, 525T-LTD/12, 525T-LTD/20, SS60-SLTD/12, SS60-SLTD/20
- CW TRANSDUCER (1 kW): 50B-6, 50B-6B, 50/200-1T, 200B-5S, 526TID-HDD
- CHIRP TRANSDUCER (Single Frequency: 300 W): B75L, B150M, SS75L, TM150M
- CHIRP TRANSDUCER (Single Frequency: 600 W): B75H, B75M, B785M, SS75H, SS75M,TM165HW
- CHIRP TRANSDUCER (Single Frequency: 1 kW):B175L, B175M, TM185M, B285M, B175H, B175HW, TM185HW, B285HW
- CHIRP TRANSDUCER (Dual Frequency: 1 kW): B265LH, TM265LH, CM265LH, B265LM, TM265LM, CM2265LM, B275LHW , TM275LHW, CM275LHW
- SPEED/TEMPERATURE SENSOR: ST-02MSB, ST-02PSB(USA), T-04MSB, T-04MTB
Connector Kit for Connection of Speed & Temperature Sensor or Temperature Sensor
OPTIONAL
- NMEA + Power Cable
- Flush mount kit: OP02-88 - FCV-800
- Adapter Cable for FCV-800: FRU-MJ10CCB12-300 for dual CHIRP transducer
- Matching Box MB-1100 needed with CW transducer
Brochures
Suitable for yachts and fishing vessels
