Zipwake Series 300S Integrator Module Straight Kit Box

The Zipwake Series S 300S Integrator Module Straight Kit Box is a dynamic trim control solution designed for vessels up to 15.5 m (50 ft) and speeds of up to 110 km/h (≈60 knots). As part of the compact Series S range, it is tailored for smaller and mid-sized leisure or semi-commercial craft, offering rapid response and efficient stabilization. This version combines fast-acting straight interceptors with the advanced Integrator Module (IM-S), enabling seamless integration with multifunction displays (MFDs) and smart devices. The IM-S ensures intuitive operation, wireless connectivity, and a clean dashboard layout, while the interceptors actively minimize roll and pitch, improving stability, comfort, fuel efficiency, and safety.

FEATURES

• Dynamic stabilization: Fully automatic pitch and roll control with integrated GPS, gyro, and accelerometer sensors.
• Enhanced maneuverability: Improves steering and turning performance for safer navigation.
• Seamless MFD integration: Connects directly to multiple multifunction displays and navigation systems.
• Wireless connectivity: Configure, monitor, and update the system via the Zipwake App on smartphones and tablets.
• Compact IM-S design: Slightly larger than a postcard, easily installed behind the helm, on the flybridge, or in the engine room.
• Flexible control: Supports up to three additional control panels alongside MFDs for redundancy.
• System expansion: Compatible with up to six Series S interceptors without requiring extra connectors or power supplies.
• NMEA 2000 compatibility: Ensures easy integration with navigation networks and external devices.
• Waterproof housing: IM-S and interceptors are fully protected for long-term marine use.
• Upgradeable software: Updates available directly through the Zipwake App.

MAIN COMPONENTS

Straight Interceptors (IT300-S)

Two straight interceptors of 300 mm each, equipped with single-servo actuators for fast and precise blade movement. Their compact size and durable design make them ideal for smaller sport boats and semi-commercial vessels, ensuring efficient roll and pitch reduction.

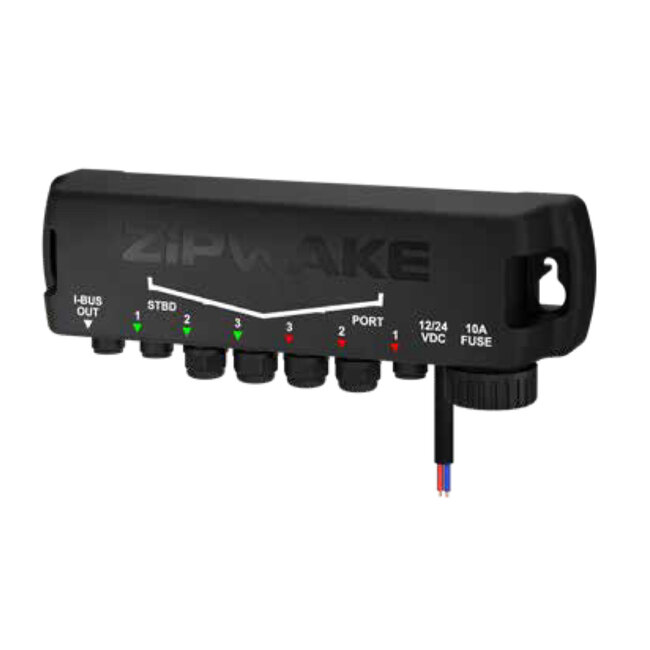

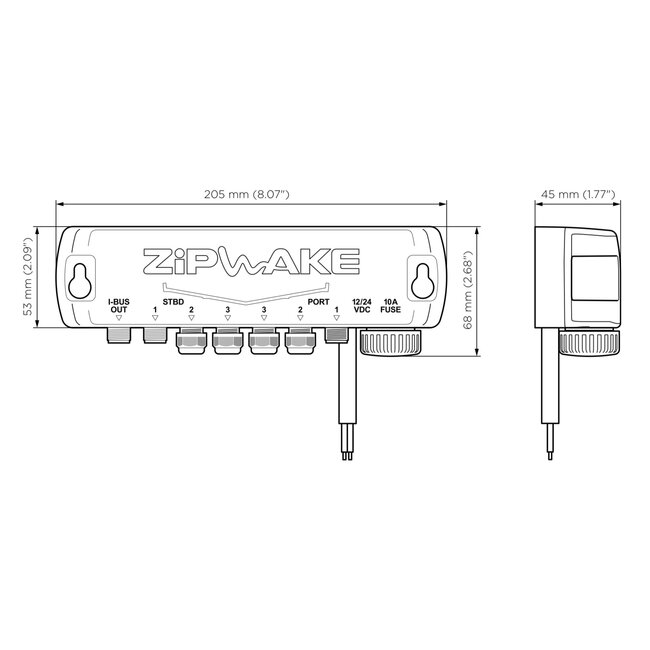

Distribution Unit (DU-S)

Provides power and connectivity to the system. Waterproof, oil-resistant, and ignition-protected, the DU-S is designed for safe installation below deck. Includes a 4 m power cable and built-in electrical protection.

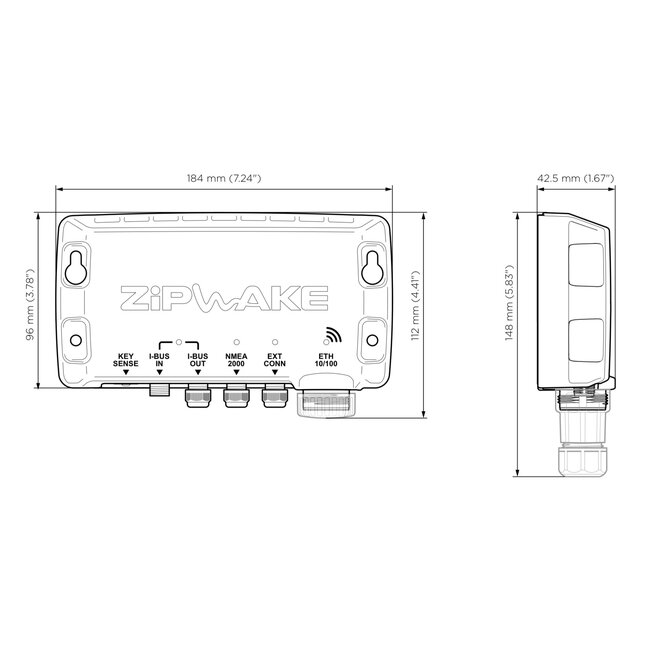

Integrator Module (IM-S)

The central interface of the kit, replacing the standard control panel. It connects the system seamlessly to MFDs and mobile devices, enabling wireless control, software updates, and additional system configuration. Supports multiple control panels and can manage configurations of 1 to 6 interceptors.

SPECIFICATIONS

• Blade length: 300 mm (11.8 in).
• Blade stroke: 30 mm (1.2 in).
• Actuation speed: 20 mm/s.
• Maximum vessel speed: Up to 110 km/h (≈60 knots).
• Suitable vessel length: Up to 15.5 m (50 ft).
• Voltage range: 12–32 V DC.
• Power consumption: Approx. 25 W max.
• Ingress protection: IP68 (interceptors), IP67 (distribution unit, IM-S).
• Connectivity: NMEA 2000, CAN bus, Ethernet.
• Wireless interface: Supported (via Zipwake App).
• Operating temperature: 0 °C to +40 °C.
• Storage temperature: –40 °C to +90 °C.
• Kit box weight: Approx. 12–15 kg (varies with configuration).

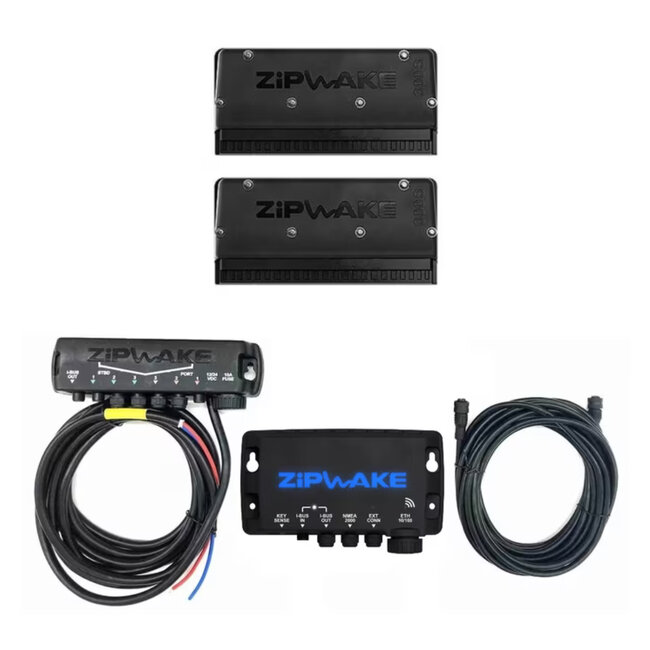

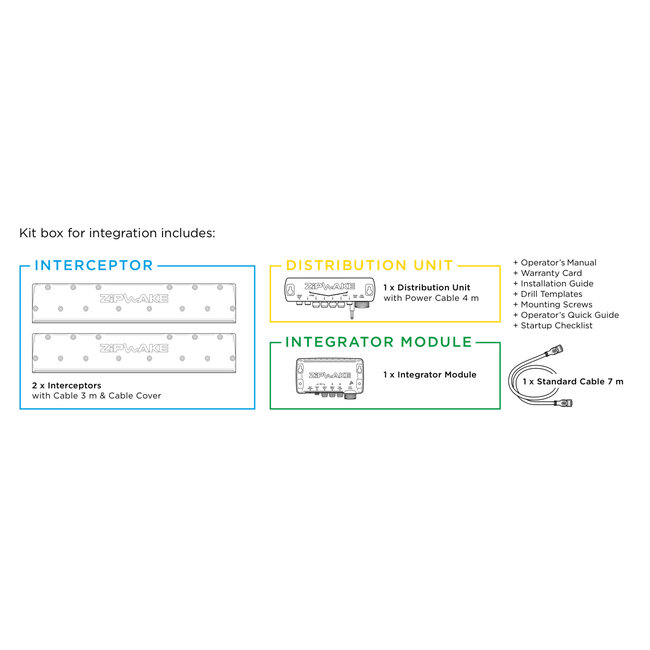

WHAT THE KIT INCLUDES

• 2 × Straight Interceptors (300 mm) with 3 m cables and cable covers.
• 1 × Distribution Unit S (DU-S) with 4 m power cable.
• 1 × Integrator Module (IM-S).
• 1 × Extension Cable.
• Operator’s Manual.
• Installation Guide.
• Drill Templates.
• Mounting Screws.
• Quick Guide.
• Warranty Card.

INSTALLATION CONSIDERATIONS

The interceptors are supplied with integrated mounting plates for secure installation, and optional watertight grommets allow cables to be routed safely above or below the waterline. The IM-S is compact and easy to install behind dashboards, flybridges, or in machinery spaces. Its modular design allows expansion with up to six interceptors per distribution unit, providing flexibility for different vessel layouts. Proper sealing of thru-hull fittings is essential to maintain watertight integrity.
