Zipwake Series 600S Integrator Module Straight Kit Box Trim System

The Zipwake Series S 600S Integrator Module Straight Kit Box Trim System is an advanced dynamic trim control solution designed for vessels up to 15.5 m (50 ft) and speeds of up to 110 km/h (≈60 knots). Compared to conventional trim tab systems, the Series S delivers 5–10 times faster response, superior lift, and simplified installation. This model includes 600 mm straight interceptors, engineered for precise pitch and roll correction on sport and semi-commercial craft.

The kit combines fast-acting straight interceptors with the Integrator Module (IM-S) and a robust distribution unit, providing seamless integration with multifunction displays (MFDs) and smart devices. With wireless connectivity via the Zipwake app, the system allows real-time monitoring, configuration, and updates. Fully automatic operation ensures constant stabilization, improving safety, fuel efficiency, and onboard comfort.

FEATURES

• Automatic stabilization: Real-time dynamic correction of pitch and roll with integrated motion sensors.
• Straight interceptor design: 600 mm interceptors deliver precise lift and effective stabilization.
• Integrator Module (IM-S): Seamlessly integrates the Zipwake system with MFDs and external devices, wireless connectivity via the Zipwake app.
• High responsiveness: 60 mm blade stroke and rapid actuation speed provide faster trim corrections.
• Fuel efficiency: Optimized hull trim reduces drag and fuel consumption.
• System scalability: Supports up to six interceptors per distribution unit.
• Durable construction: Waterproof, oil-resistant, and ignition-protected components for demanding use.
• User-friendly operation: Clean dashboard design with optional additional control panels (up to 3).
• Upgradeable software: Updates available via the Zipwake website or app.

MAIN COMPONENTS

Straight Interceptors (IT600-S Straight)

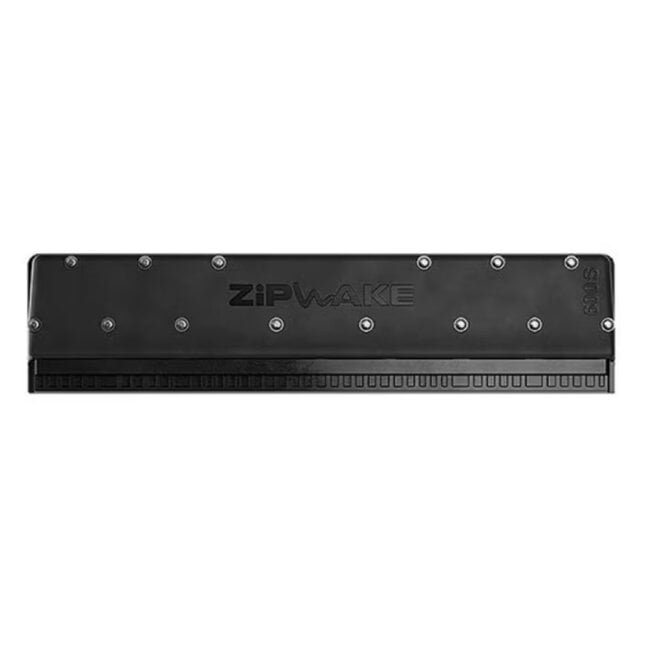

Two 600 mm straight interceptors with single-servo fast-acting actuators. Designed for small to mid-size planing craft, they provide precise pitch and roll compensation while withstanding harsh marine conditions.

Distribution Unit (DU-S)

Powers and connects all system components. Waterproof, oil-resistant, and ignition-protected for installation in engine rooms. Includes a 4 m power cable and built-in electrical protection. Supports up to six interceptors.

Integrator Module (IM-S)

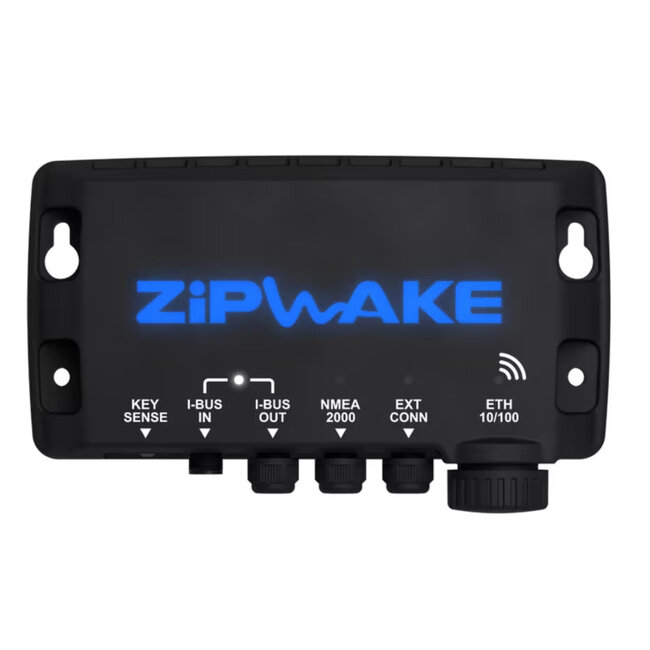

Compact, waterproof module that integrates the Zipwake system with MFDs and smart devices. Equipped with RGB LED status indicators, CAN-bus interface, and wireless connectivity. Allows monitoring, control, and updates via smartphones or tablets using the Zipwake app.

SPECIFICATIONS

• Interceptor length: 600 mm (23.6 in).
• Interceptor type: Straight.
• Blade stroke: 60 mm (2.4 in).
• Actuation speed: 30 mm/s.
• Maximum vessel speed: Up to 60 knots (≈110 km/h).
• Suitable vessel length: Up to 15.5 m (50 ft).
• Voltage range: 12–32 V DC.
• Power consumption: Approx. 25 W max.
• Ingress protection: IP68 (interceptors), IP67 (DU-S, IM-S).
• Servo type: Single brushless servo actuators.
• Connectivity: NMEA 2000, CAN bus, wireless app.
• Cable length: 3 m standard (extendable).
• Operating temperature: 0 °C to +40 °C (32 °F to 104 °F).
• Storage temperature: –40 °C to +90 °C (–40 °F to 194 °F).
• Kit box weight: Approx. 18–20 kg (depending on configuration).

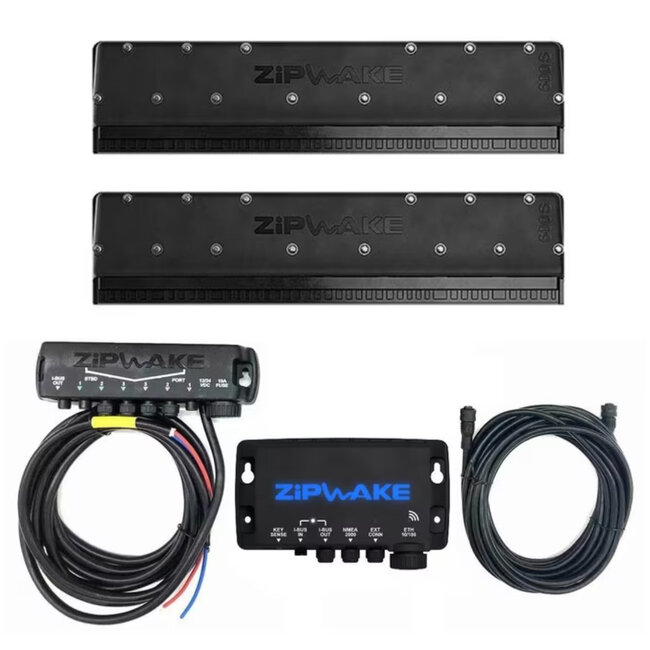

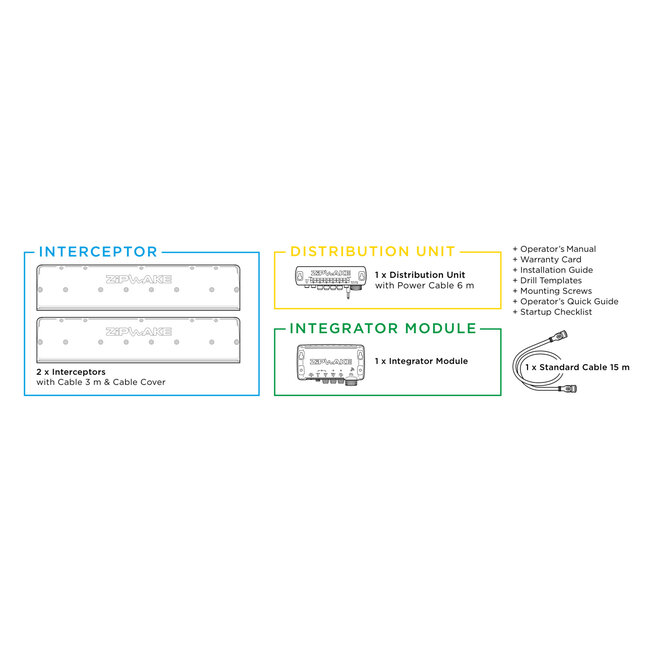

WHAT THE KIT INCLUDES

• 2 × Straight Interceptors (600 mm) with 3 m cables and mounting plates.
• 1 × Distribution Unit S (DU-S) with 4 m power cable.
• 1 × Integrator Module (IM-S).
• 1 × Extension Cable.
• Operator’s Manual.
• Installation Guide.
• Drill Templates.
• Mounting Screws.
• Quick Guide.
• Warranty Card.

INSTALLATION CONSIDERATIONS

For best results, interceptors should be installed symmetrically on the transom, using the included drill templates for precise alignment. Ensure the blades sit flush with the hull surface and maintain equal spacing from the keel. The Distribution Unit should be mounted in a dry, accessible area (e.g., engine room), with enough clearance for cable routing. Use watertight grommets if cables must pass below the waterline. The Integrator Module can be installed behind the dashboard, on the flybridge, or in the machinery space; it requires only a single Ethernet cable connection to an MFD. Proper sealing of all thru-hull penetrations is essential to preserve watertight integrity.
