Professional dynamic trim system for vessels up to 30 m. The Zipwake 400E PRO Straight Kit with dual-servo interceptors and IM-E PRO ensures fast, precise pitch and roll control, boosting stability, fuel efficiency, and comfort in demanding conditions. Read more.
The Zipwake Series 400E PRO Integrator Module Straight Kit Box Trim System is a state-of-the-art dynamic trim control solution developed for professional and commercial vessels up to 30 m (100 ft). Part of the E PRO range, it combines the proven performance of the Series E with enhanced materials, precision control, and extended connectivity options for demanding marine environments.
The PRO line features advanced waterproof protection, upgraded electronics, and improved integration capabilities. The Integrator Module (IM-E PRO) replaces the traditional control panel, enabling seamless central management via multifunction displays (MFDs) and smart devices, offering a cleaner helm design and effortless control across complex installations. The Straight Kit configuration includes linear interceptors ideal for flat transom installations, ensuring optimized pitch and roll correction even at high speeds.
PRO-grade durability: Enhanced waterproofing, corrosion resistance, and professional-grade electronic components for extended reliability.
Straight interceptor configuration: Designed for flat transoms, delivering precise lift and pitch control for planing vessels.
Centralized digital control: Integrator Module allows full system control through MFDs and smart devices, ensuring clean and simplified operation.
Advanced Series E performance: Dual brushless servos provide rapid actuation with 60 mm blade stroke and 40 mm/s speed.
Full automation: Dynamic stabilization minimizes roll and pitch in real time for smoother, safer navigation.
Expandable and compatible: Supports up to six interceptors with DU-EX and integrates with NMEA 2000 networks.
Fuel efficiency and comfort: Reduces hydrodynamic drag, increasing speed, stability, and onboard comfort.

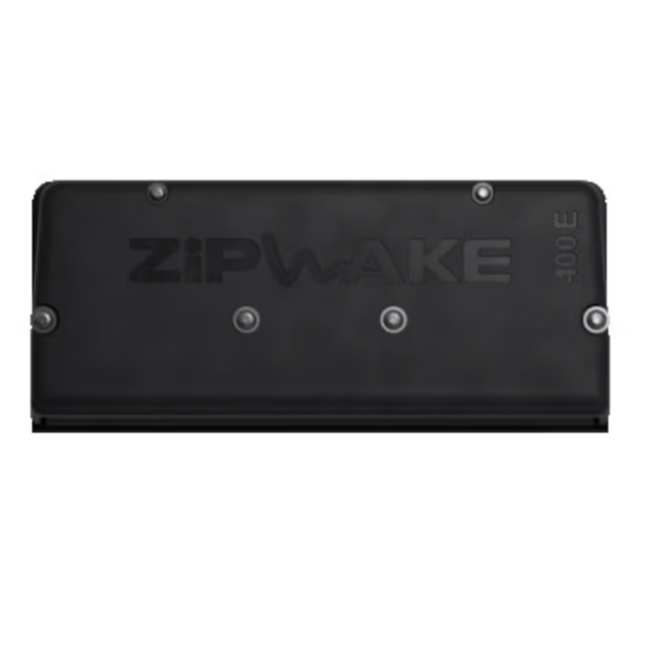

Straight Interceptors (IT400-E PRO)
Two 400 mm straight interceptors with dual brushless servos. Designed for flat hulls, they provide exceptional lift and rapid motion control even under heavy loads.

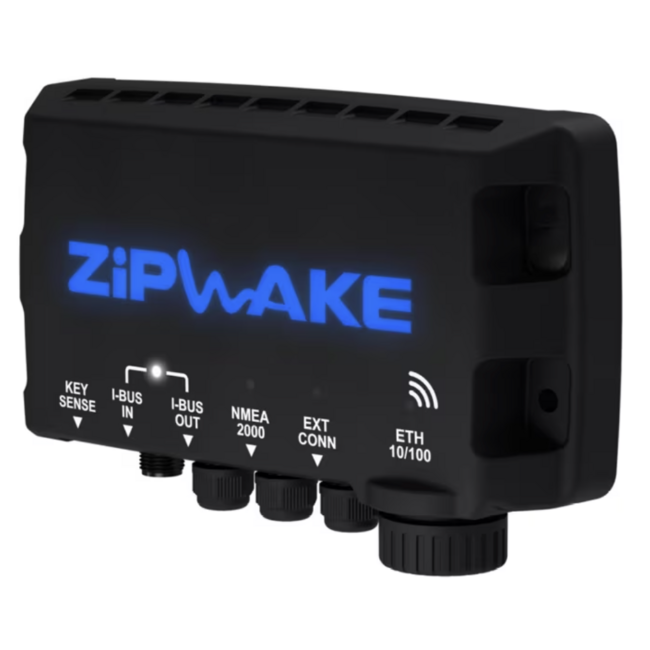

Integrator Module (IM-E PRO)
Compact and waterproof module that replaces the standard control panel. It provides centralized control, real-time monitoring, and wireless configuration via the Zipwake app. Compatible with multifunction displays (MFDs) and NMEA 2000 systems.

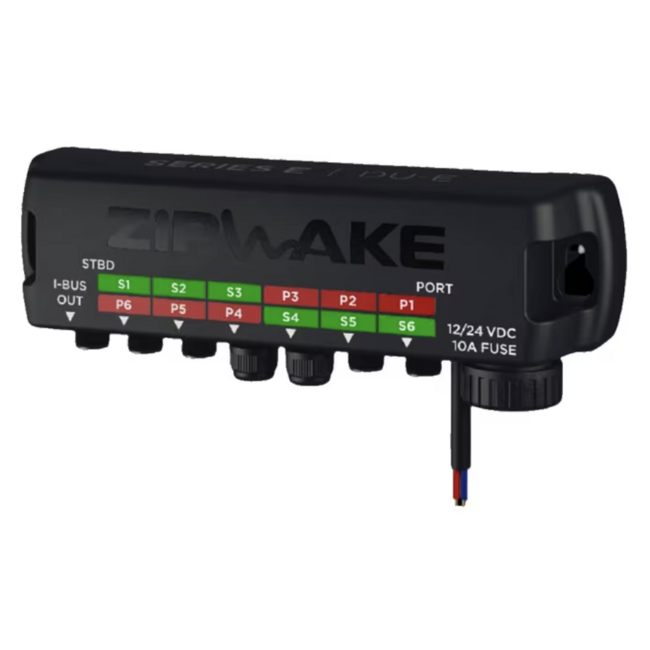

Distribution Unit (DU-E PRO)
Distributes power and communication signals to the interceptors. IP67-rated, oil-resistant, and ignition-protected for engine room installation. Includes integrated circuit protection and a 4 m power cable.
Interceptor type: Straight (flat transom)
Interceptor length: 400 mm (15.7 in)
Blade stroke: 60 mm (2.4 in)
Actuation speed: 40 mm/s
Maximum vessel speed: Up to 60 knots (≈ 110 km/h)
Vessel length: Up to 30 m (≈ 100 ft)
Voltage range: 12–32 V DC
Power consumption: 50 W max
Ingress protection: IP68 (interceptors), IP67 (DU & IM)
Servo type: Dual brushless, submersible actuators
Connector type: M12 5-pin circular
Cable length: 3 m standard (extendable to 6 m)
Operating temperature: 0 °C to +40 °C (32 °F – 104 °F)
Storage temperature: –40 °C to +90 °C (–40 °F – 194 °F)
Kit weight: ≈ 15 kg (33 lb)

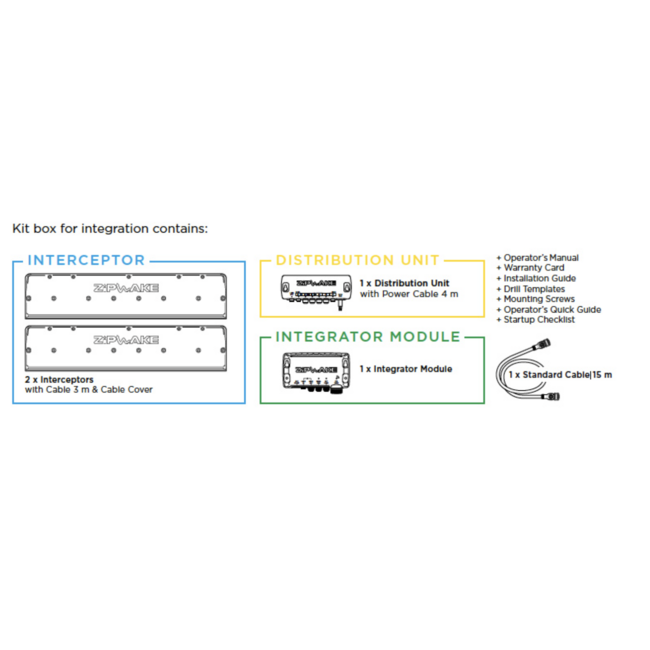

2 × Straight Interceptors (400 mm) with 3 m cables and mounting plates
1 × Distribution Unit (DU-E PRO) with 4 m power cable
1 × Integrator Module (IM-E PRO)
1 × Standard Extension Cable
Operator’s Manual
Installation Guide
Drill Templates
Mounting Screws
Quick Start Guide
Warranty Card
The Straight Interceptors should be installed flush on flat transom surfaces for optimal hydrodynamic performance. Use the supplied templates for precise alignment to maintain balance and stability. The Distribution Unit is best mounted in a dry, well-ventilated space such as the engine room, while the Integrator Module can be installed behind the helm or dashboard, allowing easy connectivity with the NMEA 2000 backbone and MFD interface.
Cable penetrations below the waterline must be sealed carefully with waterproof grommets to maintain IP protection. Thanks to its modular configuration, the system can be expanded with additional interceptors and distribution units without extra connectors or power supplies.
