Zipwake Series 300S Chine Integrator Module Kit Box

The Zipwake Series S 300S Chine Integrator Module Kit Box is a dynamic trim control solution designed for vessels up to 15.5 m (50 ft) and speeds up to 110 km/h (≈60 knots). As part of the compact Series S range, it is tailored for smaller and mid-sized leisure or semi-commercial craft, offering rapid response and efficient stabilization. This system combines fast-acting chine (angled) interceptors with the advanced Integrator Module (IM-S), enabling seamless integration with multifunction displays (MFDs) and smart devices. The IM-S allows intuitive operation, wireless connectivity, and a clean dashboard layout, while the interceptors actively reduce roll and pitch, improving stability, comfort, fuel efficiency, and safety. Rugged, watertight, and easy to install, the 300S Chine Kit Box provides a compact yet powerful solution for sport and semi-commercial vessels.

FEATURES

• Dynamic stabilization: Fully automatic pitch and roll control for improved comfort and safety.
• Enhanced maneuverability: Steering and turning performance are actively improved.
• Motion sensors: Integrated 3D gyro, accelerometer, and magnetic compass for precise motion detection.
• Seamless MFD integration: Connects directly to multiple multifunction displays from different manufacturers.
• Wireless control: Monitor, configure, and update the system via the Zipwake App on smartphones and tablets.
• Compact design: Discreet IM-S module, slightly larger than a postcard, easily installed behind the helm or in the engine room.
• System expansion: Supports up to six Series S interceptors without requiring extra connectors or power units.
• Flexible control: Up to three additional control panels can be connected alongside MFDs for redundancy.
• NMEA 2000 compatibility: Ensures straightforward integration with navigation networks and external devices.
• Waterproof construction: Durable housing with Ethernet sealing collar for reliable marine installation.

MAIN COMPONENTS

Chine Interceptors (IT300-S Chine)

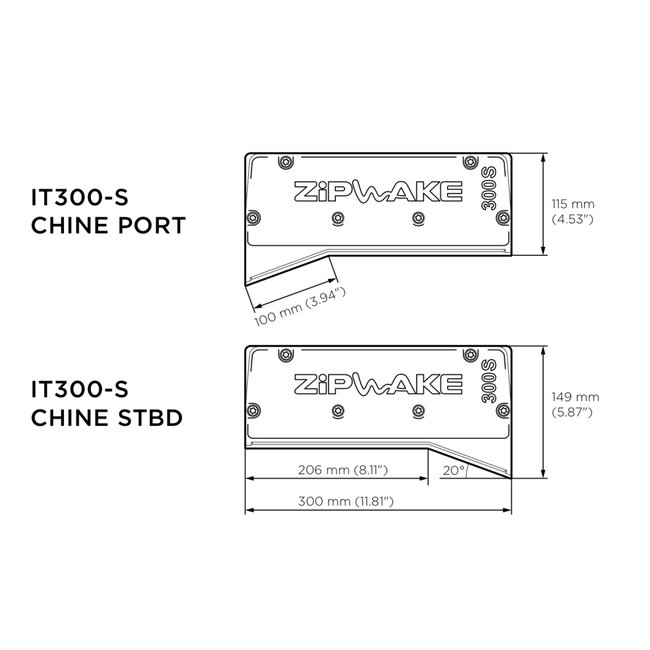

Two 300 mm chine (angled) interceptors with single-servo actuators, engineered for precise lift and stabilization. Their design fits chine hulls, reducing roll and pitch even at high speeds, while their compact size makes them ideal for smaller vessels.

Distribution Unit (DU-S)

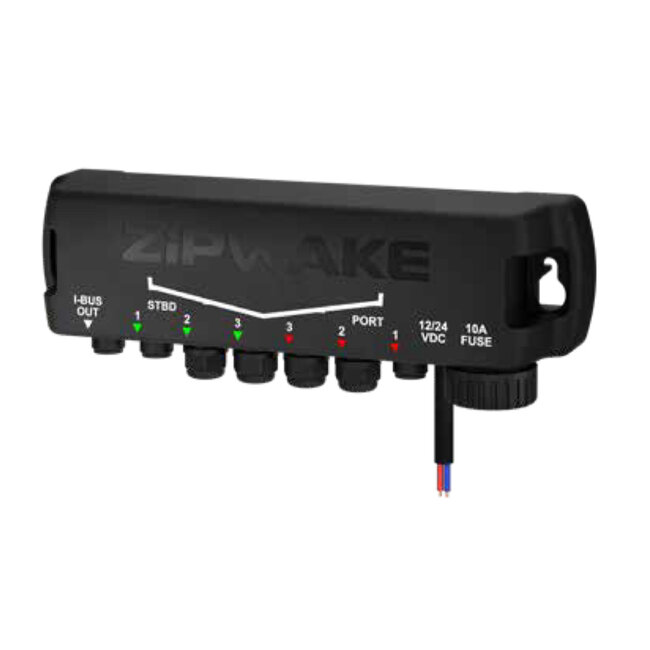

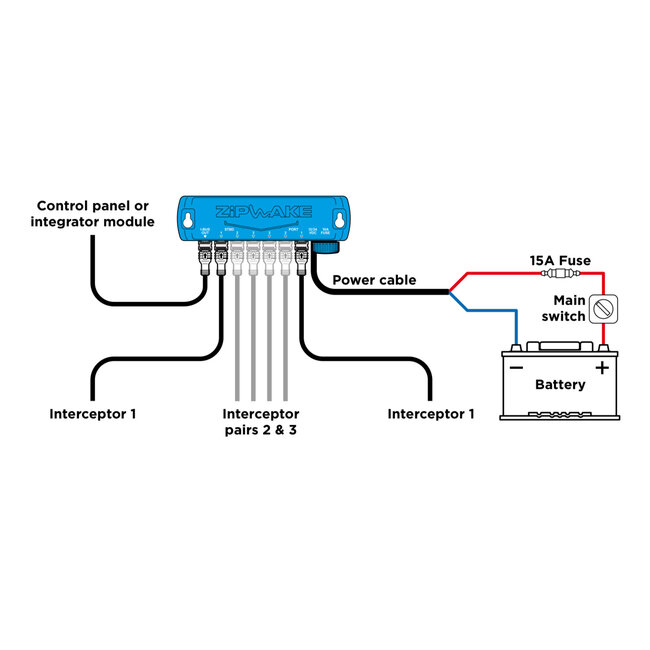

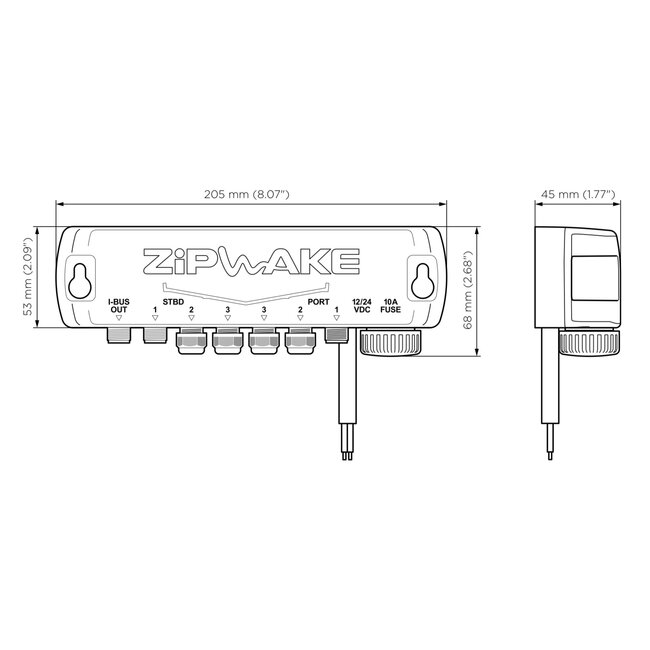

Provides central power and connectivity for the system. The DU-S is waterproof, oil-resistant, and ignition-protected, suitable for installation below deck. Includes a power cable and built-in fuse protection.

Integrator Module (IM-S)

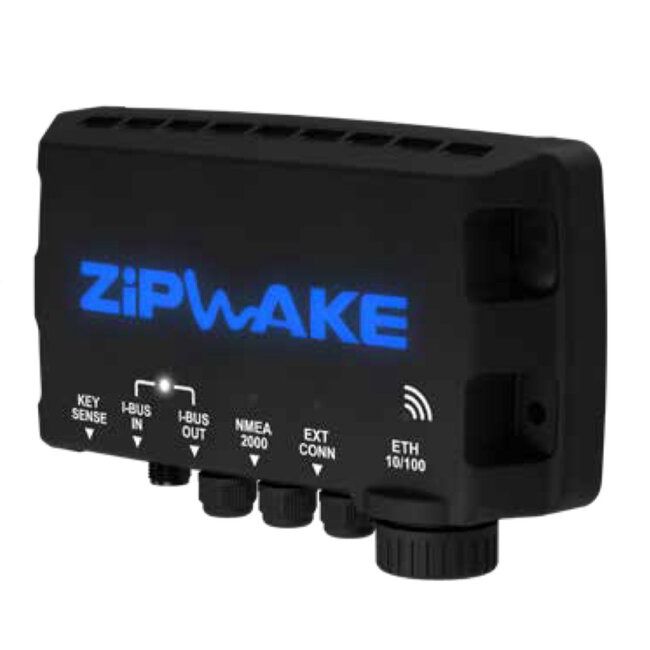

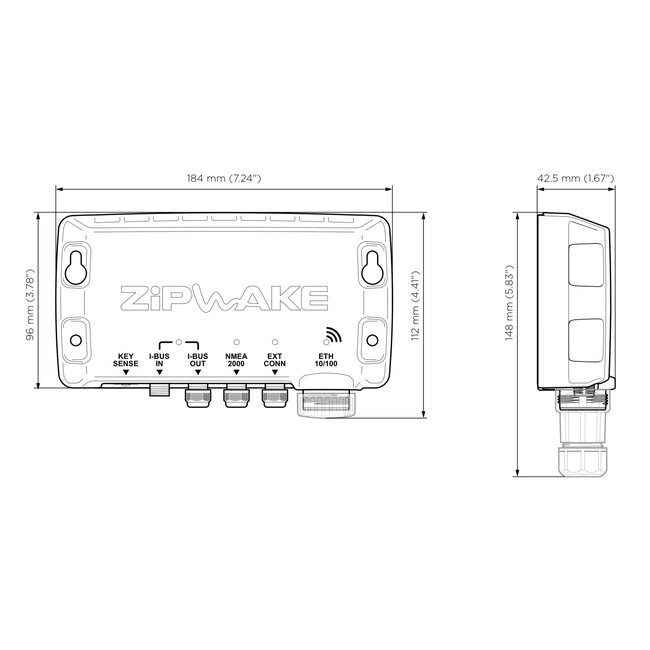

The key interface for the kit, replacing the standard control panel. The IM-S connects the system to MFDs and mobile devices, offering wireless control, seamless integration, and software updates. It supports multiple control panels and manages installation configurations from 1 to 6 interceptors.

SPECIFICATIONS

• Blade length: 300 mm (11.8 in).
• Blade stroke: 30 mm (1.2 in).
• Actuation speed: 20 mm/s.
• Maximum vessel speed: Up to 110 km/h (≈60 knots).
• Suitable vessel length: Up to 15.5 m (50 ft).
• Voltage range: 12–32 V DC.
• Ingress protection: IP68 (interceptors), IP67 (distribution unit, IM-S).
• Connectivity: NMEA 2000, CAN bus, Ethernet.
• Wireless interface: Supported (via Zipwake App).
• Operating temperature: 0 °C to +40 °C.
• Storage temperature: –40 °C to +90 °C.

WHAT THE KIT INCLUDES

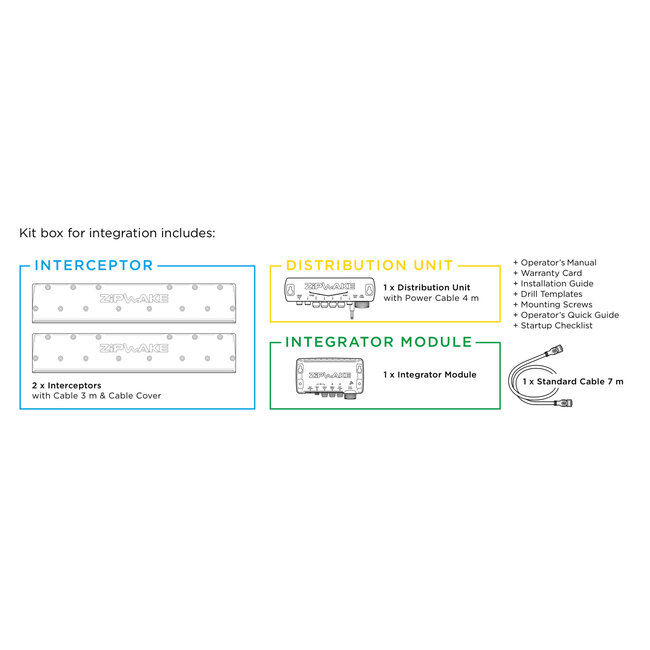

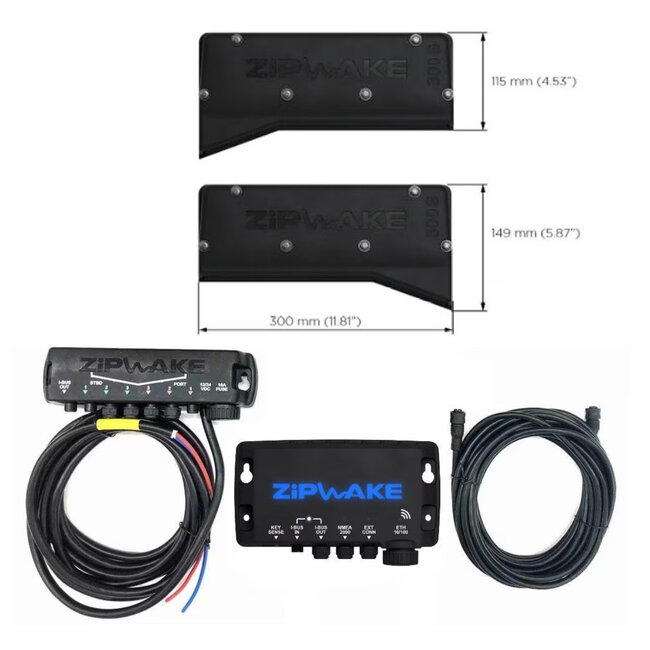

• 2 × Chine Interceptors (300 mm) with cables and cable covers.
• 1 × Distribution Unit S (DU-S) with power cable.
• 1 × Integrator Module (IM-S).
• 1 × Extension Cable.
• Operator’s Manual.
• Installation Guide.
• Drill Templates.
• Mounting Screws.
• Quick Guide.
• Warranty Card.

INSTALLATION CONSIDERATIONS

The kit includes integrated mounting plates for interceptors and watertight grommets for secure cable routing above or below the waterline. The IM-S can be discreetly installed behind the helm, on the flybridge, or in the engine room, with a single Ethernet cable connection to MFDs. Its modular design supports expansion with up to six interceptors, while correct sealing of thru-hull fittings ensures watertight integrity.
