Zipwake 1000E Integrator Module Straight Kit Box Trim System

The Zipwake Series E 1000E Integrator Module Straight Kit Box is a professional dynamic trim control system designed for vessels up to 30 m (100 ft). Featuring extra-large 1000 mm straight interceptors powered by high-speed servo technology, the system actively eliminates unpleasant and dangerous pitch and roll. By minimizing wave resistance, it enhances handling, increases comfort, improves safety, and significantly reduces fuel consumption.

Unlike the standard kit with a physical control panel, this version is supplied with the Integrator Module (IM-E), allowing seamless connection to multifunctional displays (MFDs) and smart devices. The IM-E provides intuitive 3D controls, keeping the dashboard clean while delivering unmatched precision and ease of use. All components are rugged, watertight, and engineered for heavy-duty marine conditions, ensuring long-term reliability with minimal maintenance.

FEATURES

• Dynamic stabilization: Actively eliminates roll and pitch, improving comfort and safety at sea.
• Fuel efficiency: Reduces drag and wave resistance, lowering operational costs.
• 3D control integration: Seamless, intuitive operation through MFDs and smart devices via the Integrator Module.
• Heavy-duty design: Large, fast-acting interceptors engineered for vessels up to 30 m (100 ft).
• Scalable system: Modular design allows expansion with up to six interceptors without additional connectors or power supplies.
• Simple installation: All-inclusive kit box with modular components ensures straightforward setup.

MAIN COMPONENTS

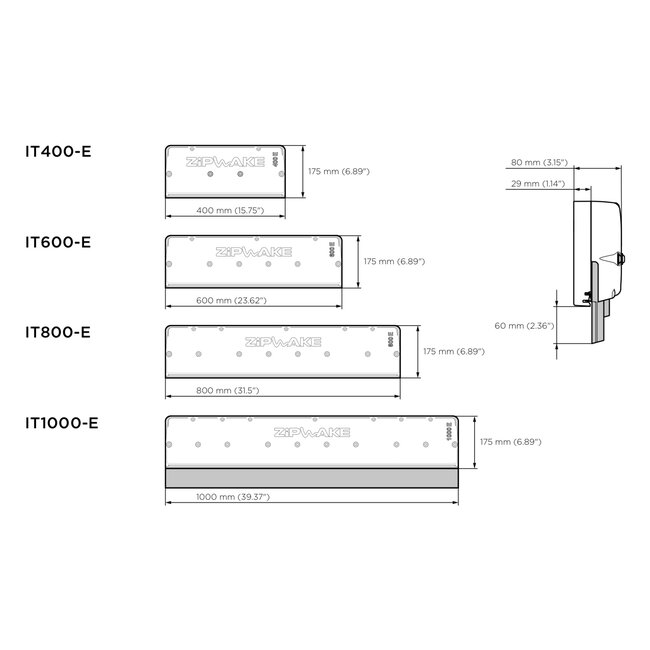

Straight Interceptors (IT1000-E)

Two 1000 mm straight interceptors are included, designed for superior lift characteristics and fast actuation. Their robust and watertight construction makes them ideal for large planing and semi-planing vessels operating in demanding conditions.

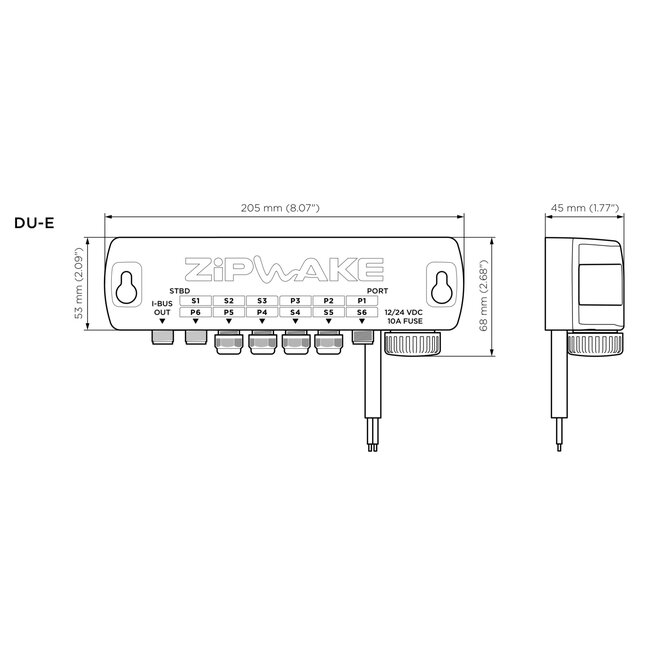

Distribution Unit (DU-E)

Provides centralized power and connectivity for the system. The DU-E is rugged, waterproof, oil-resistant, and ignition-protected, allowing safe installation in technical spaces. Built-in electrical protection (including fuses) ensures reliability.

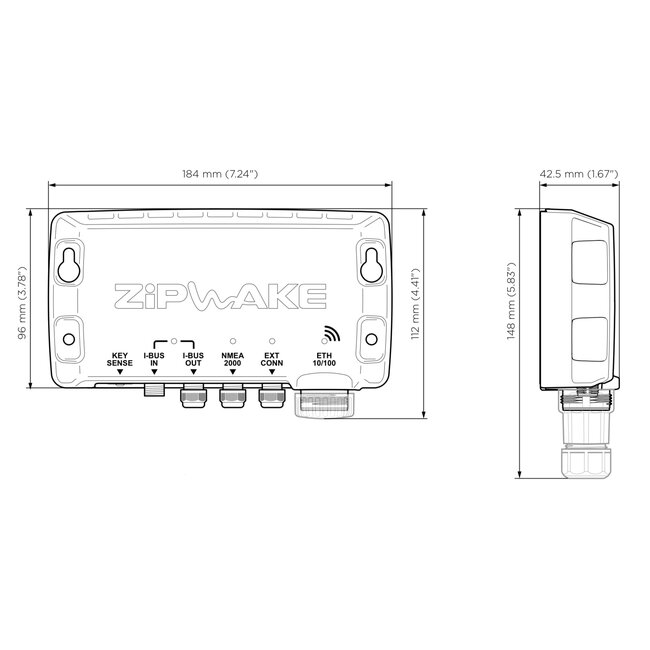

Integrator Module (IM-E)

Replaces the standard control panel, enabling integration with multifunction displays (MFDs) and external devices. The IM-E offers full 3D control functionality while keeping the dashboard clean and uncluttered, providing a modern, professional user experience.

SPECIFICATIONS

• Blade length: 1000 mm (39.4 in).
• Application: Suitable for vessels up to 30 m (100 ft).
• Actuation: Fast-acting servo technology for immediate correction.
• System type: E-Series — larger, more durable interceptors compared to Series S.
• Control interface: Integrator Module (IM-E) with 3D control integration to MFDs.
• Expansion: Supports up to six interceptors without extra power or connectors.
• Ingress protection: Waterproof, oil-resistant, ignition-protected units for professional installation.

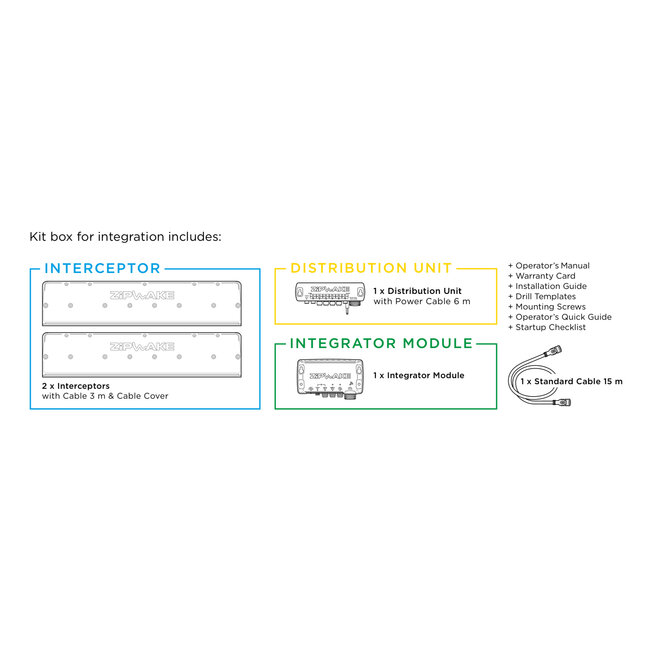

WHAT THE KIT INCLUDES

• 2 × Straight Interceptors (1000 mm) with cables and cable covers.
• 1 × Distribution Unit E (DU-E) with power cable.
• 1 × Integrator Module (IM-E).
• 1 × Extension Cable.
• Operator’s Manual.
• Installation Guide.
• Drill Templates.
• Mounting Screws.
• Quick Guide.
• Warranty Card.

INSTALLATION CONSIDERATIONS

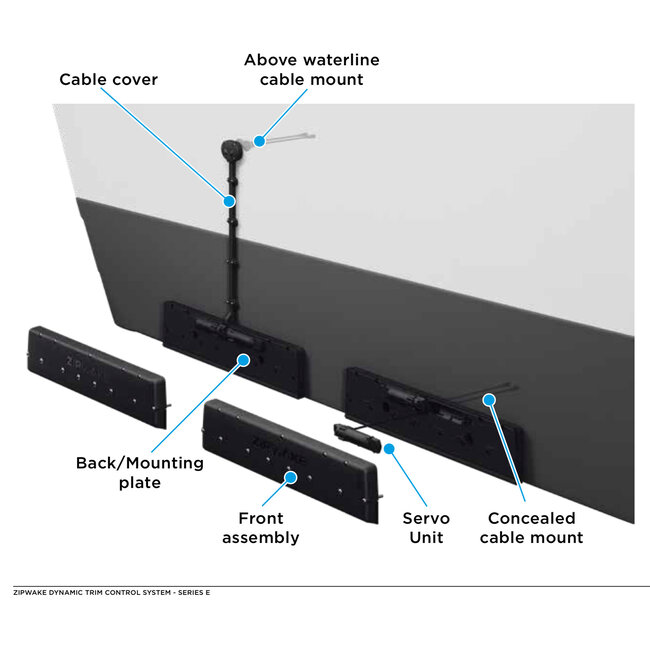

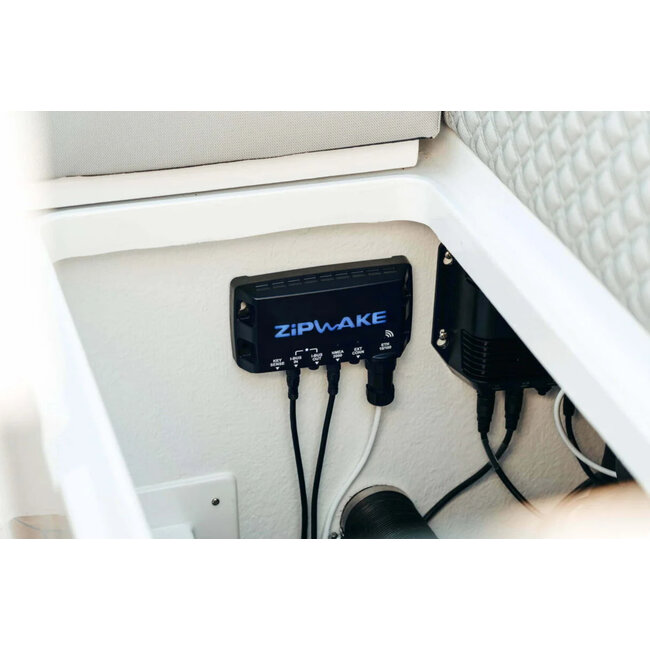

The kit includes integrated mounting plates for secure installation, with options for routing cables above or below the waterline. Its modular architecture allows system expansion with additional interceptors (up to six per DU-E). The Integrator Module simplifies installation by connecting directly to MFDs and external devices, reducing dashboard clutter. Proper alignment and sealing of thru-hull fittings are essential to maintain watertight integrity.

BROCHURES

• Zipwake Series E Brochure
• Zipwake Series E Product Specifications
• Zipwake Series E Installation Guide
