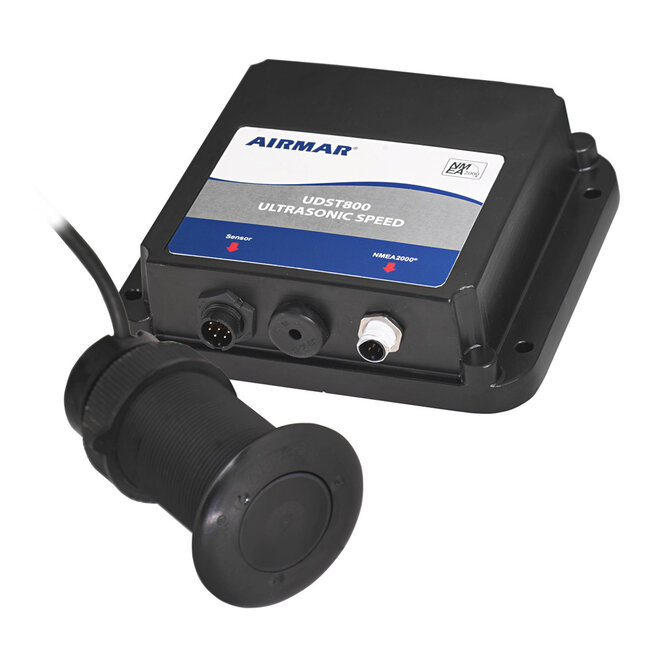

UDST800 P617v Transducer With Insert
Airmar’s patented UDST800 combines ultrasonic speed, depth, and temperature sensing in a single, compact thru-hull housing, delivering reliable data with zero moving parts. Eliminate paddlewheel maintenance and gain more time on the water with this innovative, low-maintenance solution. The UDST800 uses ultrasonic pulses to measure speed through water with high precision, even at low speeds. Depth and temperature readings are processed inside the sensor itself, thanks to Airmar’s embedded Smart™ Sensor technology. This allows data to be transmitted seamlessly to NMEA 2000® or NMEA 0183 networks for immediate access across multiple onboard displays. Designed for durability and performance, the UDST800 is the smart upgrade for any boater seeking hassle-free, accurate, real-time data.
FEATURES
- Ultrasonic speed, depth, and fast-response water-temperature sensing
- Single housing with no moving parts—no paddlewheel
- Precise readings at high speeds ideal for powerboats, cruising, and sailing
- Advanced filtering and sampling rates for increased accuracy at all speeds
- Adapts automatically to boat speed, water depth, and water clarity, keeping speed accuracy consistent
- 235 kHz frequency prevents interference with other echosounders on the vessel
- Retractable plastic insert in a low-profile plastic housing with water valve
- Also available in a bronze (B617V) or stainless steel (SS617V) housing
- Retrofits into Airmar’s P617V, B617V or SS617V housing
- Airmar's Smart™ Sensor technology
SPECIFICATIONS
- Acoustic Window: Urethane
- Cable-Length: 6 m (20') NMEA 2000® cable
- Comm Method: NMEA 2000®
- Common Use: Cruising/Racing Sailboats, Leisure/Yachting, Fishing
- Country of Origin: USA
- Data Rate: Up to 10 times per second
- Display Connector: N2 Micro
- Frequency Band: 235 kHz
- Functions: Depth, Speed, Temperature
- Hole Size: 51 mm (2"), Stainless steel housing in metal hull—57 mm (2-1/4")
- Hull Material: Fiberglass or metal
- Material: Plastic
- Max Depth: 0.6 m (2') to 100 m (330')
- Mounting Style: Low Profile Thru-Hull
- NMEA 2000 LEN: 8
- Power Rating: N/A
- Retractable housing: Yes
- Retrofits: Retrofits into AIRMAR P617V
- Speed Range: 0.1 to 50 knots (0.1 to 57 MPH)
- Temperature Accuracy: ±0.5°C (±1.8°F)
- Tilted Element: No
- Usable Shaft Length: 57 mm (2.25")
- Voltage: 9 to 16 VDC
- Water Temperature: -10° to 40°C (14° to 104°F)
- Weight: 1.4 kg (3 lb.)
