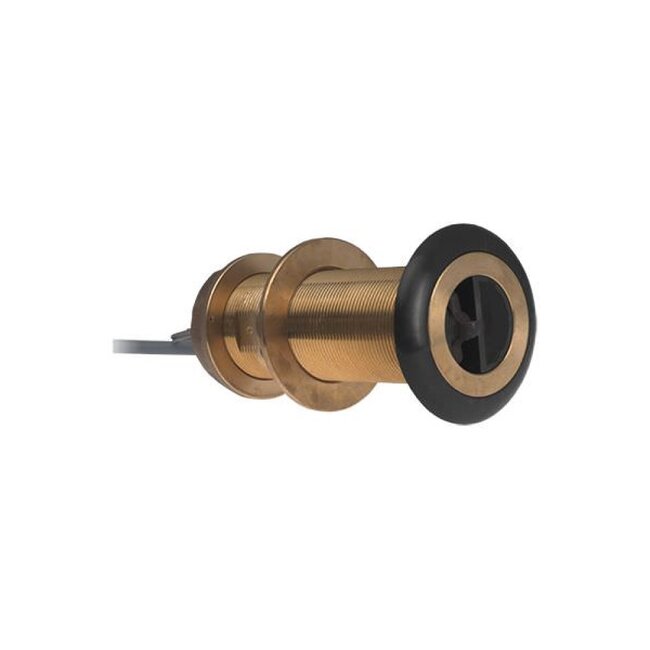

DST800L B122 Long Stem Triducer
The DST800L is a Smart™ Triducer® Multisensor that delivers depth, speed, and temperature data through a single thru-hull fitting. Featuring a long-stemmed design, it’s ideal for thick-hulled wooden boats or vessels with steep deadrise angles. For enhanced performance, an optional high-performance fairing vertically aligns the transducer beam, ensuring strong echo returns even at higher speeds. Built on Airmar’s proven Smart Sensor platform, the DST800L integrates microelectronics directly within the housing, processing data right at the source. Depth, speed, and temperature information is transmitted via a single cable to any NMEA 2000® network or compatible display for real-time monitoring and control. The sensor’s wide, fan-shaped beam is capable of accurately detecting the bottom, even when installed on a high-deadrise hull or a heeling sailboat.
Note: The DST800L is the long-stem version of the DST800, housed in a B122 body.
Installation options:
Low-Profile Adapter Ring (33-634-02) – included
High-Performance Fairing (33-409-01) – sold separately
FEATURES
- Depth, speed, and temperature in one housing
- 235 kHz frequency prevents mutual interference with other echo sounders on the vessel
- Depth performance from 500 mm to 185 m (1.6 to 600')
- Wide, port-starboard, fan-shaped beam is able to find bottom even when installed on high-deadrise hull or heeling sailboat
- Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy
- Available as a Smart Sensor at 235 kHz
- Bronze housing with water valve
- NMEA 2000 certified cable
SPECIFICATIONS
- Acoustic Window: Urethane
- Cable-Length: 6 m (20'), NMEA 2000®: 6 m (20')
- Comm Method: NMEA 2000®
- Common Use: Cruising/Racing Sailboats, Leisure/Yachting, Fishing
- Conventional Beam: 10°x44°
- Country of Origin: USA
- Data Rate: 1X per second
- Deadrise Range: Up to 12° w/out fairing. Up to 28° with fairing
- Display Connector: N2 Micro
- Frequency Band: 235 kHz
- Material: Bronze
- Max Deadrise: Up to 28° with fairing
- Max Depth: Up to 100 m (330')
- Power Rating: 100 W
- Pulses: 20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile
- Single or Dual Frequency: Conventional Single Frequency
- Speed Range: Up to 45 knots
- Temperature Accuracy: ±0.5°C (±1.8°F)
- Tilt Angle: 0°
- Tilted Element: No
- Usable Shaft Length: 102 mm (4.00")
- Voltage: 9 to 16 VDC
- Water Temperature: -10° to 40°C (14° to 104°F)
- Weight: 3.9 kg (8.7 lb.)
- Functions: Depth, Speed, Temperature
- Mounting Style: Low Profile Thru-Hull
- Max Deadrise Angle: 28°
- Hull Material: Fiberglass or wood
- Hole Size: 51 mm (2")
- Retractable housing: Yes
