EchoPilot FLS 2D Forward-Looking Sonar

The EchoPilot FLS 2D is a powerful yet user-friendly forward-looking sonar system designed for boaters who want real-time, reliable underwater imaging without the complexity of larger multi-transducer systems. Displayed on a bright, full-color 7” TFT LCD screen, the FLS 2D provides instant seabed readings, showing both what’s directly under your boat and up to 200 meters ahead.

Unlike traditional depth sounders, which display delayed historical data, the FLS 2D updates up to twice per second for true real-time sonar feedback. Its unique color-coded display not only shows the shape of the seabed but also gives valuable insights into its composition, helping you distinguish between soft sand and hard rock instantly.

With simple controls, a choice of transducers for different hull types, and an optional repeater for dual-station setups, the FLS 2D is ideal for recreational boaters, cruisers, and smaller vessels seeking an affordable, effective forward-looking sonar system.

FEATURES

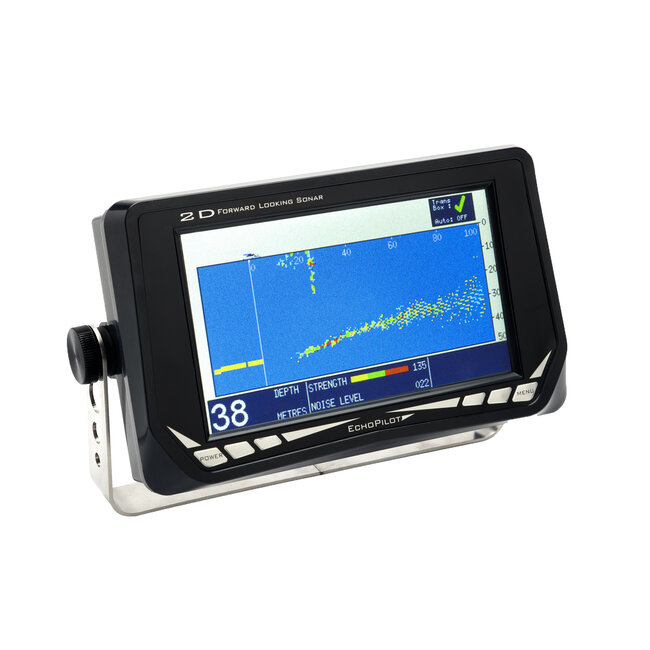

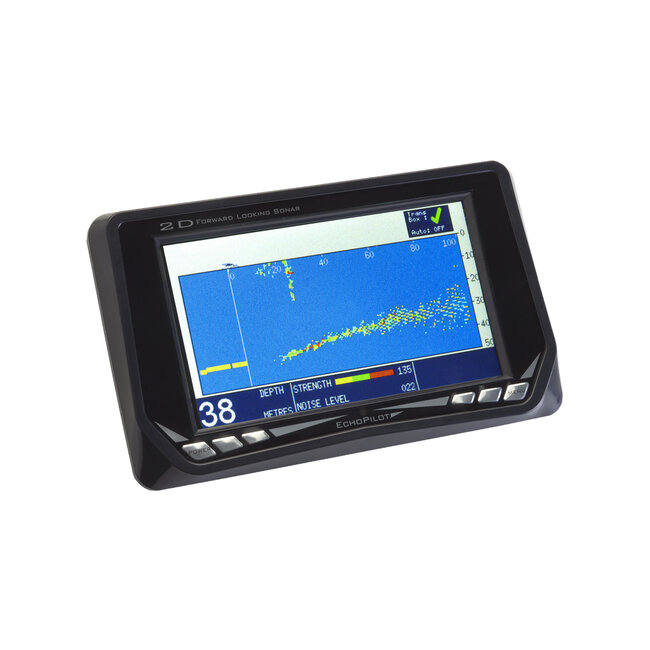

7” Full-Color Display:
Provides crystal-clear seabed imaging on a bright, sunlight-readable TFT LCD with a 90° vertical sonar scan. 800 x 480 pixels

Color-Coded Seabed Analysis:
Identifies seabed composition at a glance—red tones for hard seabed materials like rock or coral, green and blue for softer materials like mud or sand.

Real-Time Sonar Imaging:
Delivers live sonar data with update speeds as fast as 0.5 seconds—no lag or outdated depth readings.

Extensive Forward & Depth Ranges:
Covers up to 200 meters ahead and 100 meters in depth, suitable for a wide range of marine environments.

Digital Depth Display:
Continuously displays digital depth readings, providing accurate, easily visible information.

Shallow Water Alarm:
Built-in alarm alerts you immediately when entering shallow areas, enhancing safety during navigation.

Optional Dual Display Support:
Enables connection of an additional repeater display—perfect for larger vessels or secondary helm stations.

Flexible Installation Options:
Available with either a Standard (plastic) or Professional (bronze) transducer, allowing you to choose the best fit for your hull design.

SPECIFICATIONS

• Display: 7” TFT LCD (transflective with LED backlighting)

• Viewing Area: 800 × 480 pixels

• Forward Range: 20 to 200 meters

• Depth Range: 10 to 100 meters

• Depth-to-Range Ratio: 10× water depth

• Operational Speed: Up to 10 knots

• Update Rate: 1–2 updates per second

• Voltage: 12V or 24V DC

• Current Consumption: Display-380mA with max brightness (150 mA min)

• Operating Frequency: 200 kHz

• Alarm: Shallow water alarm

• Repeater Option: Yes (compatible with FLS 2D Repeater Display)

• Transducer Options: Standard (plastic) or Professional (bronze)

AVAILABLE VARIANTS AND WHAT IS INCLUDED

NOTE: Make sure you choose the desired variant on the top right selector before adding to cart.

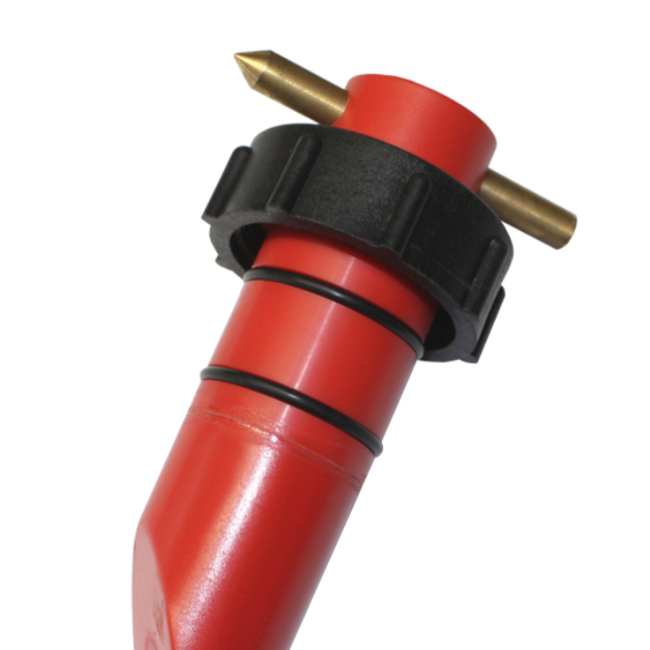

2D-R-STD – Standard Transducer Package (Plastic Skin Fitting)

• 1 × 2DR Display

• 1 × Standard Transducer with 2 m Cable

• 1 × Plastic Through-Hull Skin Fitting (35 mm bore)

• Power Cable

• 10 m Transducer Extension Cable

• Ready for Repeater Connection

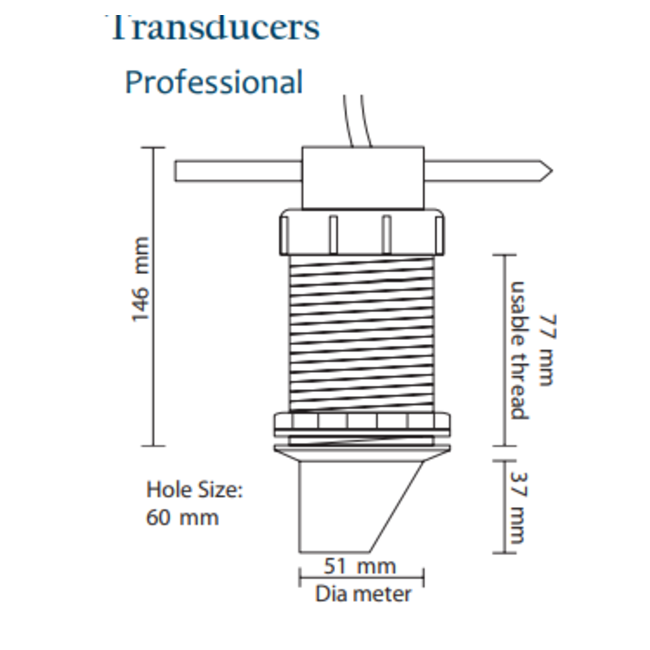

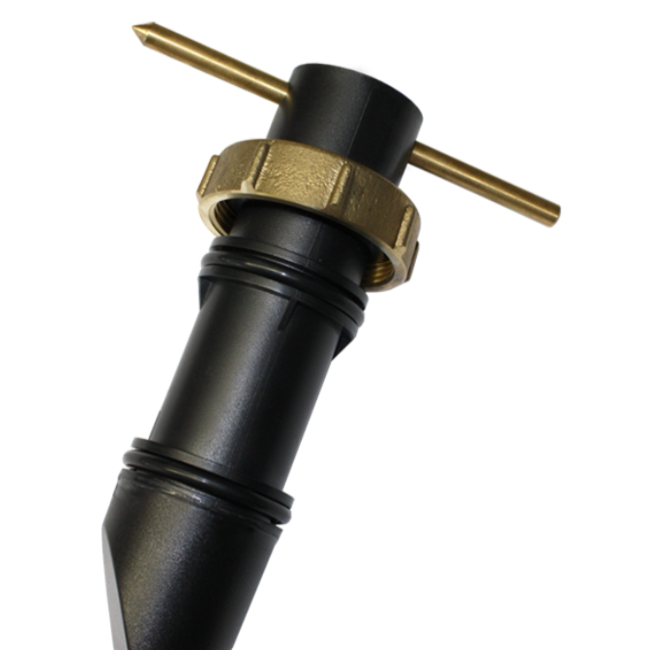

2D-R-PRO – Professional Transducer Package (Bronze Skin Fitting)

• 1 × 2DR Display

• 1 × Professional Transducer with 2 m Cable

• 1 × Pro Skin Fitting Bronze (52 mm bore)

• Power Cable

• 10 m Transducer Extension Cable

• Ready for Repeater Connection

2D Repeat – Repeater Display Unit

• 1 × Repeater Display Unit (to be connected to 2D-R-STD or 2D-R-PRO)

• Power Cable

• 10 m Data Cable

•

OPTIONAL swivel bracket

BROCHURES

• EchoPilot FLS 2D Brochure
• EchoPilot FLS 2D Instruction Manual
• EchoPilot FLS 2D Bronze Skin Fitting Dimensions
• EchoPilot FLS 2D Steel & Aluminium Skin Fitting Dimensions

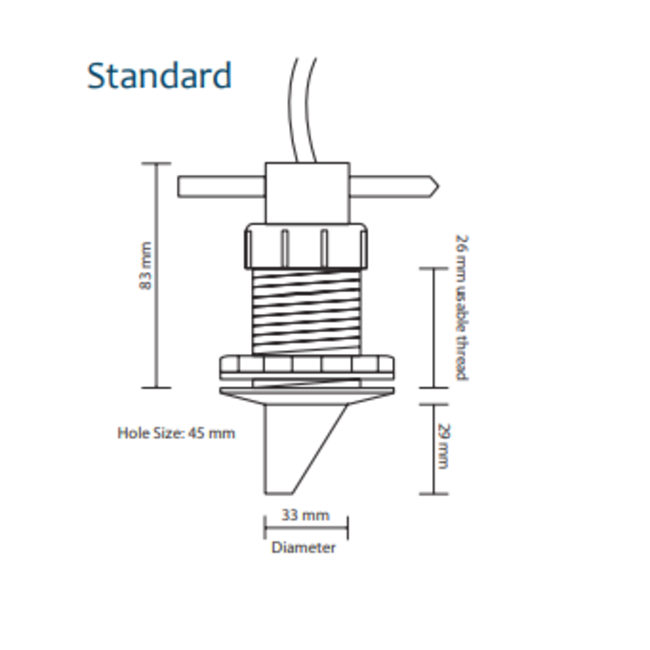

• EchoPilot FLS 2D Standard Transducer Dimensions
