Zipwake 750S PRO Straight Kit Box Trim System

The Zipwake 750S PRO Straight Kit Box Trim System is a professional-grade dynamic trim control solution engineered to deliver maximum stability, safety, and efficiency at sea. Featuring ultra-fast straight interceptors with brushless servo technology, the system actively eliminates roll and pitch, minimizing the impact of waves for smoother handling and reduced fuel consumption.

All components are designed for heavy-duty use: watertight, impact-resistant, and protected against oil and ignition risks, ensuring reliable operation with minimal maintenance. Thanks to an integrated mounting plate and flexible thru-hull options, installation is straightforward, whether above or below the waterline. The result is a powerful, intuitive, and durable trim system that enhances performance for planing and semi-planing vessels operating under demanding conditions.

FEATURES

• Instant response: High-speed servo motors deliver rapid adjustment to wave impact and load changes.
• Automatic stabilization: Actively corrects trim and roll for smoother, safer navigation.
• Fuel efficiency: Optimized hull performance reduces drag and fuel consumption.
• User-friendly control: Color display and dual dials for intuitive operation in all conditions.
• Durable design: Watertight, oil-resistant, and built to withstand professional use.

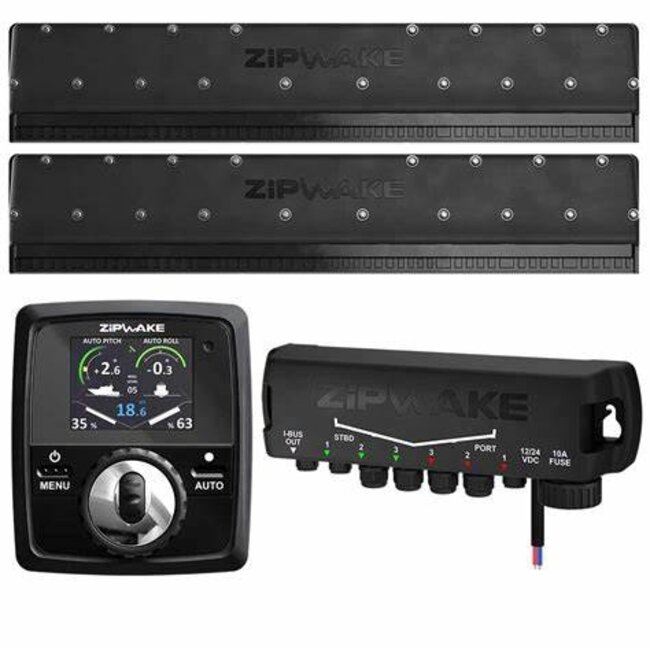

COMPONENTS

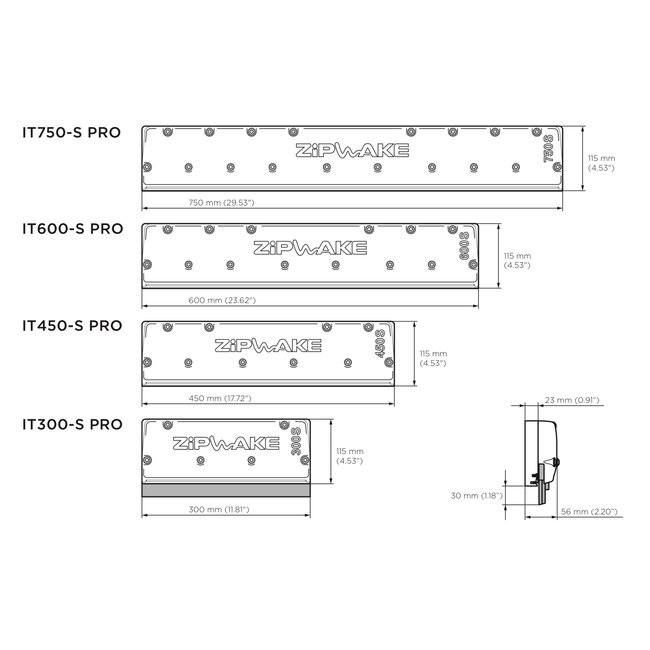

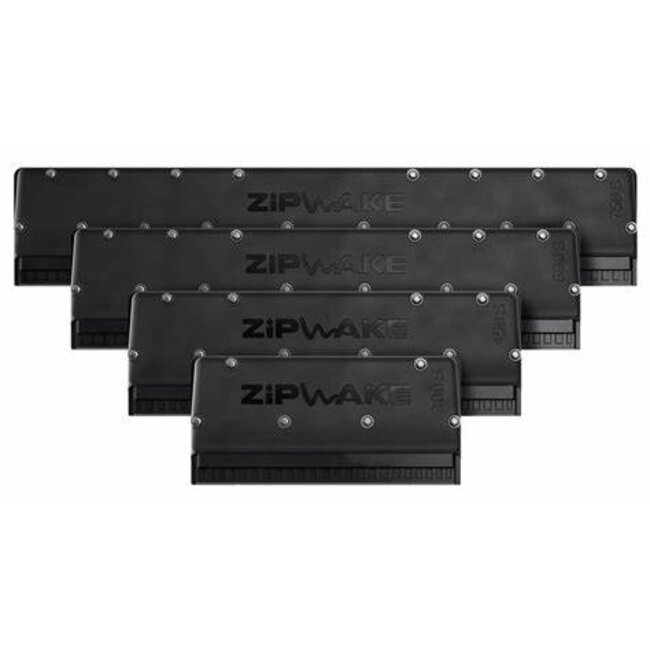

Straight Interceptors (IT750-S PRO)

The kit includes two 750 mm straight interceptors, equipped with high-speed servo actuators for instant blade movement. Their robust, watertight construction withstands continuous exposure to harsh marine environments, while their precision design ensures effective pitch and roll compensation, even at speeds up to 60 knots.

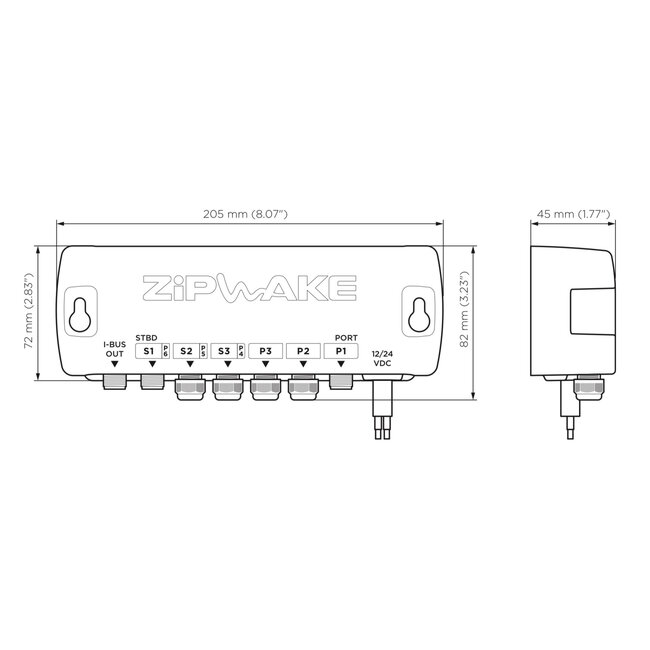

Distribution Unit (DU PRO)

This central unit powers and coordinates the interceptors, with built-in protection against overload and short circuit. Rugged and waterproof (IP67), it can be safely installed in engine rooms and demanding spaces. A 4 m power cable is included for quick connection.

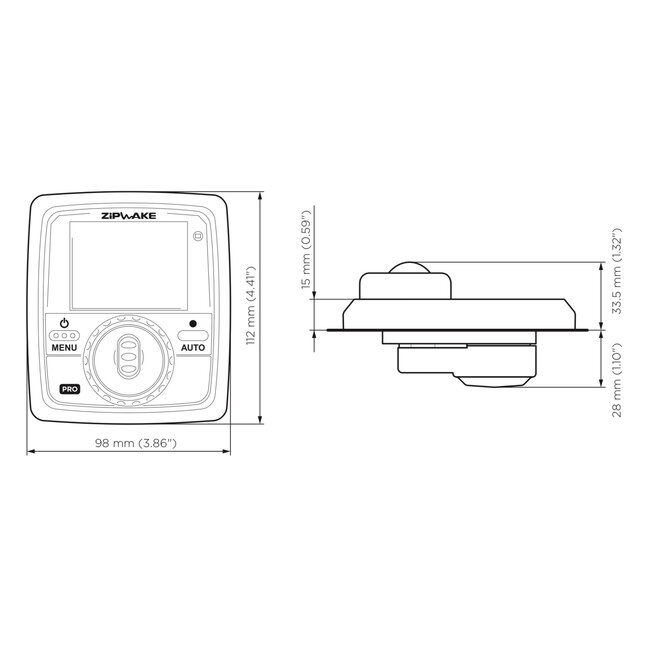

Control Panel

The control panel features a 2.4” color, sunlight-readable display and dual control dials for simple manual adjustment. In automatic mode, activated by pressing a single button, integrated GPS and 3D sensors continuously monitor vessel motion to dynamically adjust trim, roll, and pitch. Real-time vessel data and interceptor positions are always visible for full operator awareness.

SPECIFICATIONS

• Blade length: 750 mm (29.5 in).
• Blade stroke: 30 mm (1.2 in).
• Actuation speed: 20 mm/s, ensuring fast and precise motion.
• Maximum vessel speed: Up to 60 knots, suitable for fast planing craft.
• Voltage range: 12–32 V DC, compatible with most onboard systems.
• Power consumption: 25 W maximum.
• Ingress protection: IP68-rated interceptors (submersible to 5 m), IP67-rated distribution unit.
• Servo type: SU-S brushless, submersible actuators.
• Connector type: M12 5-pin circular, Ø 14.5 mm.
• Cable: PUR, 3 m standard length (extendable to 6 m).
• Operating temperature: 0 °C to +40 °C (32 °F to 104 °F).
• Storage temperature: –40 °C to +90 °C (–40 °F to 194 °F).
• Kit box weight: 12.0 kg (26.5 lbs).

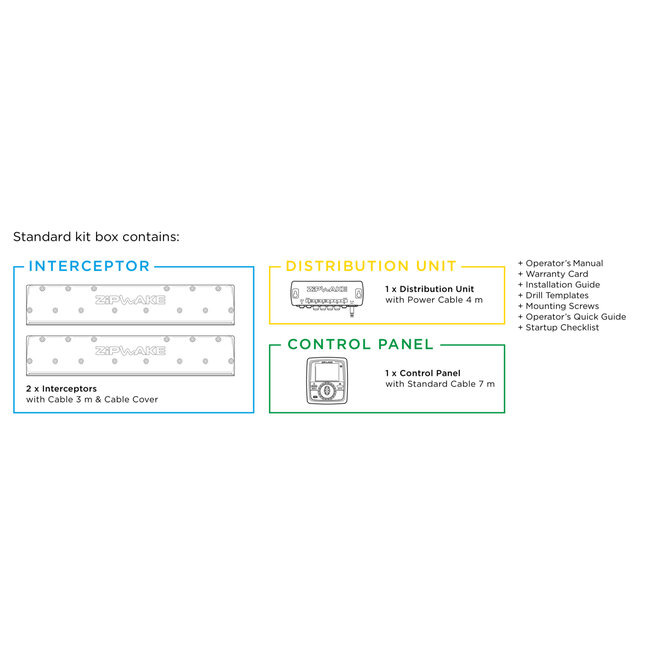

WHAT THE KIT INCLUDES

• 2 × Straight Interceptors (750 mm) with 3 m cables, PUR cable covers, and mounting plates.
• 1 × Distribution Unit with 4 m power cable.
• 1 × Control Panel with 7 m standard cable.
• 1 × Standard Extension Cable.
• Operator’s Manual.
• Installation Guide.
• Drill Templates.
• Mounting Screws.
• Quick Guide.
• Warranty Card.

INSTALLATION CONSIDERATIONS

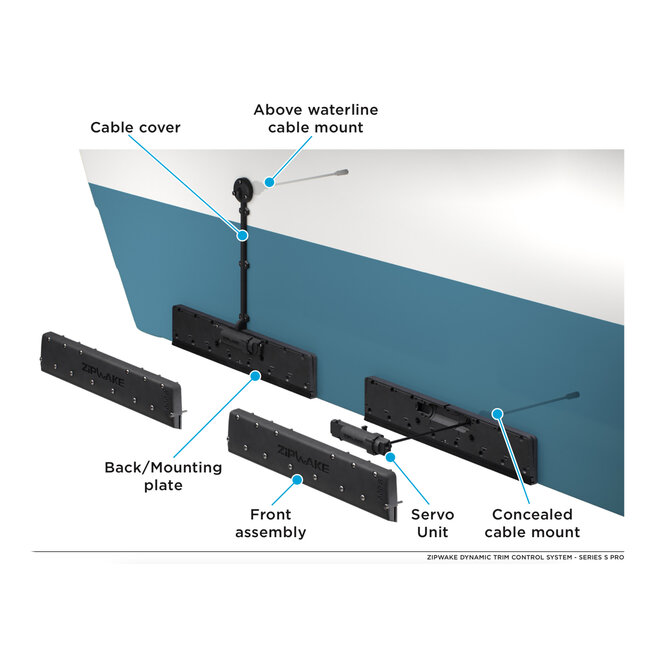

The kit includes an integrated mounting plate for secure installation, with optional watertight grommets to route cables safely below the waterline. Its modular design allows expansion with up to six interceptors per distribution unit, ensuring flexibility for different vessel layouts.

BROCHURES

• Zipwake Series S Brochure
• Zipwake Series S Pro Product Specifications
• Zipwake Series S Pro Installation Guide
