Zipwake Series 600E Chine Integrator Module Kit Box Trim System

The Zipwake Series E 600E Chine Integrator Module Kit Box Trim System is a professional-grade dynamic trim control solution designed for vessels up to 30 m (100 ft). As part of the Series E range, it delivers faster response, greater lift capacity, and enhanced durability compared to the Series S, making it the preferred choice for larger and more demanding vessels. In this model, chine interceptors are introduced, specifically engineered for angular hull surfaces, providing superior lift and precise stabilization where straight interceptors are less effective.

This advanced package combines high-speed chine interceptors with the Integrator Module (IM-E) to deliver seamless integration, intuitive operation, and reliable stabilization under professional and recreational heavy-duty conditions. With its fully automatic functionality, the system minimizes roll, pitch, and wave resistance, improving fuel efficiency, safety, and onboard comfort. The Integrator Module connects directly to multifunction displays (MFDs) and smart devices while keeping the helm uncluttered. Wireless connectivity via the Zipwake app allows monitoring, configuration, and software updates. Built with durable components and a modular design, the 600E IM Kit Box ensures scalability, supporting up to six interceptors per distribution unit.

FEATURES

• Automatic stabilization: Dynamic pitch and roll correction with integrated GPS, 3D gyro, and accelerometer sensors.
• Chine interceptor design: 600 mm chine interceptors provide superior lift for hulls with angular surfaces.
• High performance: Fast-acting interceptors with 60 mm blade stroke and 40 mm/s blade rate.
• Integrator Module (IM-E): Seamless integration with MFDs and wireless connectivity for monitoring and updates.
• Comfort and safety: Actively reduces rolling and pitching, ensuring smoother and safer navigation.
• Fuel efficiency: Optimized trim angle reduces drag and fuel consumption.
• Dashboard efficiency: Clean helm integration with support for up to three additional control panels.
• Durable design: Waterproof, oil-resistant, and ignition-protected components built for professional use.
• Expandable system: Supports up to six interceptors per DU-E.
• Upgradeable software: Updates via the Zipwake website or Zipwake app.

MAIN COMPONENTS

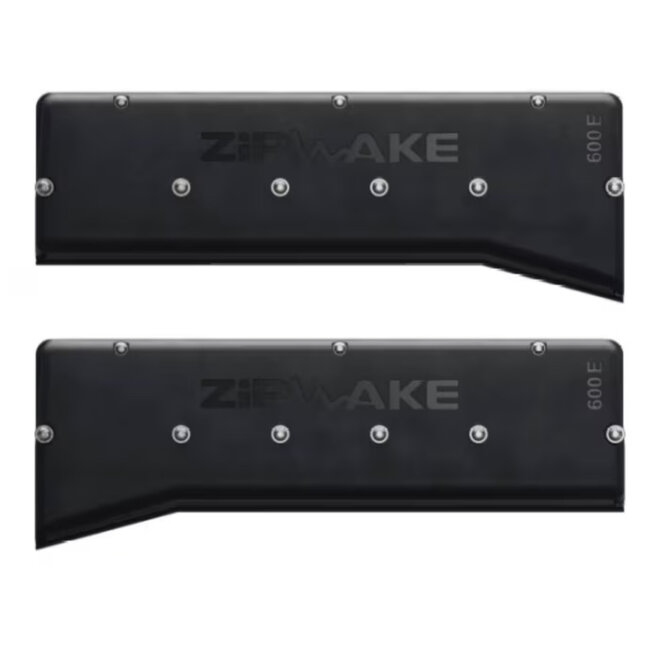

Chine Interceptors (IT600-E Chine)

Two 600 mm chine interceptors with dual-servo, fast-acting actuators. Designed for large vessels with angular hull surfaces, they deliver powerful lift and precise stabilization, even at high speeds and under heavy loads.

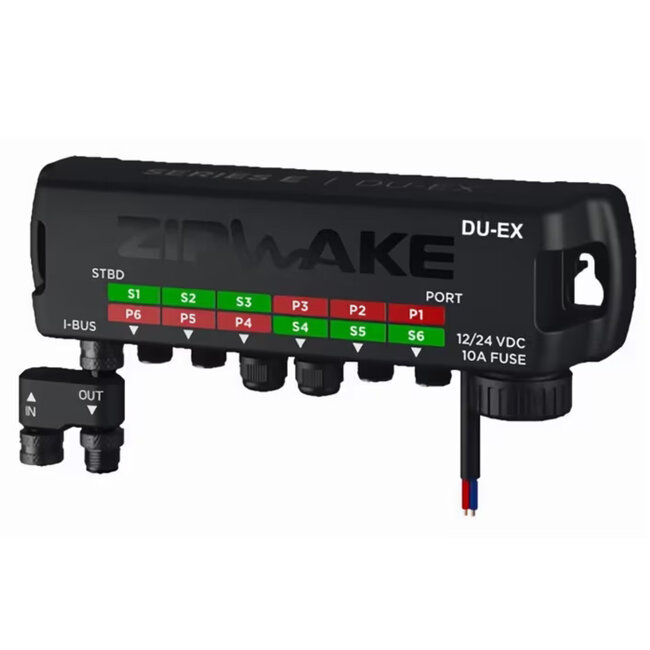

Distribution Unit (DU-E)

Provides power and connectivity for the interceptors. Rugged, waterproof, oil-resistant, and ignition-protected, the DU-E is designed for heavy-duty installation below deck. Includes a 4 m power cable and built-in electrical protection.

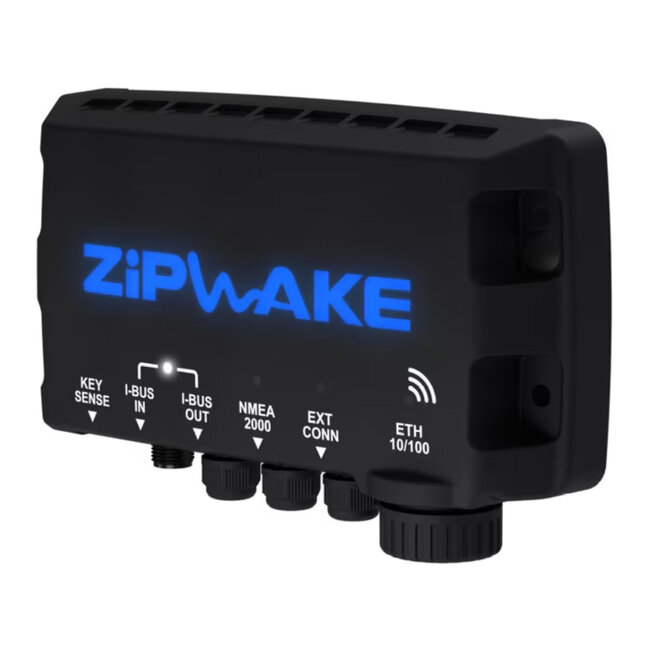

Integrator Module (IM-E)

Compact and powerful, the IM-E connects the system with MFDs and external networks (NMEA 2000, CAN bus, Ethernet). Its wireless interface allows real-time monitoring, configuration, and software updates via the Zipwake app. Supports up to three additional control panels if needed.

SPECIFICATIONS

• Interceptor length: 600 mm (23.6 in).
• Interceptor type: Chine (for angular hull surfaces).
• Blade stroke: 60 mm (2.4 in).
• Actuation speed: 40 mm/s.
• Maximum vessel speed: Up to 60 knots (≈110 km/h).
• Suitable vessel length: Up to 30 m (100 ft).
• Voltage range: 12–32 V DC.
• Power consumption: Approx. 50 W max.
• Ingress protection: IP68 (interceptors), IP67 (DU-E, IM-E).
• Servo type: Dual brushless servo actuators.
• Connectivity: NMEA 2000, CAN bus, Ethernet, wireless via Zipwake app.
• Cable length: 3 m standard (extendable).
• Operating temperature: 0 °C to +40 °C.
• Storage temperature: –40 °C to +90 °C.
• Kit box weight: Approx. 20–22 kg (depending on configuration).

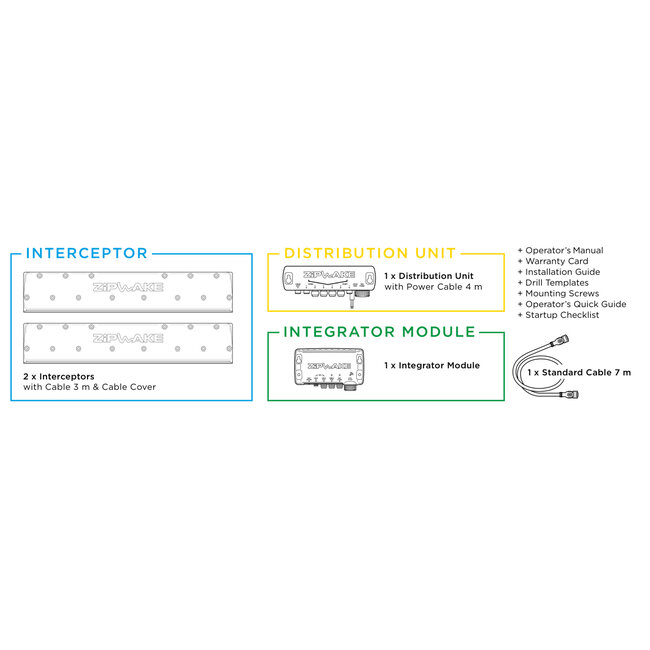

WHAT THE KIT INCLUDES

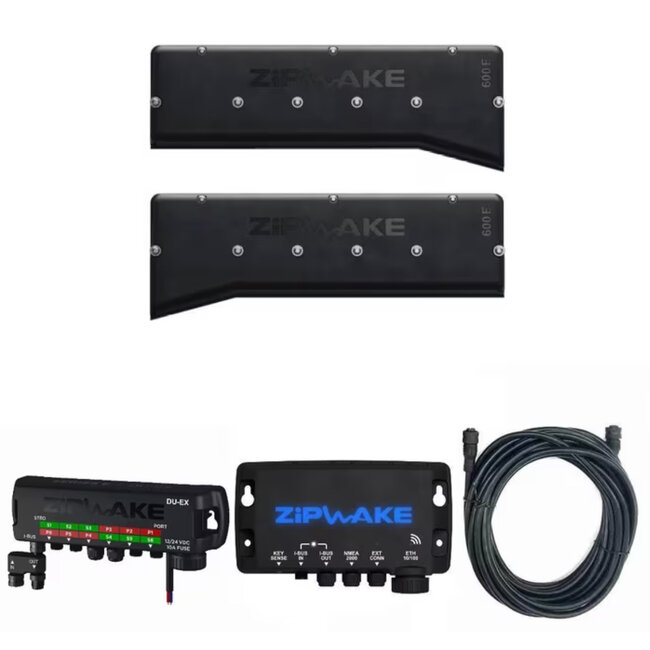

• 2 × Chine Interceptors (600 mm) with 3 m cables and mounting plates.
• 1 × Distribution Unit E (DU-E) with 4 m power cable.
• 1 × Integrator Module (IM-E).
• 1 × Extension Cable.
• Operator’s Manual.
• Installation Guide.
• Drill Templates.
• Mounting Screws.
• Quick Guide.
• Warranty Card.

INSTALLATION CONSIDERATIONS

The 600 mm chine interceptors are designed for hulls with angular surfaces, providing strong lift and efficient stabilization. Integrated mounting plates simplify installation, while watertight grommets allow safe routing of cables above or below the waterline. The IM-E can be installed behind dashboards, flybridges, or in machinery spaces, connecting with a single Ethernet cable to MFDs. The modular design supports up to six interceptors per DU-E, making it scalable for larger vessel layouts.
