Zipwake Series 600E Chine Kit Box Trim System

The Zipwake Series E 600E Chine Kit Box Trim System is a high-performance dynamic trim control solution designed for vessels up to 30 m (100 ft). Compared to the Series S, the Series E offers faster response, greater lift capacity, and enhanced durability, making it ideal for larger and more demanding applications. This model introduces chine interceptors, engineered specifically for angular hull surfaces, delivering superior lift and stabilization where straight interceptors are less effective.

With its fully automatic functionality, the system continuously minimizes roll, pitch, and wave resistance, resulting in improved fuel efficiency, smoother navigation, and enhanced onboard comfort. The 600E Chine Kit Box combines fast-acting chine interceptors with a robust distribution unit and an intuitive control panel featuring integrated GPS, gyro, and 3D accelerometer sensors. With NMEA 2000 connectivity and modular expandability, the system provides a reliable and scalable solution for professional and recreational vessels alike.

FEATURES

• Automatic stabilization: Real-time pitch and roll correction with integrated GPS, gyro, and accelerometer sensors.
• Chine interceptor design: 600 mm chine interceptors provide optimized lift for angular hull surfaces.
• High performance: 60 mm blade stroke and 40 mm/s blade rate ensure fast and efficient lift response.
• Control Panel (CP-E): Sunlight-readable color display with dual dials for intuitive manual control and fully automatic operation.
• Fuel efficiency: Optimized trim angle reduces drag and fuel consumption.
• System scalability: Supports up to six interceptors per distribution unit.
• Durable construction: Waterproof, oil-resistant, and ignition-protected components designed for heavy-duty use.
• Seamless connectivity: NMEA 2000 integration with external systems.
• Upgradeable software: Updates available directly from the Zipwake website.

MAIN COMPONENTS

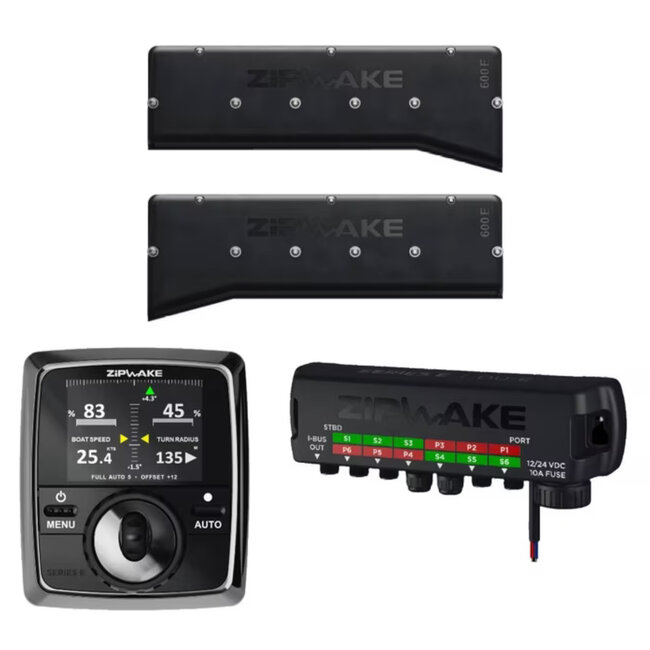

Chine Interceptors (IT600-E Chine)

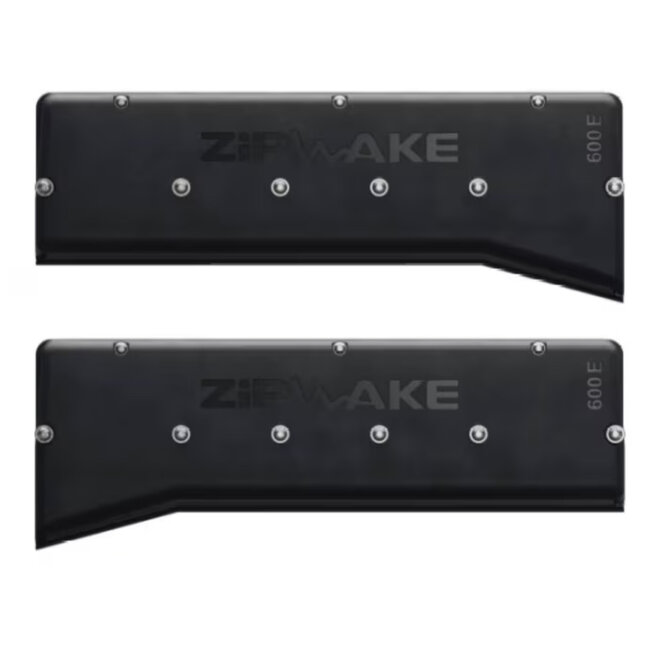

Two 600 mm chine interceptors equipped with dual-servo, fast-acting actuators. Their rugged design ensures continuous operation under demanding marine conditions, providing effective stabilization for larger vessels at high speeds.

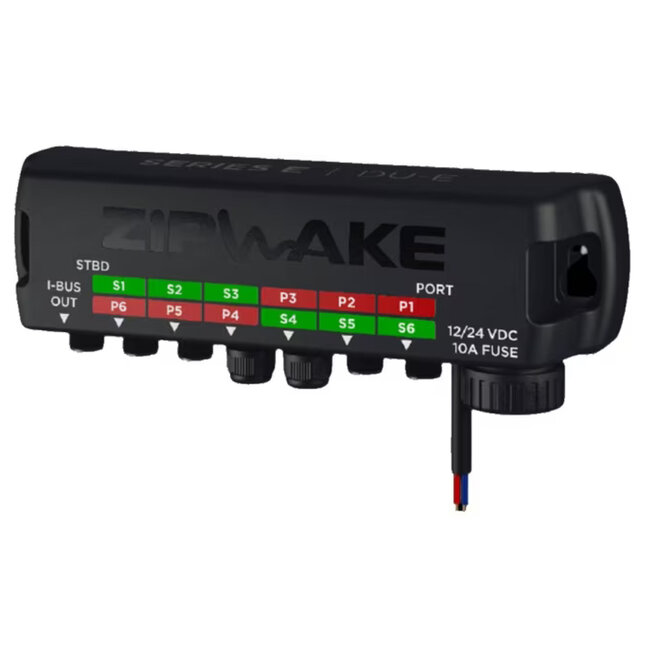

Distribution Unit (DU-E)

Supplies power and connectivity to the system. Rugged, waterproof, oil-resistant, and ignition-protected for safe installation below deck. Includes a 4 m power cable and built-in electrical protection. Supports up to six interceptors.

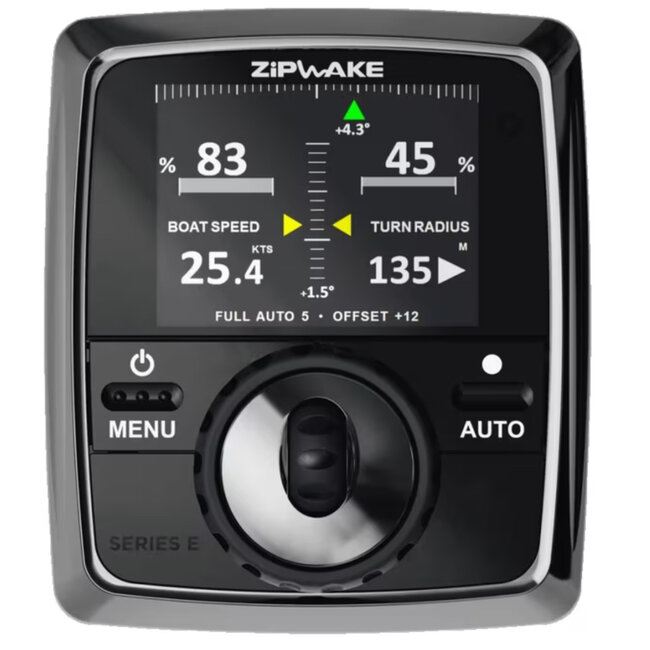

Control Panel (CP-E)

A sunlight-readable color display with large, intuitive controls. Provides both automatic stabilization and manual adjustment of trim, pitch, and roll. Displays real-time data on vessel speed, angles, and interceptor positions.

SPECIFICATIONS

• Interceptor length: 600 mm (23.6 in).
• Interceptor type: Chine (for angular hull surfaces).
• Blade stroke: 60 mm (2.4 in).
• Actuation speed: 40 mm/s.
• Maximum vessel speed: Up to 60 knots (≈110 km/h).
• Suitable vessel length: Up to 30 m (100 ft).
• Voltage range: 12–32 V DC.
• Power consumption: Approx. 50 W max.
• Ingress protection: IP68 (interceptors), IP67 (DU-E, CP-E).
• Servo type: Dual brushless servo actuators.
• Connectivity: NMEA 2000 backbone.
• Cable length: 3 m standard (extendable).
• Operating temperature: 0 °C to +40 °C.
• Storage temperature: –40 °C to +90 °C.
• Kit box weight: Approx. 20–22 kg (depending on configuration).

WHAT THE KIT INCLUDES

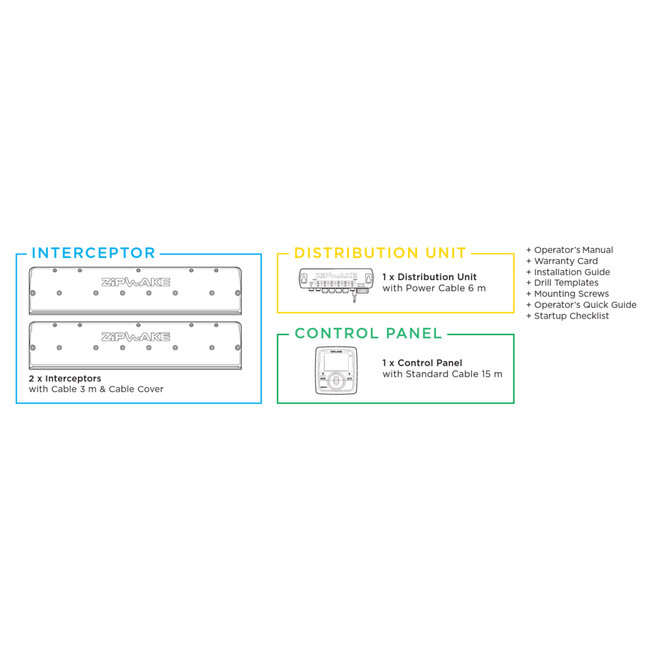

• 2 × Chine Interceptors (600 mm) with 3 m cables and mounting plates.
• 1 × Distribution Unit E (DU-E) with 4 m power cable.
• 1 × Control Panel E (CP-E) with standard cable.
• 1 × Extension Cable.
• Operator’s Manual.
• Installation Guide.
• Drill Templates.
• Mounting Screws.
• Quick Guide.
• Warranty Card.

INSTALLATION CONSIDERATIONS

The 600 mm chine interceptors are designed for hulls with angular surfaces, delivering powerful lift and effective stabilization. Integrated mounting plates simplify the installation process, while optional watertight grommets allow secure cable routing above or below the waterline. The modular system supports up to six interceptors per DU-E, providing flexibility for larger vessel layouts.
