Zipwake Series 450S Integrator Module Straight Kit Box Trim System

The Zipwake Series S 450S Integrator Module Straight Kit Box Trim System is a professional dynamic trim control solution designed for vessels up to 15.5 m (50 ft) and speeds of up to 60 knots (≈110 km/h). As part of the Series S range, it introduces straight interceptors engineered to deliver rapid response and strong stabilization for medium-sized boats. With the advanced Integrator Module (IM-S), this kit ensures seamless integration with multifunction displays (MFDs) and smart devices while keeping dashboards clean and efficient.

The Integrator Module connects the Zipwake system directly with multiple MFDs and allows wireless access via the Zipwake app for monitoring, configuration, and updates. Compact, waterproof, and easy to install, the IM-S supports up to three additional control panels and manages up to six interceptors in one system. Together with its fast-acting straight interceptors, the 450S IM Kit provides unmatched stability, efficiency, and comfort for demanding recreational and semi-professional vessels.

FEATURES

• Automatic stabilization: Dynamic pitch and roll correction with integrated motion sensors, GPS, and magnetic compass.
• Straight interceptor design: 450 mm straight interceptors provide strong lift and stabilization for versatile hulls.
• High performance: Fast response, 5–10× quicker than conventional trim tabs.
• Integrator Module (IM-S): Seamless MFD integration, wireless connectivity, and intuitive 3D control.
• Dashboard efficiency: Keeps helm layouts clean while supporting up to three additional control panels.
• Wireless connectivity: Configure, monitor, and update via the Zipwake app on smartphones and tablets.
• Comfort and safety: Reduces rolling and pitching for smoother, safer navigation.
• Fuel efficiency: Optimized trim reduces drag and lowers fuel consumption.
• Durable design: Waterproof, oil-resistant, and ignition-protected for heavy-duty use.
• Expandable system: Supports up to six interceptors per DU-S.
• Software updates: Wireless updates via the app or directly from the Zipwake website.

MAIN COMPONENTS

Straight Interceptors (IT450-S Straight)

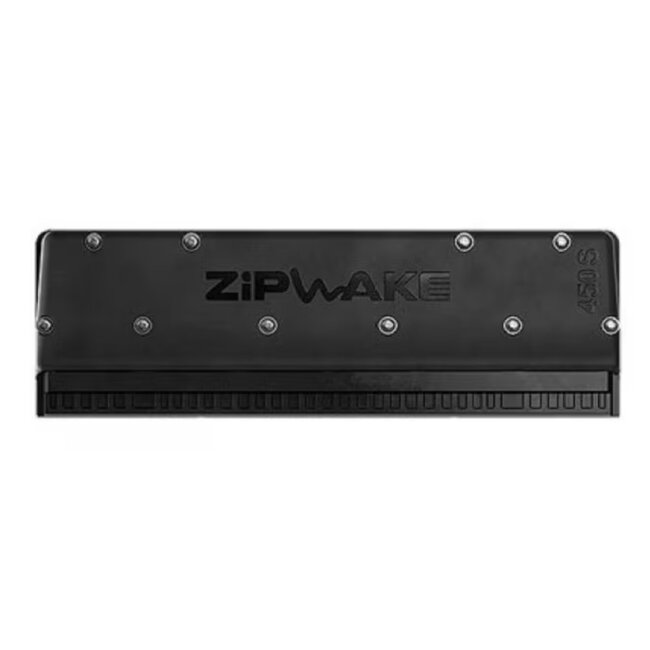

Two 450 mm straight interceptors with fast-acting servo actuators. Designed for versatile hull types, they deliver rapid lift and effective stabilization, even at high speeds or under heavy loads.

Distribution Unit (DU-S)

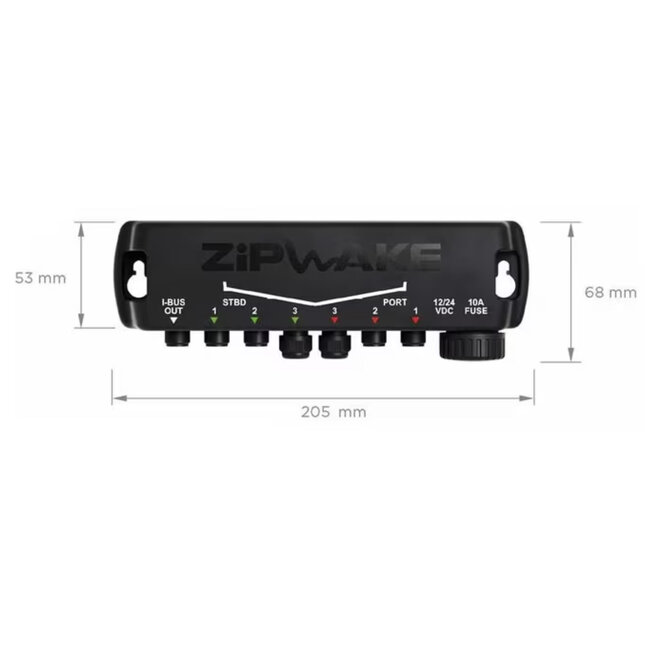

Central hub for power and connectivity. Rugged, waterproof, oil-resistant, and ignition-protected, the DU-S supports up to three interceptors, expandable to six with additional connectors. Includes a 4 m power cable and integrated protective fuse.

Integrator Module (IM-S)

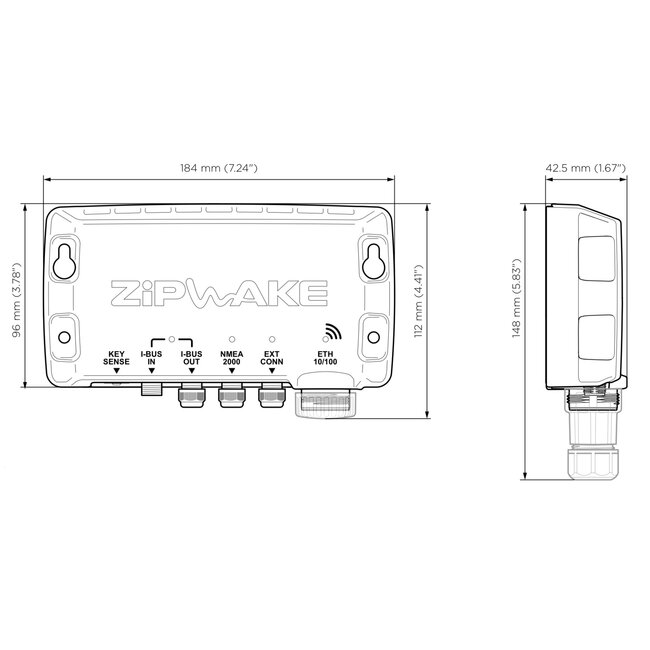

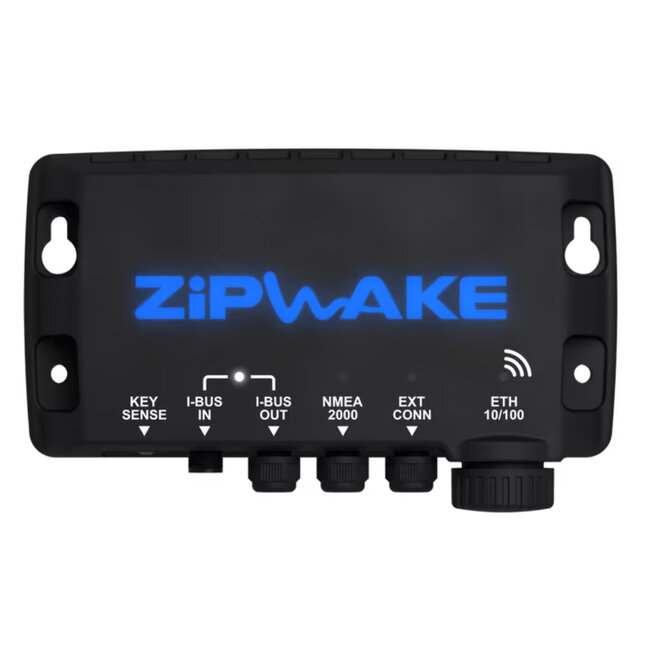

Compact and efficient, the IM-S integrates the Zipwake system with MFDs and external devices through NMEA 2000 and CAN bus. Wireless access allows full monitoring, configuration, and updates via the Zipwake app. Supports up to three additional control panels and provides intuitive 3D motion control.

SPECIFICATIONS

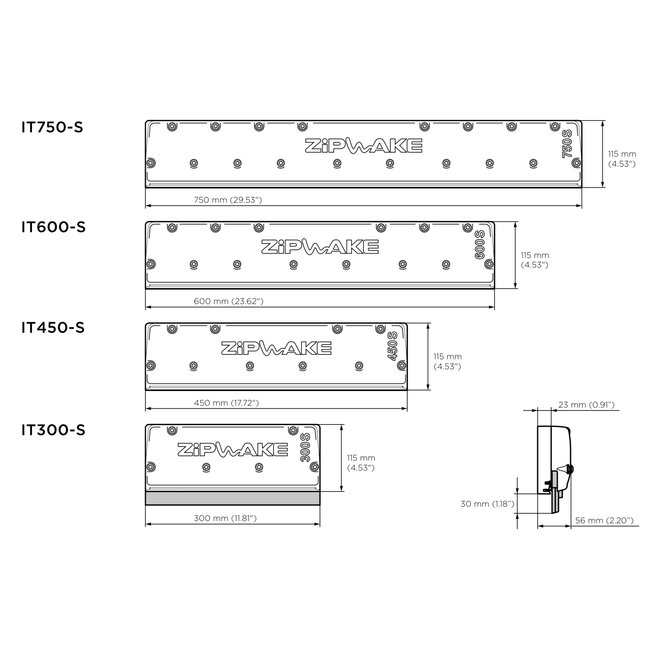

• Interceptor length: 450 mm (17.7 in).
• Interceptor type: Straight.
• Blade stroke: 30 mm (1.2 in).
• Actuation speed: 20 mm/s.
• Maximum vessel speed: Up to 60 knots (≈110 km/h).
• Suitable vessel length: Up to 15.5 m (50 ft).
• Voltage range: 12–32 V DC.
• Power consumption: Approx. 25 W max.
• Ingress protection: IP68 (interceptors), IP67 (DU-S, IM-S).
• Servo type: Fast-response servo actuators.
• Connectivity: NMEA 2000, CAN bus, Ethernet.
• Wireless interface: Supported via Zipwake app.
• Cable length: 3 m standard (extendable).
• Operating temperature: 0 °C to +40 °C.
• Storage temperature: –40 °C to +90 °C.
• Kit box weight: Approx. 15–18 kg (depending on configuration).

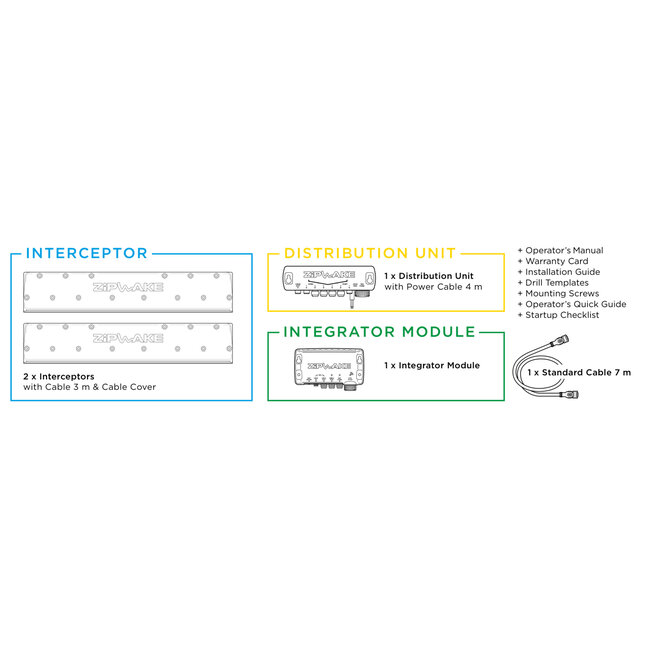

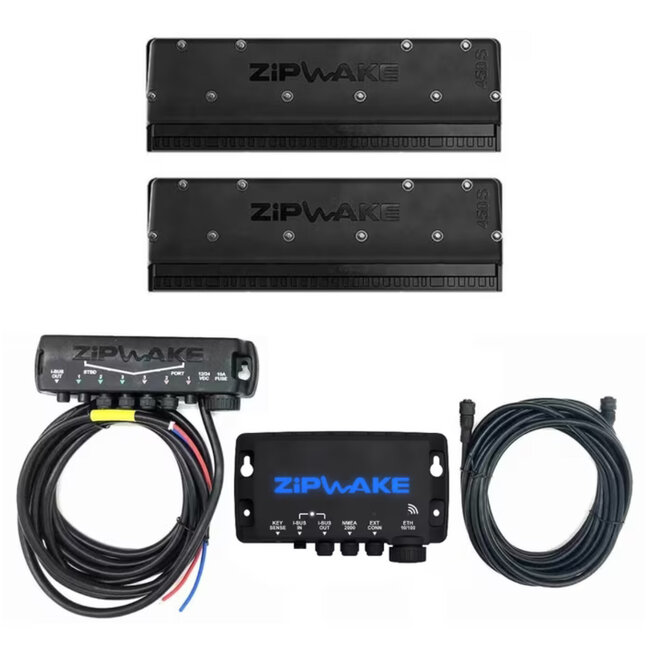

WHAT THE KIT INCLUDES

• 2 × Straight Interceptors (450 mm) with 3 m cables and mounting plates.
• 1 × Distribution Unit S (DU-S) with 4 m power cable.
• 1 × Integrator Module (IM-S).
• 1 × Extension Cable.
• Operator’s Manual.
• Installation Guide.
• Drill Templates.
• Mounting Screws.
• Quick Guide.
• Warranty Card.

INSTALLATION CONSIDERATIONS

The 450 mm straight interceptors are versatile and suitable for a wide range of hulls, offering precise lift and stabilization. Integrated mounting plates simplify installation, while optional watertight grommets allow safe cable routing above or below the waterline. The compact IM-S can be installed behind dashboards, flybridges, or in machinery spaces with a single Ethernet cable for MFD connection. The modular system design allows up to six interceptors per DU-S, ensuring scalability for different vessel layouts.
