Zipwake Series 400E Integrator Module Straight Kit Box Trim System

The Zipwake Series E 400E Integrator Module Straight Kit Box Trim System is a professional-grade dynamic trim control solution designed for vessels up to 30 m (100 ft) and speeds of up to 60 knots (≈110 km/h). As part of the Series E range, it introduces larger, dual-servo straight interceptors engineered for superior lift, faster response, and enhanced stability compared to conventional trim tabs or the smaller Series S. With a 60 mm blade stroke and an actuation speed of 40 mm/s, the system ensures powerful lift, reduced drag, and exceptional performance in all sea conditions.

This version is supplied with the Integrator Module (IM-E), a compact yet powerful interface that connects the Zipwake system seamlessly to multifunction displays (MFDs) and smart devices, while keeping the dashboard clean and intuitive. With wireless connectivity, intuitive 3D control, and compatibility with up to six interceptors, the 400E Integrator Module Straight Kit Box offers unmatched handling, comfort, and fuel efficiency.

FEATURES

• Automatic stabilization: Integrated GPS, 3D gyro, and accelerometer sensors provide continuous pitch and roll correction.
• High performance: Dual-servo actuators with 60 mm stroke and 40 mm/s speed, up to 10x faster than conventional trim tabs.
• Straight interceptor design: 400 mm interceptors optimized for transoms with limited space but requiring strong lift.
• Integrator Module (IM-E): Enables seamless MFD integration, wireless connectivity, and intuitive 3D control.
• Comfort and safety: Actively reduces roll and pitch for smoother, safer navigation.
• Fuel efficiency: Optimized trim angle lowers drag and reduces fuel consumption.
• Wireless connectivity: Configure, monitor, and update via the Zipwake app on smartphones and tablets.
• Flexible system: Supports up to three additional control panels alongside MFD integration.
• Expandable system: Powers up to six Series E interceptors per DU-E with expansion units.
• Durable construction: Waterproof, oil-resistant, and ignition-protected components for professional use.
• Upgradeable software: Updates available directly from the Zipwake website.

MAIN COMPONENTS

Straight Interceptors (IT400-E)

Two 400 mm straight interceptors with dual high-speed servo actuators. With a 60 mm blade stroke and 40 mm/s actuation speed, they deliver precise and efficient lift even under heavy loads or high speeds. Ideal for boats with limited transom space but requiring excellent stabilization.

Distribution Unit (DU-E)

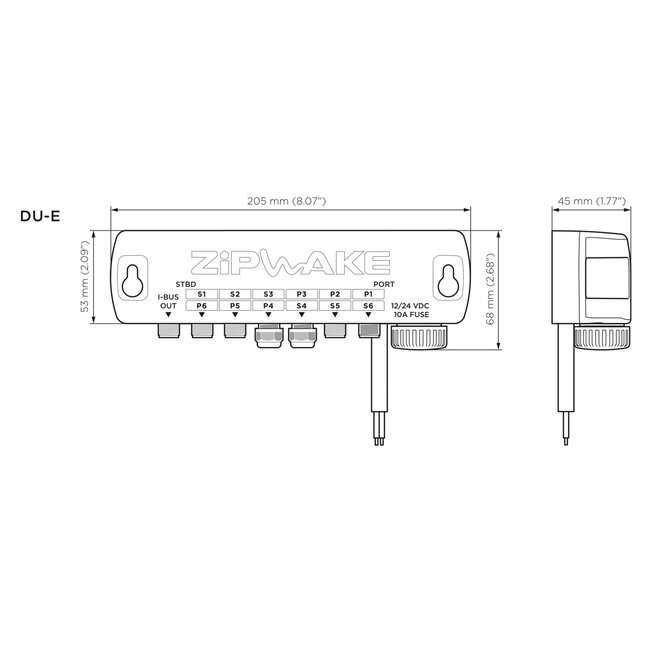

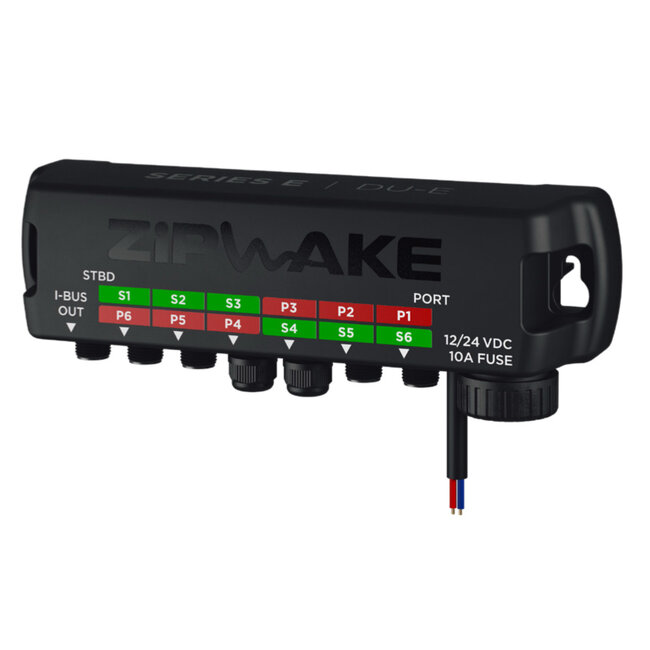

Provides power and connectivity to the interceptors. Rugged, waterproof, oil-resistant, and ignition-protected, it is suitable for installation in engine rooms. It powers up to three Series E interceptors, with expansion units enabling up to six. Includes a 4 m power cable and integrated electrical protection.

Integrator Module (IM-E)

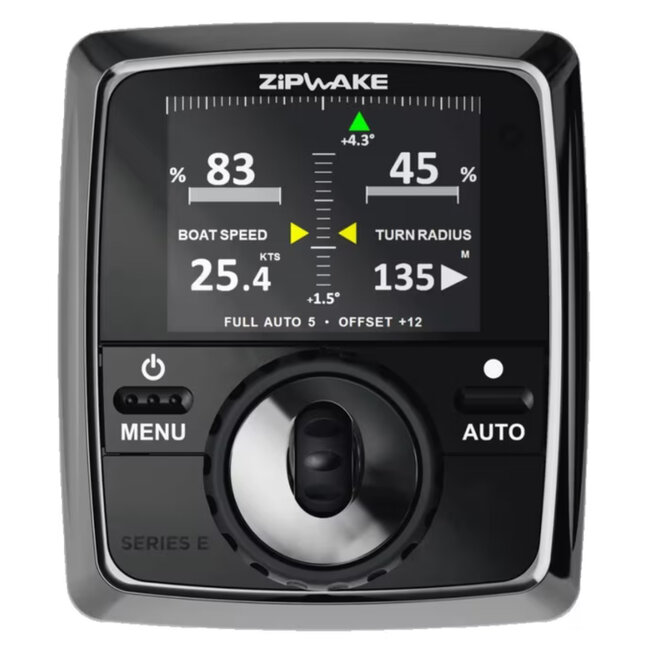

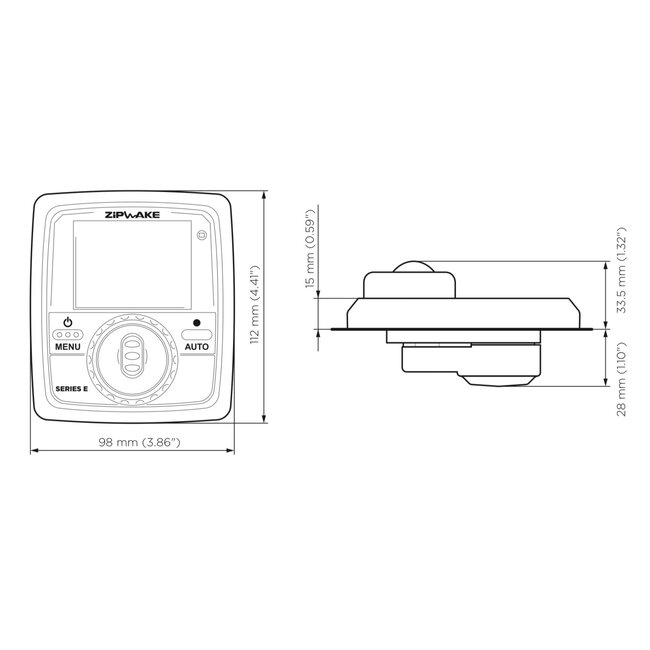

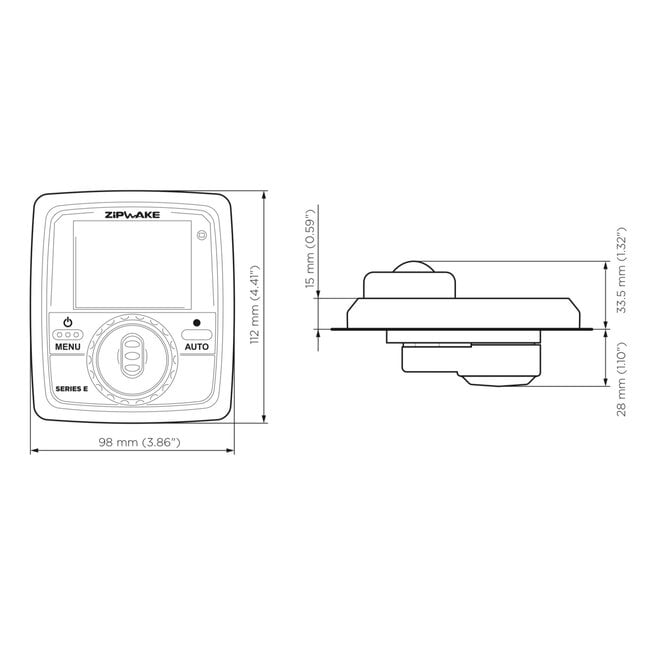

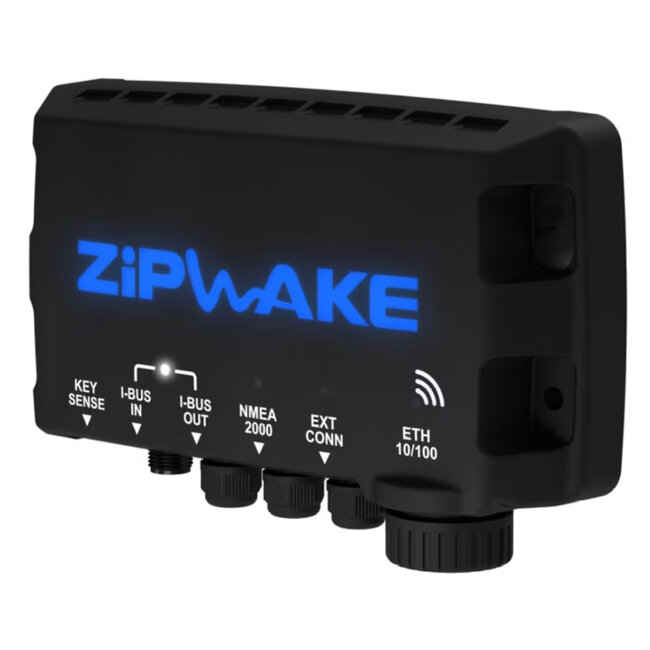

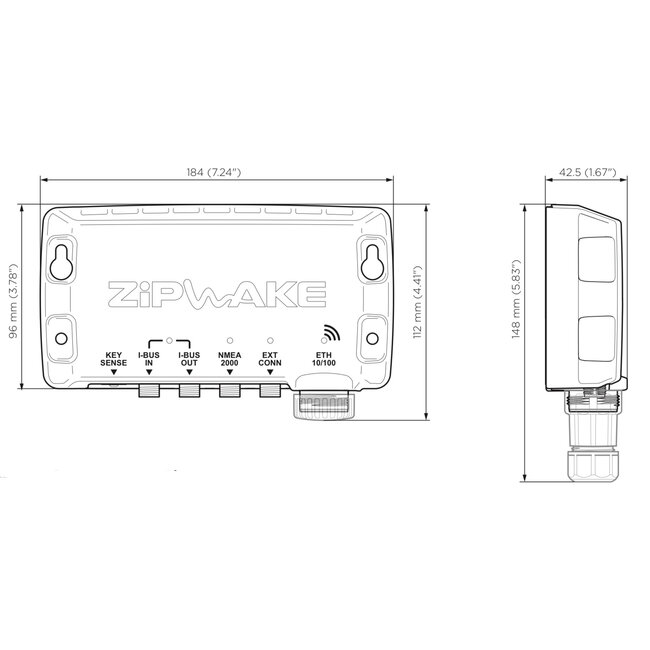

The advanced interface that replaces the standard control panel. Compact yet powerful, it integrates the Zipwake system seamlessly with MFDs and mobile devices. It offers intuitive 3D control of trim, roll, and heading, wireless configuration, and real-time vessel data, while keeping the dashboard clean.

SPECIFICATIONS

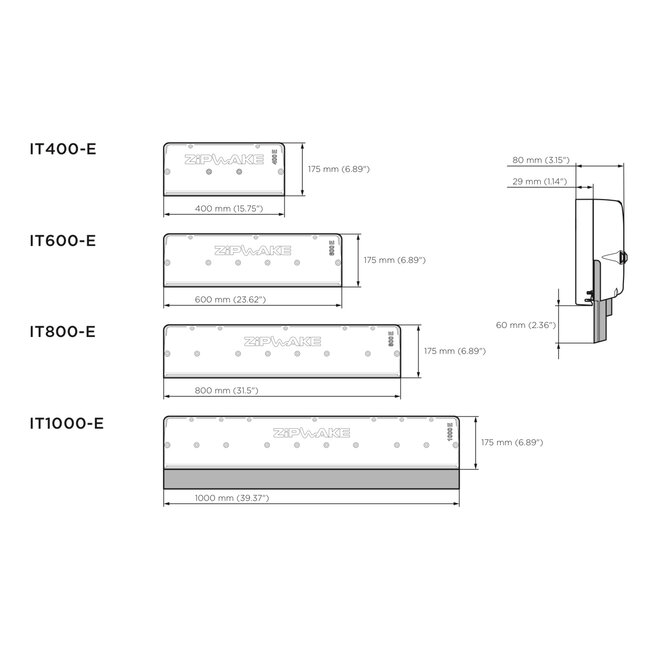

• Interceptor length: 400 mm (15.7 in).
• Interceptor type: Straight (for transoms with limited space).
• Blade stroke: 60 mm (2.4 in).
• Actuation speed: 40 mm/s (dual-servo).
• Maximum vessel speed: Up to 60 knots (≈110 km/h).
• Suitable vessel length: Up to 30 m (100 ft).
• Voltage range: 12–32 V DC.
• Power consumption: Approx. 50 W max.
• Ingress protection: IP68 (interceptors), IP67 (DU-E, IM-E).
• Servo type: Dual-servo, submersible actuators.
• Connectivity: NMEA 2000, CAN bus, Ethernet.
• Wireless interface: Supported (via Zipwake app).
• Cable length: 3 m standard (extendable).
• Operating temperature: 0 °C to +40 °C.
• Storage temperature: –40 °C to +90 °C.
• Kit box weight: Approx. 20–25 kg (varies with configuration).

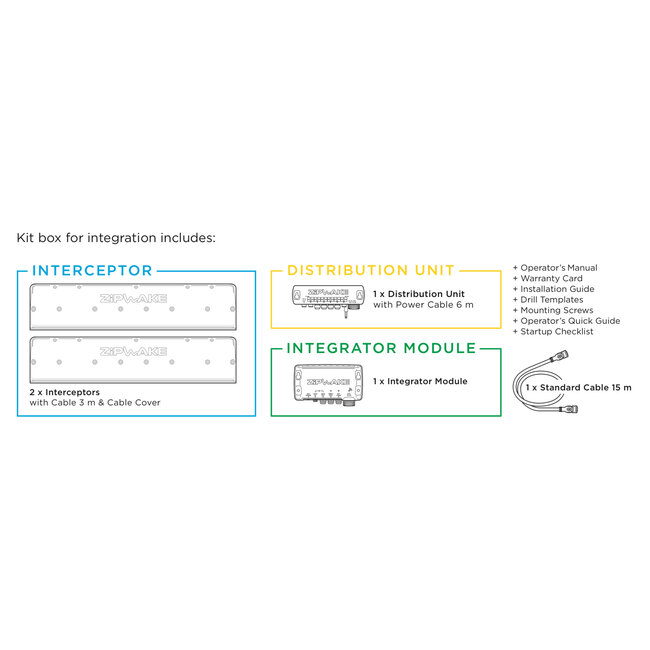

WHAT THE KIT INCLUDES

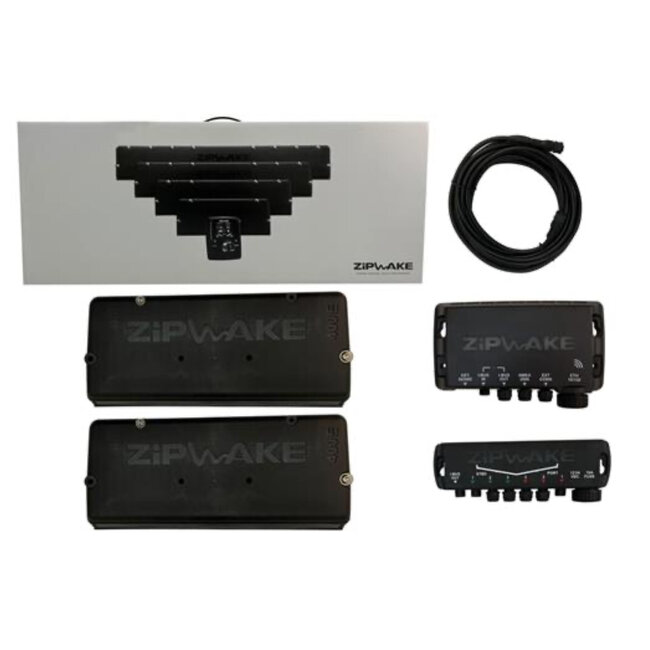

• 2 × Straight Interceptors (400 mm) with 3 m cables and mounting plates.
• 1 × Distribution Unit E (DU-E) with 4 m power cable.
• 1 × Integrator Module (IM-E).
• 1 × Extension Cable.
• Operator’s Manual.
• Installation Guide.
• Drill Templates.
• Mounting Screws.
• Quick Guide.
• Warranty Card.

INSTALLATION CONSIDERATIONS

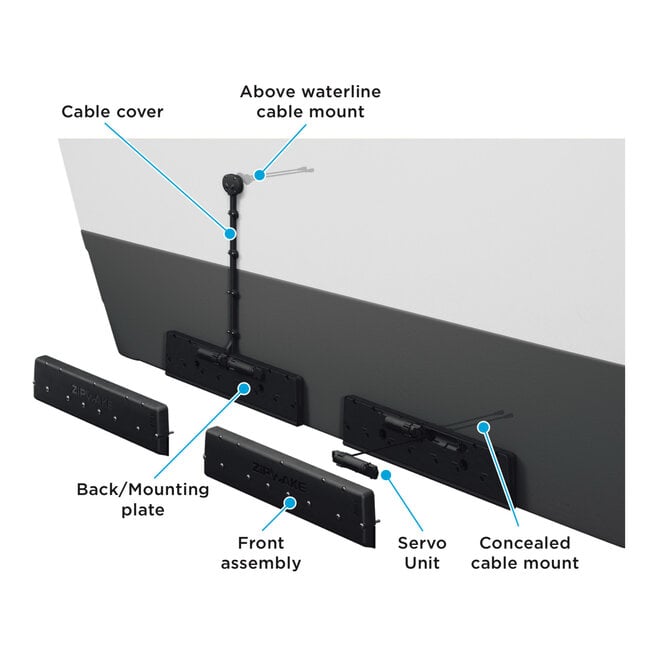

The 400 mm straight interceptors are compact and specifically designed for vessels with limited transom space, while still delivering strong lift. Integrated mounting plates simplify installation, and optional watertight grommets allow safe cable routing above or below the waterline. The IM-E can be discreetly installed behind dashboards, flybridges, or in machinery spaces, requiring only a single Ethernet cable to connect with MFDs. The modular design allows up to six interceptors per DU-E, making the system adaptable for larger vessels.
