Zipwake Series 400E Straight Kit Box Trim System

The Zipwake Series E 400E Straight Kit Box Trim System is a professional dynamic trim control solution designed for vessels up to 30 m (100 ft) and speeds of up to 60 knots (≈110 km/h). As part of the Series E range, it introduces straight dual-servo interceptors that deliver stronger lift, faster response, and greater durability than conventional trim tabs or the compact Series S. With a 60 mm blade stroke and an actuation speed of 40 mm/s, the system ensures powerful stabilization, reduced drag, and improved performance in demanding marine conditions.

This kit includes two 400 mm straight interceptors, a rugged distribution unit, and a user-friendly control panel with integrated GPS, gyro, and 3D accelerometer sensors. Designed for heavy-duty marine use, the system provides full automatic stabilization, seamless NMEA 2000 connectivity, modular expansion, and updateable software, ensuring a reliable and future-proof trim control solution.

FEATURES

• Automatic stabilization: Integrated GPS, gyro, and 3D accelerometer sensors dynamically correct pitch and roll.
• High performance: Dual-servo actuators with 60 mm blade stroke and 40 mm/s speed, up to 10× faster than conventional trim tabs.
• Straight interceptor design: 400 mm straight interceptors engineered for transoms with limited space requiring high lift force.
• Comfort and safety: Actively reduces roll and pitch for smoother and safer navigation.
• Fuel efficiency: Optimized trim reduces drag and lowers fuel consumption.
• NMEA 2000 connectivity: Seamless integration with onboard navigation and monitoring systems.
• Expandable system: Powers up to three interceptors per DU-E, expandable to six with additional units.
• User-friendly control: Stylish control panel with large, sunlight-readable color display and dual dials.
• Durable construction: Waterproof, oil-resistant, and ignition-protected components for professional applications.
• Upgradeable software: Updates available directly from the Zipwake website.

MAIN COMPONENTS

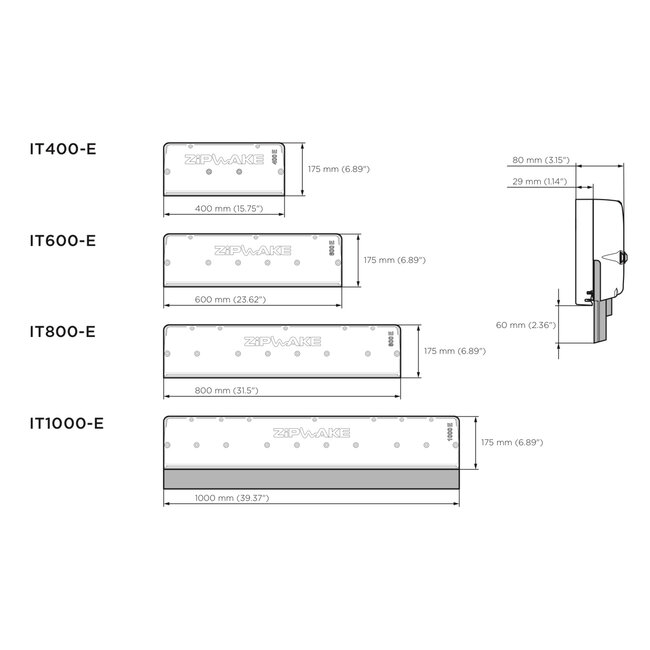

Straight Interceptors (IT400-E)

Two 400 mm straight interceptors with dual high-speed servo actuators. They feature a 60 mm blade stroke and 40 mm/s actuation speed, delivering rapid and precise lift even at high speeds or under heavy loads. Their compact size makes them ideal for transoms with limited space while ensuring excellent stabilization.

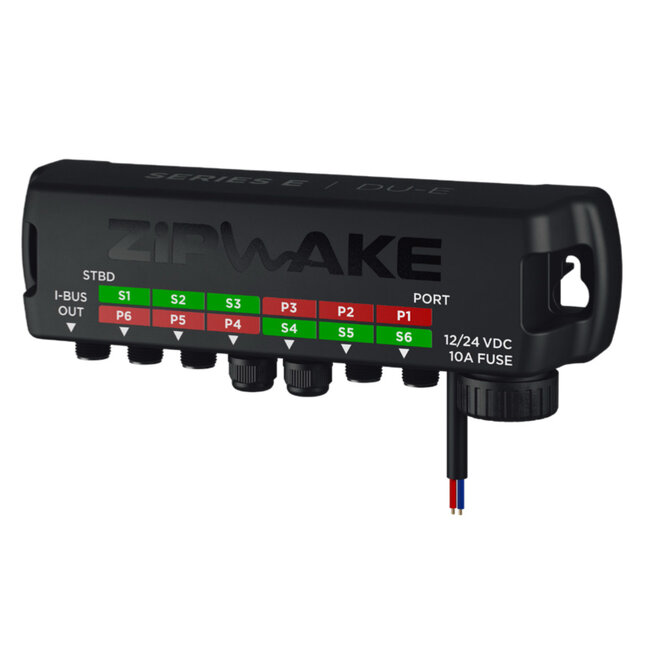

Distribution Unit (DU-E)

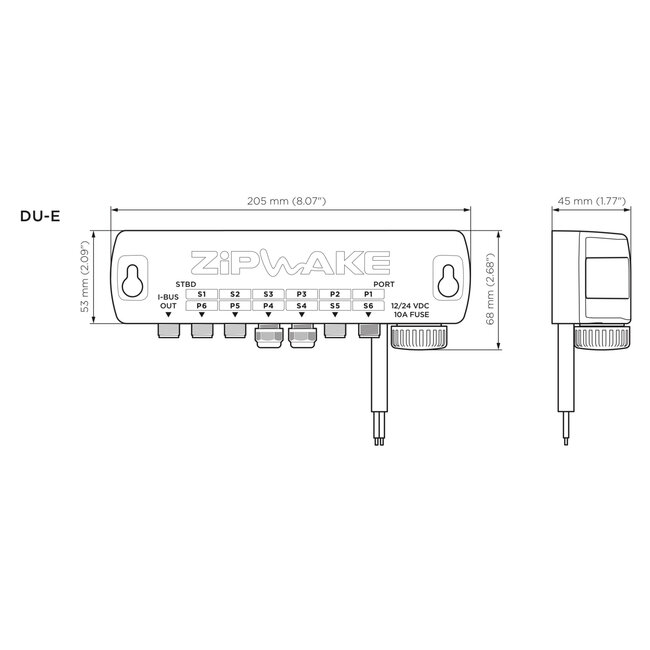

Central power and connectivity hub for the interceptors. Rugged, waterproof, oil-resistant, and ignition-protected, the DU-E is designed for installation in demanding spaces like engine rooms. Powers up to three Series E interceptors, with expansion units available for up to six. Supplied with a 4 m power cable and built-in electrical protection.

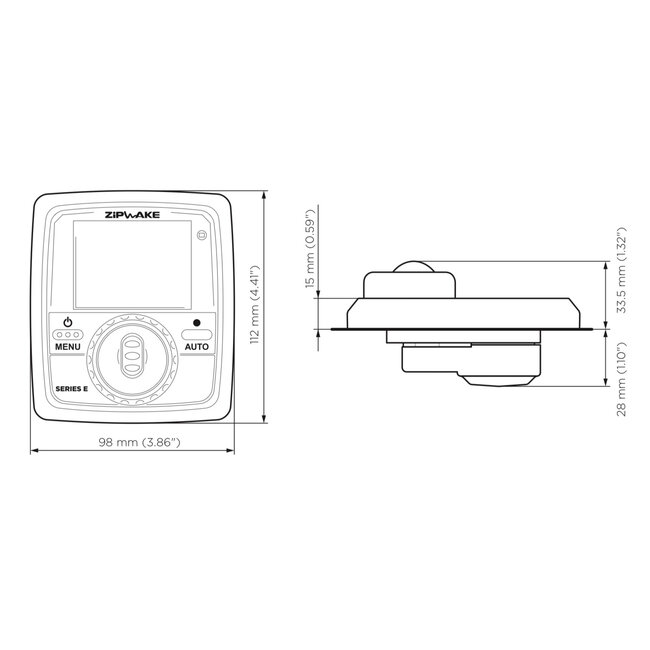

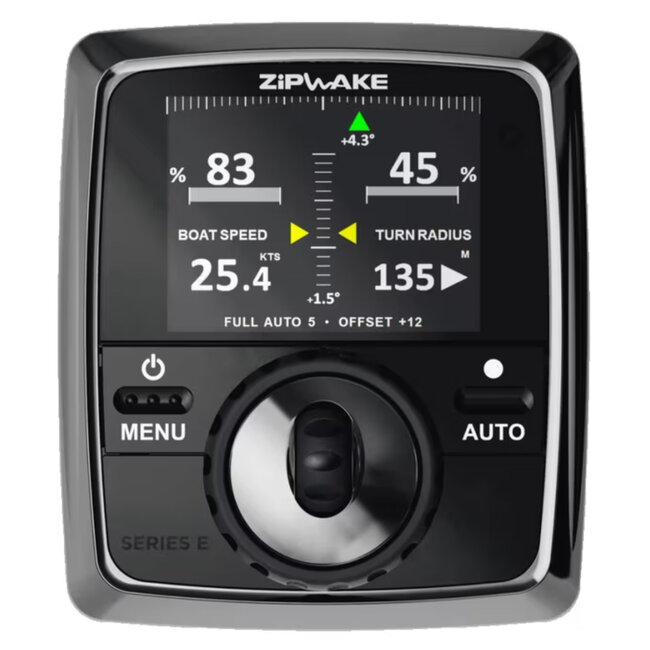

Control Panel (CP-E)

A user-friendly control panel featuring a large, sunlight-readable color display and dual dials for intuitive manual control. Integrated GPS, gyro, and accelerometer sensors enable fully automatic operation, providing real-time vessel feedback and seamless dynamic stabilization.

SPECIFICATIONS

• Interceptor length: 400 mm (15.7 in).
• Interceptor type: Straight.
• Blade stroke: 60 mm (2.4 in).
• Actuation speed: 40 mm/s (dual-servo).
• Maximum vessel speed: Up to 60 knots (≈110 km/h).
• Suitable vessel length: Up to 30 m (100 ft).
• Voltage range: 12–32 V DC.
• Power consumption: Approx. 50 W max.
• Ingress protection: IP68 (interceptors), IP67 (DU-E, CP-E).
• Servo type: Dual-servo, submersible actuators.
• Connectivity: NMEA 2000, CAN bus.
• Cable length: 3 m standard (extendable).
• Operating temperature: 0 °C to +40 °C.
• Storage temperature: –40 °C to +90 °C.
• Kit box weight: Approx. 20–25 kg (depending on configuration).

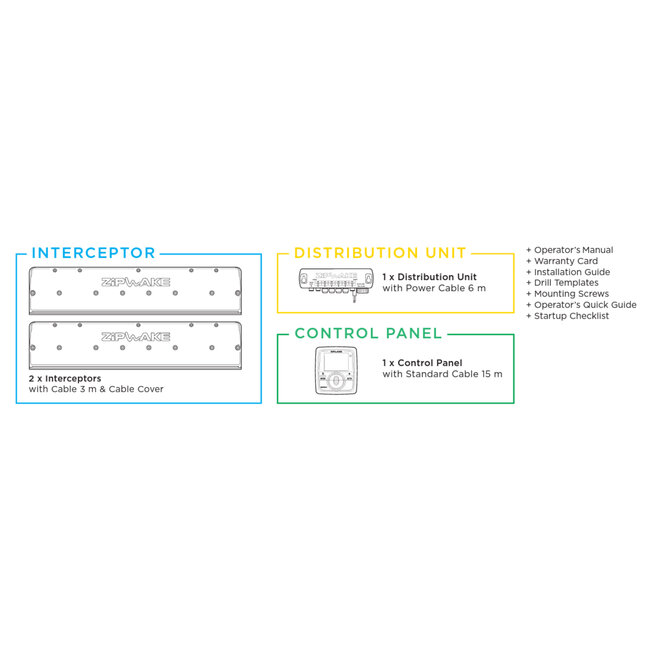

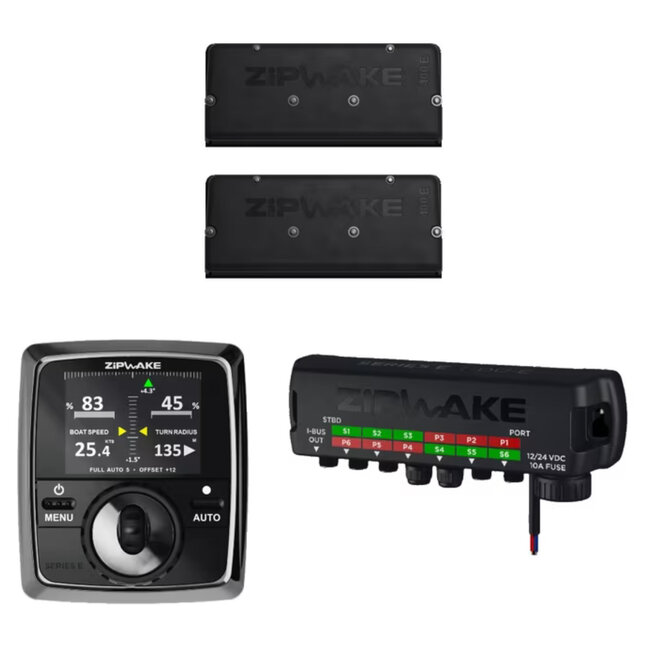

WHAT THE KIT INCLUDES

• 2 × Straight Interceptors (400 mm) with 3 m cables and mounting plates.
• 1 × Distribution Unit E (DU-E) with 4 m power cable.
• 1 × Control Panel E (CP-E) with standard cable.
• 1 × Extension Cable.
• Operator’s Manual.
• Installation Guide.
• Drill Templates.
• Mounting Screws.
• Quick Guide.
• Warranty Card.

INSTALLATION CONSIDERATIONS

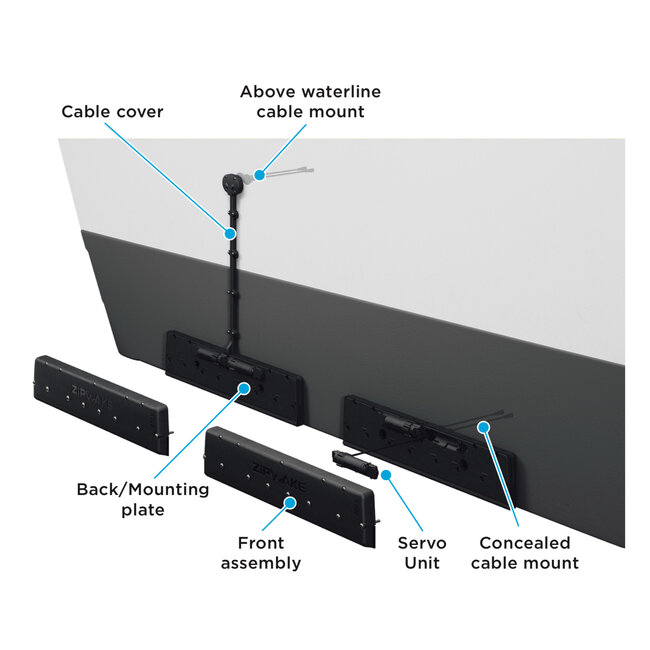

The 400 mm straight interceptors are compact and specifically designed for transoms with limited space while still delivering strong lift and stabilization. Integrated mounting plates simplify installation, while optional watertight grommets allow safe cable routing above or below the waterline. The modular design supports up to six interceptors per DU-E, ensuring adaptability for larger vessels and complex setups. Correct sealing and alignment of thru-hull fittings is essential for long-term watertight integrity.
