Zipwake Series 600E Integrator Module Straight Kit Box Trim System

The Zipwake Series E 600E Integrator Module Straight Kit Box Trim System is a professional dynamic trim control solution designed for vessels up to 30 m (100 ft). Compared to the Series S, the Series E delivers faster response, greater lift capacity, and enhanced durability, making it the ideal choice for larger and more demanding applications. This model features 600 mm straight interceptors, engineered for powerful lift and precise stabilization on planing and semi-planing hulls.

The kit combines large, fast-acting straight interceptors with the Integrator Module (IM-E) and a rugged distribution unit, providing seamless connectivity, intuitive operation, and long-term reliability. With its fully automatic functionality, the system continuously minimizes roll, pitch, and wave resistance, improving fuel efficiency, comfort, and safety on board. The IM-E connects directly to multifunction displays (MFDs) and smart devices, while also enabling wireless control, configuration, and updates via the Zipwake app.

FEATURES

• Automatic stabilization: Real-time pitch and roll correction with integrated GPS, 3D gyro, and accelerometer sensors.
• Straight interceptor design: 600 mm straight interceptors provide efficient lift and precise stabilization.
• High performance: Long 60 mm blade stroke and 40 mm/s actuation speed for rapid adjustment.
• Integrator Module (IM-E): Seamless integration with MFDs, wireless connectivity for monitoring and updates.
• Comfort and safety: Minimizes roll and pitch for smoother and safer navigation.
• Fuel efficiency: Optimized trim angle reduces drag and lowers fuel consumption.
• Durable construction: Waterproof, oil-resistant, and ignition-protected for heavy-duty use.
• Expandable system: Supports up to six interceptors per DU-E.
• Upgradeable software: Updates via the Zipwake website or Zipwake app.

MAIN COMPONENTS

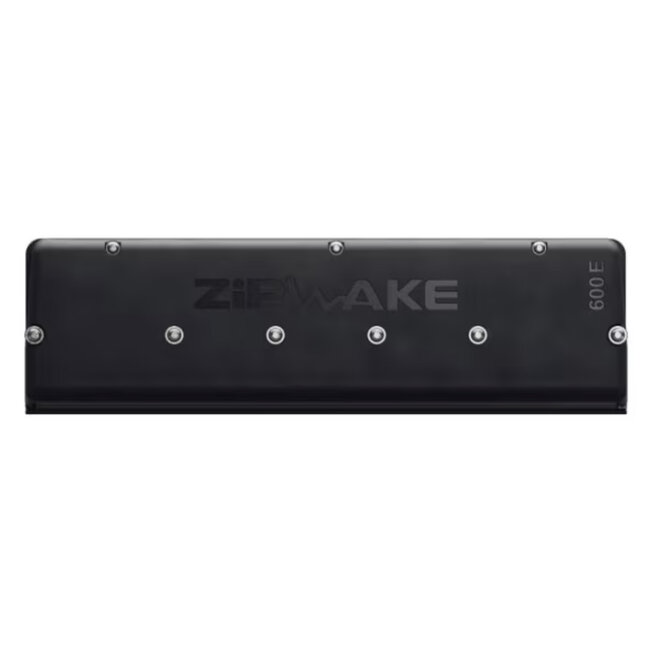

Straight Interceptors (IT600-E Straight)

Two 600 mm straight interceptors equipped with dual-servo, fast-acting actuators. Their robust design ensures continuous operation under demanding conditions, delivering superior lift and precise trim correction at speeds up to 60 knots.

Distribution Unit (DU-E)

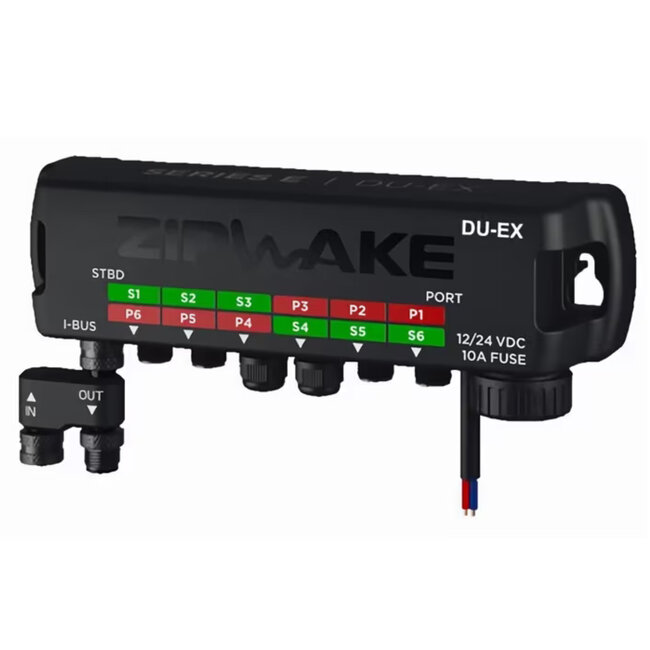

Provides power and system connectivity. Rugged, waterproof, oil-resistant, and ignition-protected, designed for safe installation below deck. Includes a 4 m power cable and built-in protection. Supports up to six interceptors.

Integrator Module (IM-E)

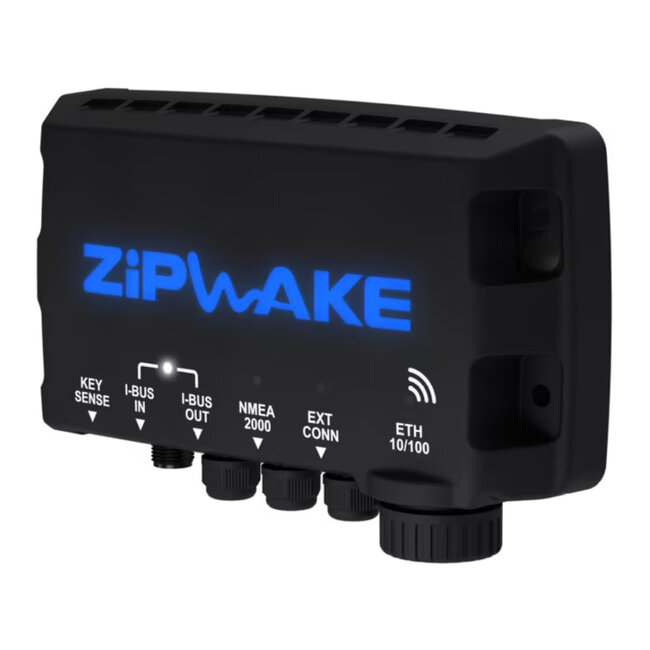

Compact yet powerful, the IM-E integrates the Zipwake system with MFDs and external networks (NMEA 2000, CAN bus, Ethernet). Its wireless interface enables real-time monitoring, configuration, and updates via the Zipwake app. Supports up to three additional control panels if needed.

SPECIFICATIONS

• Interceptor length: 600 mm (23.6 in).
• Interceptor type: Straight.
• Blade stroke: 60 mm (2.4 in).
• Actuation speed: 40 mm/s.
• Maximum vessel speed: Up to 60 knots (≈110 km/h).
• Suitable vessel length: Up to 30 m (100 ft).
• Voltage range: 12–32 V DC.
• Power consumption: Approx. 50 W max.
• Ingress protection: IP68 (interceptors), IP67 (DU-E, IM-E).
• Servo type: Dual brushless servo actuators.
• Connectivity: NMEA 2000, CAN bus, Ethernet, wireless via app.
• Cable length: 3 m standard (extendable).
• Operating temperature: 0 °C to +40 °C.
• Storage temperature: –40 °C to +90 °C.
• Kit box weight: Approx. 20–22 kg (depending on configuration).

WHAT THE KIT INCLUDES

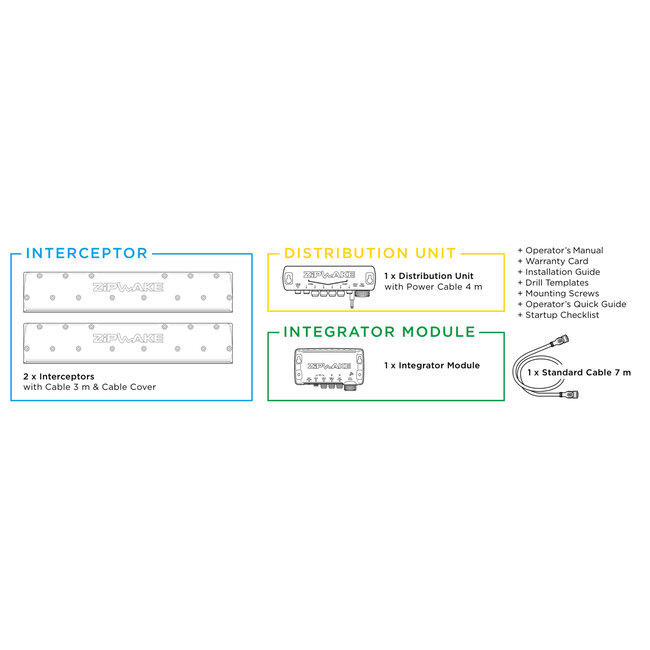

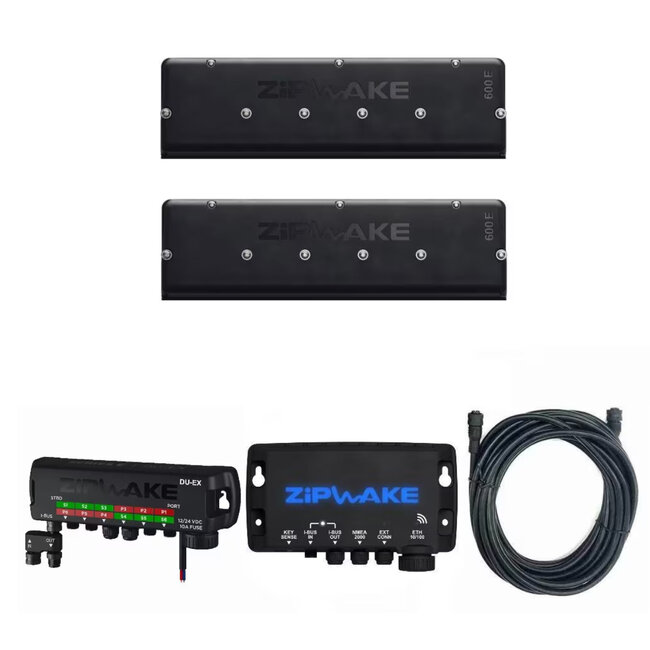

• 2 × Straight Interceptors (600 mm) with 3 m cables and mounting plates.
• 1 × Distribution Unit E (DU-E) with 4 m power cable.
• 1 × Integrator Module (IM-E).
• 1 × Extension Cable.
• Operator’s Manual.
• Installation Guide.
• Drill Templates.
• Mounting Screws.
• Quick Guide.
• Warranty Card.

INSTALLATION CONSIDERATIONS

The 600 mm straight interceptors provide robust lift and stabilization for larger planing vessels. Integrated mounting plates simplify installation, while watertight grommets ensure safe cable routing above or below the waterline. The IM-E can be installed behind dashboards, flybridges, or in machinery spaces. With its modular design, the system can be expanded to support up to six interceptors per DU-E.
