Zipwake Series 600E Straight Kit Box Trim System

The Zipwake Series E 600E Straight Kit Box Trim System is a high-performance dynamic trim control solution designed for vessels up to 30 m (100 ft) and speeds of up to 110 km/h (≈60 knots). Compared to the Series S, the Series E range provides faster response, greater lift capacity, and enhanced durability, making it the preferred choice for larger and more demanding vessels. This model features 600 mm straight interceptors, delivering powerful lift and precise stabilization for planing and semi-planing hulls.

With fully automatic functionality, the system continuously minimizes roll, pitch, and wave resistance, improving fuel efficiency, onboard comfort, and navigation safety. The 600E Straight Kit Box combines fast-acting straight interceptors with a rugged distribution unit and an intuitive control panel equipped with integrated GPS, gyro, and 3D accelerometer sensors. Thanks to NMEA 2000 connectivity and modular scalability, it offers a reliable and adaptable solution for professional and recreational marine use.

FEATURES

• Automatic stabilization: Dynamic correction of pitch and roll in real time with GPS, gyro, and accelerometer sensors.
• Straight interceptor design: 600 mm straight interceptors deliver efficient lift and stabilization.
• High performance: 60 mm blade stroke and 40 mm/s blade rate for fast response and effective motion control.
• Control Panel (CP-E): Sunlight-readable color display with dual dials for intuitive operation in manual and automatic modes.
• Fuel efficiency: Optimized trim angle reduces drag and fuel consumption.
• System scalability: Supports up to six interceptors per distribution unit.
• Durable construction: Waterproof, oil-resistant, and ignition-protected for safe installation in demanding environments.
• Seamless connectivity: NMEA 2000 compatibility with external systems.
• Upgradeable software: Software updates available via the Zipwake website.

MAIN COMPONENTS

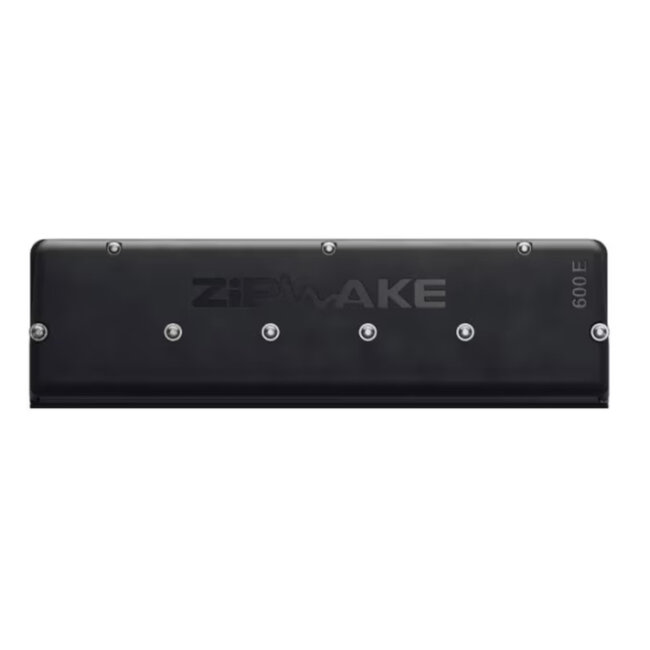

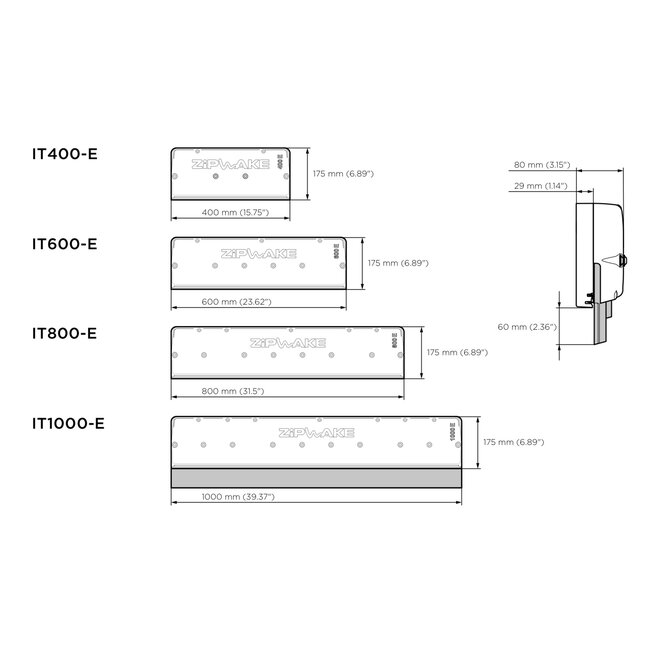

Straight Interceptors (IT600-E Straight)

Two 600 mm straight interceptors with dual-servo, fast-acting actuators. Their robust design ensures continuous stabilization even at high speeds and under demanding marine conditions, actively compensating for roll and pitch.

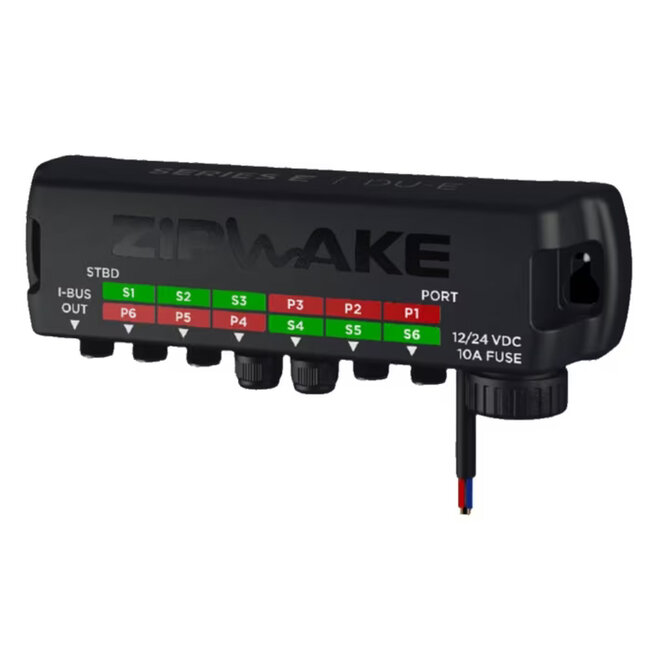

Distribution Unit (DU-E)

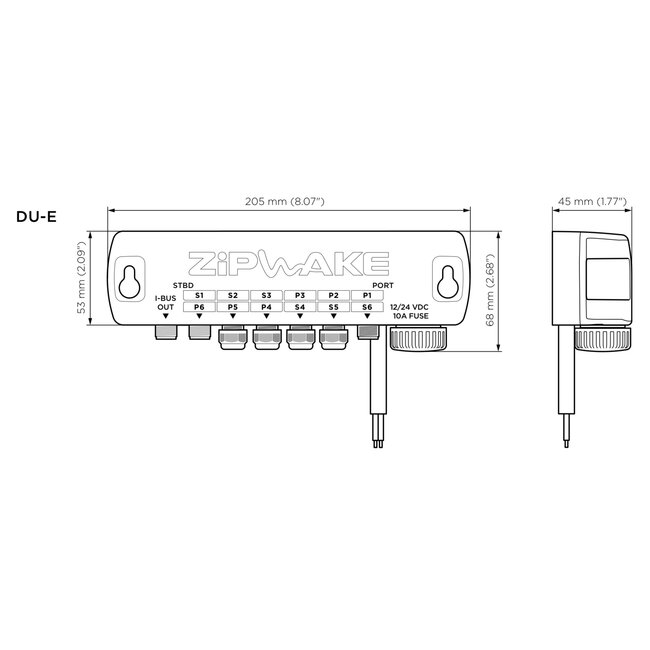

Provides power and connectivity for the interceptors. Rugged, waterproof, oil-resistant, and ignition-protected, suitable for safe installation below deck. Includes a 4 m power cable and built-in electrical protection. Supports up to six interceptors.

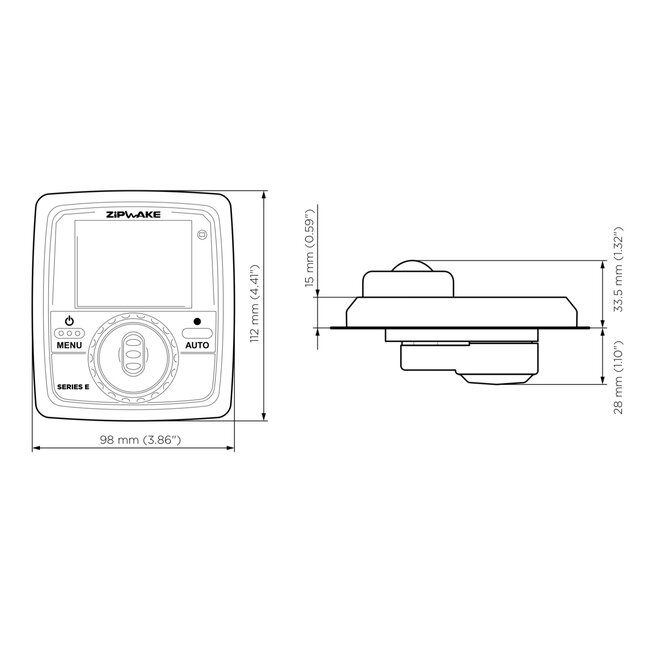

Control Panel (CP-E)

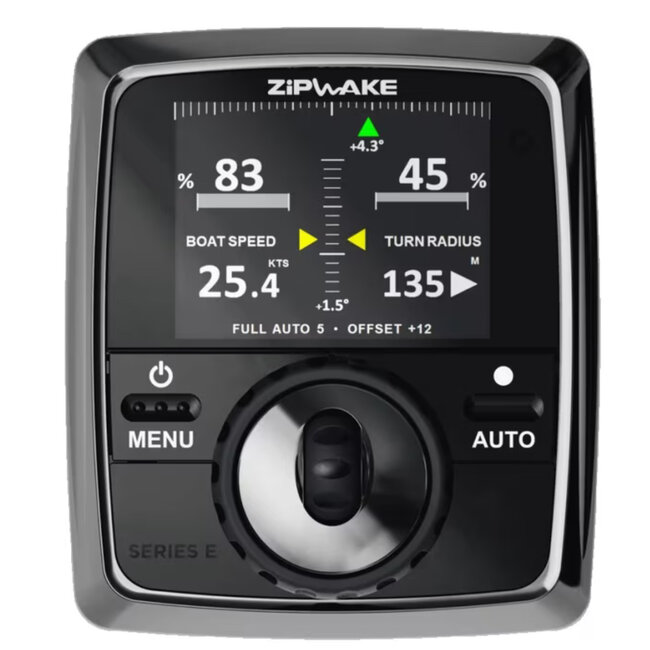

A sunlight-readable 2.8” color display with dual dials for intuitive operation. Offers both manual adjustment and automatic trim control, displaying real-time vessel data such as speed, pitch, roll, and interceptor positions.

SPECIFICATIONS

• Interceptor length: 600 mm (23.6 in).
• Interceptor type: Straight.
• Blade stroke: 60 mm (2.4 in).
• Actuation speed: 40 mm/s.
• Maximum vessel speed: Up to 60 knots (≈110 km/h).
• Suitable vessel length: Up to 30 m (100 ft).
• Voltage range: 12–32 V DC.
• Power consumption: Approx. 50 W max.
• Ingress protection: IP68 (interceptors), IP67 (DU-E, CP-E).
• Servo type: Dual brushless servo actuators.
• Connectivity: NMEA 2000 backbone.
• Cable length: 3 m standard (extendable).
• Operating temperature: 0 °C to +40 °C (32 °F to 104 °F).
• Storage temperature: –40 °C to +90 °C (–40 °F to 194 °F).
• Kit box weight: Approx. 20–22 kg (depending on configuration).

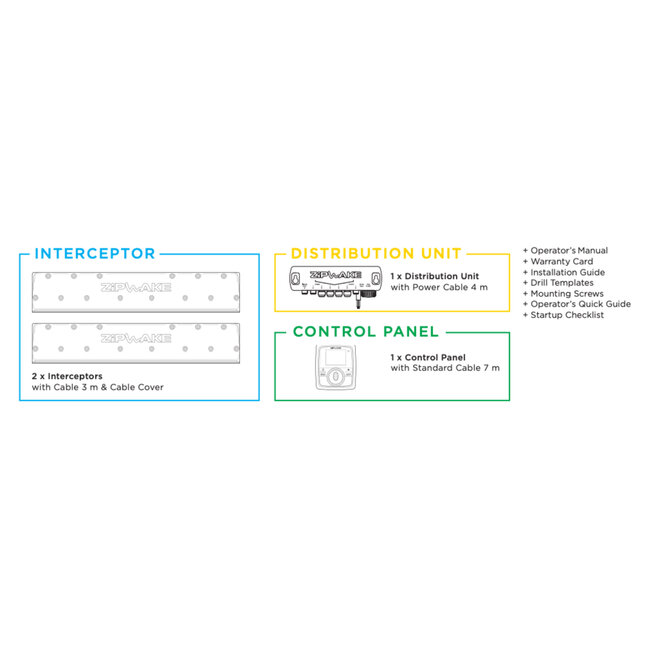

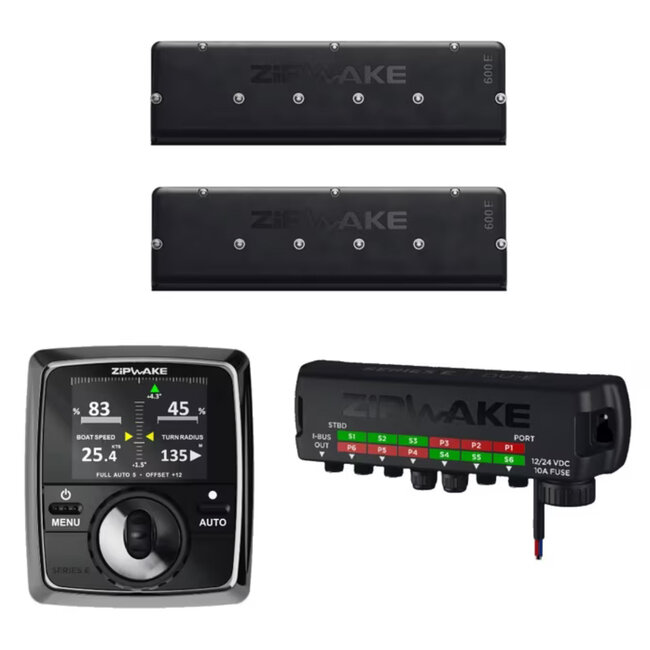

WHAT THE KIT INCLUDES

• 2 × Straight Interceptors (600 mm) with 3 m cables and mounting plates.
• 1 × Distribution Unit E (DU-E) with 4 m power cable.
• 1 × Control Panel E (CP-E) with standard cable.
• 1 × Extension Cable.
• Operator’s Manual.
• Installation Guide.
• Drill Templates.
• Mounting Screws.
• Quick Guide.
• Warranty Card.

INSTALLATION CONSIDERATIONS

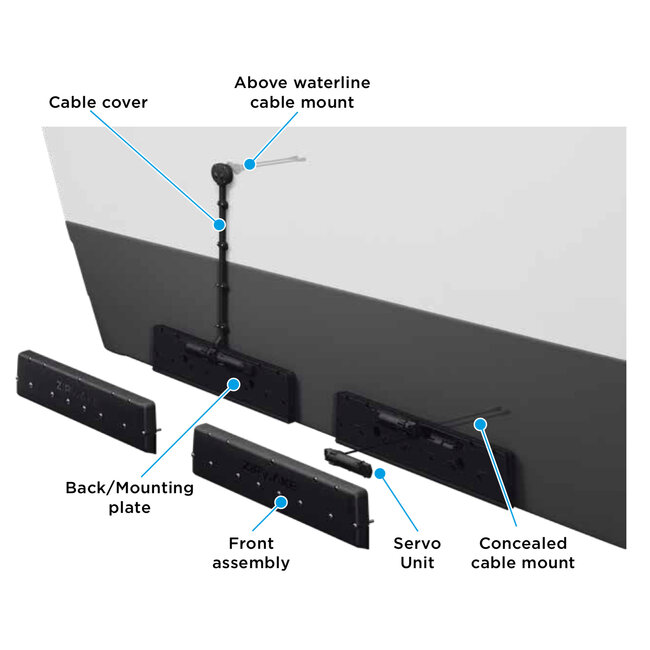

The 600 mm straight interceptors provide effective lift and stabilization for large planing hulls. Integrated mounting plates simplify installation, and watertight grommets ensure safe routing of cables above or below the waterline. The modular system allows expansion of up to six interceptors per DU-E, offering flexibility for different vessel configurations.
