Zipwake Series 450S Chine Integrator Module Kit Box Trim System

The Zipwake Series S 450S Chine Integrator Module Kit Box Trim System is a professional dynamic trim control solution designed for vessels up to 15.5 m (50 ft) and speeds of up to 60 knots (≈110 km/h). As part of the Series S range, it is optimized for smaller and medium-sized boats and introduces chine (angled) interceptors for hulls with sharp chines or angular surfaces. With fast-acting interceptors and the advanced Integrator Module (IM-S), this kit ensures seamless system integration, precise stabilization, and effortless control.

The Integrator Module connects the Zipwake system directly to multifunction displays (MFDs) and smart devices, keeping dashboards clean and intuitive. Wireless connectivity allows configuration, monitoring, and software updates through the Zipwake app. Compact, waterproof, and easy to install, the system provides full automatic stabilization, modular expansion, and user-friendly operation, making it an ideal solution for demanding recreational and semi-professional vessels.

FEATURES

• Automatic stabilization: Integrated motion sensors, magnetic compass, and GPS for real-time pitch and roll correction.
• Chine interceptor design: 450 mm chine interceptors designed for hulls with sharp chines or angular surfaces.
• High performance: Rapid interceptor response, 5–10× faster than conventional trim tabs.
• Integrator Module (IM-S): Seamless MFD integration, wireless connectivity, and intuitive 3D control.
• Dashboard efficiency: Keeps helm layouts clean while supporting up to three additional control panels.
• Wireless connectivity: Configure, monitor, and update via the Zipwake app on smartphones and tablets.
• Comfort and safety: Actively reduces roll and pitch for smoother and safer handling.
• Fuel efficiency: Optimized trim reduces drag and lowers fuel consumption.
• Durable design: Waterproof, oil-resistant, and ignition-protected for harsh marine environments.
• Expandable system: Supports up to six interceptors per distribution unit.
• Software updates: Wireless updates directly from the Zipwake app or Zipwake website.

MAIN COMPONENTS

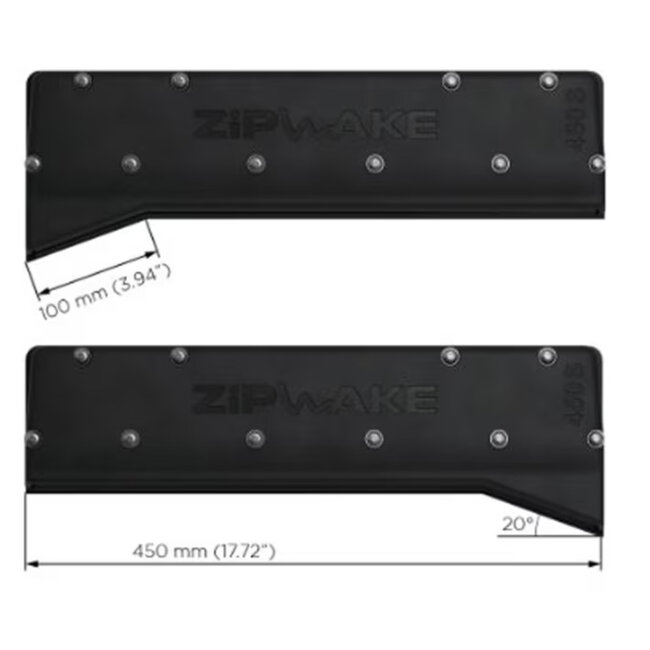

Chine Interceptors (IT450-S Chine)

Two 450 mm chine interceptors engineered for hulls with angular or chine surfaces. Equipped with fast-acting servo actuators, they deliver precise and powerful lift for dynamic pitch and roll stabilization, even at high speeds.

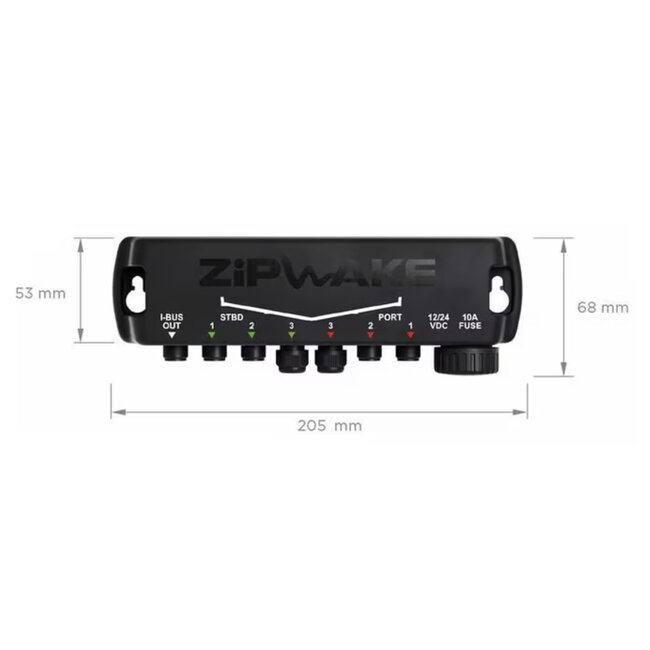

Distribution Unit (DU-S)

Powers and connects the system. Rugged, waterproof, oil-resistant, and ignition-protected, the DU-S supports up to three Series S interceptors, expandable to six with additional connectors. Supplied with a 4 m power cable and built-in protective fuse.

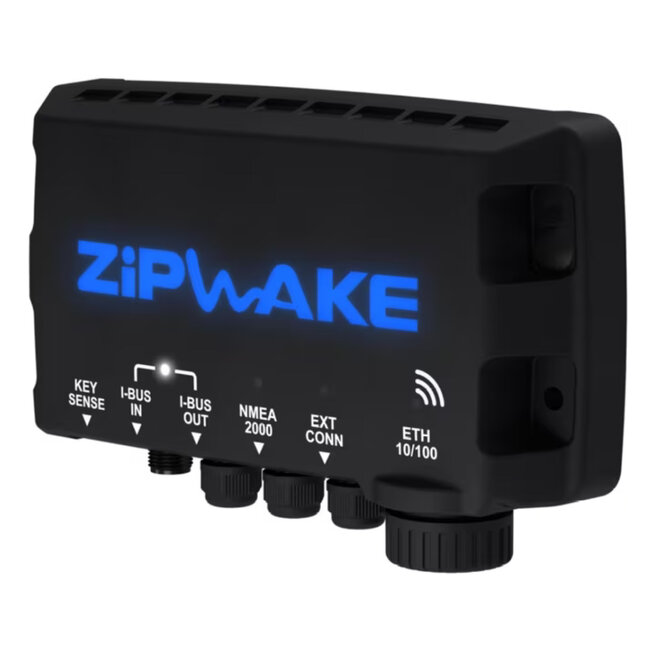

Integrator Module (IM-S)

Compact and intuitive, the IM-S integrates the Zipwake system directly with MFDs and external networks via NMEA 2000 and CAN bus. Its wireless interface allows remote monitoring, configuration, and software updates through smartphones and tablets. Includes intuitive 3D control and supports up to three additional control panels.

SPECIFICATIONS

• Interceptor length: 450 mm (17.7 in).
• Interceptor type: Chine (for angular hull surfaces).
• Blade stroke: 30 mm (1.2 in).
• Actuation speed: 20 mm/s.
• Maximum vessel speed: Up to 60 knots (≈110 km/h).
• Suitable vessel length: Up to 15.5 m (50 ft).
• Voltage range: 12–32 V DC.
• Power consumption: Approx. 25 W max.
• Ingress protection: IP68 (interceptors), IP67 (DU-S, IM-S).
• Servo type: Fast-response servo actuators.
• Connectivity: NMEA 2000, CAN bus, Ethernet.
• Wireless interface: Supported (via Zipwake app).
• Cable length: 3 m standard (extendable).
• Operating temperature: 0 °C to +40 °C.
• Storage temperature: –40 °C to +90 °C.
• Kit box weight: Approx. 15–18 kg (depending on configuration).

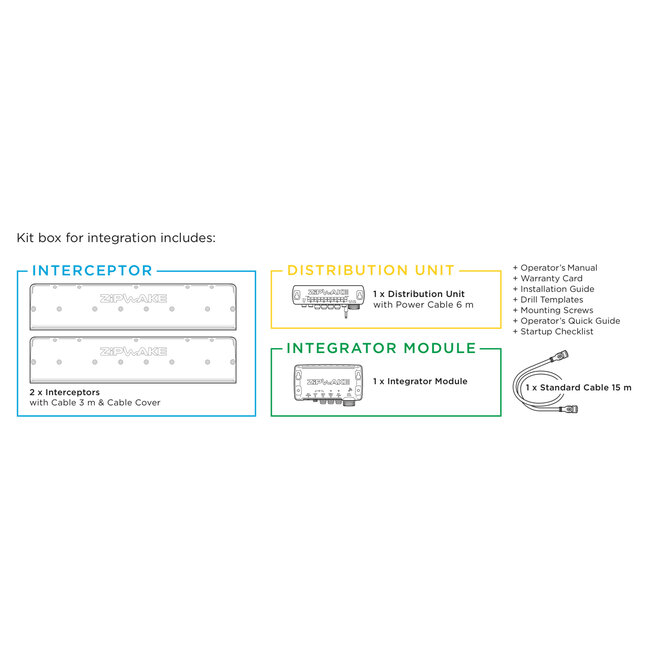

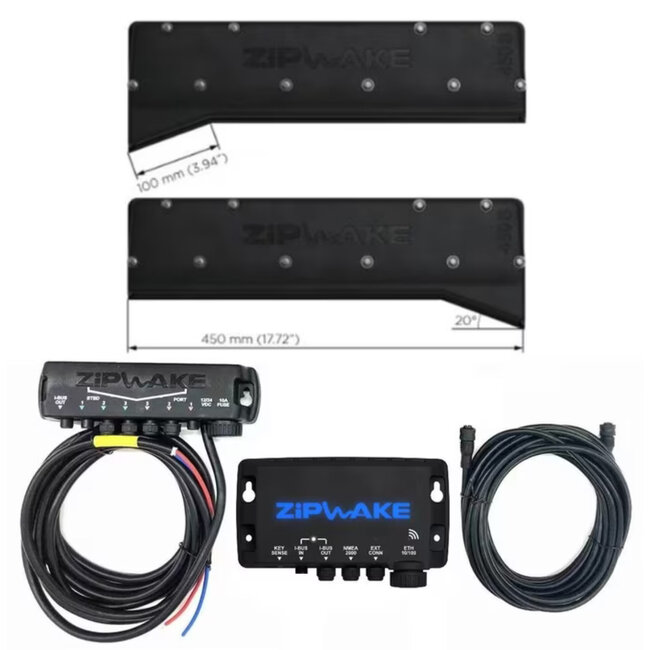

WHAT THE KIT INCLUDES

• 2 × Chine Interceptors (450 mm) with 3 m cables and mounting plates.
• 1 × Distribution Unit S (DU-S) with 4 m power cable.
• 1 × Integrator Module (IM-S).
• 1 × Extension Cable.
• Operator’s Manual.
• Installation Guide.
• Drill Templates.
• Mounting Screws.
• Quick Guide.
• Warranty Card.

INSTALLATION CONSIDERATIONS

The chine interceptors are designed for hulls with angular or chine surfaces, ensuring precise fit and effective hydrodynamic performance. Integrated mounting plates simplify installation, while optional watertight grommets allow safe cable routing above or below the waterline. The compact IM-S can be installed behind dashboards, flybridges, or in machinery spaces, requiring only a single Ethernet connection for MFD integration. The modular design allows up to six interceptors per DU-S, ensuring flexibility for different vessel layouts.
