Zipwake Series 400E Chine Kit Box Trim System

The Zipwake Series E 400E Chine Kit Box Trim System is a high-performance dynamic trim control solution engineered for vessels up to 30 m (100 ft) and speeds of up to 60 knots (≈110 km/h). As part of the Series E range, it features dual-servo chine interceptors designed for hulls with sharp chines or angular surfaces, delivering superior lift and faster response than conventional trim tabs. With a longer 60 mm blade stroke and an actuation speed of 40 mm/s, the system ensures powerful lift, reduced drag, and enhanced comfort, safety, and fuel efficiency.

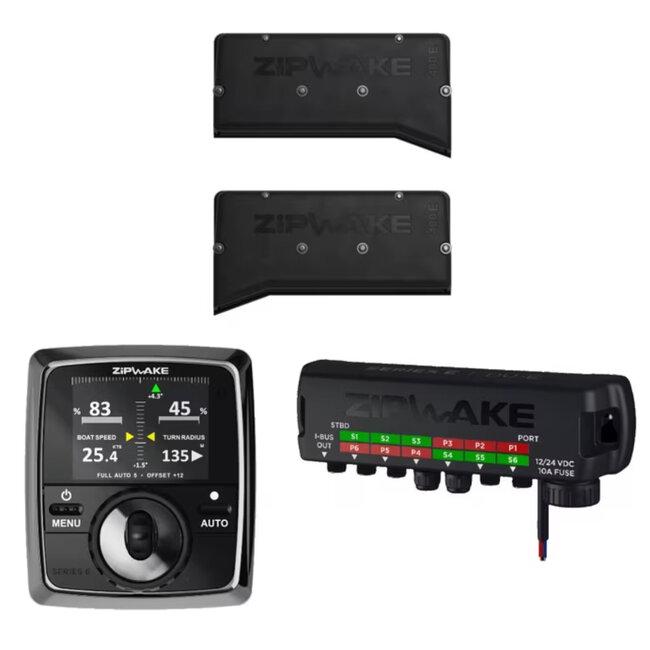

This kit includes chine (angled) 400 mm interceptors, a rugged distribution unit, and a user-friendly control panel with integrated GPS, gyro, and 3D accelerometer sensors. Designed for heavy-duty marine use, the system offers full automatic stabilization, seamless NMEA 2000 connectivity, modular expansion, and updateable software, making it a reliable and future-proof solution for demanding vessels.

FEATURES

• Automatic stabilization: Integrated GPS, 3D gyro, and accelerometer sensors provide continuous pitch and roll correction.
• High performance: 5–10 times faster response than conventional trim tabs, with stronger lift force.
• Chine interceptor design: 400 mm chine interceptors specifically designed for angular hull surfaces.
• Comfort and safety: Actively reduces roll and pitch for smoother, safer navigation.
• Fuel efficiency: Optimized trim angle lowers drag and reduces fuel consumption.
• NMEA 2000 connectivity: Seamless integration with onboard navigation and control networks.
• Expandable system: Supports up to six Series E interceptors per distribution unit.
• User-friendly operation: Control panel with sunlight-readable color display and intuitive dials.
• Durable construction: Waterproof, oil-resistant, and ignition-protected components.
• Upgradeable software: Updates directly available via the Zipwake website.

MAIN COMPONENTS

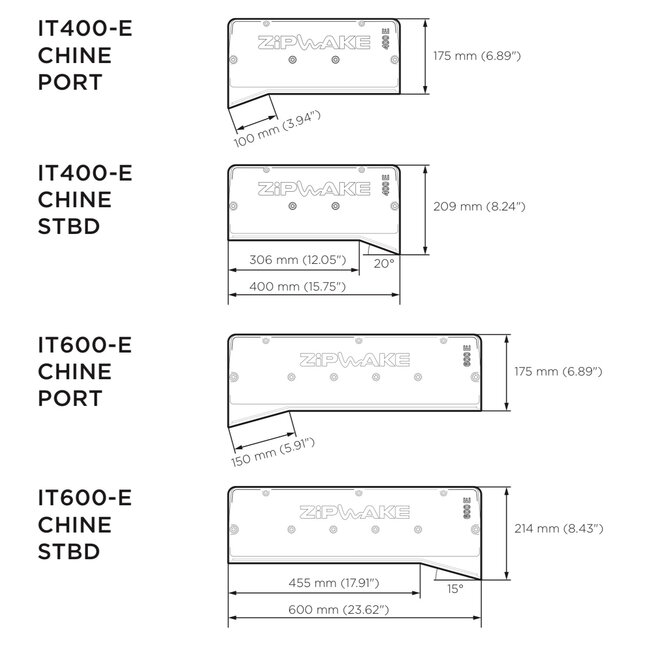

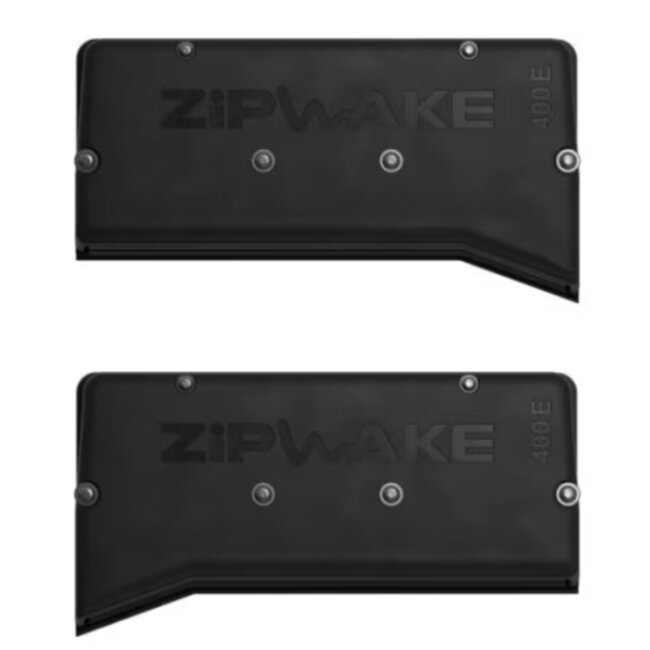

Chine Interceptors (IT400-E Chine)

Two 400 mm chine interceptors designed for hulls with sharp chines or angled transoms. Featuring dual high-speed servo actuators, they deliver a 60 mm blade stroke and 40 mm/s actuation speed, ensuring precise pitch and roll control even under heavy loads or high-speed conditions.

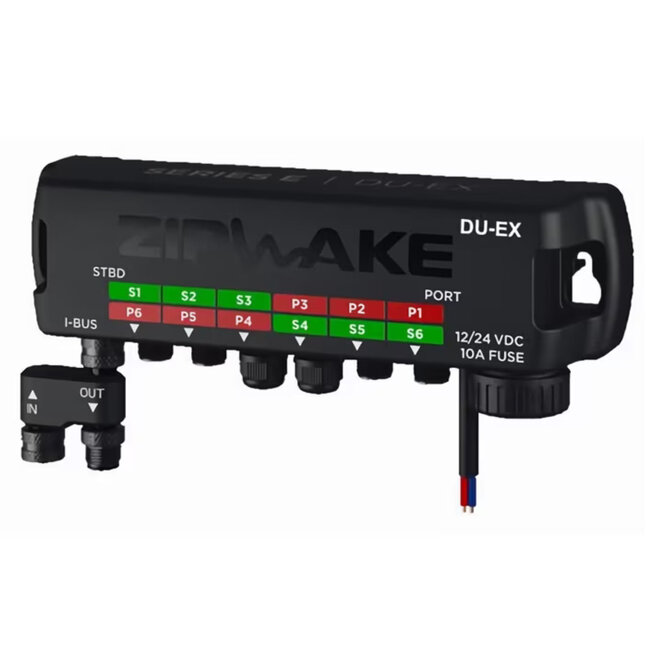

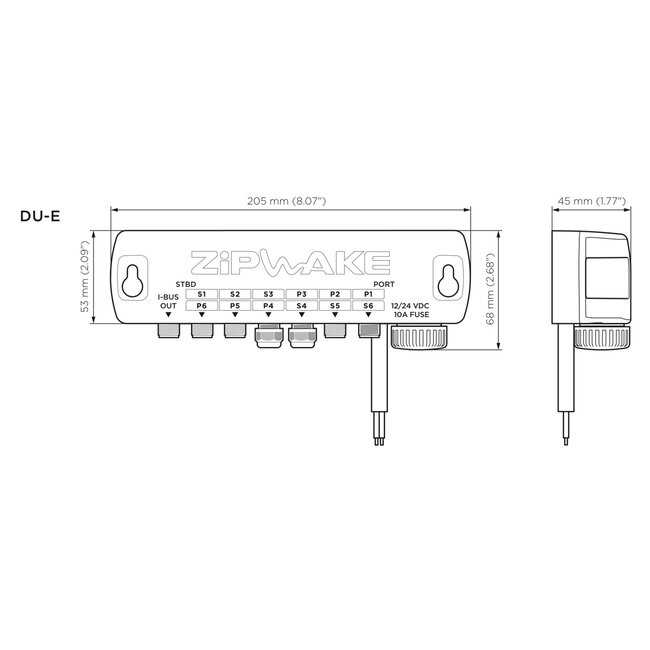

Distribution Unit (DU-E)

Provides power and connectivity to the interceptors. Rugged, waterproof, oil-resistant, and ignition-protected, the DU-E is suitable for installation in engine rooms and harsh environments. Powers up to three Series E interceptors, with expansion units enabling up to six. Includes a 4 m power cable and integrated electrical protection.

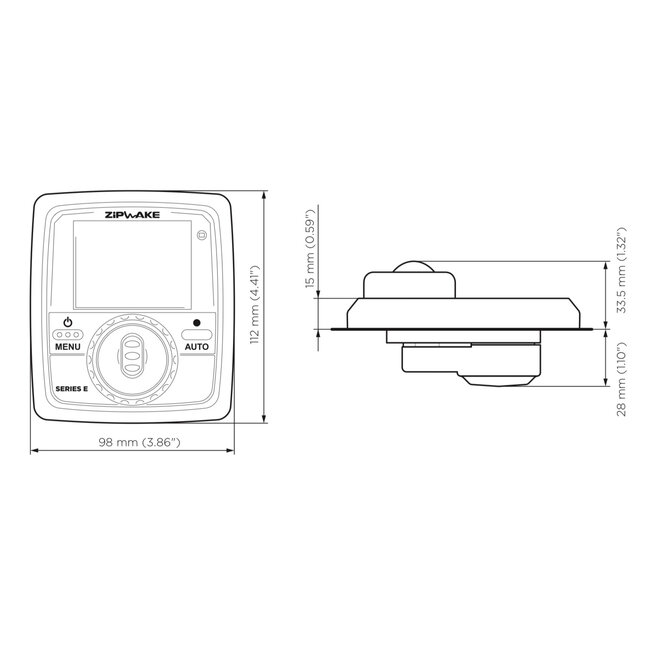

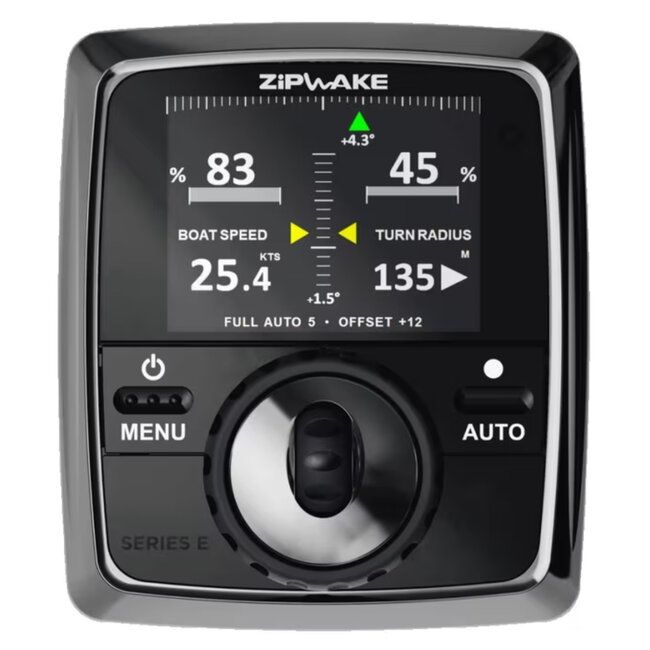

Control Panel (CP-E)

A large, sunlight-readable color display with dual control dials for easy manual adjustment and real-time vessel monitoring. Integrated GPS, gyro, and accelerometer sensors enable full automatic operation, dynamically stabilizing pitch and roll for enhanced handling and safety.

SPECIFICATIONS

• Interceptor length: 400 mm (15.7 in).
• Interceptor type: Chine (for angular hull surfaces).
• Blade stroke: 60 mm (2.4 in).
• Actuation speed: 40 mm/s (dual-servo).
• Maximum vessel speed: Up to 60 knots (≈110 km/h).
• Suitable vessel length: Up to 30 m (100 ft).
• Voltage range: 12–32 V DC.
• Power consumption: Approx. 50 W max.
• Ingress protection: IP68 (interceptors), IP67 (DU-E, CP-E).
• Servo type: Dual-servo, submersible actuators.
• Connectivity: NMEA 2000, CAN bus.
• Cable length: 3 m standard (extendable).
• Operating temperature: 0 °C to +40 °C.
• Storage temperature: –40 °C to +90 °C.
• Kit box weight: Approx. 20–25 kg (varies with configuration).

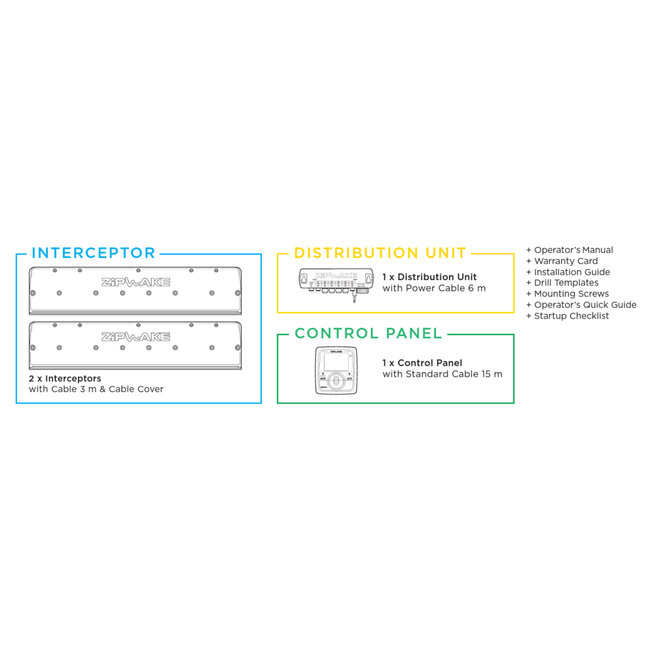

WHAT THE KIT INCLUDES

• 2 × Chine Interceptors (400 mm) with 3 m cables and mounting plates.
• 1 × Distribution Unit E (DU-E) with 4 m power cable.
• 1 × Control Panel E (CP-E) with standard cable.
• 1 × Extension Cable.
• Operator’s Manual.
• Installation Guide.
• Drill Templates.
• Mounting Screws.
• Quick Guide.
• Warranty Card.

INSTALLATION CONSIDERATIONS

The chine interceptors are designed for hulls with sharp chines or angled transoms, ensuring efficient fit and hydrodynamic performance. Integrated mounting plates simplify installation, and optional watertight grommets allow safe cable routing above or below the waterline. The modular design supports up to six interceptors per DU-E, making the system adaptable for larger or more complex vessels. Correct sealing and alignment of thru-hull fittings is essential for watertight integrity and reliable long-term performance.
