Zipwake Series 400E Round R1000 Kit Box Trim System

The Zipwake Series E 400E Round R1000 Kit Box Trim System is a professional dynamic trim control solution designed for vessels up to 30 m (100 ft) and speeds of up to 60 knots (≈110 km/h). As part of the Series E range, it features large, dual-servo interceptors built for demanding conditions and heavy-duty vessels, offering superior lift compared to the compact Series S. This version includes round interceptors (R1000), specifically engineered for hulls with a 1000 mm radius, ensuring optimal fit, improved hydrodynamics, and enhanced performance. The system actively reduces pitch and roll, minimizes drag, and improves comfort, safety, and fuel efficiency on board.

The kit is delivered with a pair of 400 mm round R1000 interceptors, a robust distribution unit, and a user-friendly control panel with integrated GPS, gyro, and 3D accelerometer sensors for automatic dynamic stabilization. With NMEA 2000 compatibility, modular expandability, and updateable software, the 400E Round R1000 Kit Box provides a complete, future-proof trim control solution for larger vessels.

FEATURES

• Automatic stabilization: Integrated GPS, gyro, and accelerometer sensors continuously correct roll and pitch.
• Powerful dual-servo actuators: Deliver strong lift and fast response, optimized for heavy vessels.
• Round interceptor design: Tailored for hulls with a 1000 mm radius, ensuring seamless installation and hydrodynamic efficiency.
• Improved comfort and safety: Reduces roll and pitch for smoother handling and safer navigation.
• Fuel efficiency: Optimized trim reduces drag and lowers fuel consumption.
• NMEA 2000 connectivity: Enables seamless integration with onboard navigation systems.
• Expandable system: Supports up to six Series E interceptors without requiring extra connectors or power supplies.
• User-friendly operation: Control panel with sunlight-readable display and intuitive dials.
• Updateable software: Directly upgradeable via the Zipwake website.

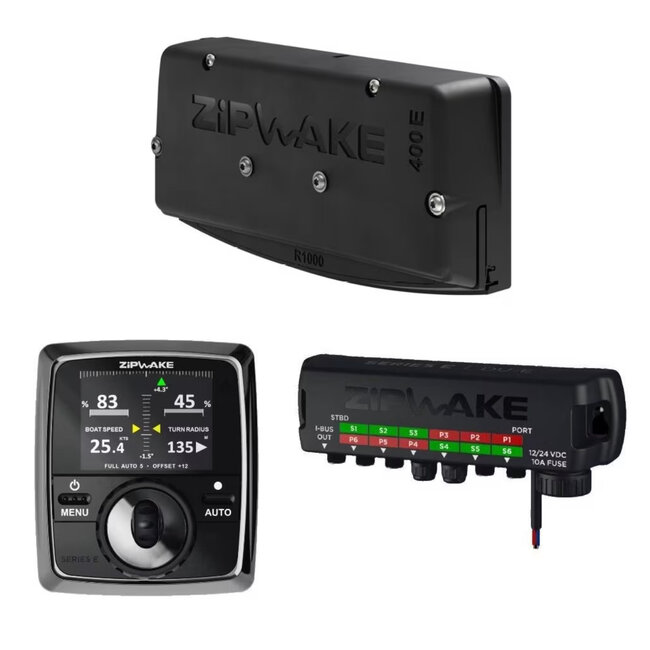

MAIN COMPONENTS

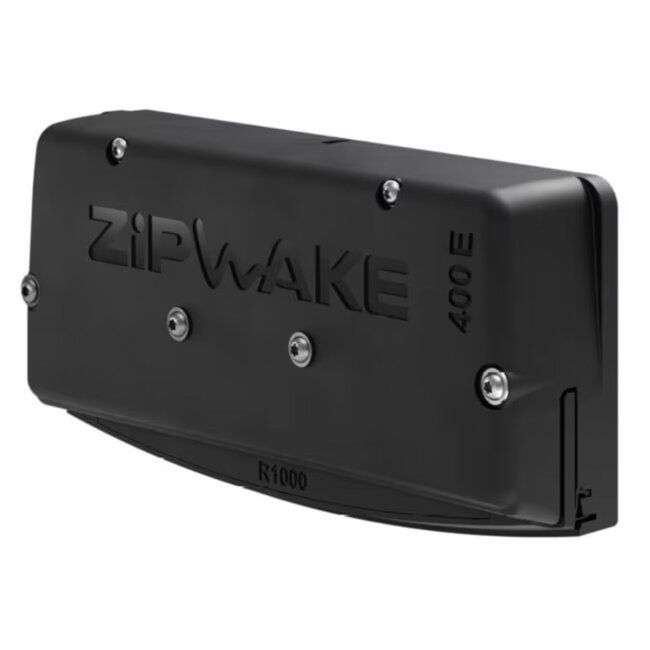

Round Interceptors (IT400-E R1000)

Two 400 mm round interceptors designed for hulls with a 1000 mm radius. Equipped with dual-servo actuators, they deliver fast, precise movements and superior lift, even at high speeds and heavy loads.

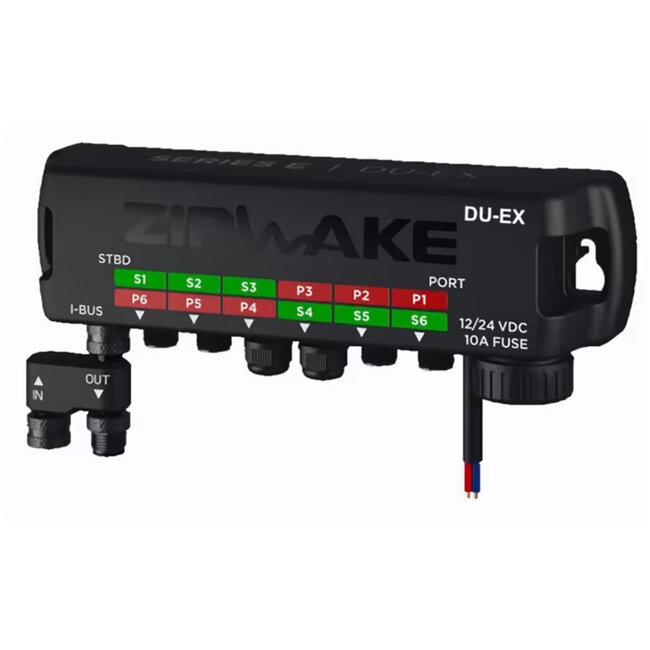

Distribution Unit (DU-E)

Supplies power and connectivity to the system. Built to withstand harsh marine environments, the DU-E is waterproof, oil-resistant, and ignition-protected. It includes a 4 m power cable and built-in electrical protection.

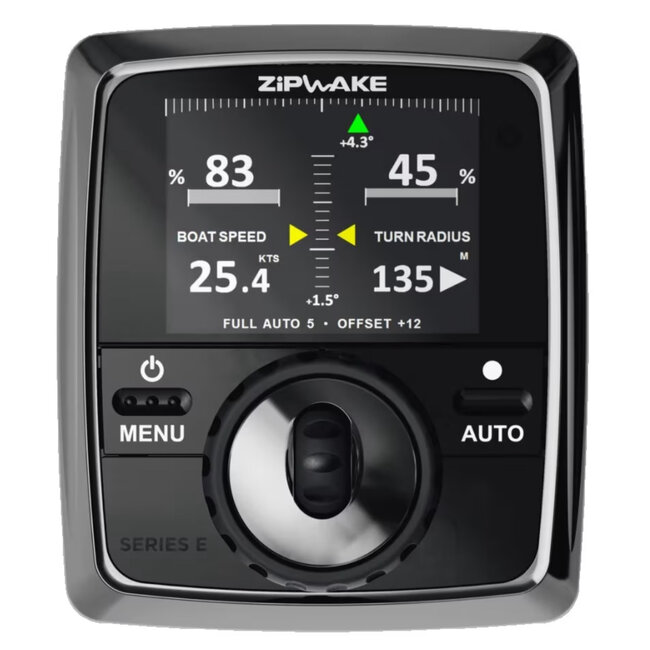

Control Panel (CP-E)

A large, sunlight-readable color display with dual control dials, providing intuitive manual adjustments and real-time vessel feedback. Integrated GPS, gyro, and accelerometer sensors enable full automatic operation, dynamically stabilizing pitch and roll for smooth performance.

SPECIFICATIONS

• Interceptor length: 400 mm (15.7 in).
• Interceptor type: Round R1000 (for hulls with 1000 mm radius).
• Blade stroke: 60 mm (2.4 in).
• Actuation speed: 40 mm/s (dual-servo).
• Maximum vessel speed: Up to 60 knots (≈110 km/h).
• Suitable vessel length: Up to 30 m (100 ft).
• Voltage range: 12–32 V DC.
• Power consumption: Approx. 50 W max.
• Ingress protection: IP68 (interceptors), IP67 (DU-E, CP-E).
• Servo type: Dual-servo, submersible actuators.
• Connectivity: NMEA 2000, CAN bus.
• Cable length: 3 m standard (extendable).
• Operating temperature: 0 °C to +40 °C.
• Storage temperature: –40 °C to +90 °C.
• Kit box weight: Approx. 20–25 kg (varies with configuration).

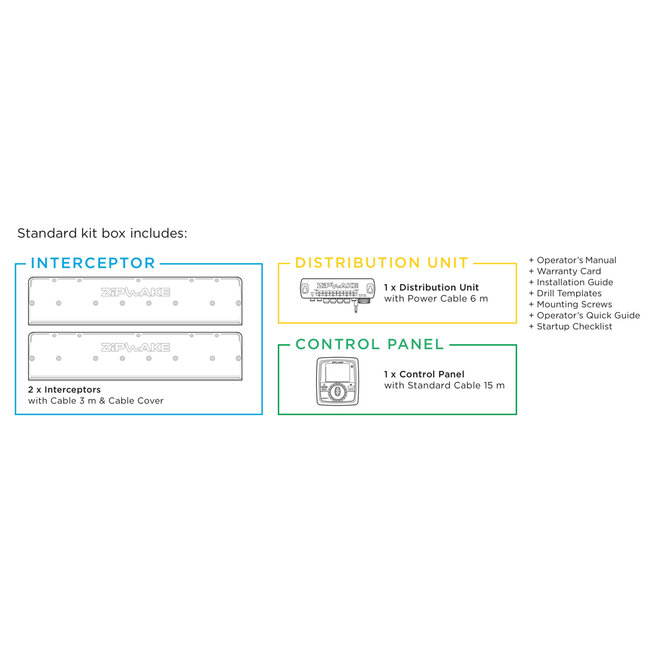

WHAT THE KIT INCLUDES

• 2 × Round Interceptors (400 mm, R1000) with 3 m cables and mounting plates.
• 1 × Distribution Unit E (DU-E) with 4 m power cable.
• 1 × Control Panel E (CP-E) with standard cable.
• 1 × Extension Cable.
• Operator’s Manual.
• Installation Guide.
• Drill Templates.
• Mounting Screws.
• Quick Guide.
• Warranty Card.

INSTALLATION CONSIDERATIONS

The round R1000 interceptors are specifically designed for hulls with a 1000 mm radius, ensuring optimal hydrodynamic fit. Integrated mounting plates simplify installation, and optional watertight grommets allow for safe cable routing above or below the waterline. The modular system design enables expansion with up to six interceptors per DU-E, providing flexible configurations for larger vessels. Correct sealing of thru-hull fittings is essential to guarantee watertight integrity and long-term reliability.
