Zipwake Series 400E Round R1000 Integrator Module Kit Box Trim System

The Zipwake Series E 400E Round R1000 Integrator Module Kit Box Trim System is a professional dynamic trim control solution designed for vessels up to 30 m (100 ft) and speeds of up to 60 knots (≈110 km/h). As part of the Series E family, it offers larger, more powerful dual-servo interceptors specifically engineered for heavy and demanding vessels, providing superior lift characteristics compared to the compact Series S. This version features round interceptors (R1000), designed to fit hulls with a radius of 1000 mm, delivering seamless performance and improved hydrodynamics. Combined with the advanced Integrator Module (IM-E), the system ensures intuitive operation, wireless connectivity, and integration with multifunction displays (MFDs) and smart devices, keeping dashboards clean and uncluttered.

FEATURES

• Full automatic operation: Integrated GPS, 3D gyro, and accelerometer sensors for continuous pitch and roll stabilization.
• Powerful dual-servo actuators: Provide greater lift and faster response, ideal for larger vessels.
• Round interceptor design: Specifically engineered for hulls with a 1000 mm radius, improving fit and hydrodynamic efficiency.
• Seamless integration: Connects directly to multiple MFDs and external navigation networks via NMEA 2000 and CAN bus.
• Wireless connectivity: Configure, monitor, and update the system via the Zipwake App on smartphones and tablets.
• Flexible system control: Supports up to three additional control panels alongside MFD integration.
• Expandable modularity: Up to six Series E interceptors can be connected without additional connectors or power supplies.
• Waterproof and robust: All components are watertight and designed for heavy-duty marine environments.
• Upgradeable software: Updates available directly from Zipwake for long-term reliability.

MAIN COMPONENTS

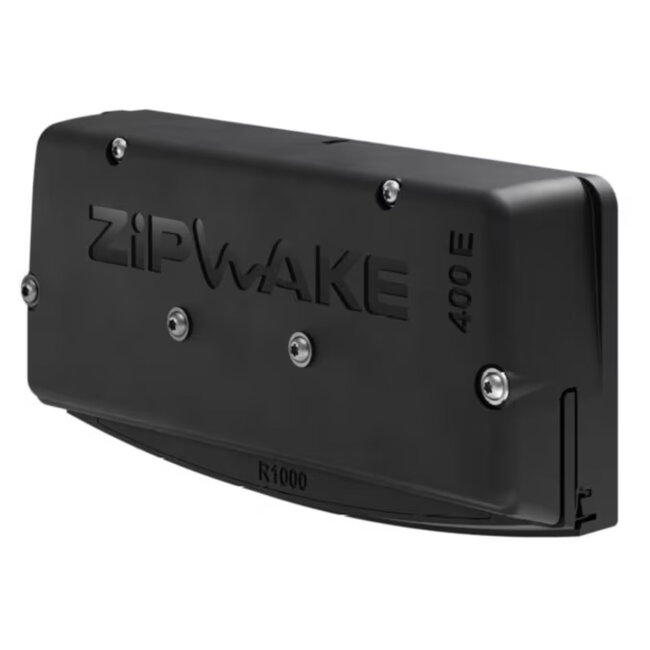

Round Interceptors (IT400-E R1000)

A pair of 400 mm round interceptors designed for hulls with a 1000 mm radius. Equipped with dual high-speed servo actuators, they deliver superior lift and stabilization even under heavy loads and at high speeds.

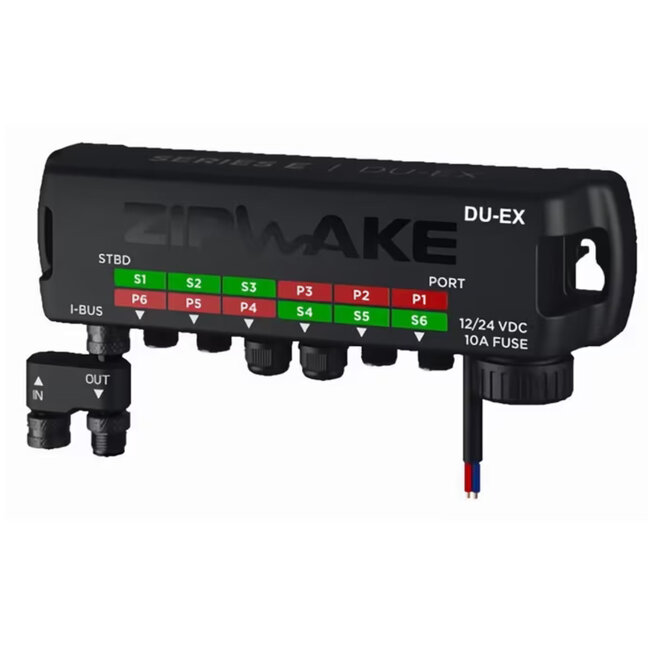

Distribution Unit (DU-E)

Provides power and connectivity to the system. Rugged, waterproof, oil-resistant, and ignition-protected, the DU-E is built for installation in engine rooms or technical spaces. Includes a 4 m power cable and built-in protective fuse.

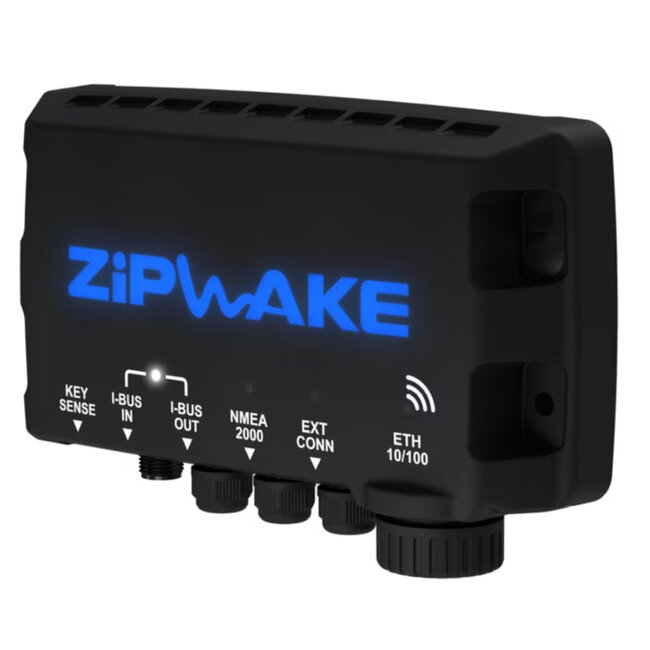

Integrator Module (IM-E)

The advanced interface that replaces the standard control panel. The IM-E integrates the system seamlessly with MFDs and mobile devices, offering intuitive 3D control, wireless connectivity, and software updates. It supports multiple control panels and manages installations of up to six Series E interceptors.

SPECIFICATIONS

• Interceptor length: 400 mm (15.7 in).
• Interceptor type: Round R1000 (for 1000 mm hull radius).
• Blade stroke: 60 mm (2.4 in).
• Actuation speed: 40 mm/s (dual-servo).
• Maximum vessel speed: Up to 60 knots (≈110 km/h).
• Suitable vessel length: Up to 30 m (100 ft).
• Voltage range: 12–32 V DC.
• Power consumption: Approx. 50 W max.
• Ingress protection: IP68 (interceptors), IP67 (DU-E, IM-E).
• Connectivity: NMEA 2000, CAN bus, Ethernet.
• Wireless interface: Supported (via Zipwake App).
• Operating temperature: 0 °C to +40 °C.
• Storage temperature: –40 °C to +90 °C.
• Kit box weight: Approx. 20–25 kg (varies with configuration).

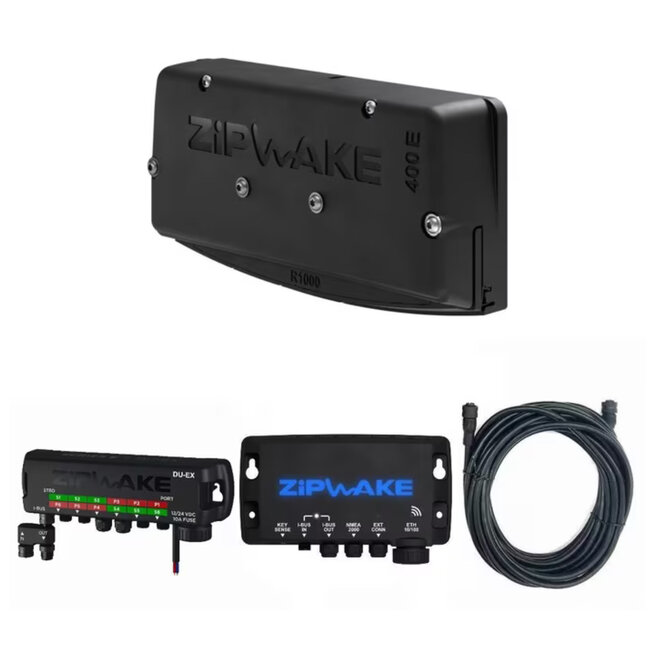

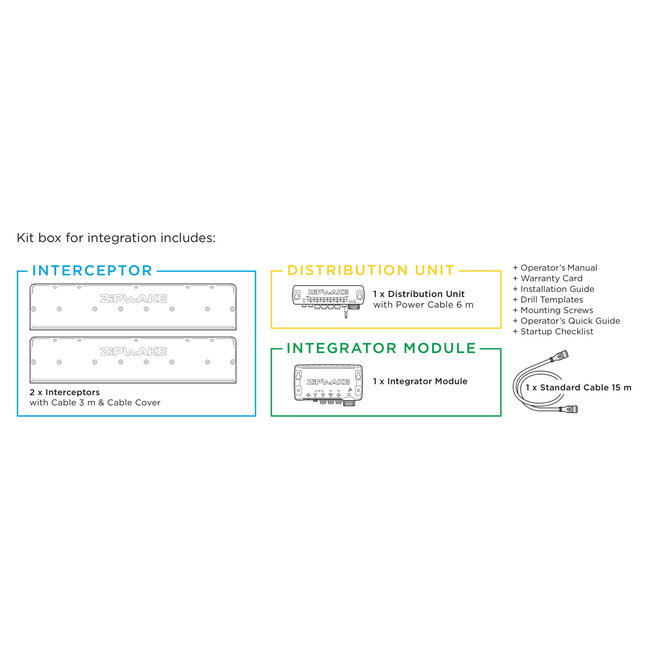

WHAT THE KIT INCLUDES

• 2 × Round Interceptors (400 mm, R1000) with 3 m cables and mounting plates.
• 1 × Distribution Unit E (DU-E) with 4 m power cable.
• 1 × Integrator Module (IM-E).
• 1 × Extension Cable.
• Operator’s Manual.
• Installation Guide.
• Drill Templates.
• Mounting Screws.
• Quick Guide.
• Warranty Card.

INSTALLATION CONSIDERATIONS

The round R1000 interceptors are designed for seamless installation on hulls with a 1000 mm chine radius. Integrated mounting plates ensure stability, while optional watertight grommets provide safe cable routing above or below the waterline. The IM-E module can be discreetly installed behind dashboards, flybridges, or in machinery spaces, requiring only a single Ethernet cable to connect with MFDs. The modular design allows expansion with up to six interceptors per DU-E, making the system highly adaptable.
