Zipwake Series 750S Straight Kit Box Trim System

The Zipwake Series S 750S Straight Kit Box Trim System is a high-performance dynamic trim control solution for vessels up to 15.5 m (50 ft) and speeds of up to 110 km/h (≈60 knots). Compared to conventional trim tab systems, the Series S delivers 5–10 times faster response, stronger lift, and simplified installation. With its 750 mm straight interceptors, this model provides greater lift capacity, making it ideal for larger or stern-heavy sport and semi-commercial craft.

The kit includes powerful straight interceptors, a rugged distribution unit, and an intuitive control panel. Equipped with integrated GPS, 3D gyro, and accelerometer sensors, the system automatically stabilizes the vessel in real time, reducing roll and pitch while improving fuel efficiency and onboard comfort. Its modular design allows expansion with up to six interceptors, offering flexibility to adapt to different vessel layouts.

FEATURES

• Automatic stabilization: Real-time roll and pitch correction with integrated sensors.
• Straight interceptor design: 750 mm interceptors provide higher lift for larger or heavily loaded craft.
• High responsiveness: 60 mm blade stroke and rapid actuation for instant corrections.
• User-friendly control panel: Sunlight-readable display with dual dials for simple operation in manual or auto mode.
• Fuel savings: Optimized trim angle reduces drag and fuel consumption.
• Robust construction: Waterproof, oil-resistant, and ignition-protected.
• Scalable system: Supports up to six interceptors without requiring additional connectors or power.
• Upgradeable software: Updates available through the Zipwake website.

MAIN COMPONENTS

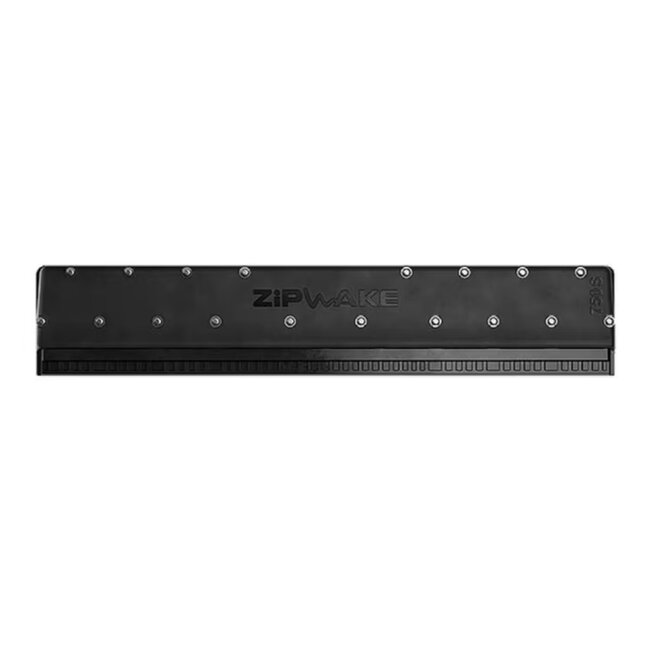

Straight Interceptors (IT750-S Straight)

Two 750 mm straight interceptors equipped with fast single-servo actuators. Designed for maximum lift and precision control, they deliver effective pitch and roll compensation even under demanding conditions.

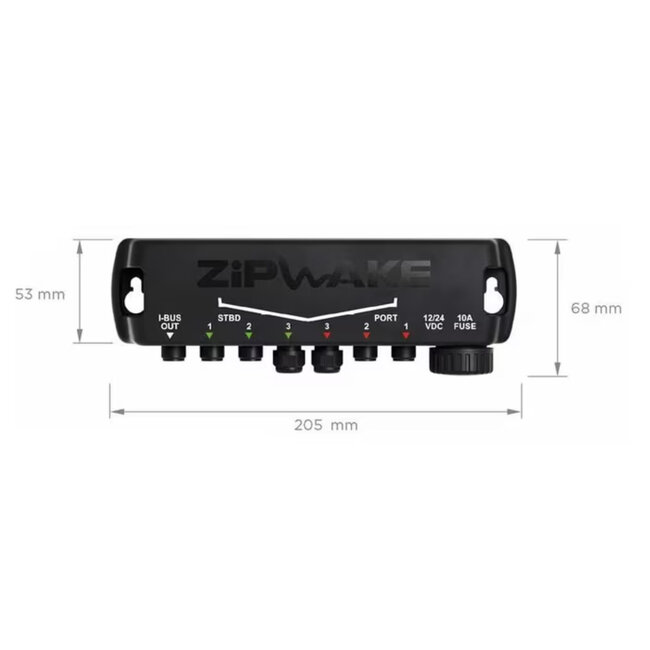

Distribution Unit (DU-S)

Centralized unit providing power and connectivity. Built to withstand marine environments, it is waterproof, oil-resistant, and ignition-protected. Supplied with a 4 m power cable and integrated electrical protection.

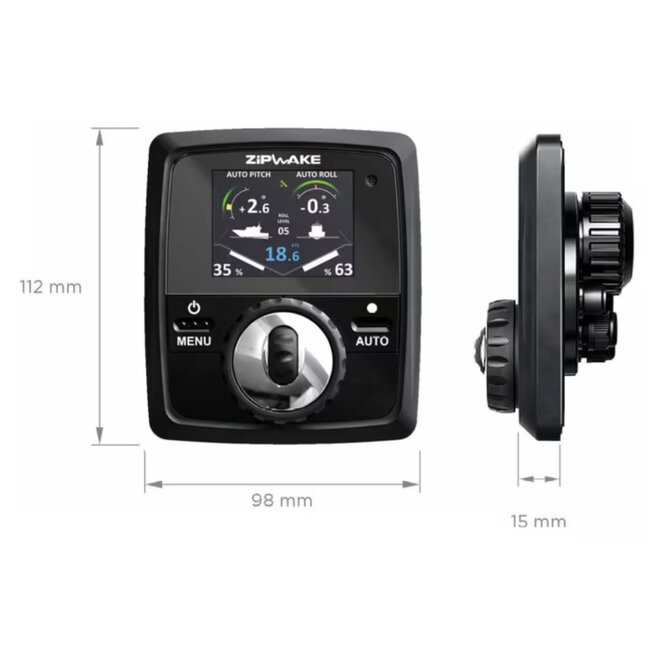

Control Panel (CP-S)

Compact 2.4” sunlight-readable color display with dual rotary dials for intuitive control. Provides real-time vessel feedback, including speed, pitch, roll, and interceptor positions.

SPECIFICATIONS

• Interceptor length: 750 mm (29.5 in).
• Interceptor type: Straight.
• Blade stroke: 60 mm (2.4 in).
• Actuation speed: 30 mm/s.
• Maximum vessel speed: Up to 60 knots (≈110 km/h).
• Suitable vessel length: Up to 15.5 m (50 ft).
• Voltage range: 12–32 V DC.
• Power consumption: Approx. 25 W max.
• Ingress protection: IP68 (interceptors), IP67 (DU-S, CP-S).
• Servo type: Single brushless servo actuators.
• Connectivity: NMEA 2000.
• Cable length: 3 m standard (extendable).
• Operating temperature: 0 °C to +40 °C (32 °F to 104 °F).
• Storage temperature: –40 °C to +90 °C (–40 °F to 194 °F).
• Kit box weight: Approx. 20–22 kg.

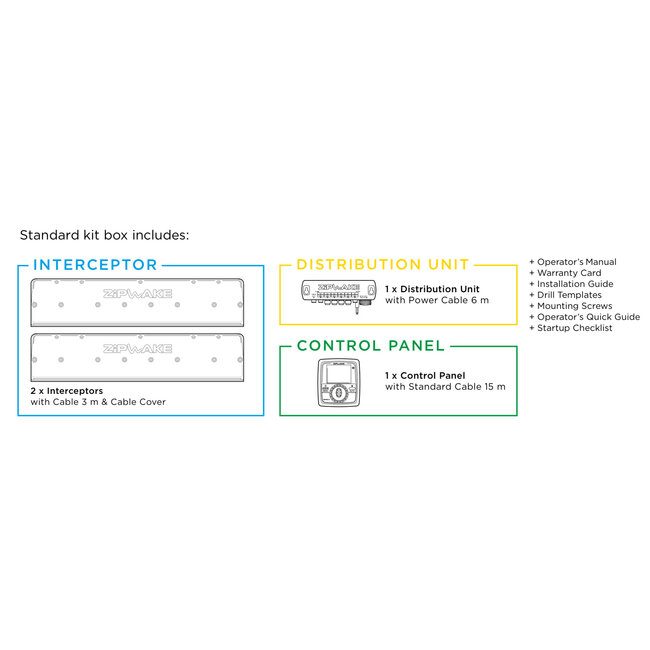

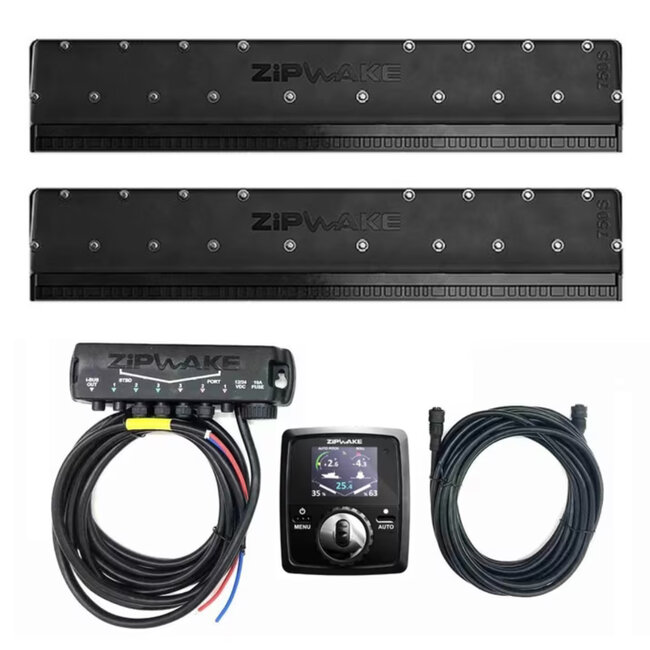

WHAT THE KIT INCLUDES

• 2 × Straight Interceptors (750 mm) with 3 m cables and mounting plates.
• 1 × Distribution Unit S (DU-S) with 4 m power cable.
• 1 × Control Panel S (CP-S) with standard cable.
• 1 × Extension Cable.
• Operator’s Manual.
• Installation Guide.
• Drill Templates.
• Mounting Screws.
• Quick Guide.
• Warranty Card.

INSTALLATION CONSIDERATIONS

The 750 mm straight interceptors require sufficient transom space due to their larger size. Use the included drill templates for accurate alignment and ensure the blades sit flush with the hull surface. If routing cables through the hull, install watertight grommets to maintain system integrity. The Distribution Unit should be mounted in a dry, accessible compartment (engine room recommended), allowing space for safe cable routing. The Control Panel is best placed at the helm for maximum visibility and ease of use. When expanding the system to up to six interceptors, plan the layout in advance to balance load distribution and avoid interference with other transom equipment.
