Zipwake Series 450S Straight Kit Box Trim System

The Zipwake Series S 450S Straight Kit Box Trim System is an advanced dynamic trim control solution designed for vessels up to 15.5 m (50 ft) and speeds of up to 60 knots (≈110 km/h). As part of the Series S range, it introduces straight (450 mm) interceptors that deliver rapid response and robust stabilization for medium-sized boats. The system actively reduces roll and pitch, optimizes trim angle, and improves both comfort and fuel efficiency, making it ideal for demanding recreational and semi-commercial use.

This kit includes two 450 mm straight interceptors, a rugged distribution unit, and a compact control panel with integrated GPS, gyro, and 3D accelerometer sensors. With fully automatic operation, seamless NMEA 2000 connectivity, and modular expansion capability, the 450S Kit Box provides reliable performance and flexible configurations for a wide range of vessels.

FEATURES

• Automatic stabilization: Integrated GPS, gyro, and 3D accelerometer sensors ensure real-time pitch and roll correction.
• Straight interceptor design: 450 mm straight interceptors deliver strong lift and stabilization for versatile hull types.
• High performance: Up to 5–10× faster than conventional trim tabs.
• Comfort and safety: Reduces rolling and pitching for smoother and safer navigation.
• Fuel efficiency: Optimized trim reduces drag and lowers fuel consumption.
• NMEA 2000 connectivity: Provides seamless integration with onboard navigation systems.
• Expandable system: Supports up to six interceptors per distribution unit.
• User-friendly control: Color display with dual dials for intuitive manual or automatic operation.
• Durable design: Waterproof, oil-resistant, and ignition-protected for heavy-duty use.
• Upgradeable software: Software updates available directly from the Zipwake website.

MAIN COMPONENTS

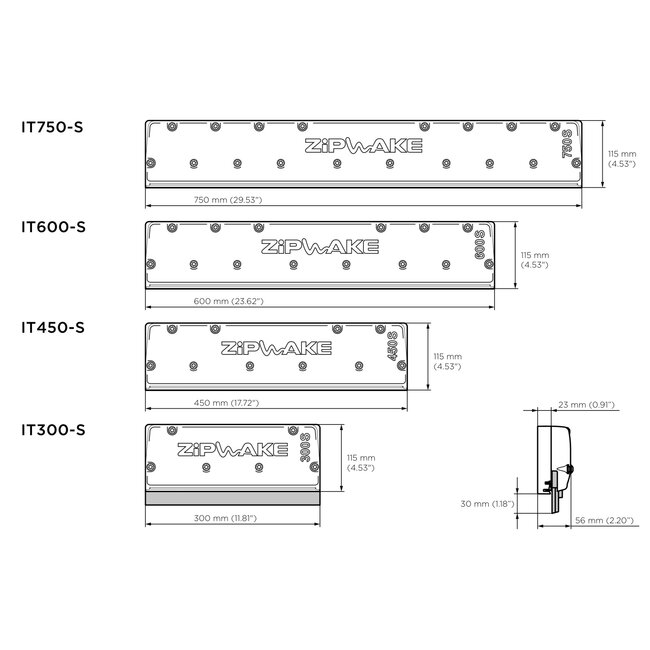

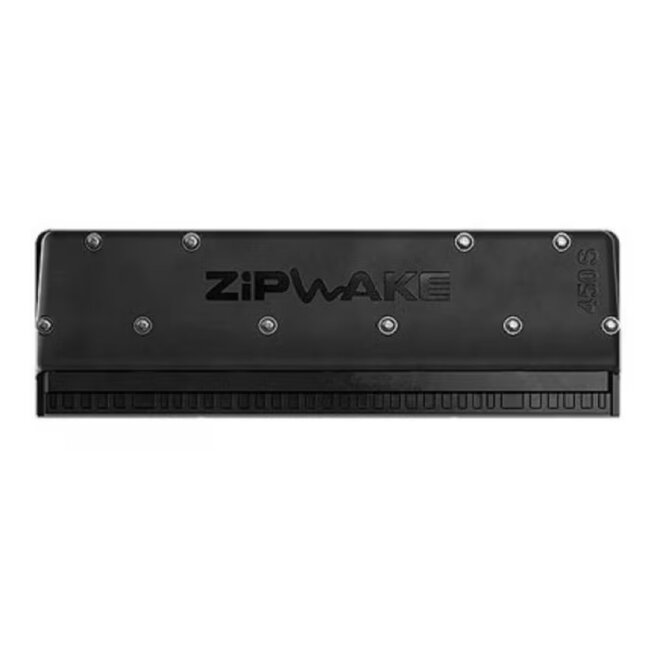

Straight Interceptors (IT450-S Straight)

Two 450 mm straight interceptors equipped with fast-acting servo actuators. Designed for versatility, they deliver effective lift and precise stabilization even at high speeds and under heavy loads.

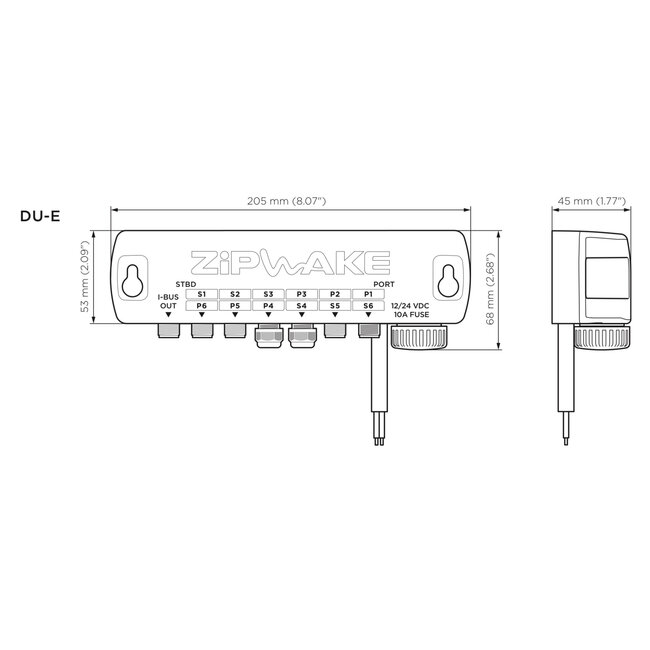

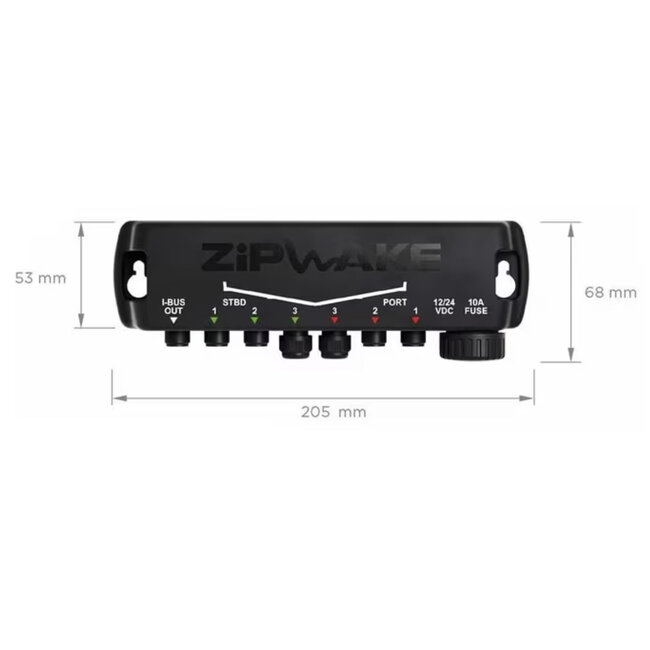

Distribution Unit (DU-S)

Provides power and system connectivity. Rugged, waterproof, oil-resistant, and ignition-protected, the DU-S supports up to three interceptors, expandable to six. Includes a 4 m power cable and integrated fuse for electrical protection.

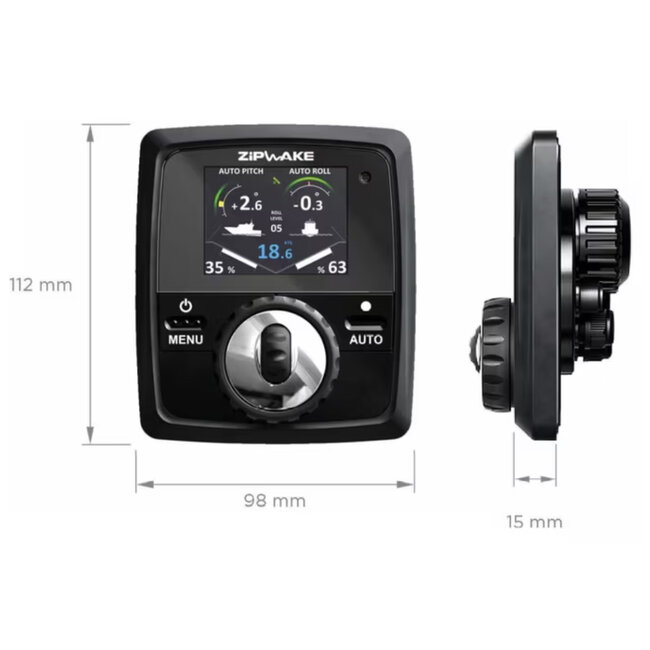

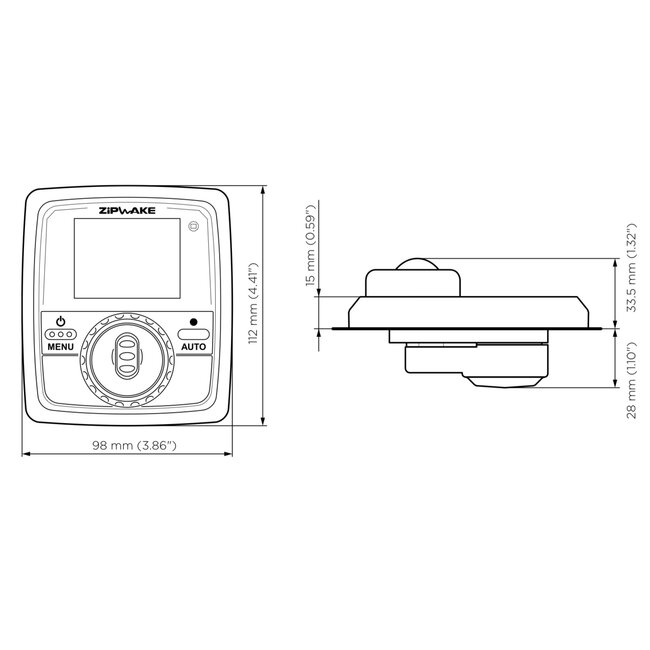

Control Panel (CP-S)

Compact 2.4” sunlight-readable color display with dual control dials. Integrated GPS, gyro, and 3D accelerometer sensors provide both automatic and manual trim control with real-time feedback on vessel motion and interceptor positions.

SPECIFICATIONS

• Interceptor length: 450 mm (17.7 in).
• Interceptor type: Straight.
• Blade stroke: 30 mm (1.2 in).
• Actuation speed: 20 mm/s.
• Maximum vessel speed: Up to 60 knots (≈110 km/h).
• Suitable vessel length: Up to 15.5 m (50 ft).
• Voltage range: 12–32 V DC.
• Power consumption: Approx. 25 W max.
• Ingress protection: IP68 (interceptors), IP67 (DU-S, CP-S).
• Servo type: Fast-response servo actuators.
• Connectivity: NMEA 2000, CAN bus.
• Cable length: 3 m standard (extendable).
• Operating temperature: 0 °C to +40 °C.
• Storage temperature: –40 °C to +90 °C.
• Kit box weight: Approx. 15–18 kg (depending on configuration).

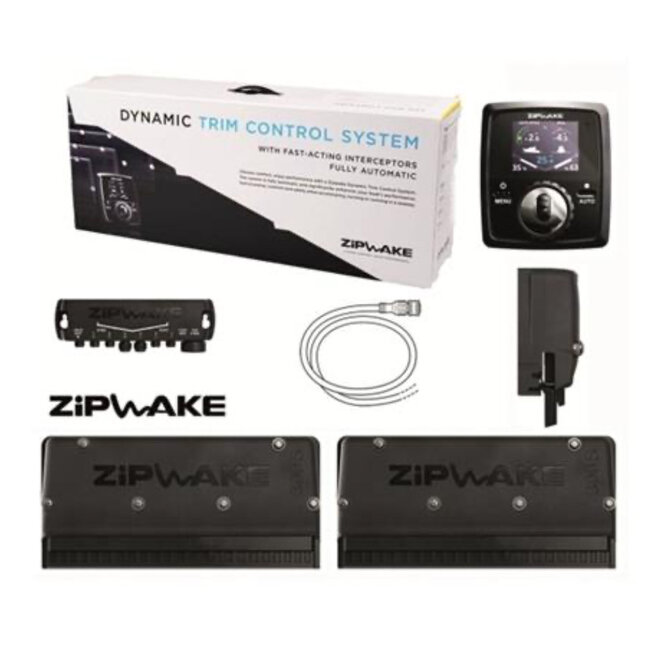

WHAT THE KIT INCLUDES

• 2 × Straight Interceptors (450 mm) with 3 m cables and mounting plates.
• 1 × Distribution Unit S (DU-S) with 4 m power cable.
• 1 × Control Panel S (CP-S) with standard cable.
• 1 × Extension Cable.
• Operator’s Manual.
• Installation Guide.
• Drill Templates.
• Mounting Screws.
• Quick Guide.
• Warranty Card.

INSTALLATION CONSIDERATIONS

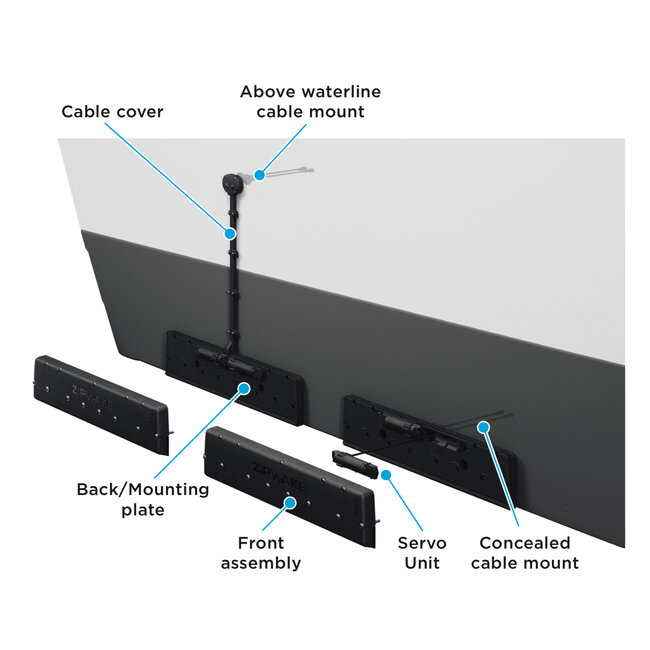

The 450 mm straight interceptors are suitable for a wide range of hull types, providing strong lift and reliable stabilization. Integrated mounting plates simplify installation, while optional watertight grommets enable safe cable routing above or below the waterline. Modular design allows expansion to up to six interceptors per DU-S, making the system adaptable to various vessel layouts. Proper alignment and sealing of thru-hull fittings is essential for long-term reliability.
