Zipwake Series 450S Chine Kit Box Trim System

The Zipwake Series S 450S Chine Kit Box Trim System is an advanced dynamic trim control solution designed for vessels up to 15.5 m (50 ft) and speeds of up to 60 knots (≈110 km/h). As part of the Series S range, it features chine (angled) interceptors engineered for hulls with sharp chines or angular surfaces, providing superior lift and stability compared to conventional trim tabs. The system actively reduces roll and pitch, minimizes wave resistance, and improves both comfort and fuel efficiency for demanding recreational and semi-professional boats.

This kit includes two 450 mm chine interceptors, a rugged distribution unit, and an intuitive control panel with integrated GPS, gyro, and 3D accelerometer sensors. Fully automatic in operation, it ensures precise stabilization and seamless NMEA 2000 connectivity. Compact, waterproof, and designed for heavy-duty use, the system is expandable to up to six interceptors, making it a flexible and future-proof solution for dynamic trim control.

FEATURES

• Automatic stabilization: Integrated GPS, gyro, and 3D accelerometer sensors ensure dynamic pitch and roll correction.
• Chine interceptor design: 450 mm chine interceptors for angular hull surfaces with limited installation space.
• Performance: Fast-acting interceptors, up to 5–10× faster than conventional trim tabs.
• Comfort and safety: Actively reduces rolling and pitching for a smoother and safer ride.
• Fuel efficiency: Optimized trim reduces drag and lowers fuel consumption.
• NMEA 2000 connectivity: Enables seamless integration with onboard navigation and monitoring systems.
• Expandable system: Supports up to six interceptors per distribution unit.
• User-friendly control: Color control panel with sunlight-readable display and dual dials for intuitive operation.
• Durable construction: Waterproof, oil-resistant, and ignition-protected components.
• Upgradeable software: Updates available directly via the Zipwake website.

MAIN COMPONENTS

Chine Interceptors (IT450-S Chine)

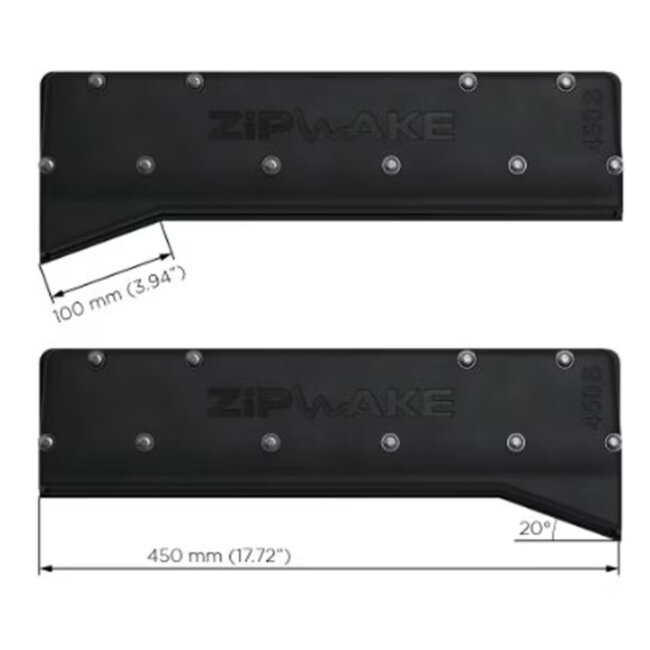

Two 450 mm chine interceptors designed for hulls with angular or chine surfaces. Fast-acting servo actuators deliver precise lift for dynamic stabilization, ensuring strong performance at high speeds and under heavy loads.

Distribution Unit (DU-S)

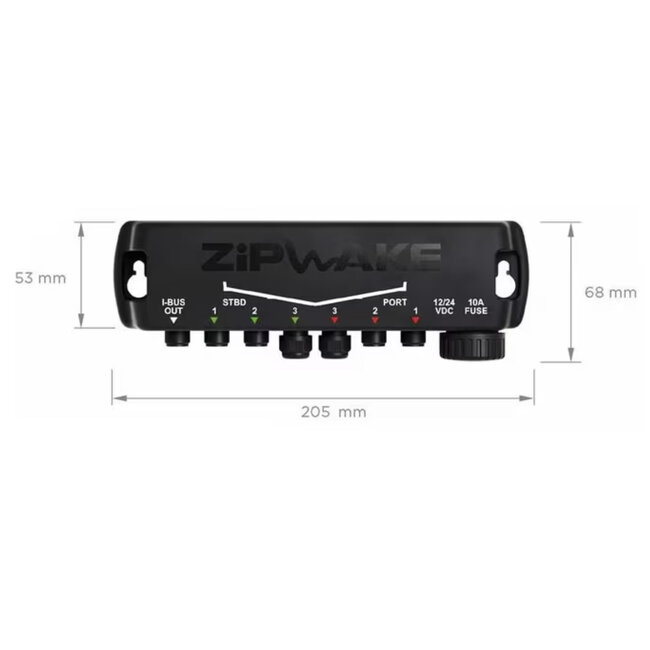

Provides power and connectivity for the interceptors. Rugged, waterproof, oil-resistant, and ignition-protected, the DU-S is designed for installation in machinery spaces. It supports up to three Series S interceptors, expandable to six, and includes a 4 m power cable and protective fuse.

Control Panel (CP-S)

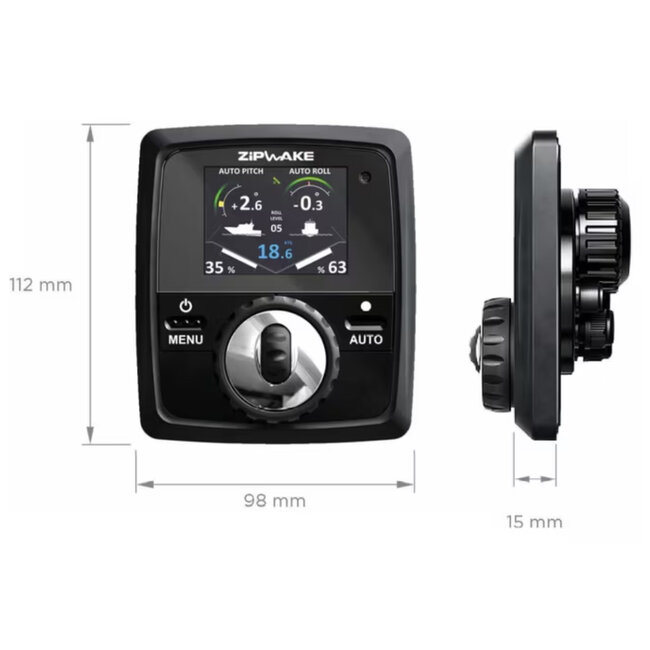

Features a 2.4” color display, dual control dials, and integrated GPS, gyro, and accelerometer sensors. The panel provides intuitive manual adjustments as well as fully automatic operation, with real-time feedback on vessel motion and interceptor positions.

SPECIFICATIONS

• Interceptor length: 450 mm (17.7 in).
• Interceptor type: Chine (for angular hull surfaces).
• Blade stroke: 30 mm (1.2 in).
• Actuation speed: 20 mm/s.
• Maximum vessel speed: Up to 60 knots (≈110 km/h).
• Suitable vessel length: Up to 15.5 m (50 ft).
• Voltage range: 12–32 V DC.
• Power consumption: Approx. 25 W max.
• Ingress protection: IP68 (interceptors), IP67 (DU-S, CP-S).
• Servo type: Fast-response servo actuators.
• Connectivity: NMEA 2000, CAN bus.
• Cable length: 3 m standard (extendable).
• Operating temperature: 0 °C to +40 °C.
• Storage temperature: –40 °C to +90 °C.
• Kit box weight: Approx. 15–18 kg (depending on configuration).

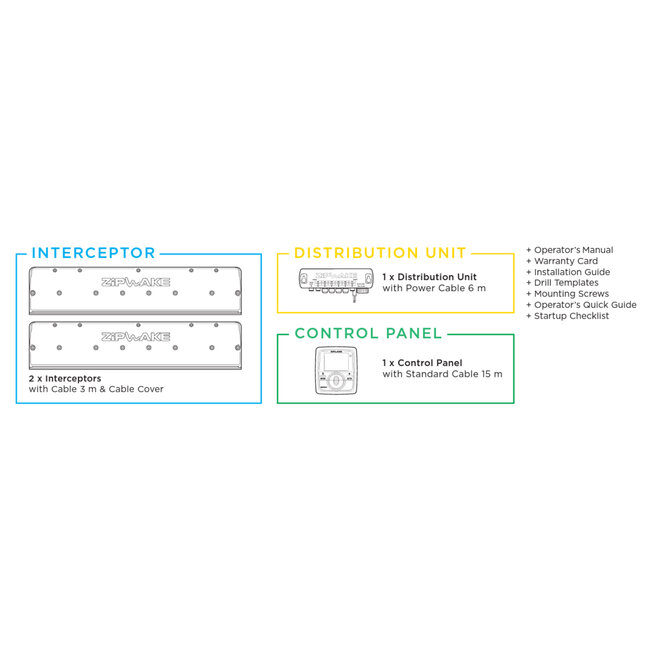

WHAT THE KIT INCLUDES

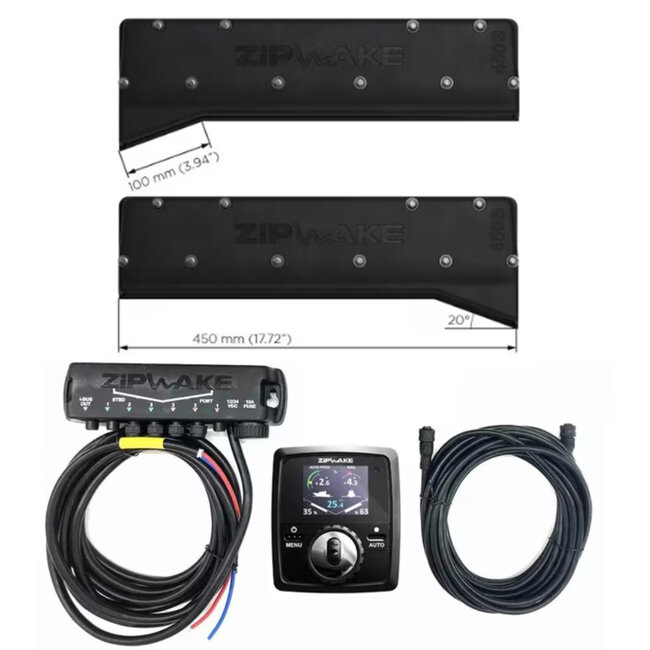

• 2 × Chine Interceptors (450 mm) with 3 m cables and mounting plates.
• 1 × Distribution Unit S (DU-S) with 4 m power cable.
• 1 × Control Panel S (CP-S) with standard cable.
• 1 × Extension Cable.
• Operator’s Manual.
• Installation Guide.
• Drill Templates.
• Mounting Screws.
• Quick Guide.
• Warranty Card.

INSTALLATION CONSIDERATIONS

The 450 mm chine interceptors are optimized for hulls with angular surfaces, ensuring precise fit and effective hydrodynamic performance. Integrated mounting plates simplify installation, while optional watertight grommets allow safe cable routing above or below the waterline. The modular design supports up to six interceptors per DU-S, enabling flexible system expansion without additional connectors or power supplies. Correct sealing and alignment of thru-hull fittings is essential for long-term watertight integrity.

BROCHURES

• Zipwake Series S Brochure
• Zipwake Series S Product Specifications PDF
• Zipwake Series S Installation Guide
• Zipwake How It Works Video
