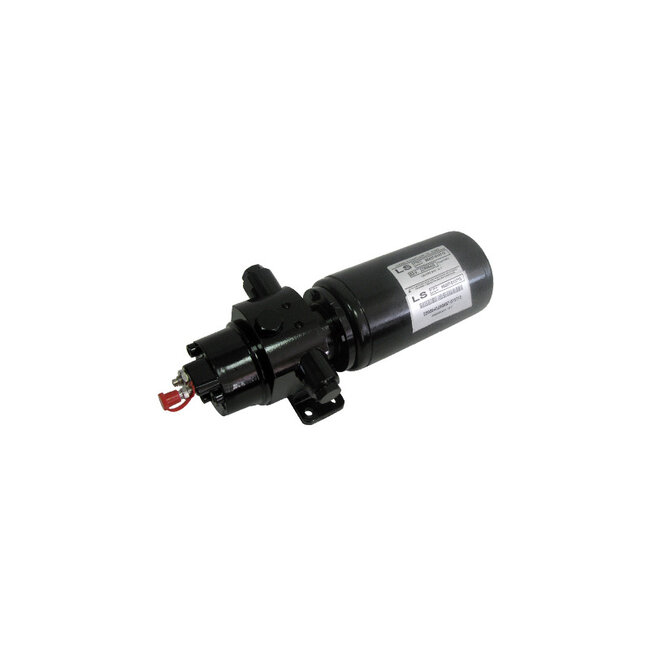

Left / right running hydraulic pump RV1. Electrical Hydraulic pump for FURUNO autopilots

Hydraulic power pack with adjustable flow, designed for 12V systems used in pleasure, fishing, and work boats. The RV1 power pack features reversible operation by simply changing the polarity on the motor terminals. Flow adjustment is achieved through a screw mechanism, allowing precise control of the time needed for lock-to-lock movement. This power pack also includes built-in lock valves for added security and stability.

FEATURES

• Supply voltage: 12 or 24 Volt DC to choose by order.
• Type of cylinder: double rod
• Capacity to connect cylinder: 216 cubic cm
• Liquid flow setting: 0.1-1 liters per minute

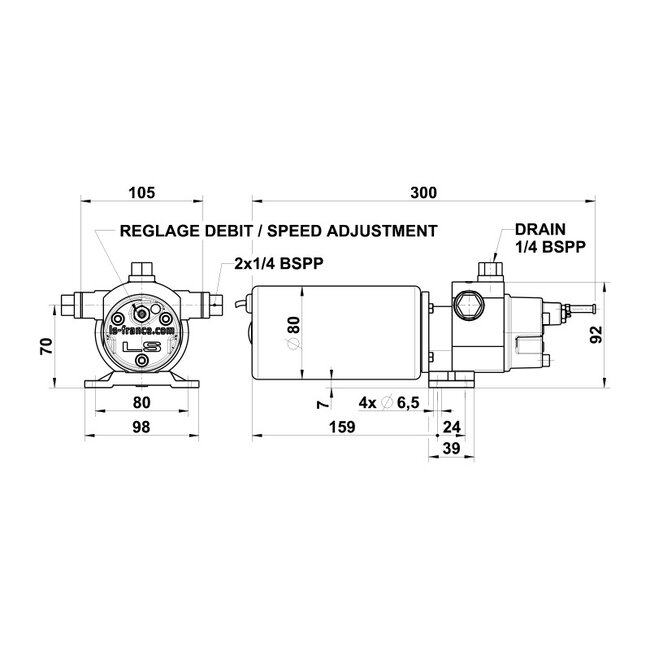

• Dimensions (L x H x W): 300 x 95 x 105 mm

SPECIFICATIONS

• Product Code: 2200843
• Power Pack Type: Reversible with adjustable flow
• Maximum Cylinder Capacity: 216 cc
• Recommended Fuse: 16A
• Maximum Pressure: 30 bar
• Flow Rate: 0.1 to 1 L/min
• Weight: 4.4 kg

NOTE: Before adding to cart please select the correct V, 12V or 24V.

BROCHURES

• Hydraulic Pump RV1 Brochure
