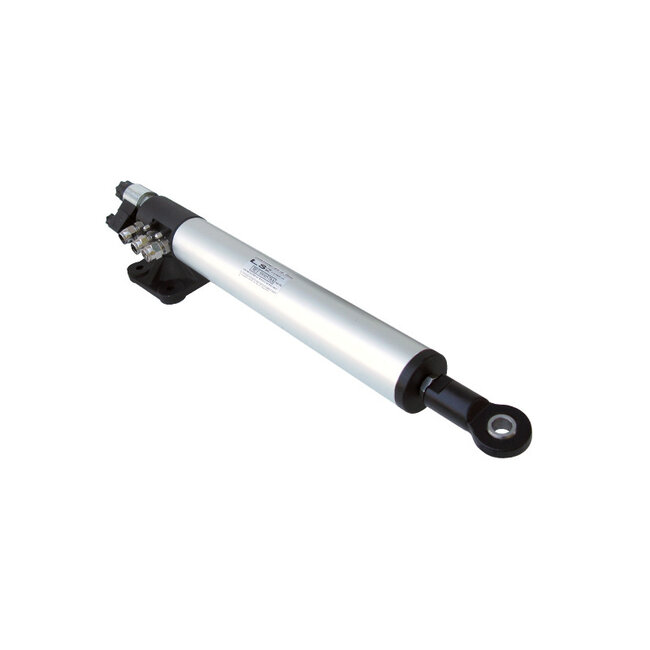

Hydraulic Drive 32ST16 NEWAVE. Complete hydraulicset for FURUNO autopilots

LS hydraulic cylinders are key components in steering inboard motors. They enhance safety, handling, precision, and comfort when piloting a boat, while also reducing the physical effort required for maneuvering. LS linear cylinders for sailboats ensure quick and accurate steering response. The VHM 32ST16 NEWAVE 12V cylinder is specifically engineered for LS linear drives.

Thanks to its thoughtful design and high-quality materials, the LS hydraulic cylinder is dependable and requires minimal maintenance. Its compact size allows for straightforward installation. All LS products are backed by a two-year warranty and meet current European regulatory standards.

FEATURES

• Single linearly driven cylinder
• Compact dimensions
• Possible placement in different positions
• Direct control quadrant
• Pump, cylinder and hoses pre-assembled and filled
• Length of hoses: 1.20 m
• Stainless steel hose couplings
• Fixed setting liquid flow
• Favorable energy consumption
• Power supply: 12 Volt or 24 VDC
• Thrust: 280 kg
• Model: RV1
• Suitable for sailing yachts up to 33 feet

NOTE: Before adding to cart please select the correct V, 12V or 24V.

BROCHURES

• Hydraulic Linear Drive 32ST16 NEWAVE Brochure
