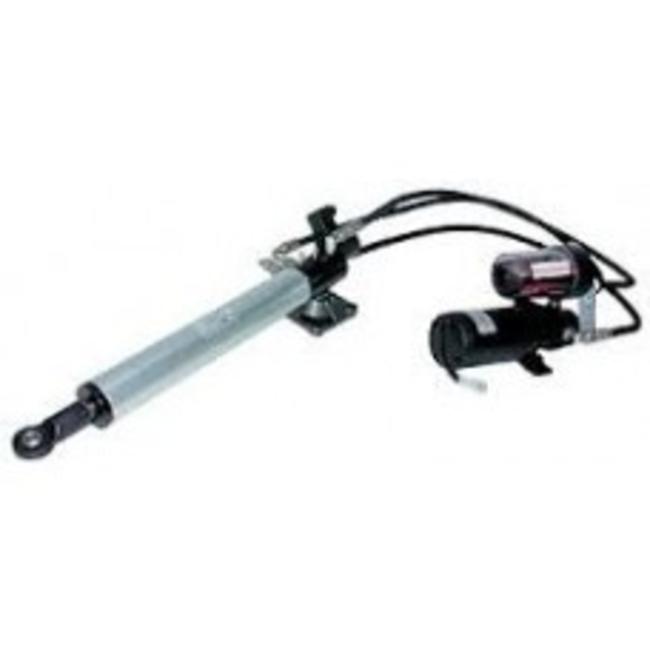

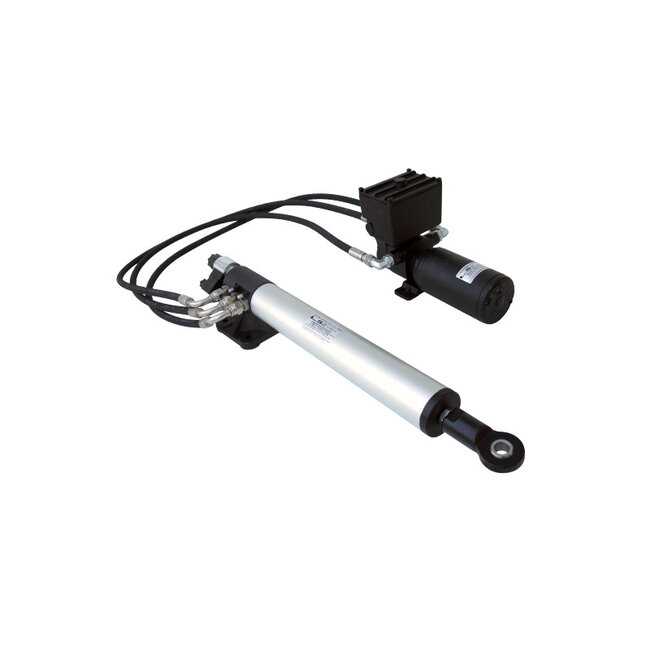

FURUNO Hydraulic Drive 50ST203. Complete hydraulic drive set for FURUNO Autopilots

The LS Linear Drive offers the best thrust-to-power consumption ratio available on the market, making it an ideal solution for efficient and reliable marine steering systems.

Designed for below-deck installation, the linear drive directly actuates the tiller arm or quadrant, providing precise and responsive control.

FEATURES

• Single linearly driven cylinder
• Compact dimensions
• Possible placement in different positions
• Direct control quadrant
• Pump, cylinder and hoses pre-assembled and filled
• Length of hoses 1.20 m
• Stainless steel hose couplings
• Liquid flow 3 Liter per Minute
• Favorable energy consumption
• Power supply: 12 Volt or 24 VDC
• Thrust: 700 kg
• RV3
• 3 l flow rate
• Suitable for sailing yachts up to 70 feet

NOTE: Before adding to cart please select the correct V, 12V or 24V.

BROCHURES

• Hydraulic Drive 50ST203 Brochure
