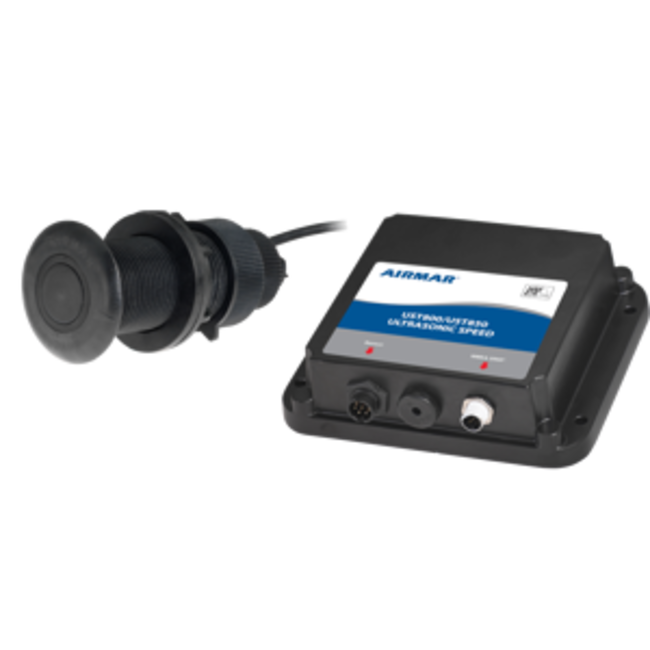

UST800 Ultrasonic Smart™ Sensor Thru-hull NMEA 2000 Speed & Temperature
Airmar’s patented UST800 just turned your maintenance time into more cruising time, and made your boat smarter too. Get ultrasonic speed and temperature data in a single thru-hull housing with no moving parts. This sensor is a high-precision, low-maintenance solution suitable for power and sailboats of all types and sizes. Say goodbye to paddlewheel maintenance and hello to Smart™ technology from the company that invented the Smart™ Sensor.
FEATURES
- Ultrasonic speed and fast-response water-temperature sensing
- Single housing with no moving parts—no paddlewheel
- Speed range from 0.1 to 50 knots (0.1 to 57 MPH)
- Adapts automatically to increases in speed so accuracy remains constant
- Advanced filtering and sampling rates for increased accuracy at all speeds
- Retractable plastic insert in a low-profile plastic or bronze housing with a water valve
- Retrofits into Airmar’s plastic (P120) or bronze (B120) housing
- Airmar's Smart™ Sensor technology
SPECIFICATIONS
- Functions: Speed, Temperature
- Mounting Style: Low Profile Thru-Hull
- Power Rating: N/A
- Protocol Output: NMEA 2000®
- Housing: Plastic
- Hull Material: Fiberglass or metal
- Hole Size: 51 mm (2")
- Retractable Housing: Yes
- Acoustic Window: Urethane
- Cable-Length: 6 m (20') NMEA 2000® cable
- Common Use: Cruising/Racing Sailboats, Leisure/Yachting, Fishing
- Data Rate: Up to 10 times per second
- NMEA 2000 LEN: 7
- Retrofits: Retrofits into AIRMAR P120, B120 housings
- Speed Range: 0.1 to 50 knots (0.1 to 57 MPH)
- Temperature Accuracy: ±0.5°C (±1.8°F)
- Tilted Element: No
- Usable Shaft Length: 57 mm (2.25")
- Voltage: 9 to 16 VDC
- Water Temperature: -10° to 40°C (14° to 104°F)
- Weight: 1.4 kg (3 lb.)
