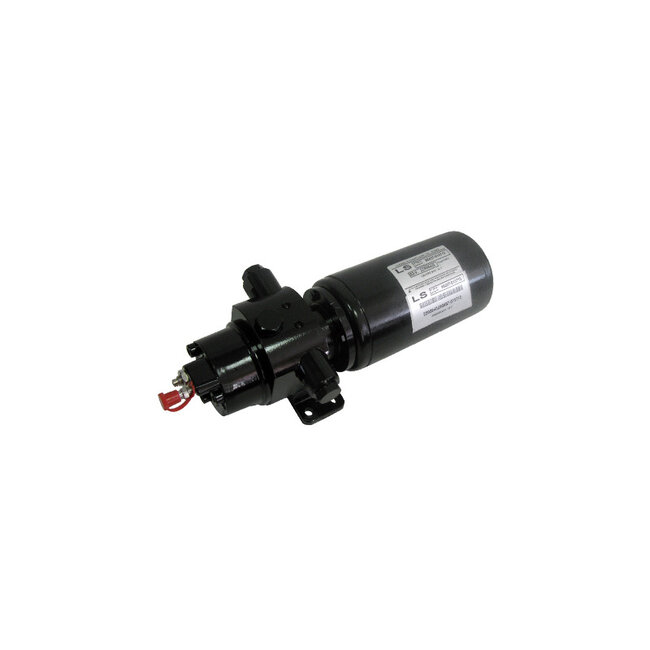

Left/right current hydraulic pump RV3. Electrical Hydraulic pump for FURUNO autopilot

The RV3 power pack is reversible by changing the polarity on the motor terminals. Flow adjustment is made through a screw, allowing precise regulation of the time needed for lock-to-lock displacement. The power pack is equipped with lock valves to ensure reliable and stable performance.

FEATURES

• Supply voltage: 12 or 24 Volt DC
• Type of cylinder: double rod
• Capacity to connect cylinder: 650 cubic cm
• Fluid flow setting: 0.3-3 liters per minute

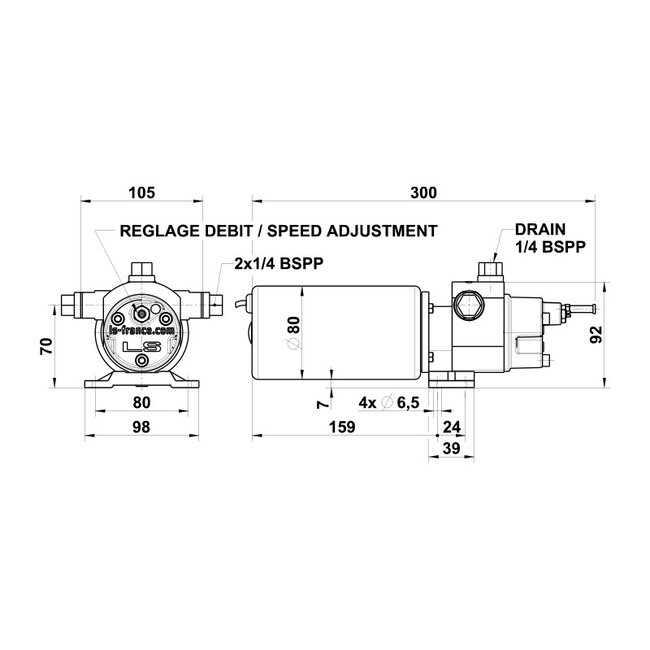

• Dimensions (L x H x W): 300 x 95 x 105 mm for Left/right current hydraulic pump RV3

SPECIFICATIONS

• Product code: 2200403
• Type of power pack: Reversible with adjustable flow
• Maximum cylinder capacity: 650 cc
• Recommended protection: 30A
• Max. pressure: 30 bar
• Flow rate: 0.3 to 3 l/min
• Weight: 4.5 kg

NOTE: Before adding to cart please select the correct V, 12V or 24V.

BROCHURES

• Hydraulic pump RV3 Brochure
