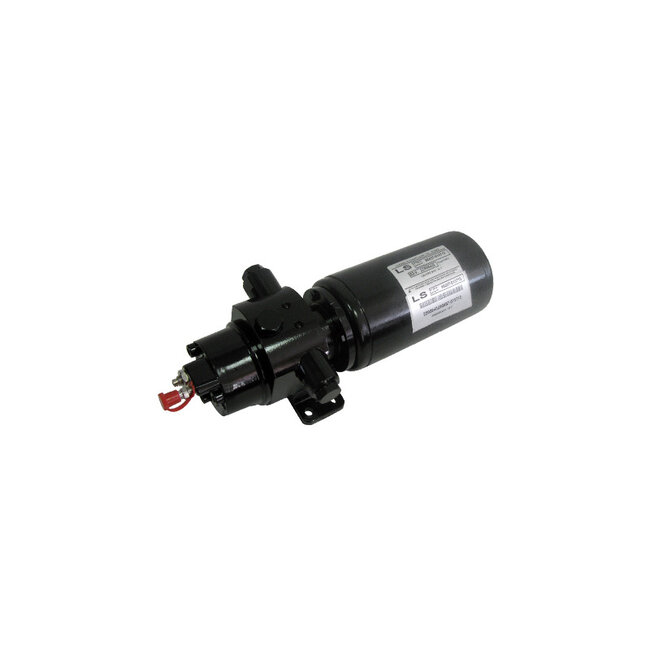

Left / right running hydraulic pump RV2. Electrical Hydraulic pump for FURUNO autopilots

The RV2 power pack is reversible by changing the polarity on the motor terminals. Flow adjustment is achieved using a screw, allowing precise control over the time needed for lock-to-lock movement. This power pack is equipped with lock valves to ensure secure and stable operation.

FEATURES

• Supply voltage: 12 or 24 VDC
• Type of cylinder: double rod
• Capacity to connect cylinder: 432 cubic cm
• Liquid flow setting: 0.2-2 liters per minute

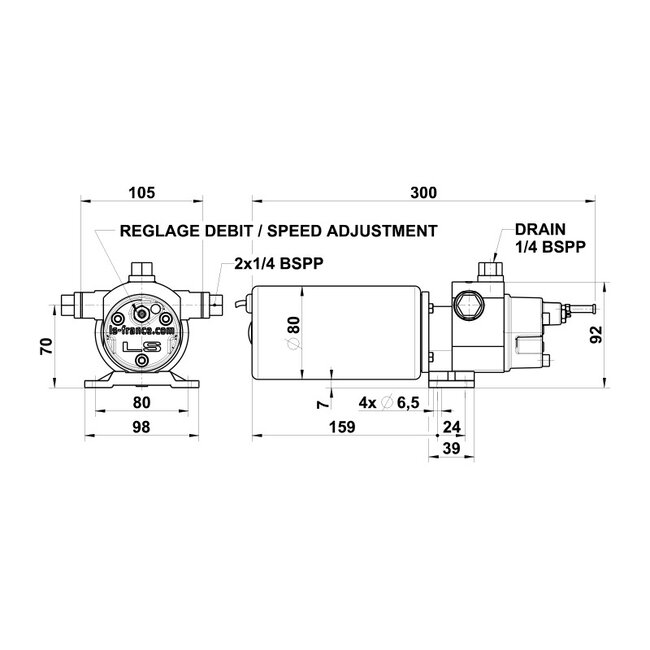

• Dimensions (L x H x W): 300 x 95 x 105 mm

SPECIFICATIONS

• Product code: 2200410
• Type of power pack: Reversible with adjustable flow
• Maximum cylinder capacity: 432 cc
• Recommended protection: 25A
• Max. pressure: 30 bar
• Flow rate: 0.2 to 2 l/min
• Weight: 4.5 kg

NOTE: Before adding to cart please select the correct V, 12V or 24V.

BROCHURES

• Hydraulic pump RV2 Brochure
