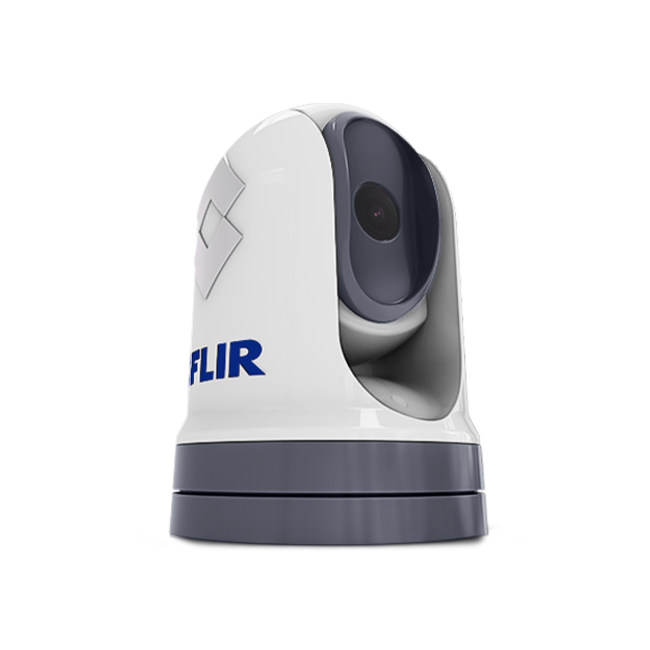

FLIR M364 Thermal Camera

With a durable, all-weather design and one of FLIR’s most advanced thermal imaging cores, the M332 and M364 provide powerful thermal vision for law enforcement, commercial, and recreational vessels. Featuring advanced gyro-stabilization and high-performance thermal imaging, they detect obstacles and targets in total darkness and heavy seas, ensuring safe navigation even in the toughest conditions.

SAFE NAVIGATION IN LOW VISIBILITY ENVIRONMENTS
Thermal imaging provides the ability to navigate safely even in complete darkness, glare, and light fog. This advanced technology ensures that vessels can detect obstacles, other boats, and navigation markers in challenging conditions, giving captains confidence and control no matter the time of day or weather.

A STEADY VIEW IN ROUGH SEAS
Equipped with two-axis mechanical stabilization, the system virtually eliminates the effects of pitch, heave, and yaw. This ensures that the image remains consistently clear and steady, even when the sea is rough and the vessel is moving through challenging waters.

SEAMLESS INTEGRATION
With exceptional connectivity to both navigation and security systems, this solution enhances situational awareness and improves operational efficiency. It integrates smoothly into existing onboard technology, creating a unified system for safer and more efficient navigation.

CLEARCRUISE™ AUGMENTED REALITY
When the M332 or M364 is combined with Raymarine Axiom®, it unlocks the full potential of Raymarine’s ClearCruise™ Augmented Reality technology. This advanced enhancement takes navigation safety to the next level by overlaying AIS targets, chart objects, and waypoints directly onto real-time, high-performance thermal imagery. The result is an intuitive and information-rich view that allows captains to make confident decisions, even in complex or congested waterways. ClearCruise™ AR ensures that vital navigational information is always visible and contextually placed, enhancing both awareness and reaction time on the water.

SPECIFICATIONS

• Focus: Fixed 12 ft (3 m) – infinity
• Detector: 640×512 VOx Microbolometer
• Image Processing: FLIR Digital Detail Enhancement
• Thermal E-Zoom: 4× continuous
• FOV: 24° × 18°
• Focal Length: 18 mm
• Refresh Rate: 30 Hz
• System
  • Video Out: BNC (NTSC/PAL), 2× Network (H.264/MJPEG), HD-SDI lossless
  • ONVIF: Profile S
  • ClearCruise IR: Yes (Raymarine Axiom)
  • Current: Peak 10.0 A
  • Power: 41 W (typ.), 56 W (max), Voltage -10%/+30% nominal
  • Pan/Tilt: 360° continuous / ±90°
  • Gyro Stabilized: Yes, Firefighter Mode: No
• Environmental
  • Defrost: Auto at power-up
  • Protection: IPX6, Sand/Dust IP6X, Lightning 2 kV
  • Standards: IEC60945, MIL-STD-810E
  • Temp.: Oper. -25°C to +55°C; Storage -30°C to +70°C
  • Shock/Vibration: 15 g vert., 9 g horiz.
  • Wind: 100 kn (115 mph)
• Physical
  • Size: No riser: 222×328 mm / With riser: 254×366 mm
  • Weight: 6.3 kg / 6.8 kg
• Range Performance
  • 30-ft Vessel: 1.7 nm (3150 m)
  • Human Target: 0.5 nm (925 m)
  • NATO Target (2.3×2.3 m at 50%): 0.9 nm (1690 m)
