Zipwake Series 300S PRO Straight Kit Box Trim System

The Zipwake Series 300S PRO Straight Kit Box Trim System represents the next level of the renowned S Series, designed for professional and demanding applications. Compared to the standard S range, the S PRO Series delivers higher performance through faster servo response, stronger and corrosion-resistant materials, and enhanced precision under continuous operation. The 300S PRO Straight Kit Box, equipped with two 300 mm straight interceptors, is engineered for planing and semi-planing vessels up to 18 m (≈ 60 ft) in length, offering unmatched trim, roll, and pitch control for high-speed or heavily loaded boats.

This compact system provides the speed and reliability of the S Series with the robustness expected in commercial environments. By automatically minimizing roll and pitch, it ensures smoother handling, increased comfort, and improved fuel efficiency. Its modular, watertight construction allows easy installation and integration into existing setups, making it the ideal choice for both new builds and retrofits requiring a balance between compactness and professional-grade performance.

FEATURES

• Professional performance: Designed for high-speed, professional, and commercial applications.

• Fast servo technology: High-speed brushless actuators deliver instant response to wave and load variations.

• Automatic stabilization: Dynamic pitch and roll control for safer and smoother navigation.

• Compact straight design: Ideal for vessels with limited transom space but requiring powerful trim correction.

• Fuel optimization: Reduces drag, minimizes resistance, and improves overall fuel economy.

• Durable construction: IP68-rated waterproof design, resistant to oil, corrosion, and impact.

• Intuitive operation: Simple control panel with automatic and manual modes.

• Modular expandability: Supports up to six interceptors per distribution unit for larger configurations.

MAIN COMPONENTS

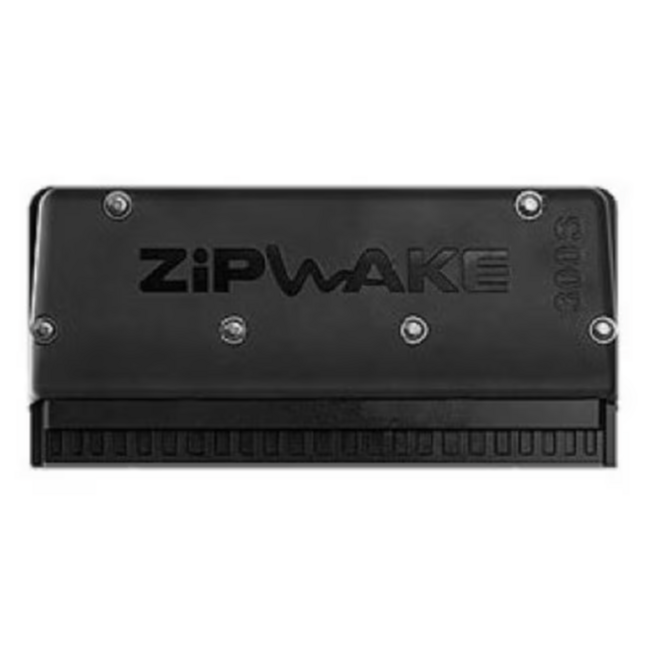

Straight Interceptors (IT300-S PRO)
Two 300 mm straight interceptors equipped with high-speed brushless servo motors. Compact yet powerful, these interceptors provide precise lift and stabilization even at speeds up to 60 knots, ensuring optimal performance for planing hulls.

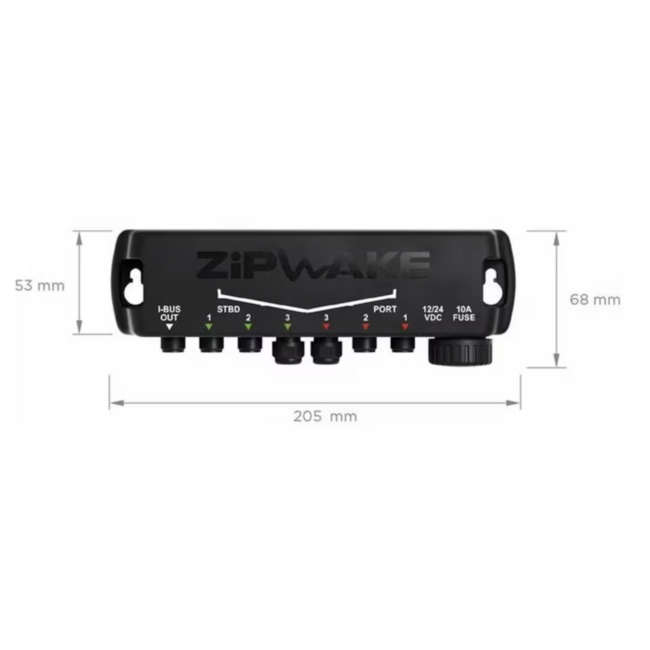

Distribution Unit PRO (DU-S PRO)
Central hub supplying power and CAN communication for up to six interceptors. Waterproof, oil-resistant, and ignition-protected, with integrated fuses and a 4 m power cable for secure installation in the engine compartment.

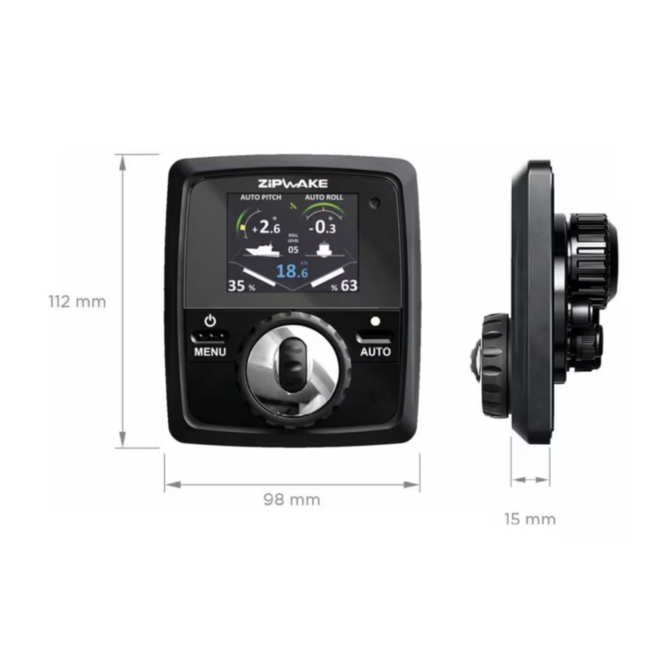

Control Panel PRO (CP-S PRO)
A 2.4” sunlight-readable color display featuring dual control dials for intuitive operation. The integrated GPS and 3D sensors continuously monitor vessel motion, ensuring automatic and adaptive trim adjustment.

SPECIFICATIONS

• Interceptor type: Straight

• Interceptor length: 300 mm (11.8 in)

• Blade stroke: 30 mm (1.2 in)

• Actuation speed: 20 mm/s

• Maximum vessel speed: Up to 60 knots (≈ 110 km/h)

• Vessel length: Up to 18 m (≈ 60 ft)

• Voltage range: 12 – 32 V DC

• Power consumption: Approx. 25 W max

• Ingress protection: IP68 (interceptors), IP67 (distribution unit & control panel)

• Servo type: Brushless, submersible actuators

• Connector type: M12 5-pin circular

• Cable length: 3 m standard (extendable to 6 m)

• Operating temperature: 0 °C to +40 °C (32 °F – 104 °F)

• Storage temperature: –40 °C to +90 °C (–40 °F – 194 °F)

• Kit box weight: ≈ 12 kg (26 lb)

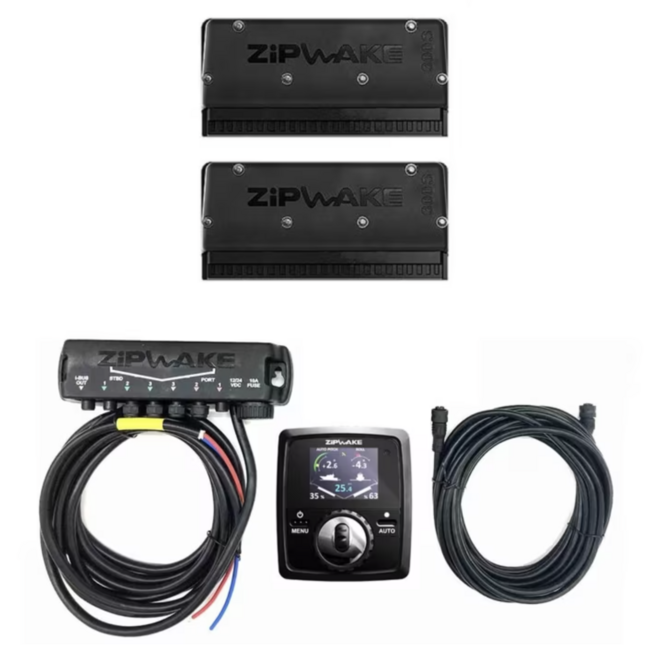

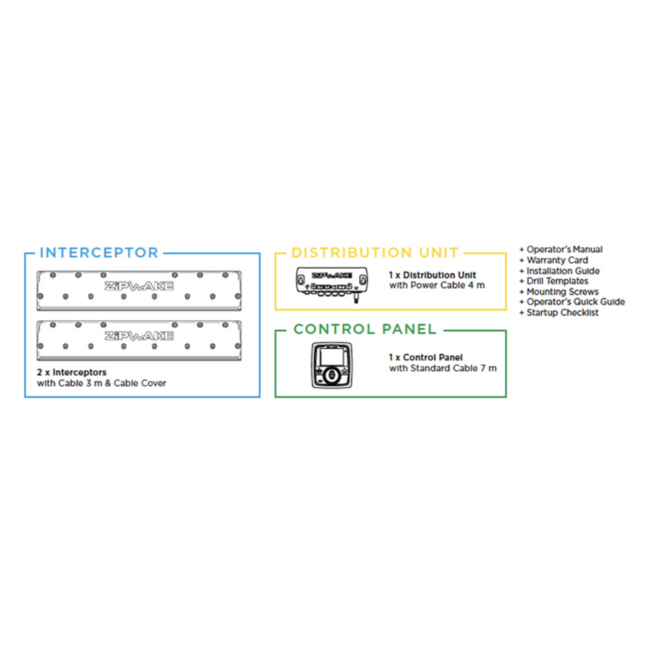

WHAT THE KIT INCLUDES

• 2 × Straight Interceptors (300 mm) with 3 m cables and mounting plates

• 1 × Distribution Unit PRO (DU-S PRO) with 4 m power cable

• 1 × Control Panel PRO (CP-S PRO) with standard cable

• 1 × Extension Cable

• Operator’s Manual

• Installation Guide

• Drill Templates

• Mounting Screws

• Quick Guide

• Warranty Card

INSTALLATION CONSIDERATIONS

The 300 mm straight interceptors should be aligned horizontally and mounted flush with the transom for optimal waterflow and efficiency. Ensure watertight sealing of all cable penetrations below the waterline using provided grommets. The Distribution Unit should be installed in a dry, accessible space (e.g., engine room), and the Control Panel positioned near the helm for clear visibility. The system supports additional interceptors without extra connectors or power units, offering flexibility for vessel-specific layouts.
