Professional 300 mm chine trim control system for boats up to 18 m. High-speed interceptors deliver instant roll correction and fuel-saving automatic trim, with GPS and NMEA 2000 connectivity for pro vessels in demanding marine conditions. Read more.
The Zipwake Series 300S PRO Chine Kit Box Trim System is a professional dynamic trim control solution designed for high-performance and commercial vessels up to 18 m (≈ 60 ft). As part of the S PRO range, it offers a faster servo response, reinforced materials, and enhanced resistance to wear and impact. This specific Chine Kit Box includes two 300 mm chine interceptors engineered for angled hull surfaces, ensuring superior lift, stability, and roll control under demanding sea conditions.
Developed for professional applications such as patrol boats, RIBs, and commercial craft, the 300S PRO Chine system automatically corrects trim and heel in real time, reducing drag and fuel consumption. With a compact and watertight design, it ensures seamless operation, intuitive control, and effortless installation — delivering smoother handling, lower fuel costs, and safer navigation.
Fast and precise response: High-speed servo motors instantly adjust to wave impact and load changes.
Automatic trim and roll control: Real-time stabilization improves comfort and safety at any speed.
Chine configuration: Optimized for angled transoms to maximize lift and reduce pitch and roll.
Fuel efficiency: Automatic trim optimization reduces drag and lowers fuel consumption.
Rugged construction: Waterproof, oil-resistant, and built for heavy-duty marine use.
User-friendly control: Intuitive color display with dual control dials and integrated GPS.
Modular system: Supports up to six interceptors per distribution unit for future expansion.
Low maintenance: Self-lubricating seals and impact-resistant components ensure long-term reliability.

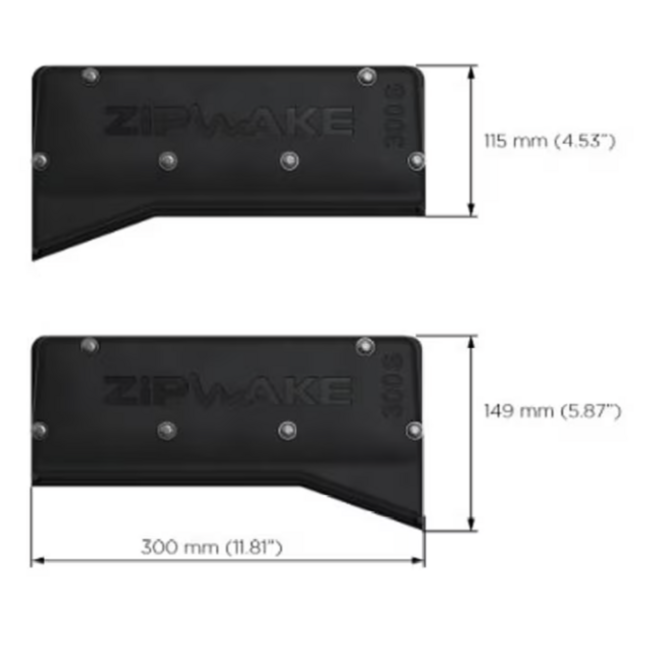

Chine Interceptors (IT300-S PRO Chine)
Two 300 mm chine interceptors equipped with brushless servo motors for instant actuation. Their angled design fits V-shaped and chined hulls perfectly, providing maximum lift and stability even at speeds up to 60 knots.

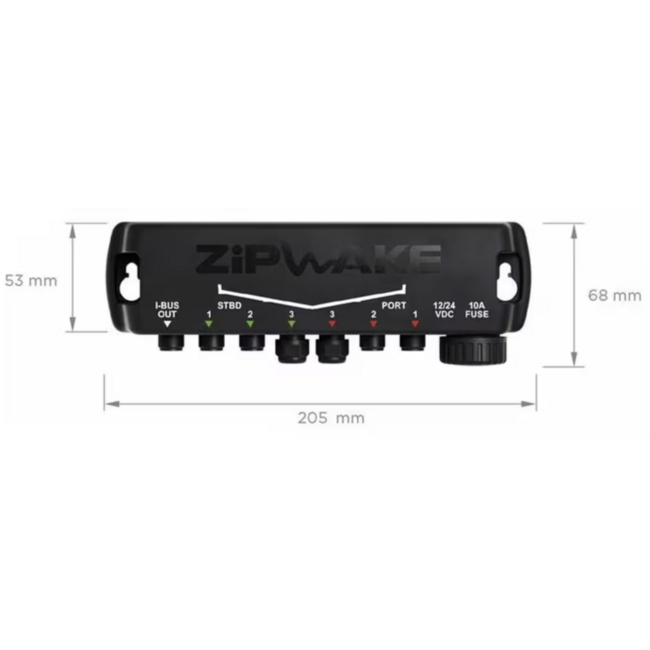

Distribution Unit PRO (DU-S PRO)
Powers and coordinates up to six S PRO interceptors. Watertight, oil-resistant, and ignition-protected, it includes integrated electrical protection and a 4 m power cable for safe installation in engine rooms or below deck.

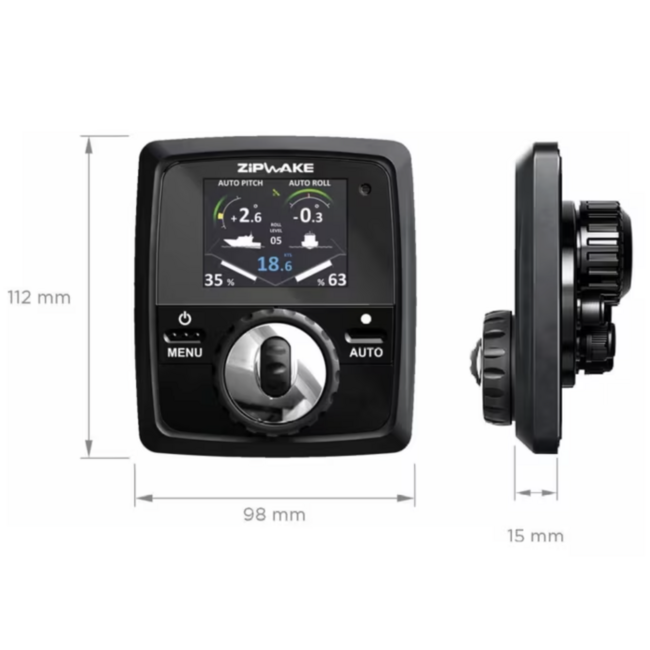

Control Panel PRO (CP-S PRO)
A 2.4-inch sunlight-readable color display with dual dials for manual and automatic trim control. Integrated GPS and 3D sensors allow continuous automatic operation, while real-time feedback displays speed, pitch, roll, and interceptor positions.
Interceptor type: Chine (angled installation)
Interceptor length: 300 mm (11.8 in)
Blade stroke: 30 mm (1.2 in)
Actuation speed: 20 mm/s
Maximum vessel speed: Up to 60 knots (≈ 110 km/h)
Vessel length: Up to 18 m (≈ 60 ft)
Voltage range: 12 – 32 V DC
Power consumption: Approx. 25 W max
Ingress protection: IP68 (interceptors), IP67 (distribution unit & control panel)
Servo type: Brushless, submersible actuators
Connector type: M12 5-pin circular
Cable length: 3 m standard (extendable to 6 m)
Operating temperature: 0 °C to +40 °C (32 °F – 104 °F)
Storage temperature: –40 °C to +90 °C (–40 °F – 194 °F)
Kit weight: ≈ 12 kg (26 lb)

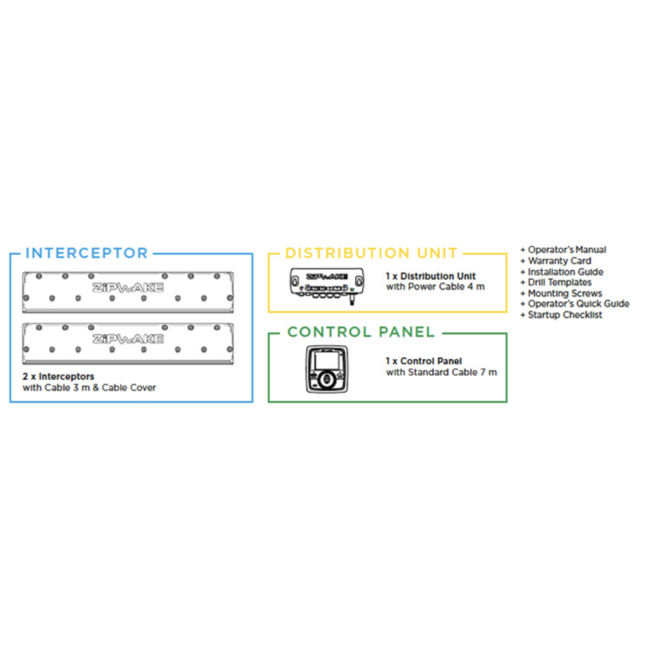

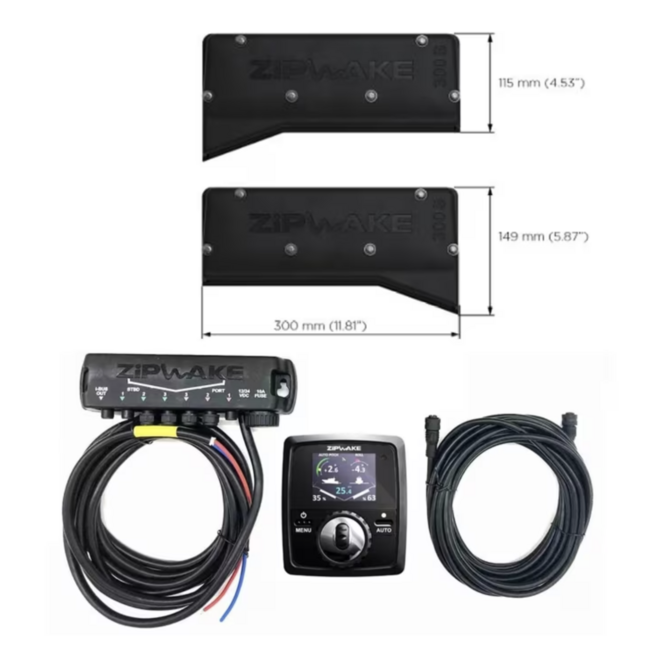

2 × Chine Interceptors (300 mm) with 3 m cables and mounting plates
1 × Distribution Unit PRO (DU-S PRO) with 4 m power cable
1 × Control Panel PRO (CP-S PRO) with standard cable
1 × Extension Cable
Operator’s Manual
Installation Guide
Drill Templates
Mounting Screws
Quick Guide
Warranty Card
INSTALLATION CONSIDERATIONS
The 300 mm chine interceptors must be aligned flush with the angled hull surfaces to achieve maximum efficiency. Use the included drill templates for precise placement and ensure that cables passing below the waterline are sealed with watertight grommets. The Distribution Unit should be mounted in a dry, accessible area (such as the engine room), while the Control Panel is best located at the helm for maximum visibility and ease of use. Calibration is recommended after installation to synchronize interceptor movement accurately.
