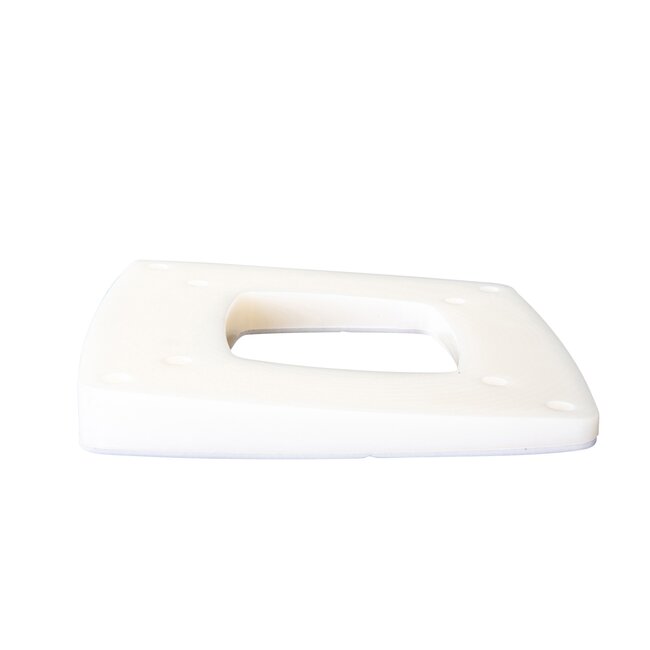

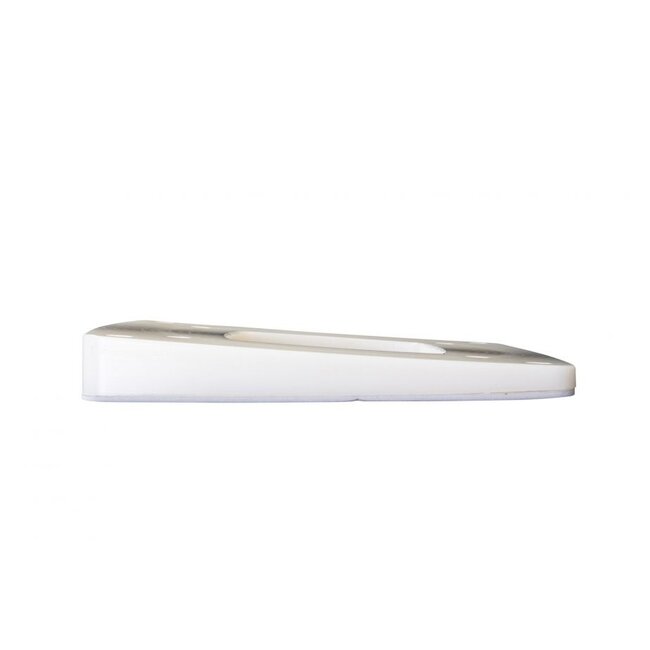

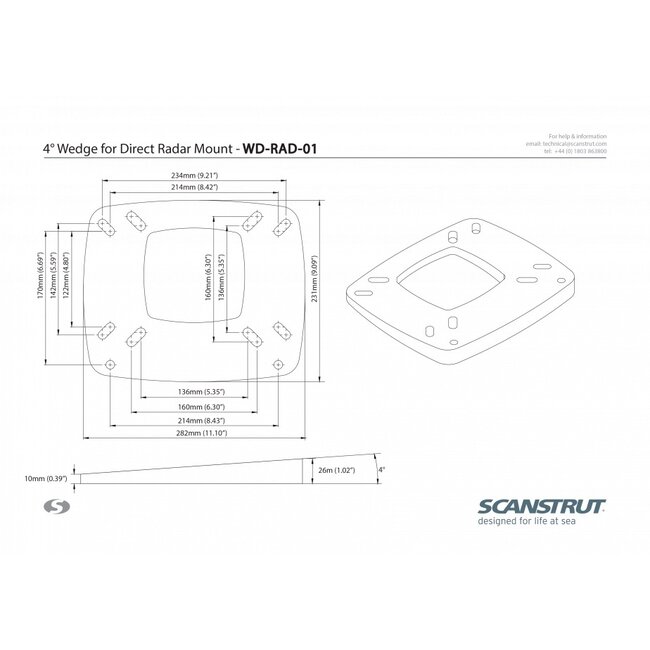

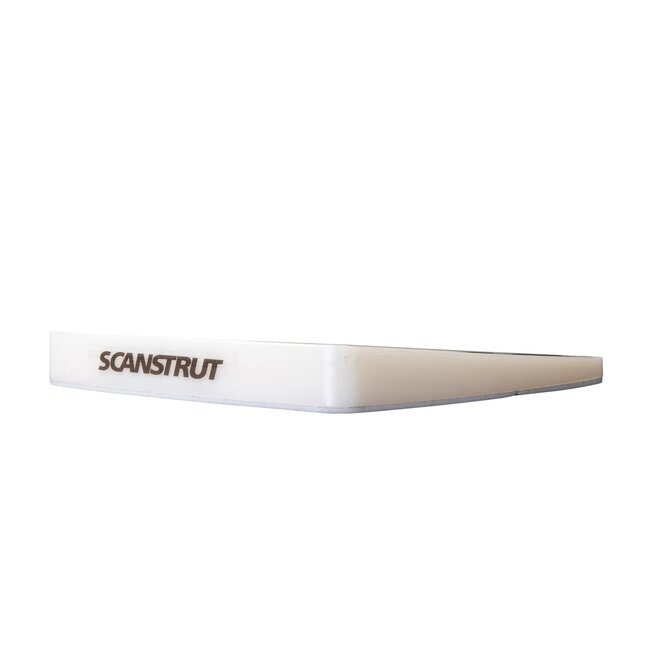

The WD-RAD-01 is a 4° Base wedge for direct radome mounting. Read more.

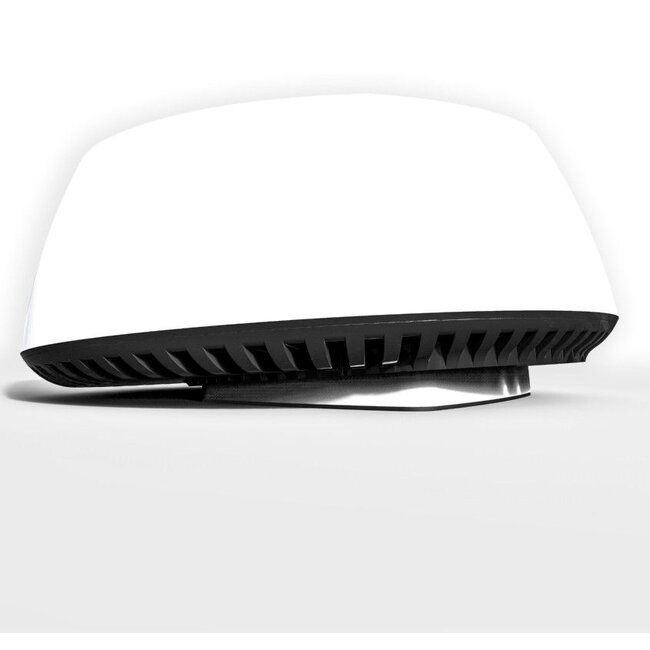

The WD-RAD-01 improves the performance of your Radome with a strong, marine-grade, UV stable wedge that angles the radar down 4° below horizontal to offer a level horizon for your radar when the boat is moving.
The 4° Base wedge for direct radome mounting is designed for direct radome mount applications, providing optimal performance and reliability.
| Garmin | Raymarine |
| Fantom 18 | QUANTUM |
| Fantom 24 | QUANTUM 2 |
| GMR18HD / 18xHD / 18HD+ | RD218 |
| GMR24HD / 24xHD | RD418/RD418HD |
| GMR40 | RD424/RD424HD |
| Humminbird | Simrad |
| AS 21RD4KW | DX45 |
| HB 2124 CHIRP | DX60 / DX64-S |
| GB40 / NX40/45 / NSE8/12 | |
| Lowrance | GB40 / NX40/45 / NSE8/12 / RB712A / DX42S |
| HALO20 | GB40 / NX40/45 / NSE8/12 DX64S |
| HALO20+ | HALO20 |
| HALO24 | HALO20+ |
| LRA-1800 / RB714A / DX42 | HALO24 |
| LRA-2400 HD | |
| Sitex | |
| MDS-12 |
