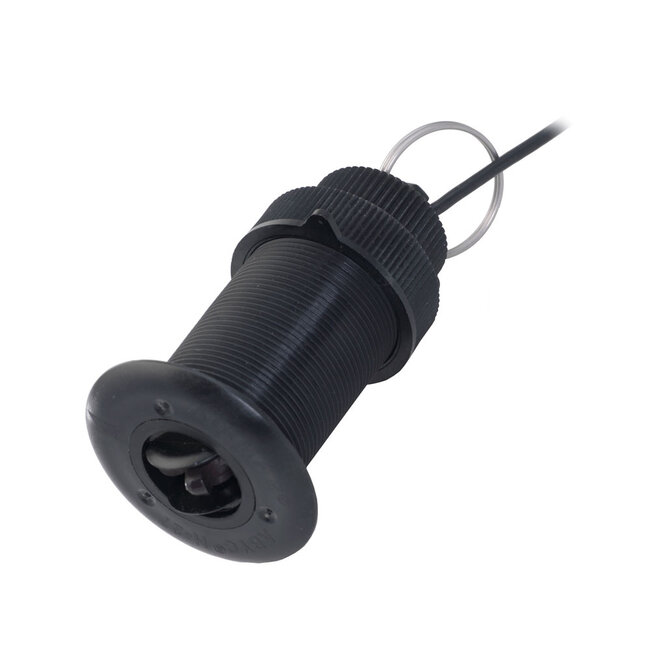

ST850 Transducer Plastic Housing with Cable
The ST850/800 is an analog, retractable speed and temperature sensor designed for reliable performance and easy maintenance. It fits into a low-profile plastic thru-hull housing that sits nearly flush with the hull, extending just 5 mm (3/16") to minimize drag. A built-in valve assembly reduces water ingress when the sensor is removed for paddlewheel cleaning or service, making it ideal for routine maintenance without hauling the boat.
FEATURES
- Speed and temperature
- Speed Range: 2 to 45 knots (2 to 52 MPH)
- Analog output
- Retractable insert in a low-profile plastic housing with a water valve
- Also available in a Stainless steel or bronze housing with water valve
- Retrofits into B617V, P617V, SS617V, P217, P314or ST650 housing
SPECIFICATIONS
- Cable-Length: 10 m (33'), 9 m (30’) Analog cable
- Common Use: Cruising/Racing Sailboats, Leisure/Yachting, Fishing
- Country of Origin: USA
- Data Rate: 1X per second
- Material: Plastic
- Pulses: 17,000 p/nm* (4.8 Hz per knot)—*p/nm = pulses per nautical mile
- Retrofits: Retrofits into B617V, P617V, SS617V, P217, P314 or ST650 housing
- Speed Range: 2 to 45 knots (2 to 52 MPH)
- Temperature Accuracy: ±0.5°C (±1.8°F)
- Tilted Element: No
- Usable Shaft Length: 57 mm (2.25")
- Voltage: 9 to 16 VDC
- Water Temperature: -10° to 40°C (14° to 104°F)
- Weight: 0.7 kg (1.4 lb.)
- Functions: Speed, Temperature
- Mounting Style: Low Profile Thru-Hull
- Power Rating: N/A
- Protocol Output: Analog
- Hull Material: Fiberglass or metal
- Hole Size: 51 mm (2")
- Retractable housing: Yes
- Display Connector: 8G
