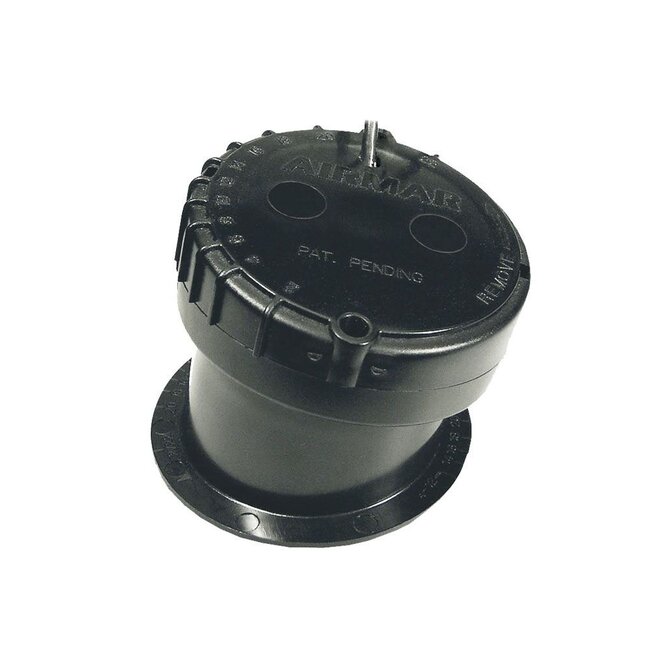

P79 50/200 In Hull D
The P79 is a dual-frequency, depth-only in-hull transducer designed for smaller boats up to 8 meters (25 feet) with solid fiberglass hulls. It adjusts easily to hull deadrise angles up to 22 degrees and installs entirely inside the boat, eliminating the need for any thru-hull drilling or external protrusions. The unit comes with a plastic mounting base that is secured to the inside of the hull and filled with non-toxic antifreeze, which serves as an effective medium for transmitting sonar signals through fiberglass. Once inserted into the base, the transducer is adjusted to ensure the beam is directed straight down, delivering accurate and reliable depth readings. This internal setup makes the P79 an ideal choice for boats that are frequently trailered or lifted.
FEATURES
- Depth only
- 600 W of power
- Dual-frequency element:
- 50 kHz with a 45° beamwidth for depth performance to 294 m (1000')
- 200 kHz with an 12° beamwidth for depth performance to 180 m (600')
- Adjusts to hull deadrise angles up to 22°
- Drill-free installation
- Recommended for planing-hull powerboats, trailered boats, rigid inflatable boats (RIBS), and racing sailboats
- No hull protrusion
- Urethane transducer housing with adjustable, plastic, mounting base
SPECIFICATIONS
- Acoustic Window: Layered plastic urethane
- Cable-Length: 2 m (7')
- Common Use: Leisure/Yachting, Fishing
- Connector: Airmar 5-Pin (MM)
- Conventional Beam: 45°/12°
- Country of Origin: USA
- Deadrise Range: 0° to 22°
- Frequency Band: 50/200 kHz
- Material: Plastic
- Max Deadrise: Up to 22°
- Max Depth: Low frequency- 294 m (1000'), High frequency- 180 m (600')
- Mix and Match Series: 5-Pin 600 Watt
- Mounting Style: In-Hull
- Sensor Connector: MM
- Single or Dual Frequency: Conventional Dual Frequency
- Tilted Element: No
- Weight: 2.3 kg (5 lb.)
- Power Rating: 600 W
- Max Deadrise Angle: 22°
- Housing: Urethane
- Functions: Depth
- Hull Material: Solid fiberglass only
- Max Vessel LOA: Up to 8 m (26')
- Display Connector: Cable Required
