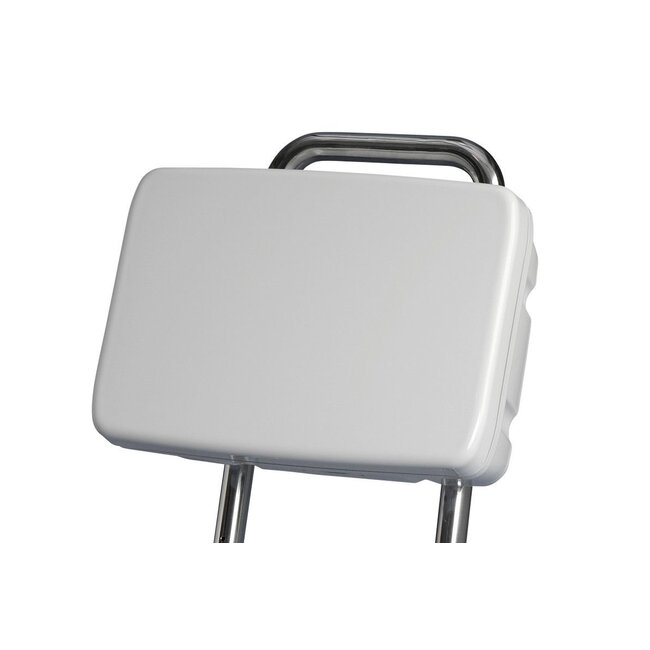

ScanPod SPH-15-W Helm Pod for displays up to 15"

The SPH 15 W HelmPod is designed to position your marine display exactly where it matters most, at the helm, in clear view and within easy reach. Suitable for displays up to 16 inches, it provides a sleek and secure mounting solution for both sailing and powerboats.

Engineered for versatility, the HelmPod fits pedestal rails ranging from 25 millimetres to 33.7 millimetres in diameter, ensuring a stable and universal fit across a wide range of pedestal systems.

Whether you're upgrading to a larger screen or planning a new navigation setup, the SPH 15 W offers a clean, professional installation that keeps your essential data right in front of you.

The product ScanPod SPH-15-W is designed for displays up to 12" applications, providing optimal performance and reliability.

FEATURES

Universal Helm Mounting
Designed for a wide fit range, this mount is compatible with pedestal rails from 25mm to 33.7mm (0.98″ to 1.33″) in diameter, ensuring a versatile and reliable solution.

Secure and Watertight Installation
The integrated saddle system firmly supports the stainless tubing for a solid, rigid attachment to any pedestal, while maintaining a watertight seal at the cable entry point.

No-Drill Fixing Kit
Installation is quick and straightforward with customised U-bolts that wrap around the rail and connect through the saddles into the back of the pod—no drilling required.

Simple Installation and Servicing
Fixings are inserted from the back and cut their threads into moulded ABS inserts at the front of the pod. This clever design allows for quick, safe installation and easy repeat servicing.

Durable Weather Protection
The pod seal is crafted from high tear-strength silicone, offering outstanding resistance to heat and UV exposure. It’s built to withstand the harshest marine conditions without deteriorating over time.

Custom Cutting Available
Each Scanpod is supplied uncut as standard. A factory cutting service is available for a small additional charge, allowing for a fully tailored setup.

SPECIFICATIONS

General Specifications

• Model: SPR-18-RM

• Material: Acrylic Capped ABS

• Colour: White

• Supplied Uncut: Yes

Size Guide

• Fits Pedestal Rails: 25 mm to 33.7 mm (0.98″ – 1.33″) diameter

• Min Rail Centres: 177.8 mm (7”)

• Max Rail Centres: 368 mm (14.5”)

Dimensions

• Width: 467 mm (18.4”)

• Height: 387 mm (15.3”)

• Depth: 183 mm (7.2”)
