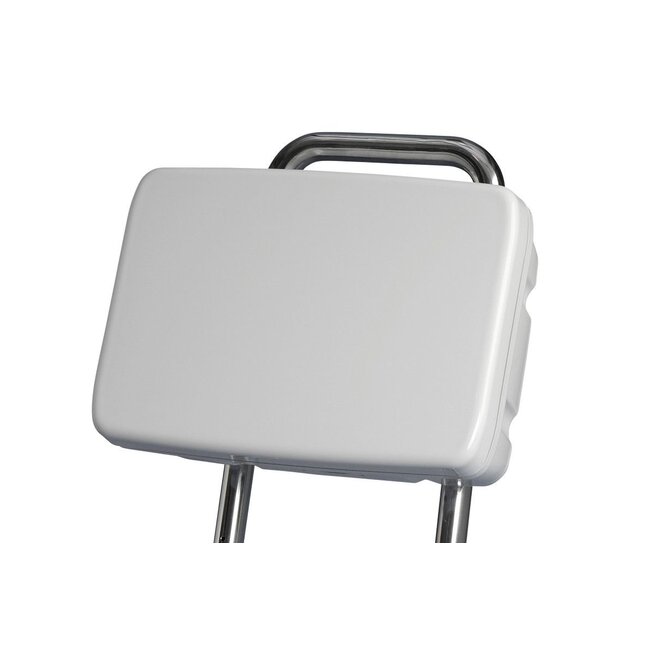

ScanPod SPH-12-W Helm Pod for displays up to 12"

The SPH-12-W HelmPod is designed to bring your marine display exactly where you need it, at the helm, within clear view and easy reach. Suitable for displays up to 12 inches, it offers a streamlined and professional mounting solution for both sailing and power vessels.

Built for compatibility, the HelmPod fits pedestal rails ranging from 25 millimeters to 33.7 millimeters in diameter, providing a secure fit across a wide variety of pedestal sizes.

Whether you're upgrading your electronics or planning a new install, the SPH-12-W delivers a clean, practical solution for helm-mounted navigation, radar, or system displays.

The product ScanPod SPH-12-W is designed for displays up to 12" applications, providing optimal performance and reliability.

FEATURES

Universal Helm Mounting
Designed for a wide fit range, this mount is compatible with pedestal rails from 25mm to 33.7mm (0.98″ to 1.33″) in diameter, ensuring a versatile and reliable solution.

Secure and Watertight Installation
The integrated saddle system firmly supports the stainless tubing for a solid, rigid attachment to any pedestal, while maintaining a watertight seal at the cable entry point.

No-Drill Fixing Kit
Installation is quick and straightforward with customized U-bolts that wrap around the rail and connect through the saddles into the back of the pod, no drilling required.

Simple Installation and Servicing
Fixings are inserted from the back and cut their threads into moulded ABS inserts at the front of the pod. This clever design allows for quick, safe installation and easy repeat servicing.

Durable Weather Protection
The pod seal is crafted from high tear-strength silicone, offering outstanding resistance to heat and UV exposure. It’s built to withstand the harshest marine conditions without deteriorating over time.

Custom Cutting Available
Each Scanpod is supplied uncut as standard. A factory cutting service is available for a small additional charge, allowing for a fully tailored setup.

SPECIFICATIONS

General Specifications

• Model: SPH-12-RM

• Material: Acrylic Capped ABS

• Colour: White

• Supplied Uncut: Yes

Size Guide

• Fits Pedestal Rails: 25 mm to 33.7 mm (0.98″ – 1.33″) diameter

• Min Rail Centres: 152.4 mm (6”)

• Max Rail Centres: 280 mm (11”)

Dimensions

• Width: 392 mm (15.5”)

• Height: 286 mm (11.3”)

• Depth: 167 mm (6.6”)

COMPATIBLE DEVICES

BROCHURES

• Helm Pods Installation Instructions

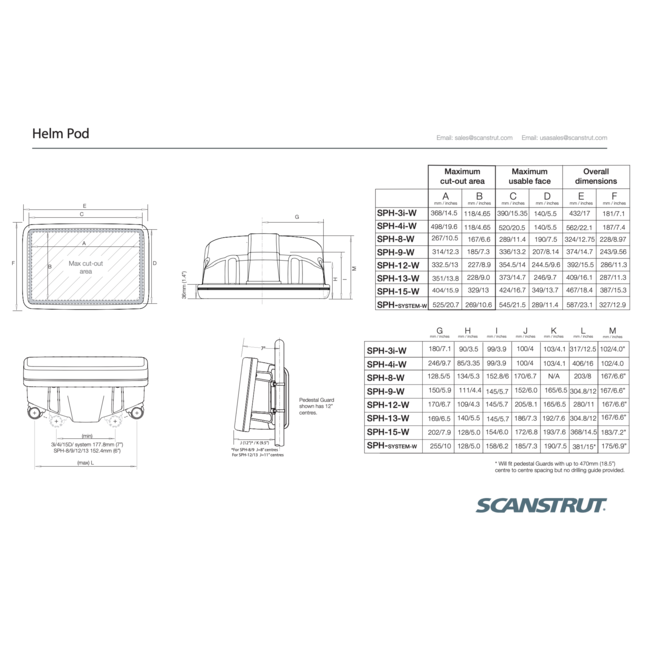

• Helm Pods Technical Drawing
