AIRMAR P95M Medium CHIRP 300 W In-Hull Transducer

The AIRMAR P95M is a Medium CHIRP transducer built for clear fish targets and reliable bottom tracking in coastal waters and lakes. Its 300 W power rating, 95–155 kHz frequency range and 26°–17° beam combine detailed target separation with broad coverage in shallow to medium depths. The rated maximum depth is 183 m (600 ft), making the P95M a strong choice for anglers who want CHIRP performance without drilling through the hull.

Designed for boats with solid-fiberglass hulls, the transducer mounts inside the vessel. Its adjustable base compensates for up to 22° of deadrise, keeping the sonar beam pointed straight down. The in-hull design is particularly practical for smaller boats that are regularly trailered or lifted.

This P95C-M-MM variant provides depth only and includes an integrated 9 m cable with an AIRMAR 12-pin Mix and Match™ connector. Complete your setup with the Mix and Match™ CHIRP adapter cable for your compatible fish finder or sonar module. Explore the adapter options below.

FEATURES

• Medium CHIRP (95–155 kHz): Clear fish targets and detailed bottom returns.
• 300 W power rating: Suited to coastal and inland fishing in shallow to medium depths.

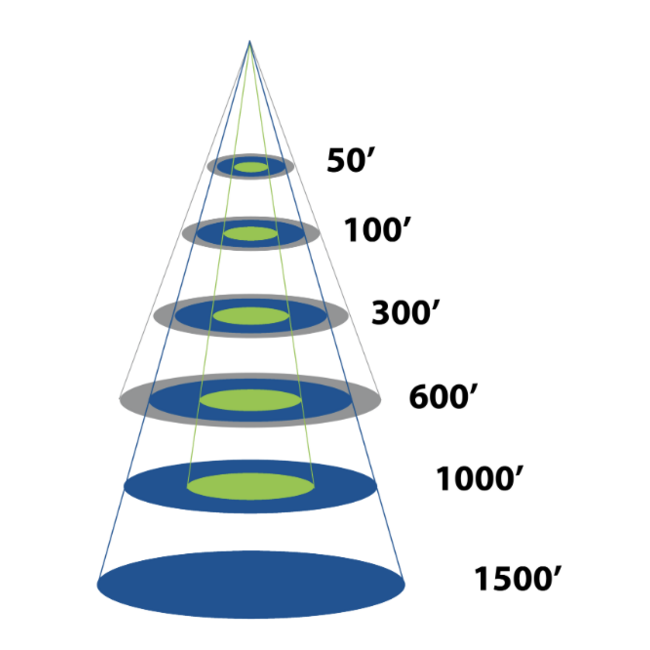

• 26°–17° beamwidth: Broad coverage with a narrower beam at higher frequencies.
• In-hull mounting: Installs without a hole through the hull.

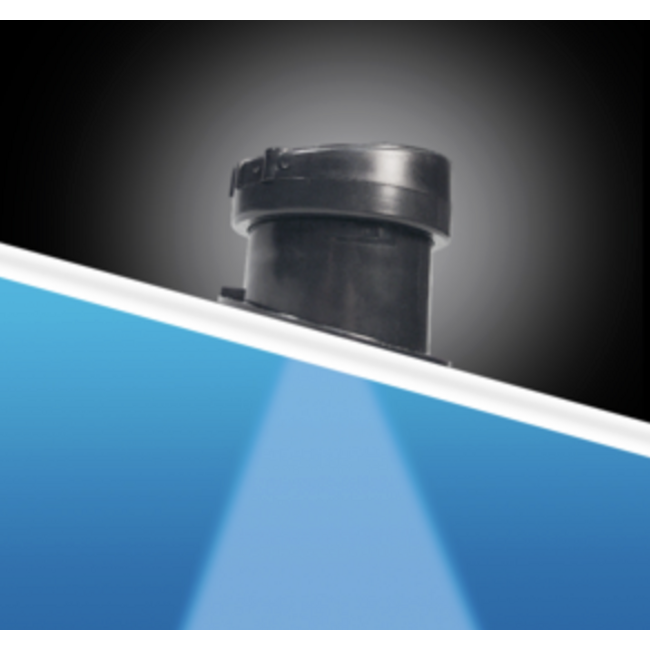

• Adjustable mounting base: Aligns the beam vertically on hulls with up to 22° of deadrise.
• Integrated 9 m cable: AIRMAR 12-pin Mix and Match™ connector.
• Depth-only function: No temperature or speed measurement.

MAIN COMPONENTS & WHAT’S INCLUDED

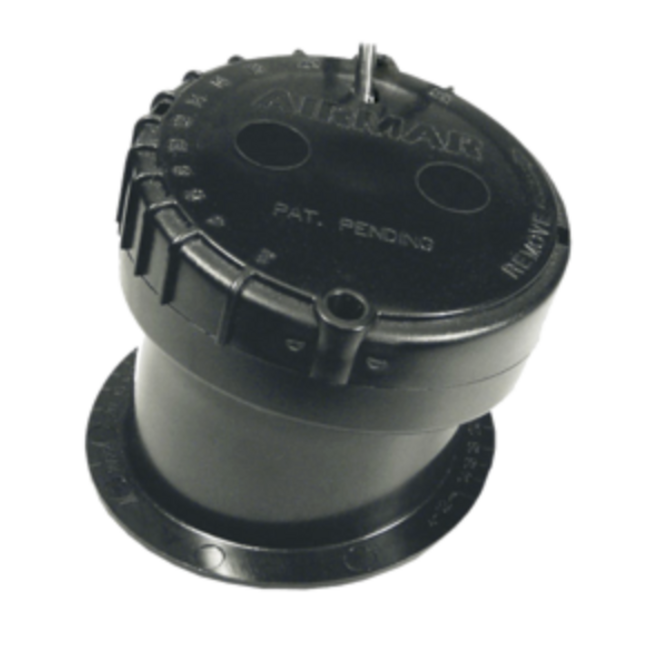

P95M CHIRP Transducer Body
300 W medium-frequency transducer with a urethane acoustic window.

Adjustable Plastic Mounting Base
Secures the transducer inside the hull and allows the beam to be aligned vertically.

Integrated 9 m Cable
Supplied with an AIRMAR 12-pin Mix and Match™ connector.

REQUIRED ADAPTER CABLE

Complete the connection with an AIRMAR Mix and Match™ CHIRP adapter cable, also available at the website. Each option listed is 1 m long, with an AIRMAR MMC 12-pin connection at the transducer end. The adapter is not included with the transducer.

Check the device compatibility filters for confirmed Furuno matches, then select the adapter for your equipment’s transducer input. For other brands, confirm P95M support with the equipment manufacturer.

• Furuno: MMC-10F-HM for 10-pin Medium/High CHIRP inputs; MMC-12F for 12-pin inputs.
• Garmin: MMC-8G for blue 8-pin inputs; MMC-12G for orange 12-pin inputs.
• Lowrance / Simrad: MMC-BL for blue 7-pin single-band inputs; MMC-9N for xSonic 9-pin Medium/High CHIRP inputs.
• Raymarine: MMC-11R-HM for 11-pin Medium/High CHIRP inputs.
• Humminbird: MMC-HB for compatible HELIX systems with a Humminbird #9 connection; MMC-14HB for 14-pin connections without XID; MMC-14HB-X for 14-pin connections with XID.
• Si-Tex / AVMAP–SEIWA: MMC-BB for compatible 8-pin Medium/High CHIRP inputs.

Wired Installations

• MMC-0: Bare-wire adapter for termination at a compatible sonar module.

Optional Cable Extensions

• MMC-EXT-10: 3 m AIRMAR MMC extension cable.
• MMC-EXT-20: 6 m AIRMAR MMC extension cable.

Extensions provide additional cable length and do not replace the required adapter.

SPECIFICATIONS

• Model: P95C-M-MM
• Power rating: 300 W
• Frequency: 95–155 kHz (Medium CHIRP)
• Beamwidth: 26°–17°
• Rated maximum depth: 183 m (600 ft)
• Functions: Depth

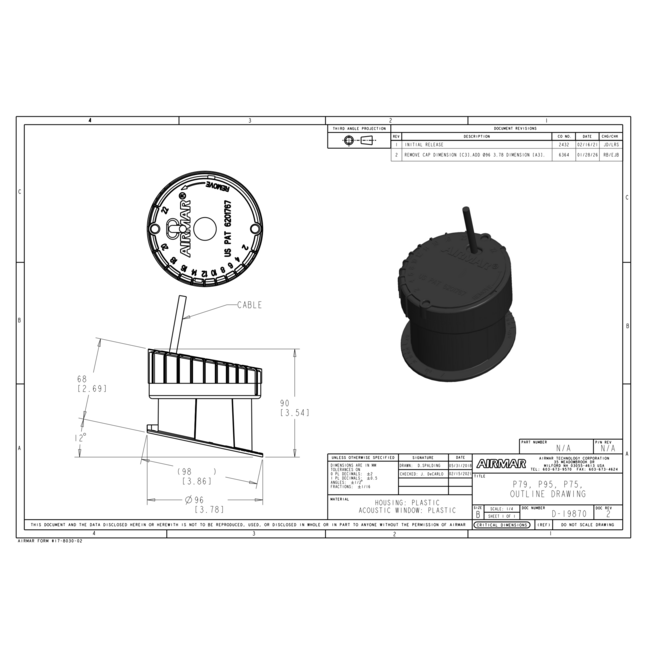

• Mounting: In-hull with adjustable base
• Housing: Plastic with urethane acoustic window
• Mounting base: Plastic
• Hull material: Solid fiberglass only
• Recommended boat size: Up to 8 m
• Deadrise range: 0°–22°
• Cable length: 9 m, integrated
• Connector: AIRMAR 12-pin Mix and Match™ (MMC)
• Adapter cable: Required, not included

INSTALLATION CONSIDERATIONS

Install the adjustable base inside a solid-fiberglass hull, align it with the boat’s centreline and fill it with non-toxic antifreeze. Adjust the transducer for the hull’s deadrise so the beam points straight down. Follow AIRMAR’s installation instructions.
