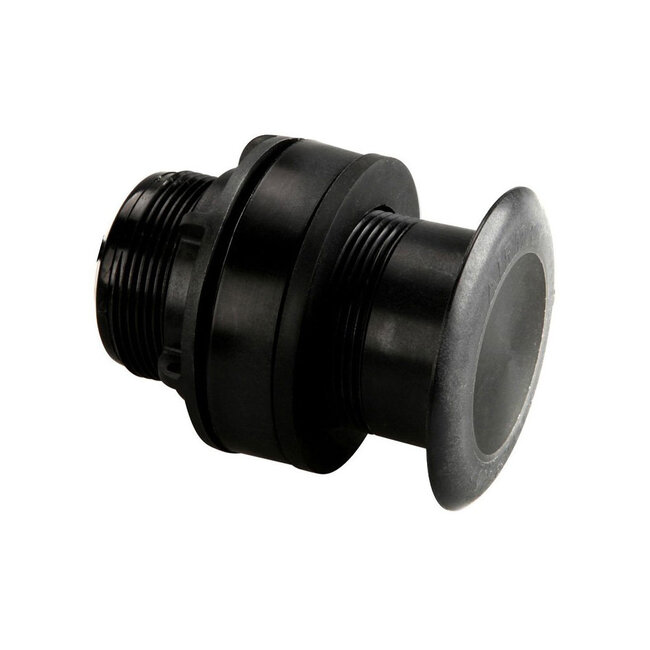

P319 50/200kHz Transducer dual frequency with 10M cable
The P319 is Airmar’s entry-level, dual-frequency transducer, featuring a 50/200 kHz ceramic element housed in a low-profile plastic housing. Its streamlined, nearly-flush design extends just 5 mm (3/16") outside the hull, minimizing drag and making it ideal for trailerable boats or vessels where performance and simplicity are key.
FEATURES
- Depth only or depth and fast-response water-temperature sensing
- 600 W of power
- Dual-frequency element:
- 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Right-angle cable exit saves space and protects transducer if stepped on
- Included rubber washer allows tightening of the hull nut to irregular hull surfaces
- Low-profile housing has minimum drag
- Plastic housing is ABYC H-27 compliant
- Bronze (B117) and stainless steel (SS60) models are also available to accommodate all hull materials
SPECIFICATIONS
- Acoustic Window: Urethane
- Cable-Length: 10 m (33')
- Common Use: Leisure/Yachting, Fishing
- Connector: Furuno 10 Pin
- Conventional Beam: 45°/12°
- Country of Origin: USA
- Deadrise Range: Best performance through 7°. Can accommodate up to 12°.
- Frequency Band: 50/200 kHz
- Material: Plastic
- Max Deadrise: Best performance through 7°. Accommodates up to 12°
- Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')
- Mounting Style: Low Profile Thru-Hull
- Single or Dual Frequency: Conventional Dual Frequency
- Tilted Element: No
- Weight: 0.6 kg (1.3 lb.)
- Power Rating: 600 W
- Max Deadrise Angle: 12°
- Functions: Depth,
- Hull Material: Fiberglass or metal
- Max Vessel LOA: Up to 8 m (26')
- Hole Size: 51 mm (2")
- Usable Shaft Length: 63.5 mm (2.50")
- Display Connector: 10F
