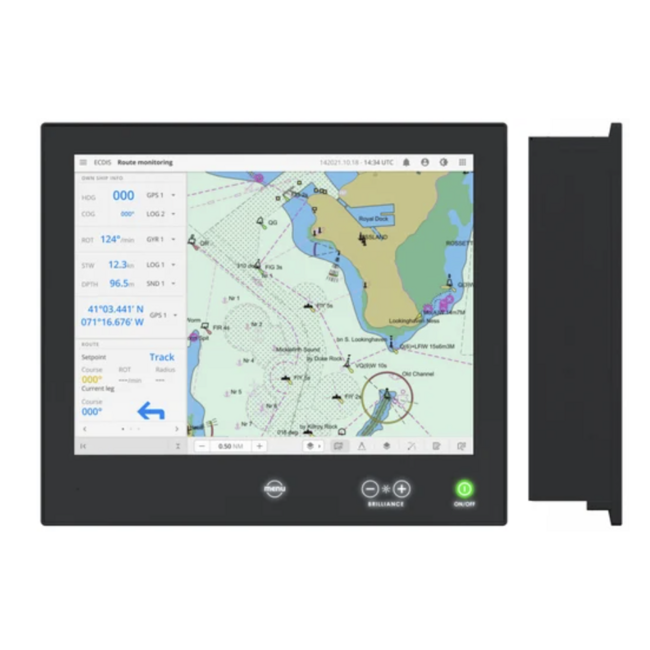

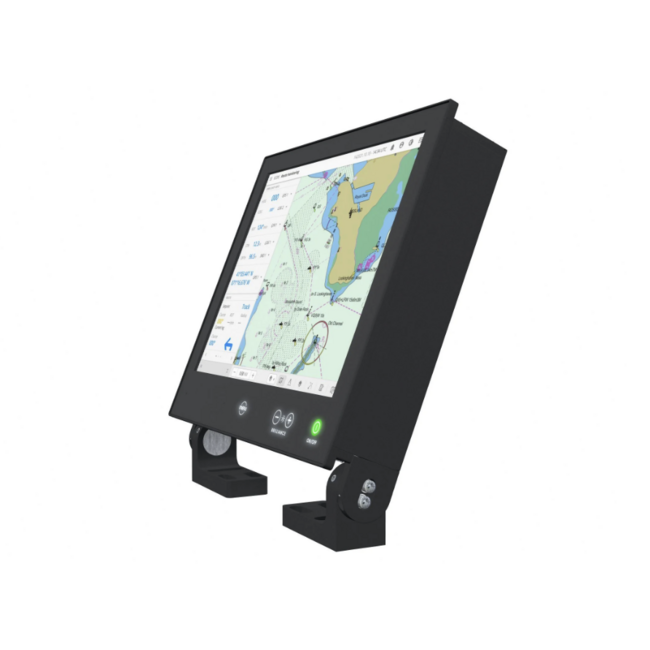

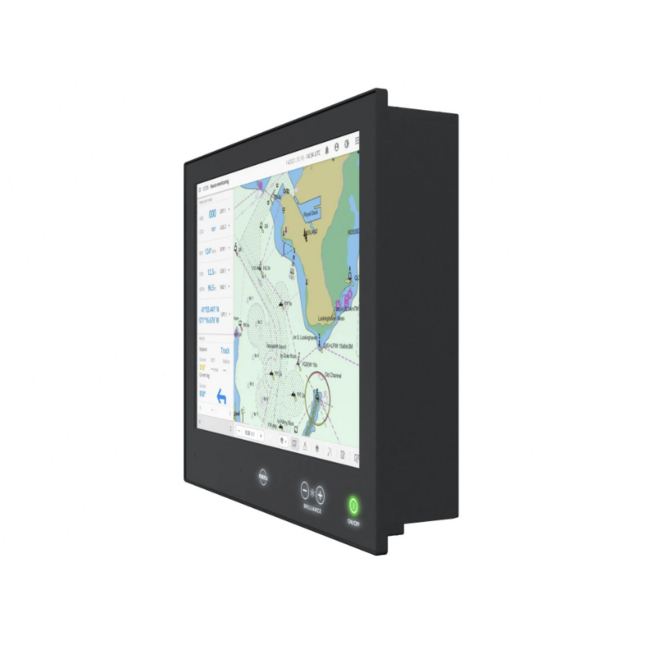

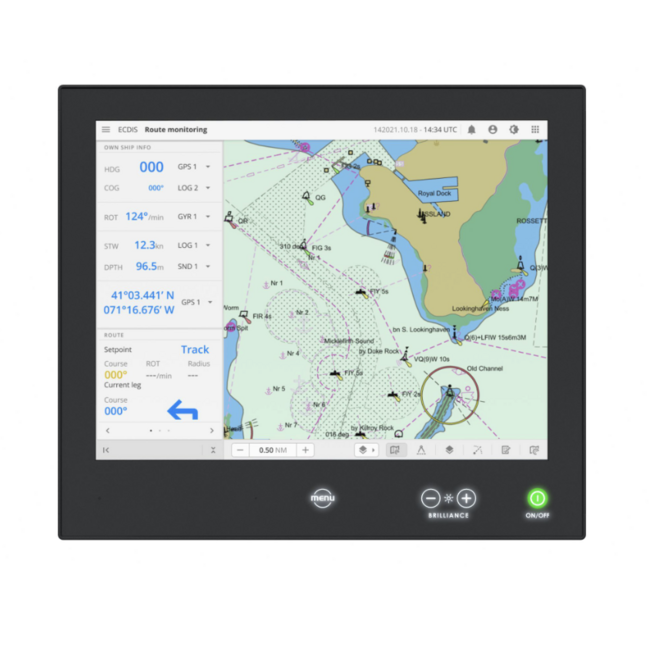

Hatteland HD 15T27 MMD-MA1-FOGP1A 15" LCD Multi Touch Marine Monitor

The Hatteland HD 15T27 MMD-MA1-FOGP1A 15" LCD Multi Touch Marine Monitor is a professional 15" maritime multi display designed to show and control information from connected systems such as Black Box MFDs, navigation processors, onboard computers, automation platforms and camera feeds.

This model belongs to the Hatteland Series X Generation 3 range, the upgraded generation of the Series X maritime display platform. It keeps the compact, bridge-ready format expected from Hatteland while adding a more modern connection platform, improved signal handling and stronger long-term relevance for professional maritime integration.

For compact bridge panels, refits and professional display stations, this monitor gives the installation a precise, marine-grade screen with XGA resolution, projected capacitive touch, bonded front glass, Glass Display Control™, AC/DC power configuration and upgraded Series X G3 connectivity.

A Compact Series X G3 Display for Professional Maritime Systems

The HD 15T27 MMD-MA1-FOGP1A is not a standalone chartplotter or multifunction display. It is a Maritime Multi Display built to work as the visual and touch interface for external systems.

The 15" format is especially valuable when the bridge needs a professional marine display but panel space is limited. It gives compact consoles, secondary monitoring stations and refit projects a high-quality screen environment without forcing a 17", 19" or larger monitor into the layout.

This model is particularly relevant for:

• Furuno Black Box systems where the processor is separate from the display and the monitor is used as the dedicated visual and touch interface
• Compact bridge panel upgrades where screen size, panel space and mounting depth need to be carefully controlled
• Onboard computer output for navigation, monitoring or control software
• Automation, alarm, camera or CCTV display points that need a dedicated marine-grade visual interface
• Series X refits where the processor output, touch requirements and installation format are correctly matched

For the operator, the benefit is clear: a compact, marine-grade display that keeps critical information visible, controlled and connected without overcomplicating the bridge layout. The HD 15T27 MMD-MA1-FOGP1A brings the newer Series X G3 platform into a controlled 15"

format, giving compact bridge upgrades and Black Box display stations a stronger balance of screen quality, integration flexibility and panel-space efficiency.

Key Technical Specifications

• Brand: Hatteland
• Model reference: HD 15T27 MMD-MA1-FOGP1A
• Product number: 138415
• Product type: 15" Maritime Multi Display / Marine Monitor
• Series: HATTELAND® Series X G3
• Screen size: 15.0"
• Native resolution: 1024 x 768 pixels, XGA
• Configuration: ACDC, Black, Bonded, GDC, Buzzer, PCTouch
• Touch panel: projected capacitive touch
• Power configuration: AC/DC
• Generation: T27 / Series X G3
• G3 platform improvements: upgraded connectivity and new video scaler
• Designed use: professional bridge integration, external system display and compact maritime monitoring

Compatibility Details That Matter Before Ordering

Before choosing this monitor, check the details that decide whether it fits the connected system and bridge layout:

• Use 1024 x 768 XGA for best image quality. This is the native resolution of the 15" display and the correct target resolution for the connected processor or onboard computer.
• Match the video output to the G3 input platform. The T27 generation is built around upgraded connectivity and improved signal handling, making it suitable for mixed modern and legacy bridge systems.
• Confirm touch communication. This configuration includes PCTouch, so the connected processor or computer must support the required touch interface if touch control will be used.
• Check possible Furuno Black Box integration. This monitor is suitable for compatible Furuno Black Box and professional bridge display environments, provided the processor output matches the monitor’s supported video inputs and touch support is available when touch control is required.
• Plan refits around the Series X form factor. The G3 platform is designed with continuity from earlier Series X displays, making it relevant for upgrade projects where panel space and replacement planning matter.
• Review legacy system requirements before ordering. For mixed old-and-new bridge electronics, check whether adapters or expansion options are needed to connect the existing equipment cleanly.

What the Series X G3 Upgrade Adds

The move from Series X G2 to Series X G3 is mainly about making the monitor platform more suitable for current bridge systems and future refits.

The key improvements are:

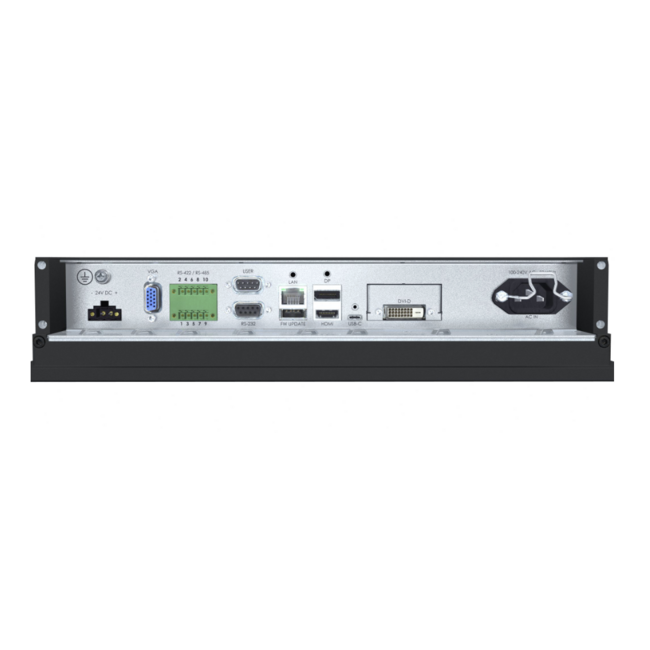

• Upgraded connectivity for modern processors, onboard computers and digital bridge systems
• A new video scaler for better handling of different signal resolutions and source types
• Improved retrofit logic for installations moving from older Series X displays
• Continued Series X design quality, including Glass Display Control™, bonded front configuration and professional maritime display architecture

For compact bridge layouts, the HD 15T27 MMD-MA1-FOGP1A brings the benefits of the Series X G3 platform into a space-efficient 15" format, combining modern connectivity, improved signal handling and strong retrofit value in one professional marine display.

Frequently Asked Questions About the Hatteland HD 15T27 MMD-MA1-FOGP1A 15" Monitor

• Is the Hatteland HD 15T27 MMD-MA1-FOGP1A a chartplotter?

No. This product is a marine monitor, not a standalone chartplotter. It must be connected to a compatible Black Box MFD, onboard computer, navigation processor, camera source or monitoring system.

• What is the resolution of the HD 15T27 MMD-MA1-FOGP1A?

This 15" model has a 1024 x 768 XGA resolution, so the connected processor or computer should be configured around that resolution for the best image match.

• What is the difference between HD 15T22 MMD and HD 15T27 MMD?

The HD 15T22 MMD belongs to Series X G2, while the HD 15T27 MMD belongs to Series X G3. The T27 / G3 platform adds upgraded connectivity and a new video scaler while keeping the professional Series X display concept.

• Is this monitor suitable for replacing an older Series X display?

Yes. It is especially relevant for refits where a compact 15" Series X display is needed and the installation benefits from the newer G3 platform, improved signal handling and continuity with previous Series X formats.

• Can this monitor be used with Furuno Black Box systems?

This monitor is suitable for compatible Furuno Black Box and professional bridge display environments, provided the Furuno processor output matches the monitor’s supported video inputs and touch support is available when touch control is required.

• Why choose the T27 version instead of the older T22 generation?

Choose the T27 version when the installation benefits from the newer Series X G3 platform, especially upgraded connectivity, improved video scaling and stronger long-term relevance for modern bridge integration.

A Professional Marine Monitor Selected for Compact G3 Bridge Installations

The Hatteland HD 15T27 MMD-MA1-FOGP1A is a strong choice for vessels that need a compact 15" multi-touch marine monitor with the latest Series X G3 platform. It is especially relevant for Black Box systems, navigation processors, onboard computers, camera feeds, automation screens and refit projects where display quality, connectivity and installation continuity matter.

At Sail360, this type of high technology marine monitor is selected for buyers who need more than a standard screen. Our focus is to make advanced marine electronics easier to compare, with clear product information that helps boat owners, refit specialists and professional users understand what fits their system before they buy.

Whether you are upgrading from a previous Series X display, building a compact Black Box setup or replacing an unsuitable monitor with a professional maritime display, Sail360 helps you choose with stronger technical clarity and better purchase confidence.

Brochure

Hatteland HD 15T27 MMD Series X G2 Datasheet

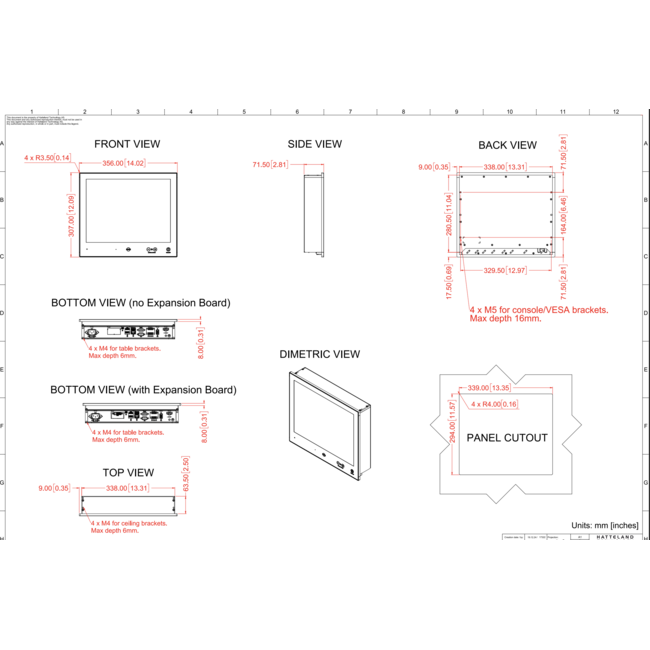

Hatteland HD 15T27 MMD Technical Drawings
